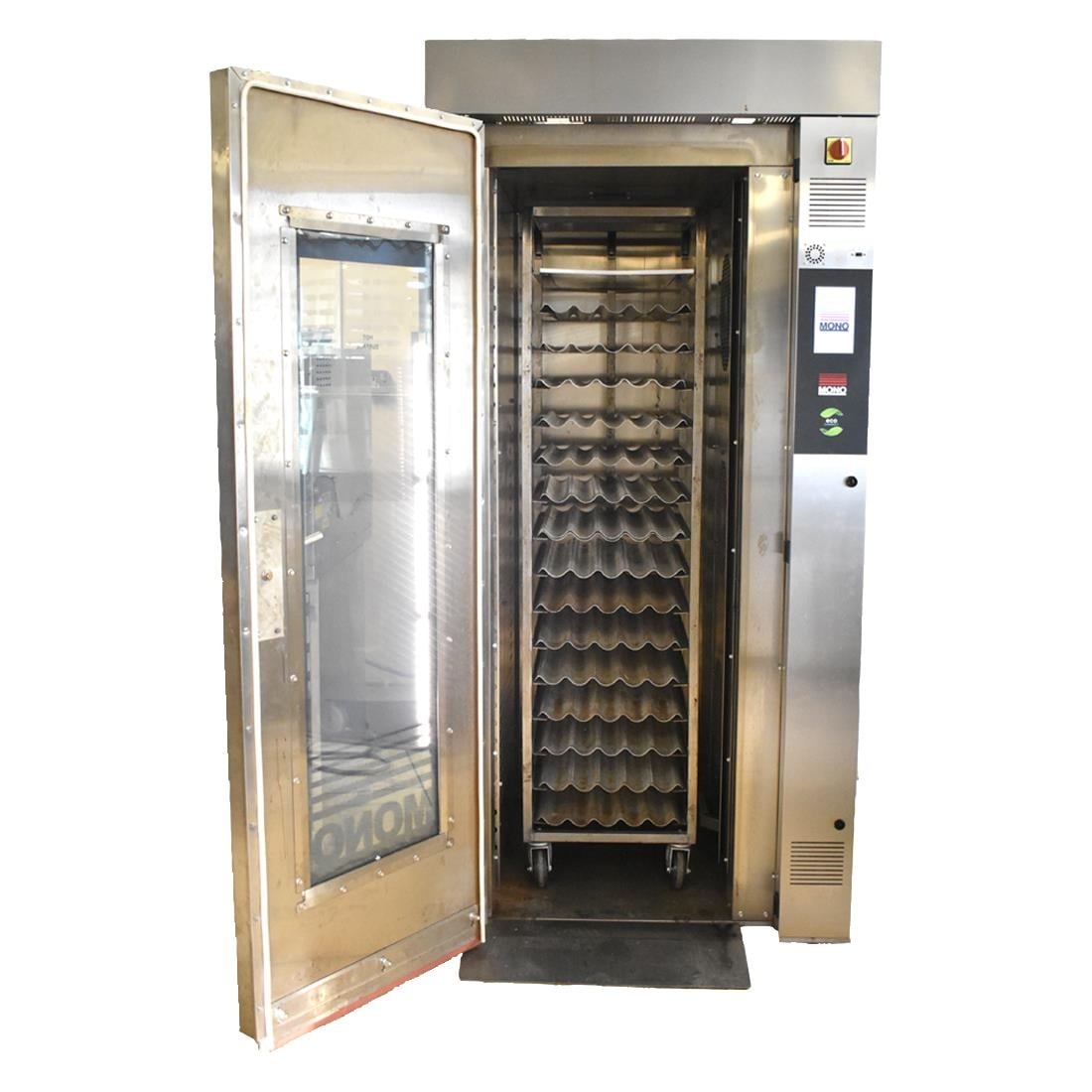

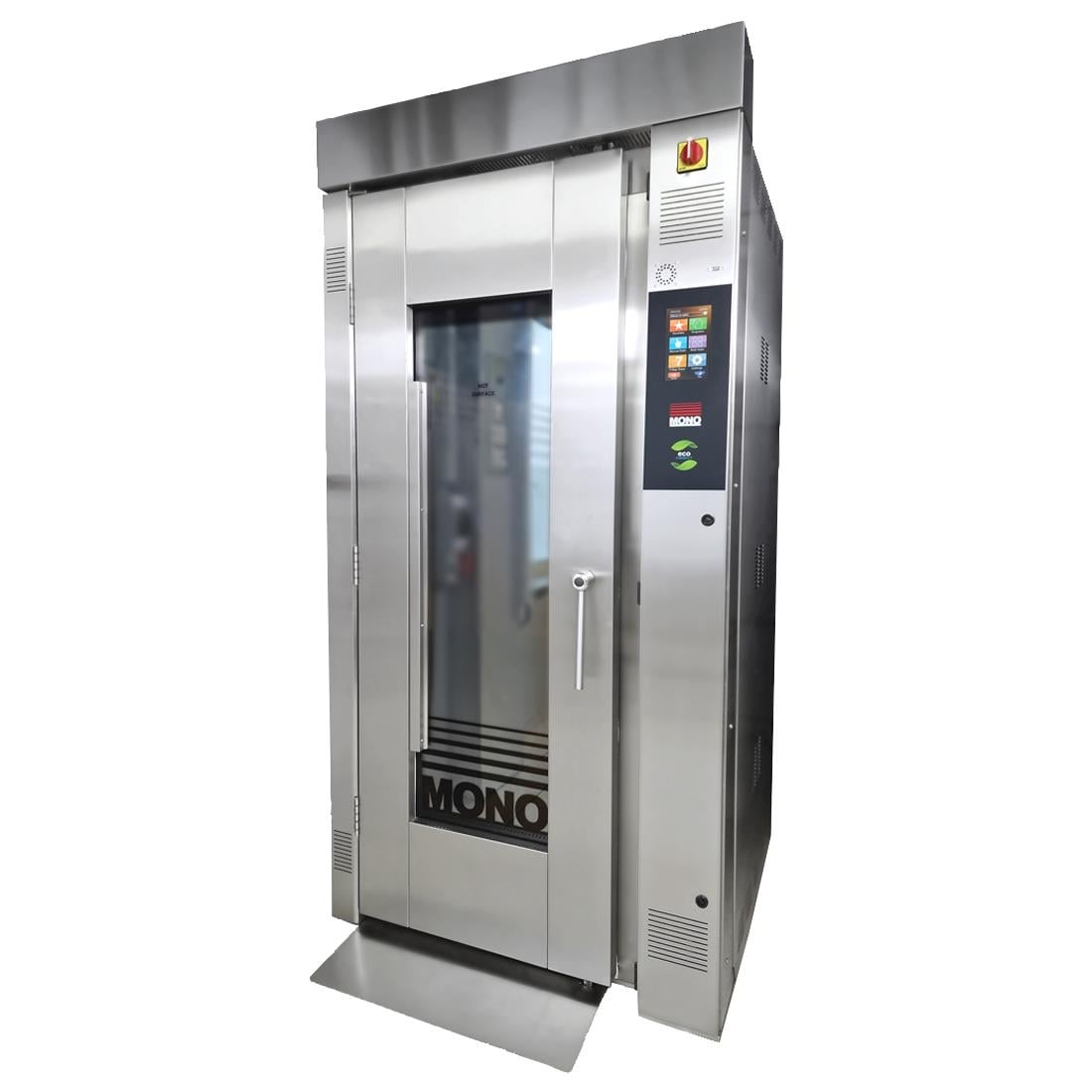

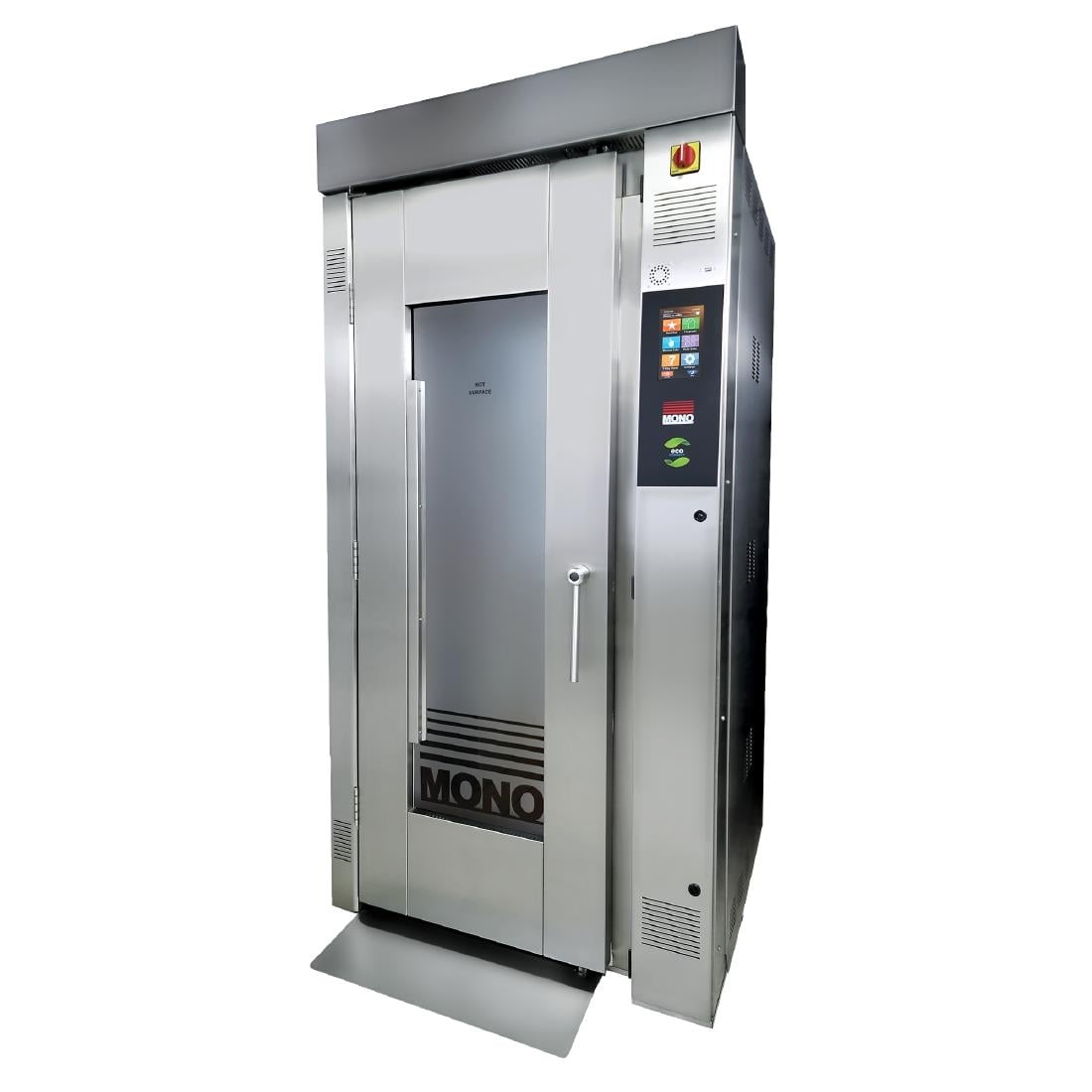

Mono Static Rack Convection Oven 18 Tray 3 Phase HT455

£18,338.69

+vat

Availability: 999 in stock

Brand:

SKU: HT455

Product summary

28kW. 18 Tray Capacity

Product description

The Mono static rack oven is the perfect solution when a traditional 10-tray convection oven just doesn’t have the required baking capacity to meet production demands. By eliminating the need for the rotary function, valuable space has been saved which means up to 18 trays of product can be baked to perfection, but in a much smaller footprint. In fact, the Static rack oven uses a similar amount of floorspace as many 10-tray convection ovens on the market without compromising performance.

The static rack oven is the ideal oven for baking large volumes of both part-baked and lighter scratch products. The combination of the specially designed heating elements and triple fans ensures an even heat distribution throughout the baking chamber, resulting in a consistent bake each and every time. Also, the integrated steam generating system produces plenty of high-quality steam to create that perfect shiny crust on breads and rolls.

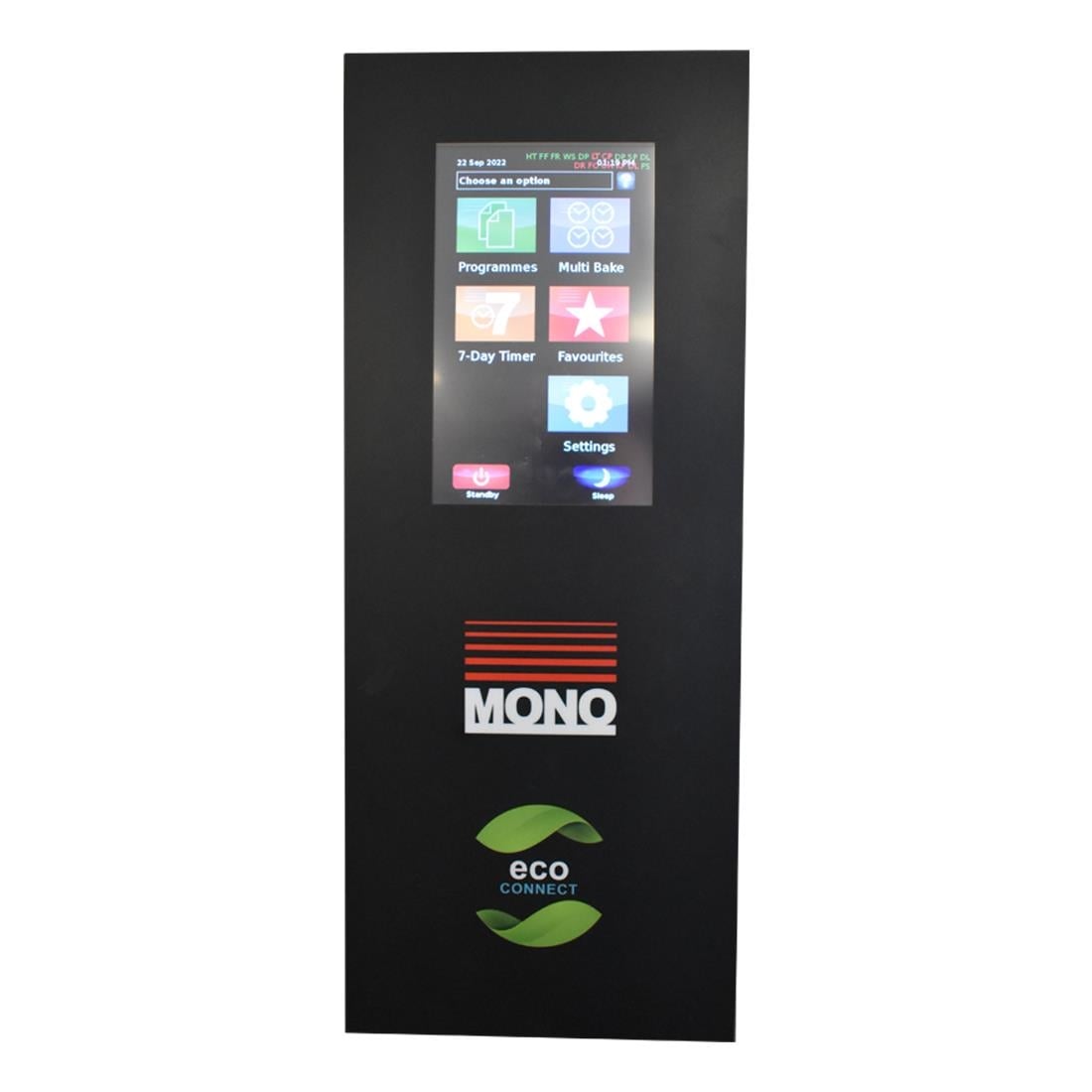

The Mono static rack oven features Mono’s innovative Eco Connect control panel which delivers a full-colour, highly-intuitive touch-screen interface for the user which offers many energy-saving benefits like Auto Shutdown, 7-Day timer and Sleep Mode. In total, the controller can store up to 240 individual bake programmes, each of which can be split in to 6 bake phases for complete control of the baking process.

Please note: this oven is made to order and is therefore non-returnable.

Compact footprint for smaller bakeries
Energy saving: Auto Shutdown, 7-Day Timer and sleep mode
18 trays of products baked at once
240 bake programmes
6 bake phases
Intuitive touch-screen Eco Connect controller
Integrated steam system
Automatic damper facility
LED door-mounted lighting
Can accommodate any 30″x18″, 26″ 18″ or 60cm x 40cm heat proof rack
Please note: this product is made to order. As such, once ordered cannot be cancelled or returned
Front access ramp

The Mono static rack convection oven bakes up to 18 trays in the footprint of a 10-tray rotary, delivering consistent results across bread, rolls, and part-baked goods without the rotary mechanism.

Downloads

SPECIFICATION 15 facts · tap for all Width1061 mmDepth1299 mmHeight2195 mmVoltage400VMaterialStainless SteelProduct codeHT455

Identity4

Brand Monosite
Product code HT455site
Type Bakery Ovenscatalogue
Warranty 1 Year Parts & Labourcatalogue

Size & weight4

Depth 1299 mmcatalogue
External (W×D×H) 2195 × 1061 × 1299 mmcatalogue
Height 2195 mmcatalogue
Width 1061 mmsite

Performance1

Controller Touch Screencatalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 28000 Wcatalogue
Voltage 400Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts1

Electrical safety notice Yescatalogue
THE WORKING VIEW

Why this bakery oven earns its place

When a traditional 10-tray rotary oven hits its limit, most kitchens look for more space. The Mono static rack oven offers a smarter solution: by removing the rotary function, you gain capacity for 18 trays of product whilst keeping a footprint comparable to many 10-tray machines on the market. That's a significant production jump without needing to rearrange your entire baking floor.

The oven's design focuses on consistency. A combination of specially designed heating elements and triple fans ensures even heat distribution throughout the chamber—crucial when you're baking 18 trays that all need to finish together. The integrated steam generating system produces generous high-quality steam, delivering the shiny crust that distinguishes artisan breads and rolls from lesser output. Each bake emerges uniform, batch after batch.

Control is intelligent and user-friendly. The Eco Connect touch-screen panel stores up to 240 individual bake programmes, each split into 6 phases for precise control of rise, crust development, and steam injection. Auto Shutdown, 7-Day scheduling, and Sleep Mode keep energy costs proportional to your actual production load. Built in stainless steel and rated for 400V three-phase, this is a machine designed for volume.

BEFORE YOU BUY

Questions, answered straight

The oven accommodates 18 GN (Gastronorm) trays. Capacity depends on your product—a standard 60×40 cm tray typically holds 12–16 rolls or 4–6 loaves, though this varies by size. Use the Combi oven capacity selector tool above to plan your specific product load.

Yes, this is a three-phase machine (400V, 28 kW). Your kitchen will need a dedicated three-phase circuit; most commercial kitchens already have this for larger equipment. Confirm with your electrical contractor during installation planning.

The integrated steam generator produces on-demand steam to the chamber. You control the timing and duration via the touch-screen—essential for developing crust on bread and rolls without drying the crumb.

Like all convection ovens, the chamber and racks need regular cleaning to prevent mineral buildup from steam and flour residue. The stainless steel construction resists corrosion, but we recommend a monthly deep clean and de-lime. Our HACCP cleaning schedule tool above provides a printable routine.

Mono includes 1 Year Parts & Labour. After that, you're covered by your Craven Cooling service plan. For servicing queries or breakdown support, call us on 01792

The footprint is 2195 mm tall, 1061 mm wide, and 1299 mm deep. It needs headroom for loading trays and access to your three-phase circuit. Measure your space first—if it's tight, the smaller Mono ovens in our range may suit better.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Mono Static Rack Convection Oven 18 Tray 3 Phase HT455 Product Data

Brand Mono
Type Bakery Ovens
Dimensions 2195(H) x 1061(W) x 1299(D)mm
Material Stainless Steel
Colour / Finish Silver
Power Electric
Voltage 400V
Fuel / Supply Three Phase
Warranty 1 Year Parts & Labour
Manufacturer Ref FG165ECLHS1
If you have any questions about the Mono Static Rack Convection Oven 18 Tray 3 Phase HT455 then please get in touch.
