Convotherm Mini Standard Electric Combi Oven Left Hinged Door 6.06 JB324

£3,926.05

+vat

Availability: 999 in stock

- +

Brand:

SKU: JB324

Product summary

Capacity: 6 x 2/3 GN. Electric Injection: Single phase, 3kW
left hinged door

Product description

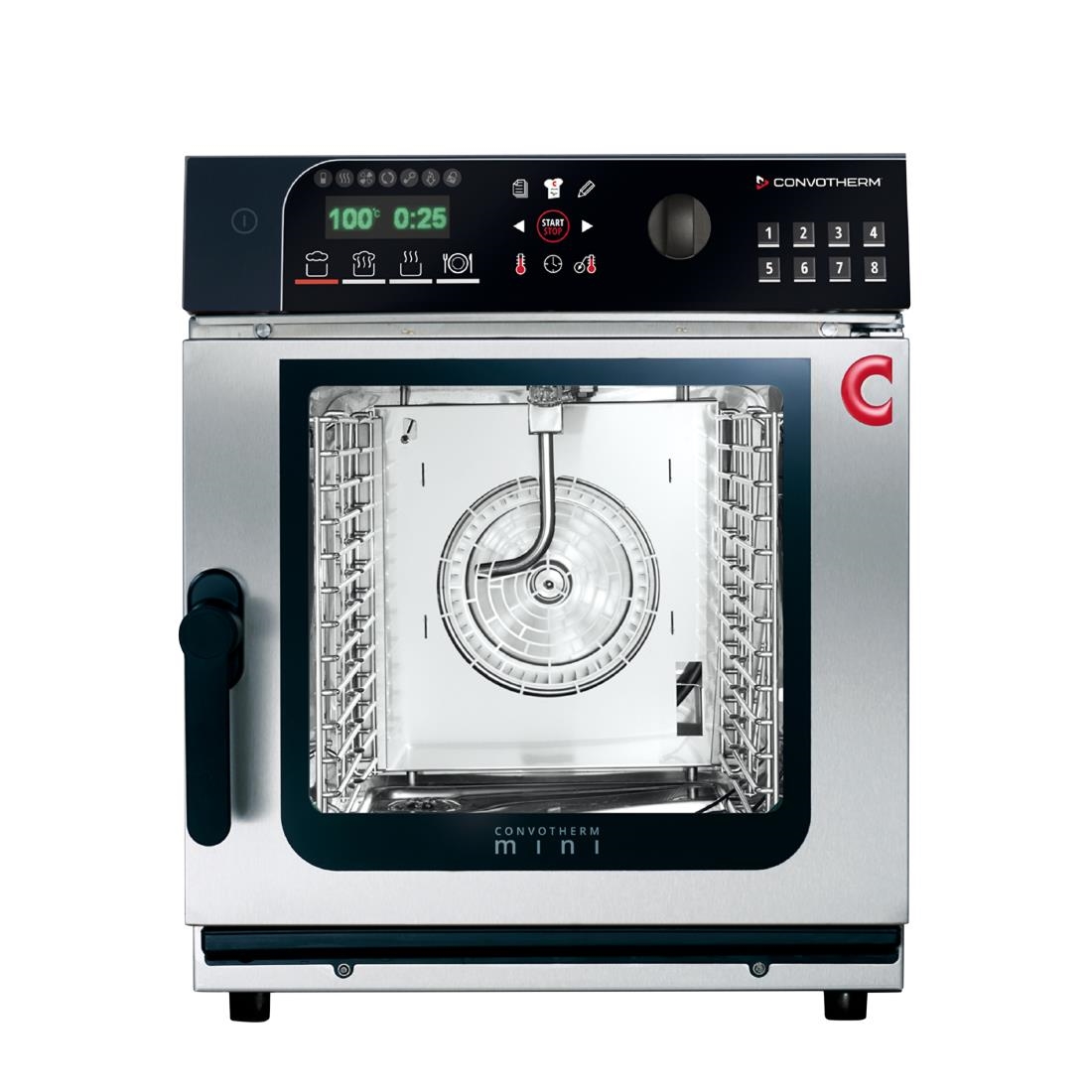

The Convotherm Mini 6.06 standard combi oven is the unbeatable compact all-rounder. With a width of just 51.5cm, the Mini is designed to fit in the tightest of kitchens, all whilst still offering a generous cooking chamber and impressive cooking functionality.

With simple, easy to understand digital controls, the Mini has huge flexibility in performance, providing impressive speed and output for an oven of this size. The responsive control panel makes it effortless to start cooking programmes – ideal in busy kitchens. And when it comes to cleaning, Convotherm’s innovative ConvoClean system ensures a thorough, effective automated cleaning routine.

This model can accommodate up to six two-third size gastronorm trays and has a left hinged door.

Compact – at a width of only 51.5 cm, get the best ratio of footprint to load quantity
Fast electric spritzer steam generation
Three cooking methods – Steam, combi-steam and convection
ConvoClean – fully automatic cleaning with 3 cleaning settings and 3 cleaning modes, automatic dosage, certified for unattended cleaning and cleaning scheduler
Crisp&Tasty – rapid dehumidification in 3 levels

Downloads

SPECIFICATION 17 facts · tap for all Width580 mmDepth740 mmHeight850 mmGross weight45 kgVoltage230VMaterialStainless Steel

Identity5

Brand Convothermsite
Extended warranty 1 Year Parts Onlycatalogue
Product code JB324site
Type Combination Ovenscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 740 mmcatalogue
External (W×D×H) 850 × 580 × 740 mmcatalogue
Gross weight 45 kgcatalogue
Height 850 mmcatalogue
Width 580 mmsite

Capacity2

Gastronorm size 2/3 GN two thirdscatalogue
Shelves 6catalogue

Power & energy3

Fuel type Single Phasecatalogue
Rated input 3000 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue
THE WORKING VIEW

Why this combination oven earns its place

The Convotherm Mini 6.06 Standard opens combination cooking to kitchens that don't have three-phase electrical supply. Running on standard 230V single-phase at just 3000 W, this oven fits into kitchens with basic electrical infrastructure—small hotels, rural locations, new restaurants still building out their supply, or sites where three-phase installation would be expensive or impossible. You're not compromising; you're just solving a real problem.

At 850 mm tall and 740 mm deep, the 6.06 Standard is compact on both dimensions. It holds six two-thirds gastronorm trays, which is genuinely the right size for most takeaways, cafés, and smaller hospitality operations. Combination cooking still means steam for moist cooking, roast for dry heat, and holding at service temperature—all the functionality of larger models, just in a footprint that actually fits your kitchen. The responsive digital controls make it effortless to dial in programmes; ConvoClean handles burndown automatically.

At 45 kg, this is Convotherm's lightest Mini oven—genuinely portable if you ever need to move it. Stainless steel construction throughout, two-year parts and labour warranty. This is the oven that proves combination cooking isn't only for big kitchens with big electrics.

DELIVERY FITSTATED GEOMETRY
Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

580 × 740 × 850 mmstated W × D × H45 kg
THE CRITICAL ANSWERNarrowest straight opening580mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS850 mmCheck corners and landings
YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

This checks straight stated geometry only.

BEFORE YOU BUY

Questions, answered straight

Yes, but with a caveat: this specific model is rated for 230V single-phase at 3000 W. It's commercially certified and performs like any other Convotherm Mini—it just doesn't require three-phase infrastructure. Check your supply amperage first (you need at least a 16 A circuit), then you're good.

No. Heat recovery is just as fast; cooking results are identical. The only difference is you don't need an electrician to wire it in. It's genuine combination cooking, not a compromise model.

Three-phase is commercial standard and slightly more power-efficient, but single-phase is what most buildings have domestically. If your kitchen only has single-phase, most commercial ovens won't fit—this one will.

It stands alone just fine. You can have single-phase ovens and three-phase fridges in the same kitchen—they're separate circuits. The 6.06 doesn't need the bigger infrastructure to do its job.

If you grow and decide you need a larger oven later, our team on 01792 732702 can advise on electrical upgrades at that point. The 6.06 Standard isn't a stepping stone—it's a fully capable oven built for the work you actually do now.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Convotherm Mini Standard Electric Combi Oven Left Hinged Door 6.06 JB324 Product Data

Brand Convotherm
Type Combination Ovens
Dimensions 850(H) x 580(W) x 740(D)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 6
Power Electric
Voltage 230V
Fuel / Supply Single Phase
Warranty 2 Years Parts & Labour
Weight 45kg
Manufacturer Ref 6.06MINILH
If you have any questions about the Convotherm Mini Standard Electric Combi Oven Left Hinged Door 6.06 JB324 then please get in touch.
