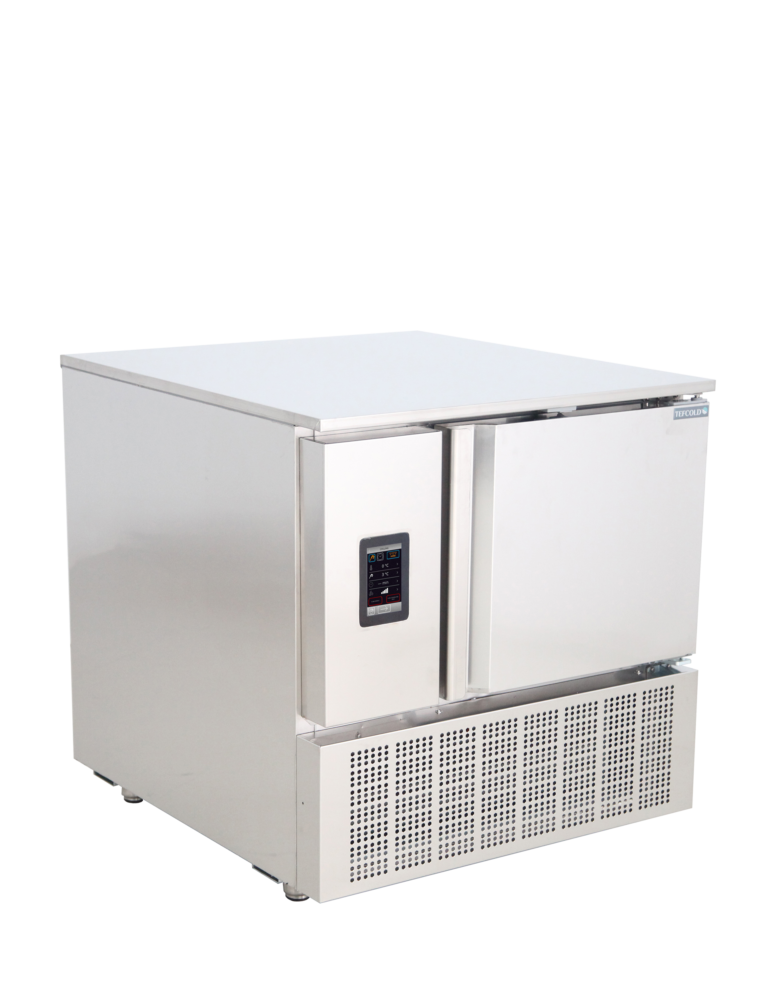

TEFCOLD BLCB3X1 Blast Chiller/Freezer

£2,665.00 £1,695.00

+vat

Brand:

SKU: 54815

Product summary

  • Touch screen controller
  • HACCP compliant data export
  • Upload or download data via USB
  • Temperature probe
  • Programmable thermostat
  • Stainless steel
  • Accepts GN1/1 and 60×40 Euronorm pans (not supplied)
  • Adjustable legs

Product description

Blast chiller/freezer with touch screen controller

The BLCB-X range of blast chillers is widely used in professional kitchens for cooling food rapidly and hygienically. Choose one of the pre-set programmes or create your own on the easy-to-use touchscreen controller. Available in different sizes, all made in high-quality SS304 stainless steel and dimensioned for GN and Euronorm sizes (placed lengthwise).

The TEFCOLD BLCB3X1 is a stainless steel blast chiller/freezer with a 156-litre gross capacity (88 litres net), working across -30 to +70 °C under a programmable touchscreen controller, with automatic hot-gas defrost and a self-closing solid door.

Sale!
SPECIFICATION 37 facts · tap for all External W × D × H800 x 877 x 840 mmWidth800 mmDepth877 mmGross / net weight149 / 116 kgGross weight149 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181740177site
Product code 54815site
Sub title Blast Chiller/Freezercatalogue
Type Blast Chillers & Blast Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 877 mmsite
External (W×D×H) 800 × 877 × 840 mmcatalogue
External W × D × H 800 x 877 x 840 mmsite
Gross / net weight 149 / 116 kgsite
Gross weight 149 kgcatalogue
Height 840 mmsite
Internal (W×D×H) 440 × 695 × 370 mmcatalogue
Internal W × D × H 440 x 695 x 370 mmsite
Packed (W×D×H) 870 × 955 × 1100 mmcatalogue
Packed W × D × H 870 x 955 x 1100 mmsite
Width 800 mmsite

Capacity6

Capacity item specification 3 x GN1/1 pcscatalogue
Cooling capacity 12site
Doors 1catalogue
Freezing capacity 8site
GN pan capacity 3 x GN1/1site
Gross volume 156 litrescatalogue

Performance5

Controller Programmable Touchscreensite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 130 gsite
Temperature range -30 to +70site

Power & energy3

Input power 720 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish SS304site
Feet / legs 4 adjustable legssite
Reversible doors Nosite
THE WORKING VIEW

Why this blast chillers & blast freezer earns its place

The BLCB3X1 is a blast chiller and freezer that pulls freshly cooked food down through the temperature danger zone quickly, then holds or hardens it. In a working kitchen that means cook-chill and cook-freeze batches can be turned around without tying up the service fridges, protecting food quality and supporting HACCP records. Gross capacity is 156 litres, with 88 litres of net usable space.

It works across a -30 to +70 °C range under a programmable touchscreen controller, covering both rapid chilling and freezing cycles. Defrost is automatic and uses hot gas, so the evaporator clears without a manual routine, and the unit runs at 60 dB. Loading is through a single self-closing hinged solid door, which pulls itself shut between trays.

The cabinet is SS304 stainless steel inside and out, wipe-down for a busy prep area. External dimensions are 800 × 877 × 840 mm (W×D×H) with a 440 × 695 × 370 mm internal chamber, and it ships packed at 870 × 955 × 1100 mm. Cooling is by R290 with a 130 g charge, drawing 720 W from a 220–240 V/50 Hz supply; net weight is 116 kg, gross 149 kg.

BEFORE YOU BUY

Questions, answered straight

Gross capacity is 156 litres, with 88 litres net usable. The internal chamber measures 440 × 695 × 370 mm (W×D×H).

It works across a -30 to +70 °C range under a programmable touchscreen controller, covering both blast chilling and freezing.

SS304 stainless steel inside and out, with a single self-closing hinged solid door. External dimensions are 800 × 877 × 840 mm (W×D×H).

Defrost is automatic and uses hot gas, so the evaporator clears on its own without a manual routine. The unit runs at 60 dB.

It is cooled by R290 with a 130 g charge, drawing 720 W from a 220–240 V/50 Hz supply.

Yes. Craven Cooling can arrange servicing and support — call 01792 732702 to discuss cover for your site.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 440 x 695 x 370 mm
External Dimension (WxDxH): 800 x 877 x 840 mm
Packed Dimension (WxDxH): 870 x 955 x 1100 mm

Cooling and Functions

Type of Controller: Programmable Touchscreen
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 130 g

Power and Consumption

Temperature Range: -30 to +70 °C
Input Power: 720 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Capacity Cooling: 12
Capacity Freezing: 8
Capacity GN Pans: 3 x GN1/1 pcs
Temperature Range: -30 to +70 °C
Gross / Net Weight: 149 / 116 kg
Gross / Net Volume: 156 / 88 l

Design and Material

Door Reversible: No
Feet / Legs: 4 adjustable legs
Exterior Finish: SS304
Interior Finish: SS304
If you have any questions about the TEFCOLD BLCB3X1 Blast Chiller/Freezer then please get in touch.
