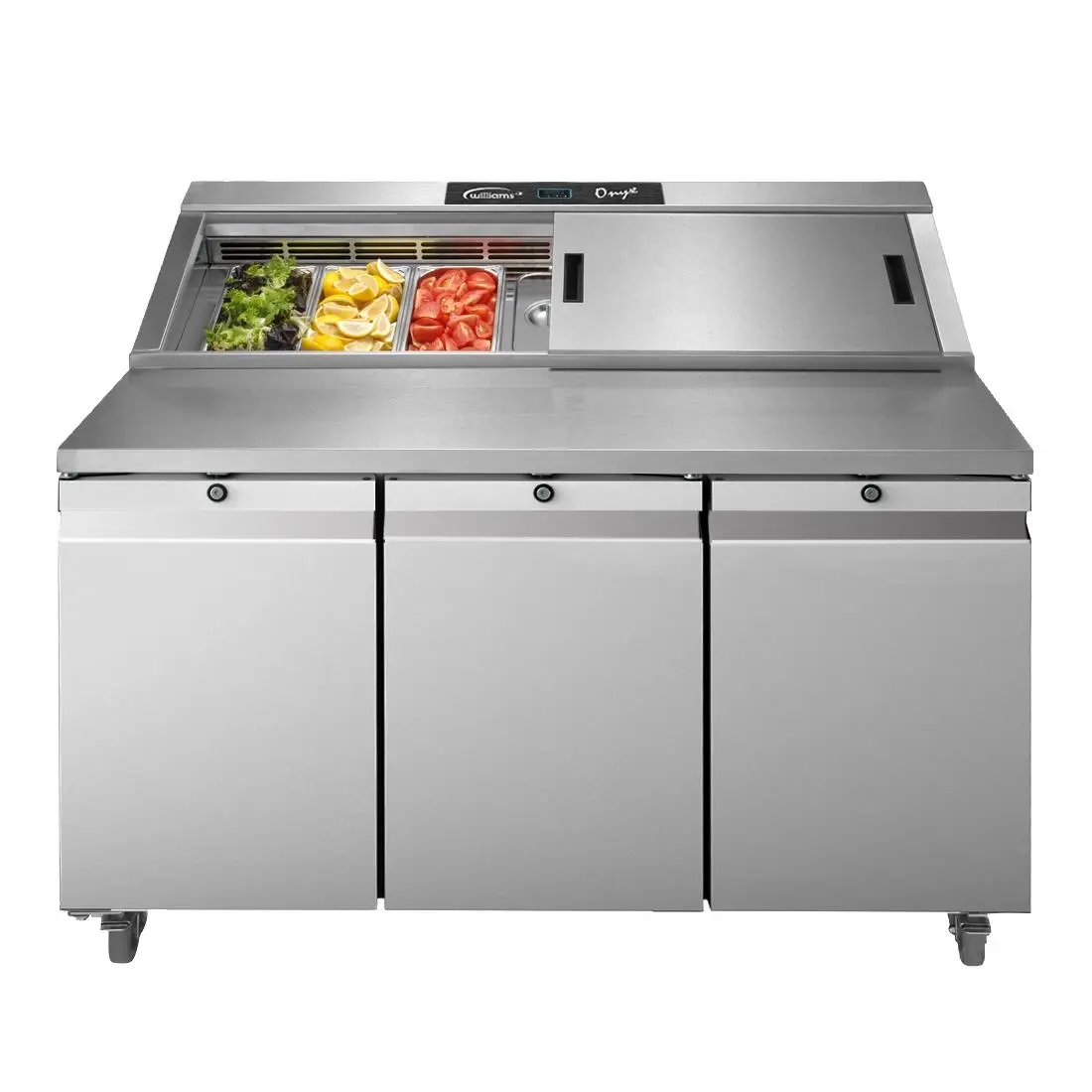

Williams Onyx 3 Door Refrigerated Prep Counter 616Ltr CPC3-SS FD367

£5,515.31

+vat

Availability: 999 in stock

Brand:

SKU: FD367

Product summary

1.62kW. Total usable capacity: 402Ltr. R290

Product description

The spacious, three door Onyx CPC3 preparation counter with gastronorm storage has a CoolSmart controller for reduced energy consumption.

Self-closing doors avoid heat ingress and reduce energy consumption
Heavy duty, non marking swivel & brake castors
Precision injected, high density 75mm polyurethane insulation with low GWP and zero ODP
Anti-tilt tray slides & removable racking system
CoolSmart Controller
Designed and engineered to operate efficiently up to 43°C ambient
High performance, efficient commercial refrigeration system
Unique air flow design with protective 1°C curtain
Removable, easy to clean crumb tray and lift off night cover
Barrel locked doors for added security
115° door dwell for loading large trays and pans, beneficial where walkways are limited
Magnetic balloon door gasket with 100% tight seal

The Williams Onyx CPC3-SS is a three-door refrigerated prep counter with 616 litres of +1 to +4 °C storage, six shelves and a CoolSmart controller for a compact but serious make-line station.

Downloads

SPECIFICATION 25 facts · tap for all Width1420 mmDepth860 mmHeight1110 mmGross weight230 kgVoltage230VTemperature range+1 to +4 °C

Identity5

Brand Williamssite
Product code FD367site
Range / series Onyxcatalogue
Type Prep Counterscatalogue
Warranty 2 Yearscatalogue

Size & weight5

Depth 860 mmcatalogue
External (W×D×H) 1110 × 1420 × 860 mmcatalogue
Gross weight 230 kgcatalogue
Height 1110 mmcatalogue
Width 1420 mmsite

Capacity5

Capacity 616Ltrcatalogue
Doors 3catalogue
Gastronorm size 1/3 GN thirdcatalogue
Product capacity 616catalogue
Shelves 6catalogue

Performance3

Cooling Aircatalogue
Refrigerant R290catalogue
Temperature range +1 to +4 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 1.62 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steel & Aluminiumcatalogue

Other stated facts2

Mobility Castorscatalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this prep counter earns its place

The Williams Onyx CPC3-SS is the three-door Onyx prep counter for kitchens that need chilled ingredients at the point of assembly but do not have space for the larger four or five-door models. It gives the line 616 litres of refrigerated gastronorm storage beneath the work surface, keeping prepared stock close to the person building the dish.

In service, the three doors and six shelves help keep ingredients split by station, course or product type. The cabinet runs at +1 to +4 °C with air cooling and R290 refrigerant, while Williams' manufacturer text notes a CoolSmart controller for reduced energy consumption.

The stainless steel and aluminium build suits a commercial kitchen line, and the 1420 mm width makes it easier to site than the larger Onyx counters while still giving proper refrigerated prep capacity. It is 860 mm deep and 1110 mm high, with a 230 kg gross weight, so access and final positioning still need to be checked before delivery.

BEFORE YOU BUY

Questions, answered straight

The listed capacity is 616 litres, with three doors and six shelves. Work from your ingredient tubs, prep trays and service pattern to decide whether this size or a larger Onyx model suits the line.

The counter is 1420 mm wide, 860 mm deep and 1110 mm high. It is more compact than the four and five-door Onyx prep counters, but still needs a clear delivery route and working clearance.

The stated operating band is +1 to +4 °C, with air cooling and R290 refrigerant. That suits chilled prep stock such as salad, dairy, fillings and toppings when the unit is used correctly.

That depends on tariff and kitchen use. Williams' source text notes a CoolSmart controller for reduced energy consumption, and the running-cost tool can help once you have tariff and usage assumptions.

The CPC3-SS is listed as stainless steel and aluminium with a silver finish, giving it the practical build expected on a commercial prep line.

Craven Cooling supports the units it supplies. For servicing, breakdown cover or advice on siting and commissioning, call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Williams Onyx 3 Door Refrigerated Prep Counter 616Ltr CPC3-SS FD367 Product Data

Brand Williams
Type Prep Counters
Range Onyx
Dimensions 1110(H) x 1420(W) x 860(D)mm
Capacity 616Ltr
Material Stainless Steel & Aluminium
Colour / Finish Silver
Temperature Range +1°C to +4°C
Refrigerant R290
Cooling Air
Number of Doors 3
Number of Shelves 6
Power 1.62W
Voltage 230V
Fuel / Supply Plug
Warranty 2 Years
Weight 230kg
Manufacturer Ref CPC3-SS
If you have any questions about the Williams Onyx 3 Door Refrigerated Prep Counter 616Ltr CPC3-SS FD367 then please get in touch.
