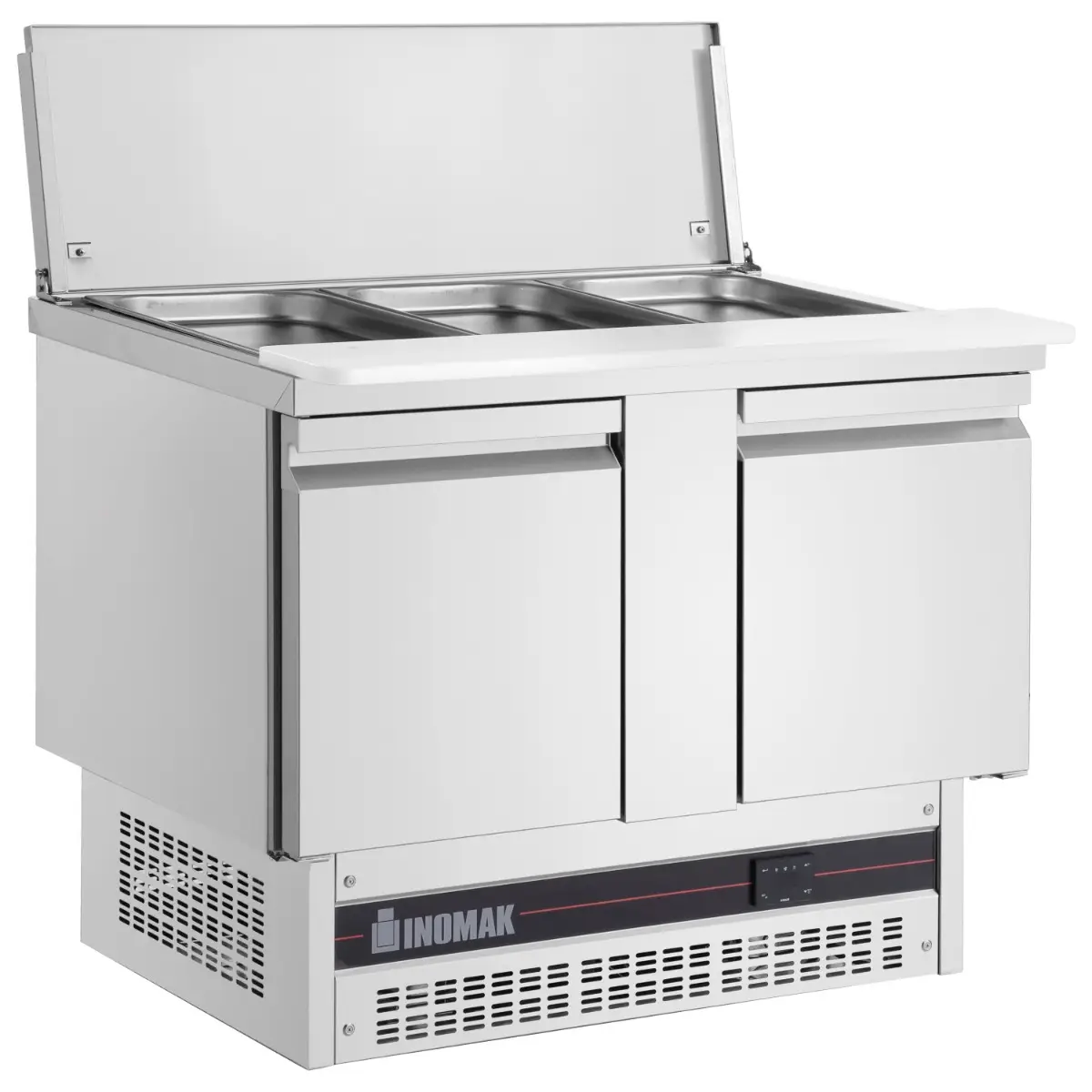

INOMAK Double Hinged Door Gastronorm Saladette With Cutting Board BSV77-HC

£1,561.82

+vat

Brand:

SKU: BSV77-HC

Product summary

Size: 1080 x 700 x 905

Product description

  • High grade AISI 304 stainless steel exterior & interior, including back

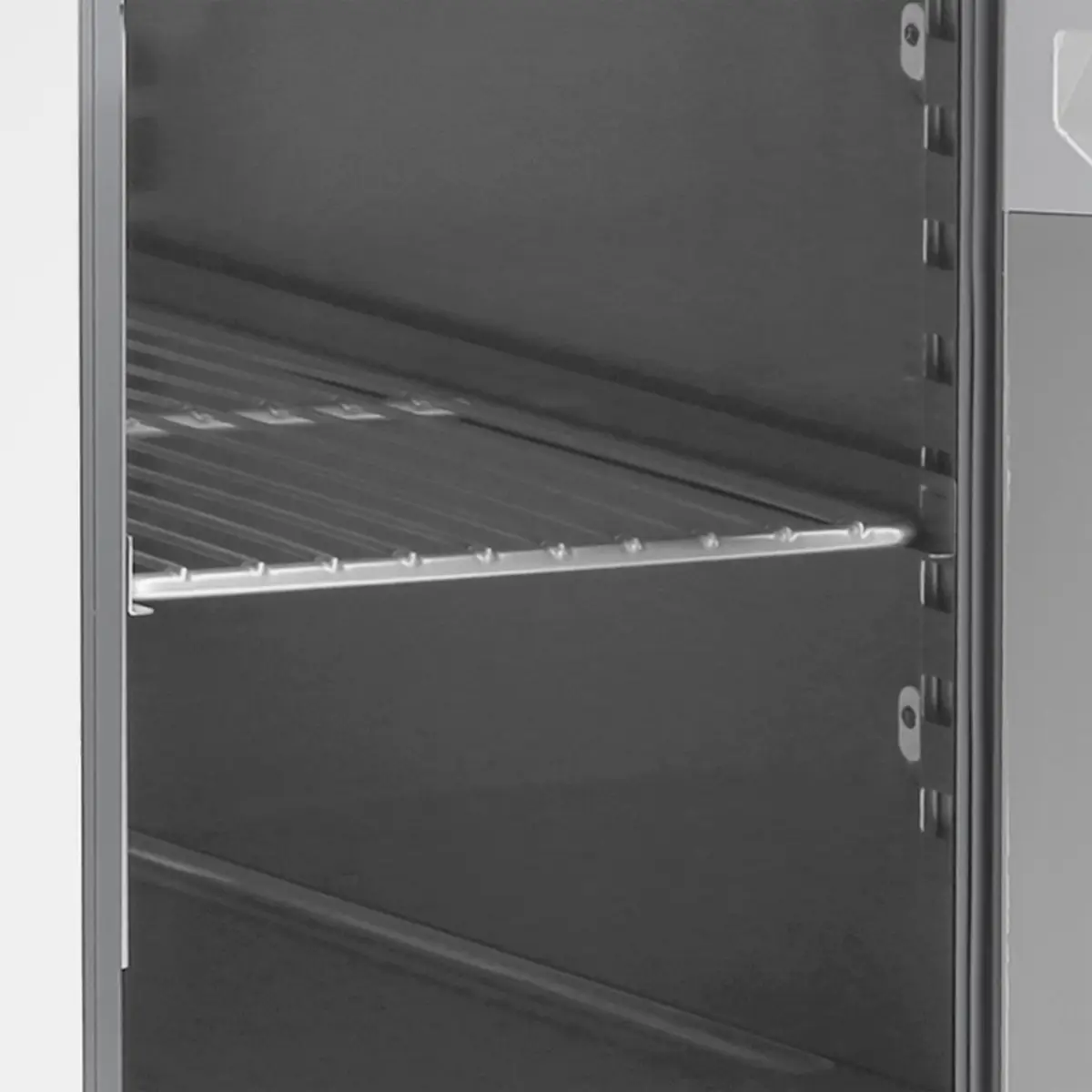

  • 1 x GN1/1 shelf supplied per door, shelf size 530 x 325mm
  • Accepts gastronorm containers – max depth 150mm (not supplied)
  • Internal corners rounded for easy cleaning
  • Replaceable door gasket
  • Epoxy coated evaporator to resist corrosion
  • Embedded controller for easy operation and cleaning
  • Hygienically designed interior
  • Forced air circulation technology
  • Clip-On Guides for fast & easy cleaning
  • Removable magnetic door gasket
  • Tempered Glass Vitrines
  • Automatic evaporation of condensate water
  • Injected polyurethane foam insulation
  • Automatic defrost
  • self-closing door at 90¬∞

The Inomak BSV77-HC is a double hinged-door gastronorm saladette with an integrated cutting board, measuring 1080 × 700 × 905 mm (W×D×H), running on R290 with automatic defrost, a 55 dB noise level and a Climate Class 4 rating.

SPECIFICATION 25 facts · tap for all External W × D × H1080 x 700 x 905Width1080 mmDepth700 mmHeight905 mmGross weight106 kgVoltage / frequency344W

Manufacturer documents2

Identity4

Brand INOMAKsite
GTIN / EAN 5212016702204site
Product code BSV77-HCsite
Type Double Door Saladette Fridgescatalogue

Size & weight6

Depth 700 mmsite
External (W×D×H) 1080 × 700 × 905 mmcatalogue
External W × D × H 1080 x 700 x 905site
Gross weight 106 kgcatalogue
Height 905 mmsite
Width 1080 mmsite

Capacity1

Gross volume 245 litrescatalogue

Performance6

Climate class 4site
Controller Digital controller with temperature displaysite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Temperature range +3C/+10Csite

Power & energy3

Input power 13amp supplysite
Rated input 344 Wcatalogue
Voltage / frequency 344Wsite

Build & fittings2

Exterior finish Stainless Steelsite
Shelves 2site

Other stated facts1

Noise level 55 dB(A)catalogue
THE WORKING VIEW

Why this double door saladette fridge earns its place

The BSV77-HC is a double hinged-door gastronorm saladette built for made-to-order prep. Refrigerated storage sits under the counter behind two hinged doors, and an integrated cutting board gives a dedicated surface to chop and assemble on without a separate chopping station.

Day to day it runs quietly and unattended: measured at 55 dB, it is suited to open and semi-open kitchens where noise carries, and automatic defrost clears the evaporator on its own cycle. The Climate Class 4 rating means it is designed to hold temperature in warm kitchen conditions, and it uses R290, a low-GWP hydrocarbon refrigerant.

For installation, the footprint is 1080 mm wide and 700 mm deep, and at 905 mm high it sits at working-counter height. At 106 kg, plan the 1080 mm width plus door swing and the delivery route before positioning.

BEFORE YOU BUY

Questions, answered straight

It gives a dedicated surface to chop and assemble on directly at the counter, so you do not need a separate chopping station beside the unit.

It is measured at 55 dB, which suits open and semi-open kitchens where noise carries.

It carries a Climate Class 4 rating, meaning it is designed to hold temperature in warm commercial kitchen conditions.

The counter is 1080 mm wide and 700 mm deep, and 905 mm high at working-counter height. Allow for the width plus the swing of the two hinged doors, and plan the route for a 106 kg unit.

It runs on R290, a low-GWP hydrocarbon refrigerant, and uses automatic defrost, so there is no manual defrost routine.

Yes. Craven Cooling handles servicing and breakdown support — call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 1080 x 700 x 905

Cooling and Functions

Type of Controller: Digital controller with temperature display
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290

Power and Consumption

Temperature Range: +3C/+10C °C
Input Power: 13amp supply
Voltage / Frequency: 344W

Measures and Content

Temperature Range: +3C/+10C °C
Climate Class: 4
Gross / Net Volume: 245 ltr l

Design and Material

Shelves Number & Type: 2
Exterior Finish: Stainless Steel

INOMAK Double Hinged Door Gastronorm Saladette With Cutting Board BSV77-HC Product Data

If you have any questions about the INOMAK Double Hinged Door Gastronorm Saladette With Cutting Board BSV77-HC then please get in touch.
