TEFCOLD UD2-3 Dual Temperature Gastronorm Counter

£1,610.00

+vat

Brand:

SKU: 20092

Energy Arrow

Product summary

  • Dual temperature easily switchable between chiller and freezer
  • Fan assisted cooling
  • Digital controller and temperature display
  • High quality stainless steel SS304
  • Replaceable door gasket

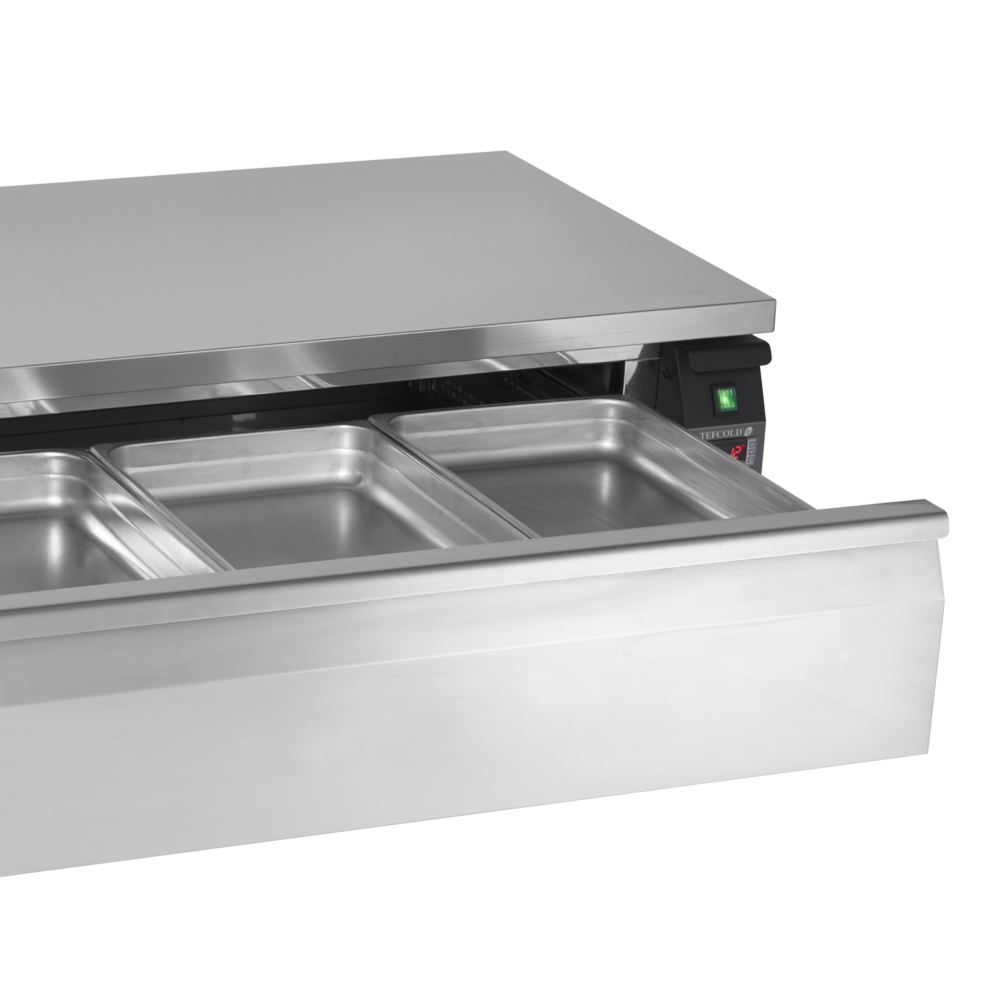

  • Drawer can be used with or without gastronorm pans
  • Max weight per drawer – 50kg. Total weight loading for unit 300kg
  • Castors, 2 lockable

Product description

The super versatile Uni-Drawer system (sometimes called underbroilers, lowboys or chef-bases) allows you to choose to have the drawer as either a chiller or freezer. As the drawers of the two drawer version are operated independently, one can be used as a chiller while the other is set as a freezer if required. Ideal for busy kitchens where you require chilled or frozen food immediately to hand for food preparation. Drawers accept gastronorm pans up to 150mm deep (drawers can be used with or without gastronorm pans). Top is suitable for a range of appliances.

The TEFCOLD UD2-3 is a dual temperature Gastronorm counter that adds a stainless steel storage base beneath the prep line, holding 265 litres gross (154 litres net) on R290 refrigerant from a standard 13 A supply.

SPECIFICATION 44 facts · tap for all External W × D × H1230 x 700 x 865 mmWidth1230 mmDepth700 mmGross / net weight154 / 131 kgGross weight154 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181360931site
Product code 20092site
Sub title Dual Temperature Gastronorm Countercatalogue
Type Triple Door Counter Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 700 mmsite
External (W×D×H) 1230 × 700 × 865 mmcatalogue
External W × D × H 1230 x 700 x 865 mmsite
Gross / net weight 154 / 131 kgsite
Gross weight 154 kgcatalogue
Height 865 mmsite
Internal (W×D×H) 1000 × 565 × 205 mmcatalogue
Internal W × D × H 1000 x 565 x 205 mmsite
Packed (W×D×H) 1310 × 770 × 1000 mmcatalogue
Packed W × D × H 1310 x 770 x 1000 mmsite
Width 1230 mmsite

Capacity3

Capacity item specification 6 x GN1/1 pcscatalogue
GN pan capacity 6 x GN1/1site
Gross volume 265 litrescatalogue

Performance10

Climate class 5site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, hot gassite
Max ambient 40 °Ccatalogue
Maximum ambient +40°C, 40% RHsite
Refrigerant R290site
Refrigerant charge 140 gsite
Temperature range +1 to +4 / -24 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 3712 kWh/yearsite
Energy consumption 10.17 kWh/24hsite
Energy efficiency index 133.2 %site
Input power 500 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 wheels, 2 with brakesite
Drawers 2site
Exterior finish Stainless steelsite

Other stated facts1

Energy class Gcatalogue
THE WORKING VIEW

Why this triple door counter fridge earns its place

The TEFCOLD UD2-3 is a dual temperature Gastronorm counter built for the working line, giving back-of-house a stainless steel storage base beneath the prep surface. It is stainless steel inside and out, wiping down between services and standing up to a busy kitchen. With 265 litres gross and 154 litres net across a 1000 × 565 × 205 mm internal space, it keeps Gastronorm stock within reach of the pass rather than a walk across the kitchen.

Cooling is ventilated for even temperature across the load, and defrost is automatic hot gas, so the evaporator clears itself on cycle without staff stopping to intervene. An electronic controller runs the unit and a rated 42 dB keeps it quiet enough to sit near a service area. It carries climate class 5, so it holds temperature in a warm, busy kitchen. On its rated 3712.1 kWh a year that works out at about £928 a year at 25p/kWh, energy class G.

The cabinet measures 1230 × 700 × 865 mm externally and ships at 1310 × 770 × 1000 mm packed, so check your access route against the crated width before delivery. It plugs into a standard 13 amp supply at 220-240V and runs on R290 refrigerant with a 140 g charge. At 131 kg net it is a two-person lift to position and level.

BEFORE YOU BUY

Questions, answered straight

Yes — it is a Gastronorm counter with a 1000 × 565 × 205 mm internal space, so standard GN containers drop straight in. That keeps prep and storage in the same pans.

On its rated 3712.1 kWh a year, that is about £928 a year at 25p/kWh, and it carries energy class G. Your actual figure depends on your tariff and how hard the kitchen works it.

The cabinet is 1230 × 700 × 865 mm and ships at 1310 × 770 × 1000 mm packed. Measure your access route against the crated width, and allow clearance around the unit for airflow.

A standard 13 amp socket at 220-240V. No special electrical work is required for a single-phase 13 amp supply.

Defrost is automatic hot gas, so the evaporator clears itself on cycle without staff stopping to defrost manually. Cooling is ventilated for even temperature across the load.

Yes. We supply, install and maintain commercial refrigeration across the trade — call our team on 01792 732702 to arrange servicing or talk through a fault. Inside and out is stainless steel, so routine cleaning is a wipe-down.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1000 x 565 x 205 mm
External Dimension (WxDxH): 1230 x 700 x 865 mm
Packed Dimension (WxDxH): 1310 x 770 x 1000 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 140 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 10.17 kWh/24h
Temperature Range: +1 to +4 / -24 to -18 °C
Annual Energy Consumption: 3712 kWh/year m³
EEI: 133.2 %
Input Power: 500 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Capacity GN Pans: 6 x GN1/1 pcs
Temperature Range: +1 to +4 / -24 to -18 °C
Climate Class: 5
Gross / Net Weight: 154 / 131 kg
Gross / Net Volume: 265 / 154 l
Max Ambient: +40°C, 40% RH

Design and Material

Drawers: 2
Castors: 4 wheels, 2 with brake
Exterior Finish: Stainless steel
Interior Finish: Stainless steel
If you have any questions about the TEFCOLD UD2-3 Dual Temperature Gastronorm Counter then please get in touch.
