INOMAK Eight Drawer Low Height Snack Counter PWN3333-HC

£2,716.60

+vat

Brand:

SKU: PWN3333-HC

Product summary

Size: 2240 x 700 x 660

Product description

  • High grade AISI 304 stainless steel exterior & interior, including back
  • Drawers accept GN1/1 trays
  • Castors as standard
  • Replaceable gaskets
  • Epoxy coated evaporator to resist corrosion
  • Hygenically designed interior
  • Evaporator protection against corrosion
  • Forced air circulation technology
  • Embedded controller for easy operation and cleaning

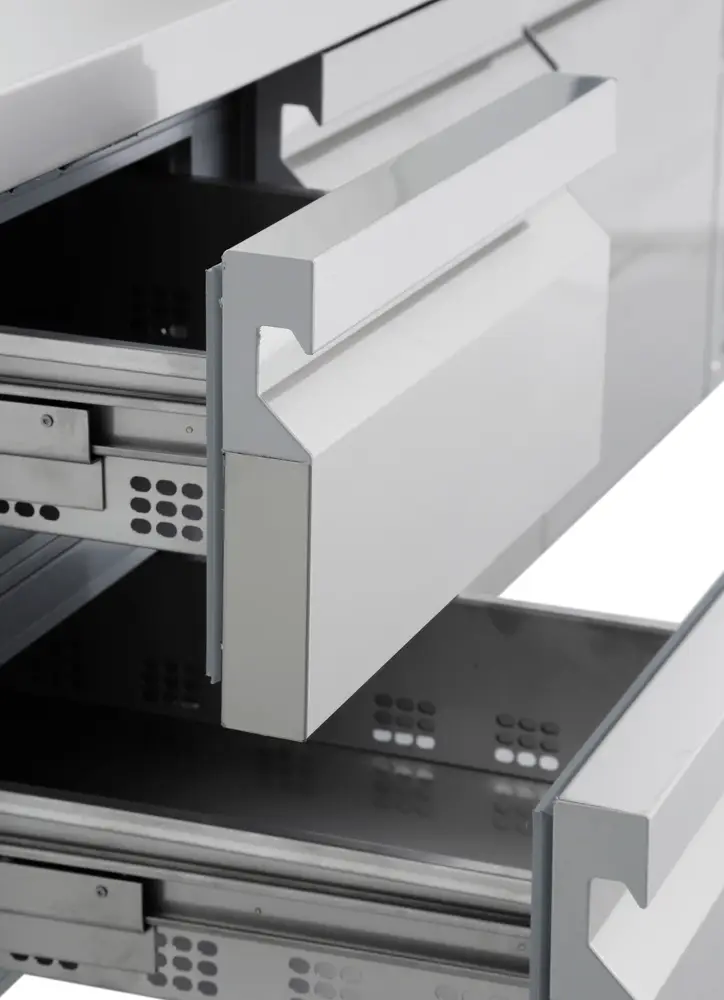

  • Over extension telescopic slides on drawers
  • Automatic evaporation of condensate water
  • Injected polyurethane foam insulation, density 42 kg/m¬≥, HFC Free (Zero ODP, Low GWP)
  • Automatic Defrost
  • Designed with ergonomic height and length for the placement of grilling machines
  • Ambient temperature +43oC

The INOMAK PWN3333-HC is an eight-drawer low-height snack counter with 334 litres gross capacity, built at 660mm height specifically to sit under grilling equipment, running on R290 refrigerant (Energy Class C, 440 kWh/year) with automatic defrost.

SPECIFICATION 23 facts · tap for all External W × D × H2240 x 700 x 660Width2240 mmDepth700 mmHeight660 mmGross weight193.5 kgVoltage / frequency440W

Manufacturer documents2

Identity4

Brand INOMAKsite
GTIN / EAN 5212016702150site
Product code PWN3333-HCsite
Type Drawer Fridgescatalogue

Size & weight6

Depth 700 mmsite
External (W×D×H) 2240 × 700 × 660 mmcatalogue
External W × D × H 2240 x 700 x 660site
Gross weight 193.5 kgcatalogue
Height 660 mmsite
Width 2240 mmsite

Capacity1

Gross volume 334 litrescatalogue

Performance6

Climate class 4site
Controller Digital controller with temperature displaysite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Temperature range +1C/+10Csite

Power & energy3

Input power 13amp supplysite
Rated input 440 Wcatalogue
Voltage / frequency 440Wsite

Build & fittings1

Exterior finish Stainless Steelsite
THE WORKING VIEW

Why this drawer fridge earns its place

The INOMAK PWN3333-HC is an eight-drawer counter refrigerator built to a deliberately low 660mm height, designed as a base unit for grilling machines rather than a standalone worktop. AISI 304 stainless steel covers the exterior and interior including the back panel.

Gross capacity is 334 litres, running at Energy Class C on 440 kWh a year through ventilated forced-air circulation rated to +43°C ambient. External dimensions are 2240 × 700 × 660mm (W×D×H) — the 660mm height is what sets it apart from the standard 890mm counter range.

R290 refrigerant runs at Climate Class 4, with automatic defrost and automatic condensate evaporation. An epoxy-coated evaporator resists corrosion, injected polyurethane foam insulation (42 kg/m³, HFC-free, zero ODP, low GWP) keeps the cabinet efficient, and replaceable gaskets and standard castors complete the build. Gross weight is 193.5kg.

BEFORE YOU BUY

Questions, answered straight

It's built at 660mm height specifically as a base for grilling machines — a chargrill, griddle or panini press sits directly on top, putting chilled ingredients within reach of the cooking line.

334 litres gross across eight GN1/1 drawers.

Energy Class C, 440 kWh a year, on R290 refrigerant, rated to +43°C ambient.

Injected polyurethane foam at 42 kg/m³ density, HFC-free with zero ODP and low GWP.

2240 × 700 × 660mm (W×D×H), weighing 193.5kg gross.

Craven Cooling installs and services INOMAK snack counters across South Wales — 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 2240 x 700 x 660

Cooling and Functions

Type of Controller: Digital controller with temperature display
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290

Power and Consumption

Temperature Range: +1C/+10C °C
Input Power: 13amp supply
Voltage / Frequency: 440W

Measures and Content

Temperature Range: +1C/+10C °C
Climate Class: 4
Gross / Net Volume: 334 ltr l

Design and Material

Exterior Finish: Stainless Steel

INOMAK Eight Drawer Low Height Snack Counter PWN3333-HC Product Data

If you have any questions about the INOMAK Eight Drawer Low Height Snack Counter PWN3333-HC then please get in touch.
