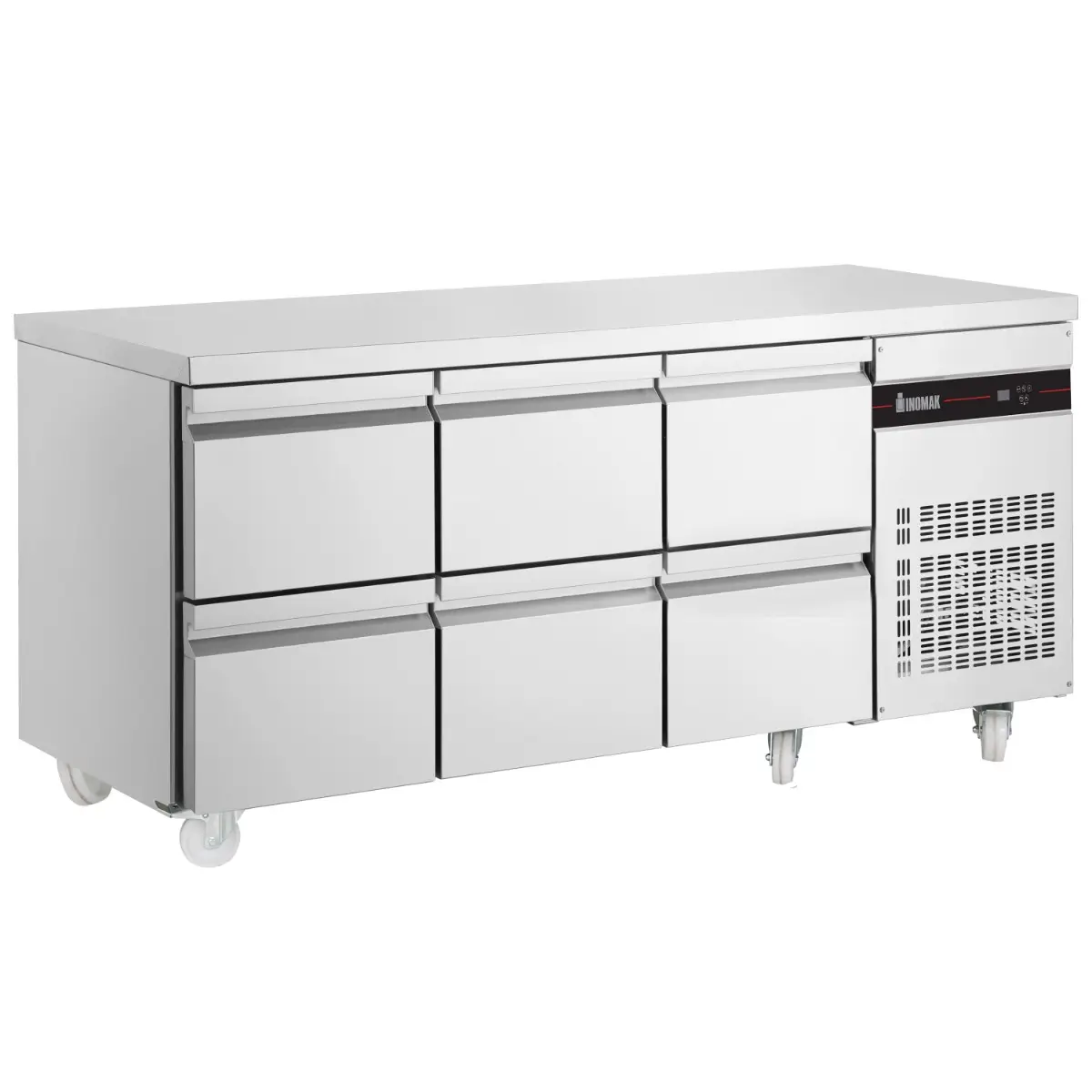

INOMAK 429L Six Drawer Gastronorm Counter Refrigerator PN222-HC

£2,408.45

+vat

Brand:

SKU: PN222-HC

Product summary

Size: 1790 x 700 x 890

Product description

  • High grade AISI 304 stainless steel exterior & interior, including back
  • Drawers accept GN1/1 trays
  • Internal corners rounded for easy cleaning
  • Castors as standard
  • Epoxy coated evaporator to resist corrosion
  • Hygienically designed interior
  • Forced air circulation technology
  • Clip-On Guides for fast & easy cleaning
  • Embedded controller for easy operation and cleaning
  • Removable magnetic door gasket
  • Over extension telescopic slides on drawers
  • Automatic evaporation of condensate water
  • Injected polyurethane foam insulation
  • Automatic defrost
  • Ambient temperature +43¬∞C

The INOMAK PN222-HC is a six-drawer gastronorm counter refrigerator with 429 litres gross capacity, running on R290 refrigerant with automatic defrost and ventilated cooling rated to +43°C ambient — built for prep lines that need GN1/1 trays pulled straight from telescopic drawers.

SPECIFICATION 23 facts · tap for all External W × D × H1790 x 700 x 890Width1790 mmDepth700 mmHeight890 mmGross weight155 kgVoltage / frequency351W

Manufacturer documents2

Identity4

Brand INOMAKsite
GTIN / EAN 5212016701726site
Product code PN222-HCsite
Type Drawer Fridgescatalogue

Size & weight6

Depth 700 mmsite
External (W×D×H) 1790 × 700 × 890 mmcatalogue
External W × D × H 1790 x 700 x 890site
Gross weight 155 kgcatalogue
Height 890 mmsite
Width 1790 mmsite

Capacity1

Gross volume 429 litrescatalogue

Performance6

Climate class 5site
Controller Digital controller with temperature displaysite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Temperature range +1C/+10Csite

Power & energy3

Input power 13amp supplysite
Rated input 351 Wcatalogue
Voltage / frequency 351Wsite

Build & fittings1

Exterior finish Stainless Steelsite
THE WORKING VIEW

Why this drawer fridge earns its place

The INOMAK PN222-HC is a six-drawer counter refrigerator for prep-line chilled storage, with every drawer sized to take GN1/1 trays. AISI 304 stainless steel covers the exterior and interior including the back panel, for kitchens running high-turnover prep off one counter.

Gross capacity is 429 litres, drawing 351 kWh a year through ventilated forced-air circulation that holds a consistent internal temperature. The unit is rated to work in ambient kitchen temperatures up to +43°C — well above what most counters are asked to handle, useful if it's sited near ovens or a hot pass.

R290 refrigerant runs at Climate Class 5, with automatic defrost and automatic condensate evaporation removing the need for manual intervention. An epoxy-coated evaporator resists corrosion, injected polyurethane foam insulation keeps the cabinet efficient, and a digital controller with temperature display gives precise control. External dimensions are 1790 × 700 × 890mm (W×D×H) on standard castors, at 155kg gross weight.

BEFORE YOU BUY

Questions, answered straight

Six drawers, each sized for GN1/1 trays, giving 429 litres gross capacity across the unit.

+43°C, well above a standard kitchen — useful if the counter sits near ovens, fryers or a hot pass.

R290 with ventilated (forced air) circulation, giving consistent internal temperature and drawing 351 kWh a year.

Yes — clip-on guides lift out for cleaning, corners are rounded internally, and the door gasket is removable and magnetic.

1790 × 700 × 890mm (W×D×H), on standard castors for repositioning, at 155kg gross weight.

Craven Cooling installs and services INOMAK drawer counters across South Wales, with automatic defrost and an epoxy-coated evaporator keeping maintenance to a minimum — call 01792 732702 to arrange a service plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 1790 x 700 x 890

Cooling and Functions

Type of Controller: Digital controller with temperature display
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290

Power and Consumption

Temperature Range: +1C/+10C °C
Input Power: 13amp supply
Voltage / Frequency: 351W

Measures and Content

Temperature Range: +1C/+10C °C
Climate Class: 5
Gross / Net Volume: 429 ltr l

Design and Material

Exterior Finish: Stainless Steel

INOMAK 429L Six Drawer Gastronorm Counter Refrigerator PN222-HC Product Data

If you have any questions about the INOMAK 429L Six Drawer Gastronorm Counter Refrigerator PN222-HC then please get in touch.
