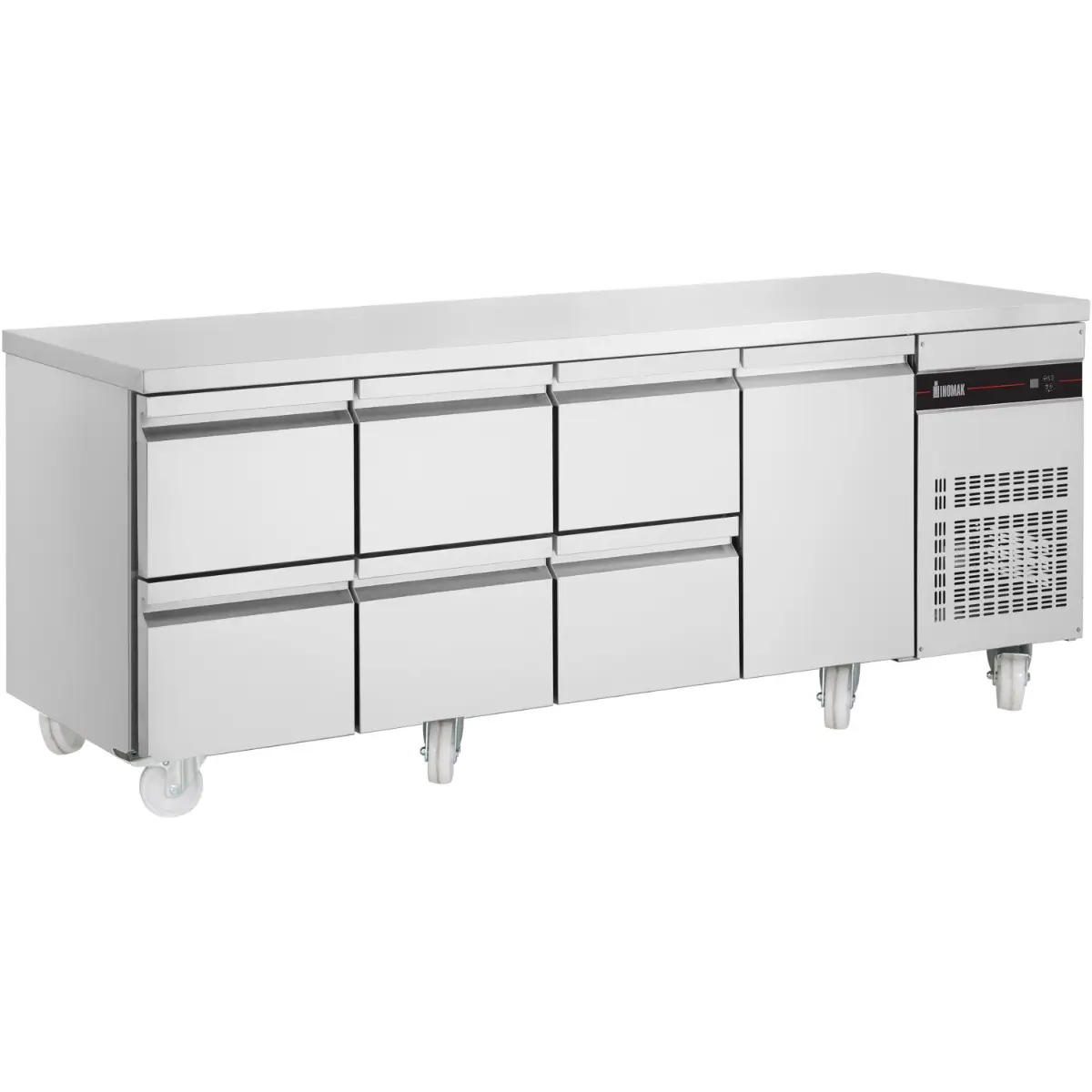

INOMAK 583L Six Drawer Single Door Gastronorm Counter Refrigerator PN2229-HC

£2,781.68

+vat

Brand:

SKU: PN2229-HC

Product summary

Size: 2240 x 700 x 890

Product description

  • High grade AISI 304 stainless steel exterior & interior, including back
  • Drawers accept GN1/1 trays
  • 1 x GN1/1 shelf supplied in door section, shelf size 530 x 325mm
  • Internal corners rounded for easy cleaning
  • Castors as standard
  • Replaceable door gasket
  • Epoxy coated evaporator to resist corrosion
  • With natural refrigerant R290¬†(Zero ODP/GWP=3)
  • Hygienically designed interior
  • self-closing door at 90¬∞
  • Forced air circulation technology
  • Clip-On Guides for fast & easy cleaning
  • Embedded controller for easy operation and cleaning
  • Removable magnetic door gasket
  • Over extension telescopic slides on drawers
  • Automatic evaporation of condensate water
  • Injected polyurethane foam insulation
  • Automatic defrost
  • Ambient temperature +43¬∞C

The INOMAK PN2229-HC combines six GN1/1 drawers with a single self-closing door section in one 583-litre gross counter refrigerator, running on R290 (GWP 3) with automatic defrost — suited to prep lines that need both drawer and door-format storage in one unit.

SPECIFICATION 24 facts · tap for all External W × D × H2240 x 700 x 890Width2240 mmDepth700 mmHeight890 mmGross weight209 kgVoltage / frequency440W

Manufacturer documents2

Identity4

Brand INOMAKsite
GTIN / EAN 5212016701757site
Product code PN2229-HCsite
Type Drawer Fridgescatalogue

Size & weight6

Depth 700 mmsite
External (W×D×H) 2240 × 700 × 890 mmcatalogue
External W × D × H 2240 x 700 x 890site
Gross weight 209 kgcatalogue
Height 890 mmsite
Width 2240 mmsite

Capacity1

Gross volume 583 litrescatalogue

Performance6

Climate class 5site
Controller Digital controller with temperature displaysite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Temperature range +1C/+10Csite

Power & energy3

Input power 13amp supplysite
Rated input 440 Wcatalogue
Voltage / frequency 440Wsite

Build & fittings2

Exterior finish Stainless Steelsite
Shelves 1site
THE WORKING VIEW

Why this drawer fridge earns its place

The INOMAK PN2229-HC is a six-drawer counter refrigerator with an additional single door section, giving mixed drawer-and-door storage from one 2240mm-wide counter. AISI 304 stainless steel covers the exterior and interior including the back panel.

Gross capacity is 583 litres, drawing 440 kWh a year through ventilated forced-air circulation rated to +43°C ambient. The door section is fitted with one GN1/1 shelf (530 × 325mm) and closes self-closing at 90°.

R290 refrigerant (GWP of 3) runs at Climate Class 5, with automatic defrost and automatic condensate evaporation. An epoxy-coated evaporator resists corrosion, injected polyurethane foam insulation keeps the cabinet efficient, and a digital controller gives precise temperature control. A replaceable door gasket and standard castors complete the build, at external dimensions of 2240 × 700 × 890mm (W×D×H) and 209kg gross weight.

BEFORE YOU BUY

Questions, answered straight

Six drawers take GN1/1 trays on telescopic slides for prep stock, while the separate door section holds one GN1/1 shelf (530 × 325mm) for bulkier or taller items — the door self-closes at 90°.

583 litres gross across the combined drawer-and-door configuration.

R290, with a GWP of 3 — a low-impact hydrocarbon refrigerant — running at Climate Class 5.

440 kWh a year with ventilated cooling, rated to work in ambient kitchen temperatures up to +43°C.

2240 × 700 × 890mm (W×D×H), weighing 209kg gross, on standard castors.

Yes — Craven Cooling installs and services INOMAK counters across South Wales, call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 2240 x 700 x 890

Cooling and Functions

Type of Controller: Digital controller with temperature display
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290

Power and Consumption

Temperature Range: +1C/+10C °C
Input Power: 13amp supply
Voltage / Frequency: 440W

Measures and Content

Temperature Range: +1C/+10C °C
Climate Class: 5
Gross / Net Volume: 583 ltr l

Design and Material

Shelves Number & Type: 1
Exterior Finish: Stainless Steel

INOMAK 583L Six Drawer Single Door Gastronorm Counter Refrigerator PN2229-HC Product Data

If you have any questions about the INOMAK 583L Six Drawer Single Door Gastronorm Counter Refrigerator PN2229-HC then please get in touch.
