TEFCOLD CK7360 Counter Cooler GN1/1

£1,620.00

+vat

Brand:

SKU: 51496

Energy Arrow

Product summary

  • Stainless steel
  • Automatic defrost
  • Removable table top with splashback

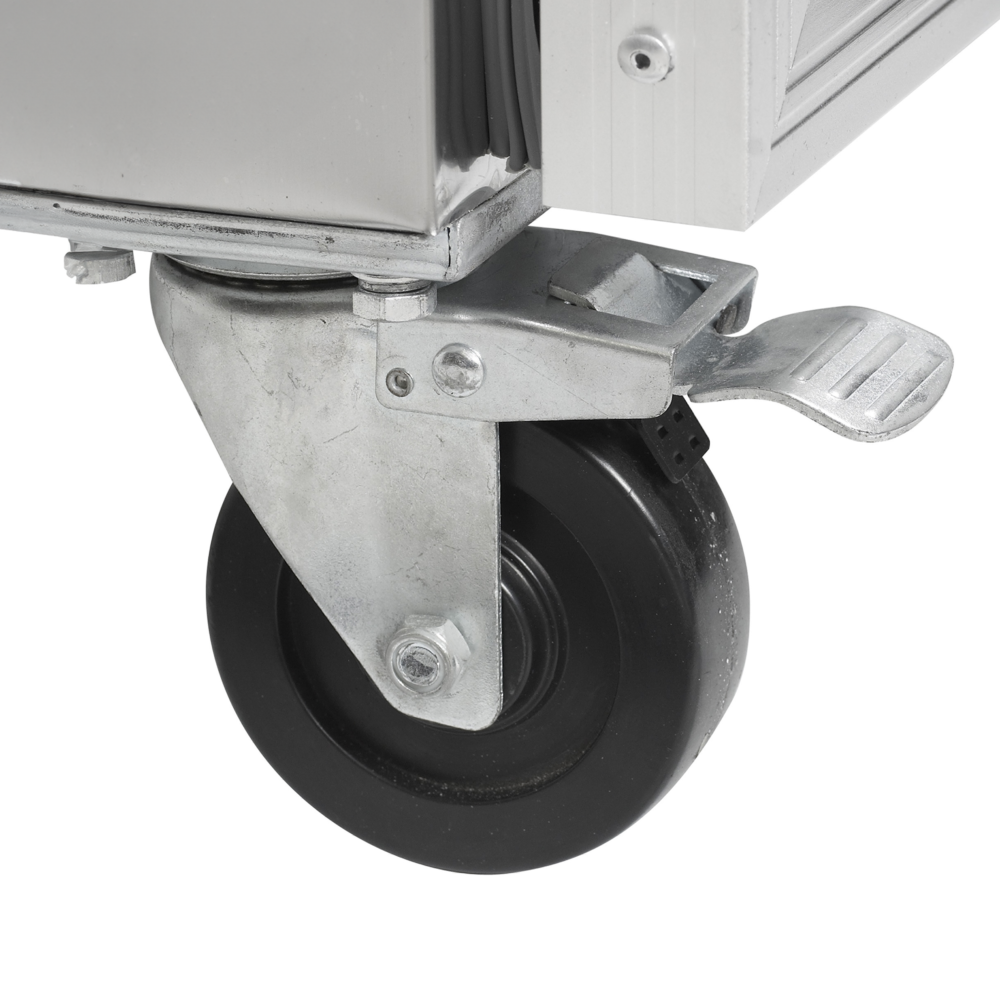

  • Castors, 2 lockable
  • GN1/1 Drawers
  • Ventilated cooling

Product description

Stainless steel counter cooler with GN1/1 drawers

The CK range of counters is made for professional kitchens and therefore offers a durable stainless steel construction. Its ventilated system maintains consistent temperatures, and an electronic controller makes adjustments easy. The CK range is available in numerous constallations with solid doors or drawers and with or without a splashback.

The TEFCOLD CK7360 is a GN1/1 counter cooler holding 402 litres net at -2 to +10 °C, cooling ventilated with automatic defrost, built in SS304 stainless steel inside and out and running on R600a refrigerant at a quiet 42 dB.

SPECIFICATION 40 facts · tap for all External W × D × H1795 x 700 x 960 mmWidth1795 mmDepth700 mmGross / net weight162 / 152 kgGross weight162 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181734855site
Product code 51496site
Sub title Counter Cooler GN1/1catalogue
Type Drawer Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 700 mmsite
External (W×D×H) 1795 × 700 × 960 mmcatalogue
External W × D × H 1795 x 700 x 960 mmsite
Gross / net weight 162 / 152 kgsite
Gross weight 162 kgcatalogue
Height 960 mmsite
Internal (W×D×H) 1337 × 530 × 589 mmcatalogue
Internal W × D × H 1337 x 530 x 589 mmsite
Packed (W×D×H) 1825 × 730 × 1010 mmcatalogue
Packed W × D × H 1825 x 730 x 1010 mmsite
Width 1795 mmsite

Capacity1

Gross volume 417 litrescatalogue

Performance8

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R600asite
Refrigerant charge 95 gsite
Temperature range -2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 894 kWh/yearsite
Energy consumption 2.45 kWh/24hsite
Energy efficiency index 33.1 %site
Input power 300 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Drawers 6 GN1/1 drawerssite
Exterior finish SS304site
Feet / legs 4 adjustable feetsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this drawer fridge earns its place

The TEFCOLD CK7360 is a GN1/1-compatible counter cooler that combines refrigerated storage with a stainless steel prep surface at working height. It puts chilled ingredients directly under the point of use, so a line cook or sandwich hand works straight off the top with stock to hand below. With 417 litres gross and 402 litres net, it holds a service's worth of prepped components in one unit.

Cooling is ventilated for an even temperature across the cabinet, with automatic defrost that needs no manual routine. An electronic controller holds the -2 to +10 °C band, which covers chilled prep and dairy, and the unit is climate class 4. It runs on R600a refrigerant with a 95 g charge, draws 300 W and measures a quiet 42 dB — low enough for front-of-house prep. Rated at 894 kWh a year with a B energy rating, that works out at about £224 a year at 25p/kWh.

Internally the refrigerated space measures 1337 × 530 × 589 mm, and the counter packs to 1825 × 730 × 1010 mm for delivery at 162 kg gross, 152 kg net — plan lift access and a clear run before it arrives. It runs from a standard 13 amp supply at 220–240 V. Both the exterior and interior are SS304 stainless steel for hygiene and easy cleaning.

BEFORE YOU BUY

Questions, answered straight

Yes — it is a GN1/1 counter cooler, so it takes standard gastronorm 1/1 pans for chilled prep. Net capacity is 402 litres, gross 417 litres.

An electronic controller holds -2 to +10 °C on ventilated cooling for an even temperature across the cabinet. That band covers chilled prep, fillings and dairy.

At 42 dB it is quiet enough to site near a serving area or open prep line. Cooling is ventilated and defrost is automatic, so there is no disruptive manual routine.

It is rated at 894 kWh a year with a B energy rating, drawing 300 W. At 25p/kWh that is about £224 a year. It uses R600a refrigerant with a 95 g charge.

The internal cold space is 1337 × 530 × 589 mm, and the unit packs to 1825 × 730 × 1010 mm at 162 kg gross. Plan lift access and a clear run before delivery.

It runs from a standard 13 amp supply at 220–240 V. For servicing, spares or advice, call Craven Cooling on 01792 732702; the SS304 surfaces wipe down easily during routine cleaning.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1337 x 530 x 589 mm
External Dimension (WxDxH): 1795 x 700 x 960 mm
Packed Dimension (WxDxH): 1825 x 730 x 1010 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 95 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.45 kWh/24h
Temperature Range: -2 to +10 °C
Annual Energy Consumption: 894 kWh/year m³
EEI: 33.1 %
Input Power: 300 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Temperature Range: -2 to +10 °C
Climate Class: 4
Gross / Net Weight: 162 / 152 kg
Gross / Net Volume: 417 / 402 l

Design and Material

Shelf Color: White
Drawers: 6 GN1/1 drawers
Feet / Legs: 4 adjustable feet
Exterior Finish: SS304
Interior Finish: SS304
If you have any questions about the TEFCOLD CK7360 Counter Cooler GN1/1 then please get in touch.
