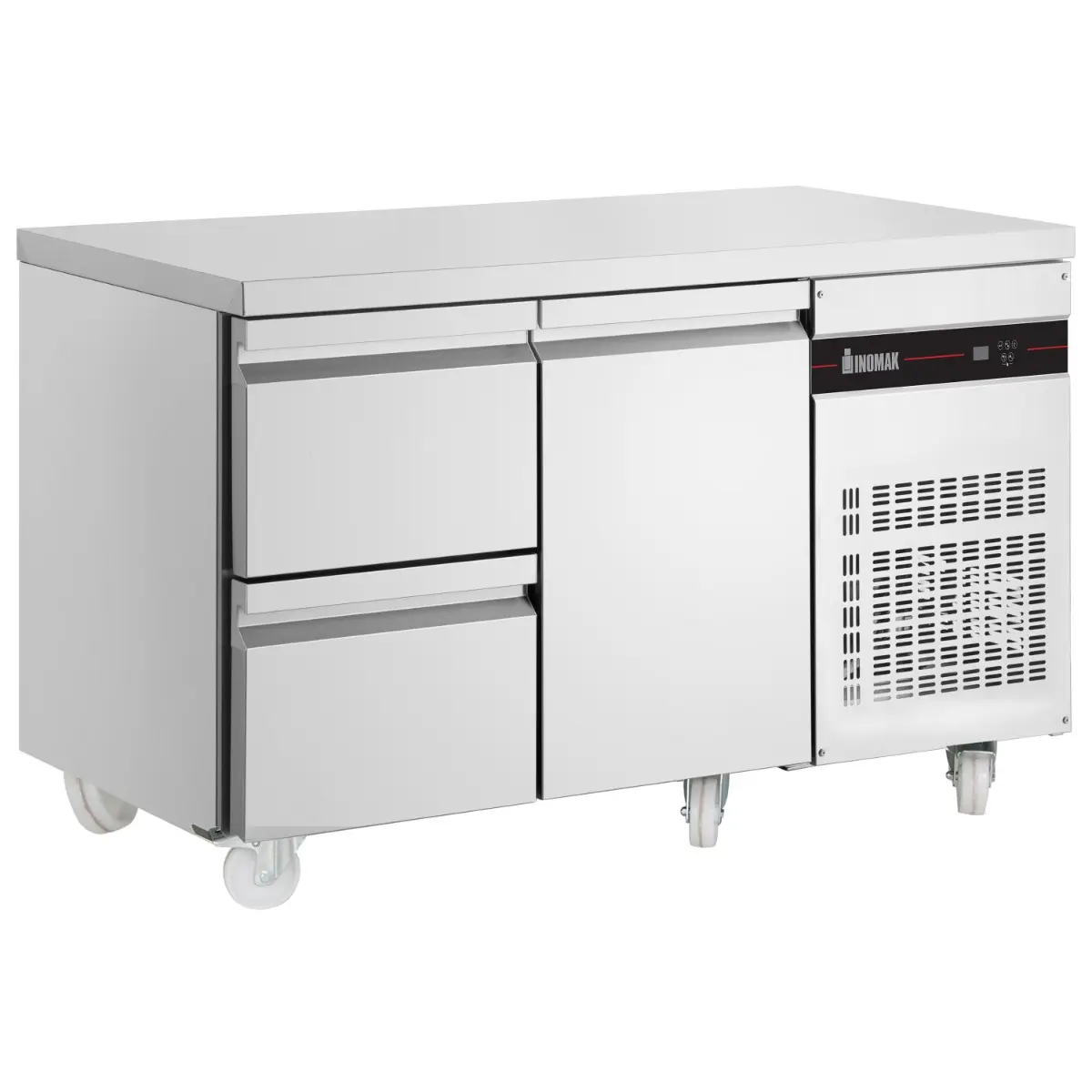

INOMAK 274L Double Drawers Single Door Gastronorm Counter Refrigerator PN29-HC

£1,815.05

+vat

- +

Brand:

SKU: PN29-HC

Product summary

Size: 1345 x 700 x 890

Product description

  • High grade AISI 304 stainless steel exterior & interior, including back
  • Drawers accept GN1/1 trays
  • 1 x GN1/1 shelf supplied in door section, shelf size 530 x 325mm
  • Internal corners rounded for easy cleaning
  • Castors as standard
  • Replaceable door gasket
  • Epoxy coated evaporator to resist corrosion
  • Hygienically designed interior
  • self-closing door at 90¬∞
  • Forced air circulation technology
  • Clip-On Guides for fast & easy cleaning
  • Embedded controller for easy operation and cleaning
  • Removable magnetic door gasket
  • Over extension telescopic slides on drawers
  • Automatic evaporation of condensate water
  • Injected polyurethane foam insulation
  • Automatic defrost
  • Ambient temperature +43¬∞C

The INOMAK PN29-HC is a compact counter refrigerator combining two GN1/1 drawers with a single self-closing door, 274 litres gross capacity on R290 refrigerant with automatic defrost — sized for smaller prep lines needing drawer access alongside standard door storage.

SPECIFICATION 24 facts · tap for all External W × D × H1345 x 700 x 890Width1345 mmDepth700 mmHeight890 mmGross weight131 kgVoltage / frequency351W

Manufacturer documents2

Identity4

Brand INOMAKsite
GTIN / EAN 5212016701689site
Product code PN29-HCsite
Type Single Door Counter Fridgescatalogue

Size & weight6

Depth 700 mmsite
External (W×D×H) 1345 × 700 × 890 mmcatalogue
External W × D × H 1345 x 700 x 890site
Gross weight 131 kgcatalogue
Height 890 mmsite
Width 1345 mmsite

Capacity1

Gross volume 274 litrescatalogue

Performance6

Climate class 5site
Controller Digital controller with temperature displaysite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Temperature range +1C/+10Csite

Power & energy3

Input power 13amp supplysite
Rated input 351 Wcatalogue
Voltage / frequency 351Wsite

Build & fittings2

Exterior finish Stainless Steelsite
Shelves 1site
THE WORKING VIEW

Why this single door counter fridge earns its place

The INOMAK PN29-HC is a compact double-drawer, single-door counter refrigerator for kitchens with a limited counter run that still need drawer-and-door flexibility. AISI 304 stainless steel covers the exterior and interior including the back panel.

Gross capacity is 274 litres, drawing 351 kWh a year through ventilated forced-air circulation rated to +43°C ambient, with one GN1/1 shelf (530 × 325mm) fitted in the door section.

R290 refrigerant runs at Climate Class 5, with automatic defrost and automatic condensate evaporation. An epoxy-coated evaporator resists corrosion, injected polyurethane foam insulation keeps the cabinet efficient, and a digital controller manages temperature precisely. A replaceable door gasket, self-closing door at 90°, and standard castors complete the build, at external dimensions of 1345 × 700 × 890mm (W×D×H) and 131kg gross weight.

BEFORE YOU BUY

Questions, answered straight

274 litres gross across two GN1/1 drawers and a single door fitted with one GN1/1 shelf (530 × 325mm).

1345 × 700 × 890mm (W×D×H) — the most compact footprint in the INOMAK drawer counter range, weighing 131kg gross.

R290 with ventilated cooling, drawing 351 kWh a year and rated to +43°C ambient.

Self-closing at 90°, with a replaceable door gasket for a lasting seal.

Automatically, with automatic condensate evaporation, so there's no manual defrost cycle to manage.

Craven Cooling installs and services INOMAK counters across South Wales — 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 1345 x 700 x 890

Cooling and Functions

Type of Controller: Digital controller with temperature display
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290

Power and Consumption

Temperature Range: +1C/+10C °C
Input Power: 13amp supply
Voltage / Frequency: 351W

Measures and Content

Temperature Range: +1C/+10C °C
Climate Class: 5
Gross / Net Volume: 274 ltr l

Design and Material

Shelves Number & Type: 1
Exterior Finish: Stainless Steel

INOMAK 274L Double Drawers Single Door Gastronorm Counter Refrigerator PN29-HC Product Data

If you have any questions about the INOMAK 274L Double Drawers Single Door Gastronorm Counter Refrigerator PN29-HC then please get in touch.
