TEFCOLD CK7340 Counter Cooler GN1/1

£1,454.00

+vat

Brand:

SKU: 51592

Energy Arrow

Product summary

  • Stainless steel
  • Automatic defrost
  • GN1/1 Drawers
  • Digital controller and temperature display
  • Ventilated cooling
  • Castors, 2 lockable

Product description

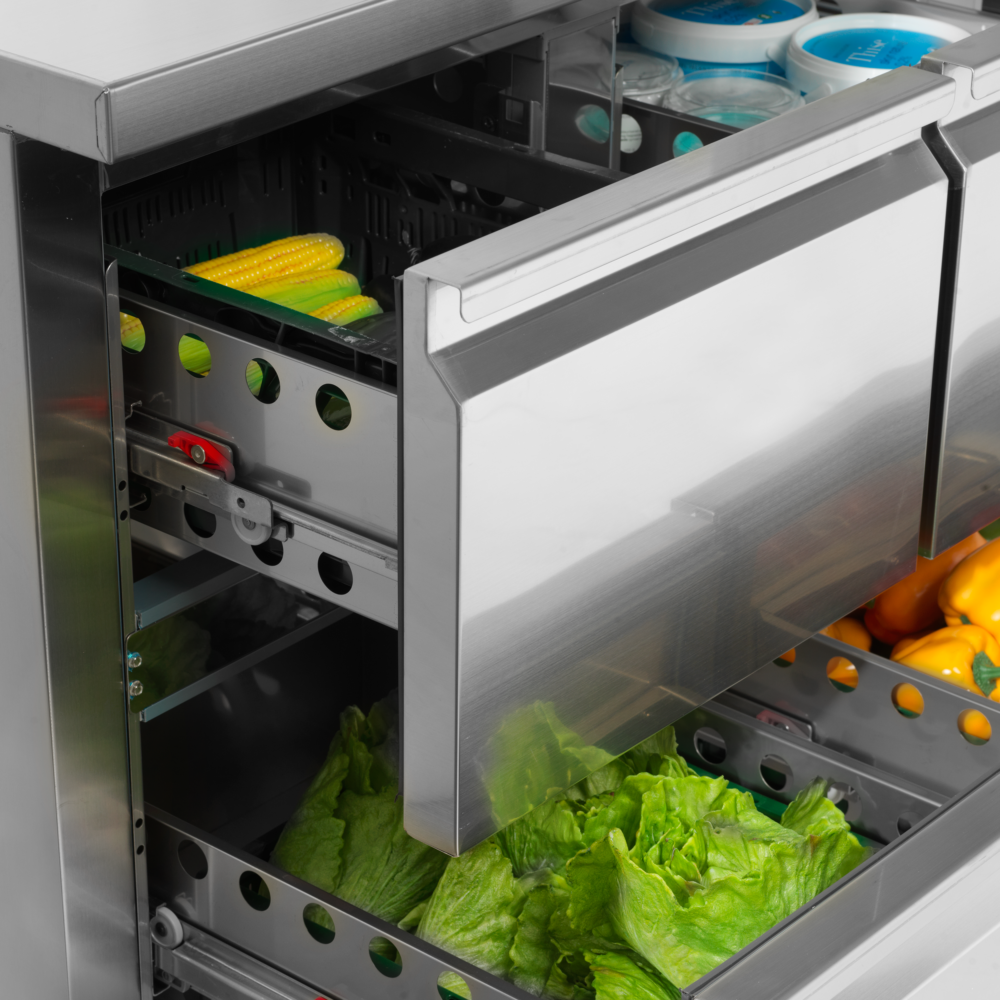

Counter cooler with GN1/1 drawers and shelves

The CK range of counters is made for professional kitchens and therefore offers a durable stainless steel construction. Its ventilated system maintains consistent temperatures, and an electronic controller makes adjustments easy. The CK range is available in numerous constallations with solid doors or drawers and with or without a splashback.

The TEFCOLD CK7340 is a GN1/1 stainless-steel refrigerated counter cooler holding 402 litres net, running -2 to +10 °C on ventilated cooling with automatic defrost and electronic control, drawing 894 kWh a year (energy class B) from a 13-amp supply.

SPECIFICATION 41 facts · tap for all External W × D × H1795 x 700 x 960 mmWidth1795 mmDepth700 mmGross / net weight162 / 152 kgGross weight162 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181735135site
Product code 51592site
Sub title Counter Cooler GN1/1catalogue
Type Triple Door Counter Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 700 mmsite
External (W×D×H) 1795 × 700 × 960 mmcatalogue
External W × D × H 1795 x 700 x 960 mmsite
Gross / net weight 162 / 152 kgsite
Gross weight 162 kgcatalogue
Height 960 mmsite
Internal (W×D×H) 1337 × 530 × 589 mmcatalogue
Internal W × D × H 1337 x 530 x 589 mmsite
Packed (W×D×H) 1825 × 730 × 1010 mmcatalogue
Packed W × D × H 1825 x 730 x 1010 mmsite
Width 1795 mmsite

Capacity2

Gross volume 417 litrescatalogue
Shelves 1catalogue

Performance8

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R600asite
Refrigerant charge 95 gsite
Temperature range -2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 894 kWh/yearsite
Energy consumption 2.45 kWh/24hsite
Energy efficiency index 33.1 %site
Input power 300 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Drawers 4 GN1/1 drawerssite
Exterior finish SS304site
Feet / legs 4 adjustable feetsite
Shelf dimensions GN1/1site

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this triple door counter fridge earns its place

The CK7340 is a GN1/1 refrigerated counter cooler that puts chilled storage directly under the prep line. It gives 417 litres gross and 402 litres net behind a self-closing hinged door, built in SS304 stainless steel inside and out, so it wipes down fast and holds up to a hard commercial shift. Sited under the pass or on the prep bench, it keeps ingredients cold and within reach without a trip to the store room.

Day to day it holds -2 to +10 °C using ventilated, fan-assisted cooling for even temperature across the cabinet, with automatic defrost and an electronic controller, so it manages itself through service. It runs at 42 dB and carries a climate class 4 rating suited to a warm, busy kitchen. At 894 kWh a year (energy class B) it costs about £224 a year to run at 25p/kWh.

Internally the cabinet measures 1337 × 530 × 589 mm (W×D×H) and packs to 1825 × 730 × 1010 mm, so plan your delivery access around the packed dimensions. It is a substantial unit at 162 kg gross and 152 kg net — a two-person position. Power is a standard 13-amp supply drawing 300 W at 220-240 V, and cooling uses R600a hydrocarbon refrigerant with a 95 g charge.

BEFORE YOU BUY

Questions, answered straight

It holds 417 litres gross and 402 litres net behind a self-closing hinged door. It runs -2 to +10 °C for chilled prep and ingredient storage.

Yes, it is a GN1/1 counter cooler, built in SS304 stainless steel inside and out. The internal cabinet measures 1337 × 530 × 589 mm.

It is rated at 894 kWh a year at energy class B, which is about £224 a year at 25p/kWh. Actual cost depends on your tariff, ambient temperature and door use.

Yes. It uses ventilated fan-assisted cooling with automatic defrost and an electronic controller, so it manages temperature and defrost through service.

It weighs 162 kg gross and 152 kg net, so position it as a two-person job. It runs on a standard 13-amp supply drawing 300 W at 220-240 V, using R600a refrigerant.

Yes. Our engineers service and maintain commercial refrigeration across the region — call 01792 732702 to arrange a visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1337 x 530 x 589 mm
External Dimension (WxDxH): 1795 x 700 x 960 mm
Packed Dimension (WxDxH): 1825 x 730 x 1010 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 95 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.45 kWh/24h
Temperature Range: -2 to +10 °C
Annual Energy Consumption: 894 kWh/year m³
EEI: 33.1 %
Input Power: 300 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Temperature Range: -2 to +10 °C
Climate Class: 4
Gross / Net Weight: 162 / 152 kg
Gross / Net Volume: 417 / 402 l

Design and Material

Shelf Color: White
Shelf Dimensions: GN1/1
Drawers: 4 GN1/1 drawers
Feet / Legs: 4 adjustable feet
Exterior Finish: SS304
Interior Finish: SS304
If you have any questions about the TEFCOLD CK7340 Counter Cooler GN1/1 then please get in touch.
