Polar U-Series Four Door Chef Base Counter Fridge DA464

£1,288.04

+vat

Availability: 6 in stock

Brand:

SKU: DA464

Product summary

220W. Total usable capacity: 420Ltr. R600a

Product description

Ideal for commercial kitchens where space is a premium these low height counter units provide chilled storage and additional surface space for other equipment such as griddles, chargrills and hotplates.

Sturdy lockable castors allow easy positioning
1 adjustable shelf per door improves storage flexibility
Effective forced air cooling system provides rapid temperature recovery
Automatic off cycle defrost ensures efficient and reliable cooling
User-friendly digital controls and display
50mm of advanced insulation helps reduce running costs

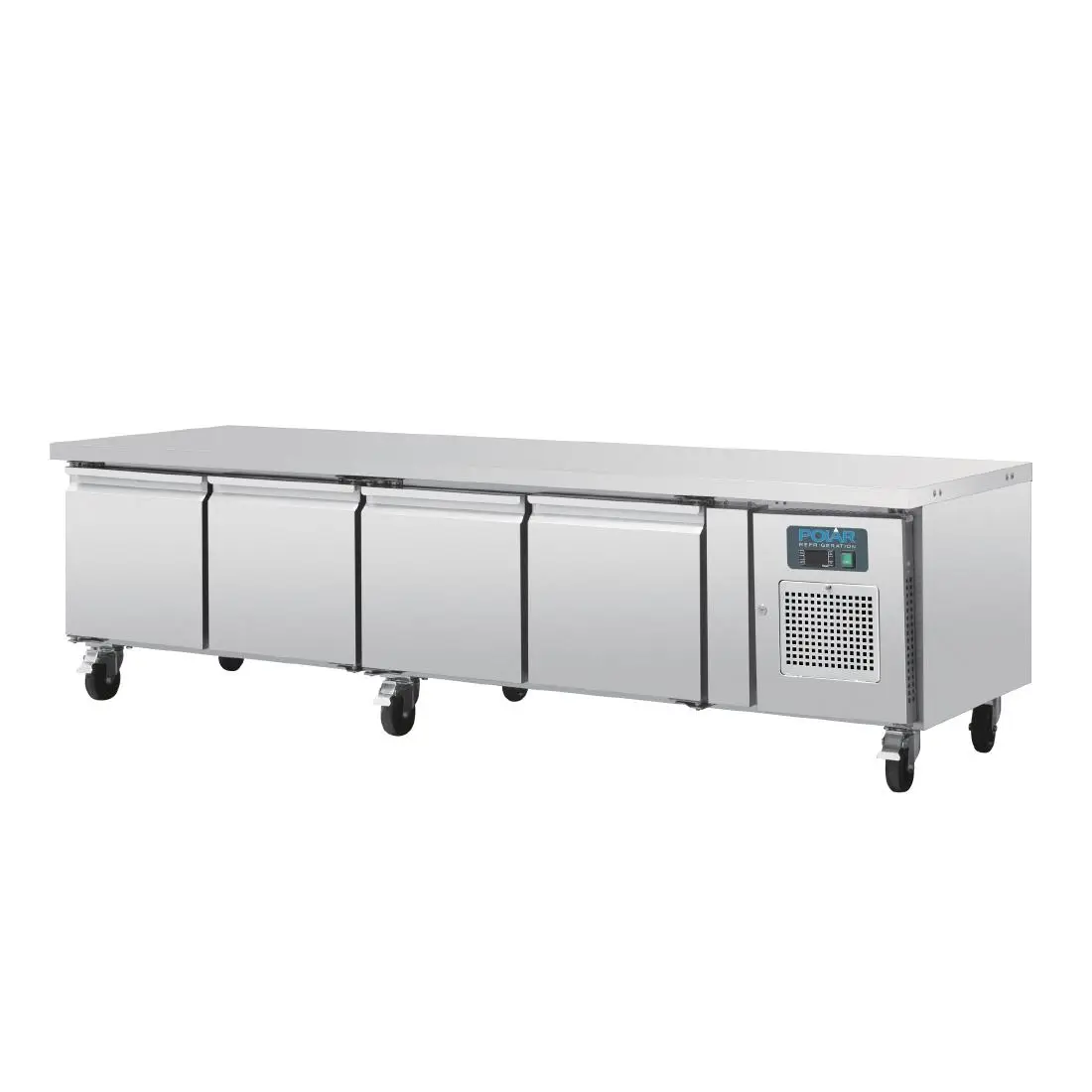

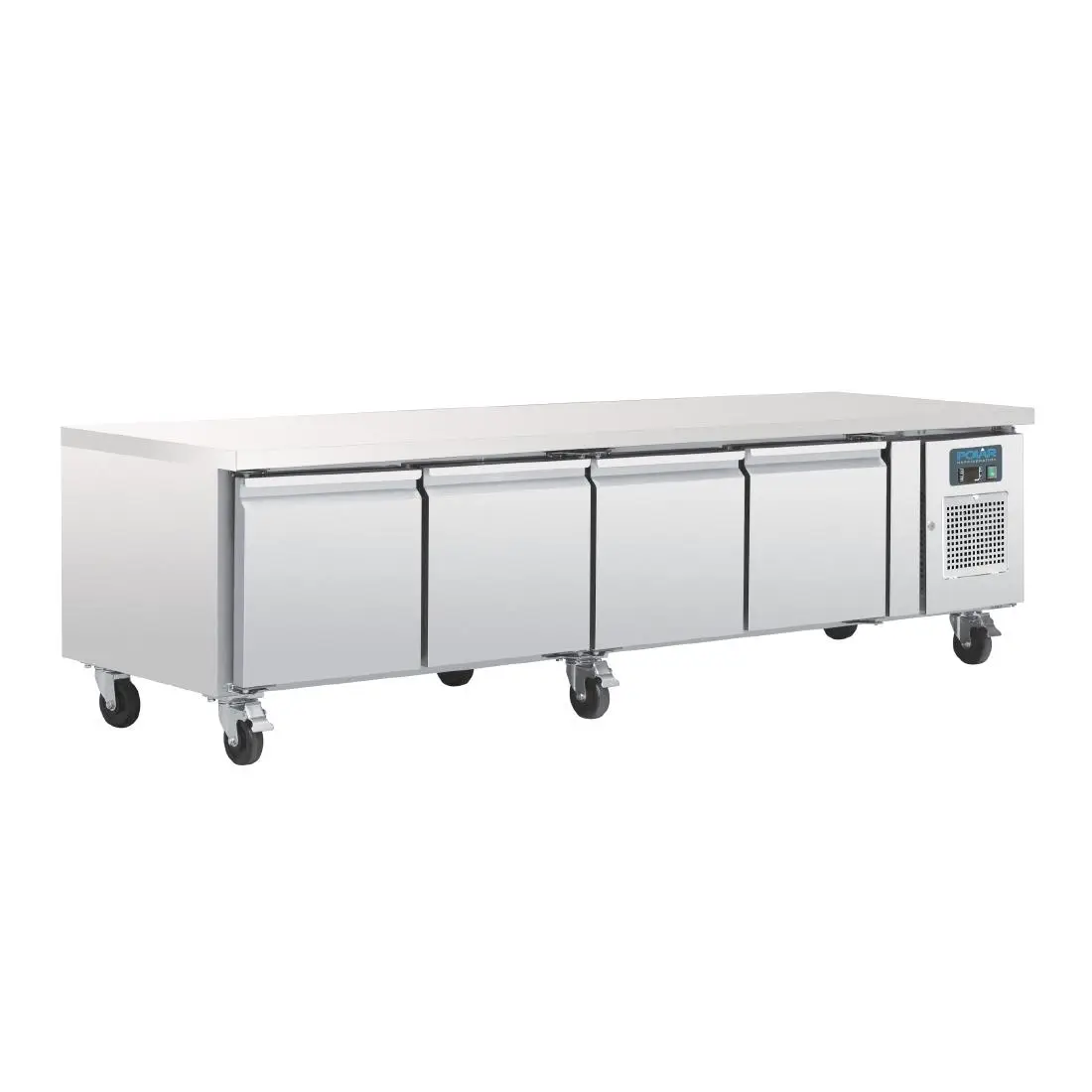

The Polar U-Series DA464 is a four-door chef base counter fridge — a low-line refrigerated counter built to sit directly beneath cooking equipment, giving a heavy-duty working top and chilled storage in the same footprint at the hot line.

Downloads

SPECIFICATION 35 facts · tap for all Width2230 mmDepth700 mmHeight630 mmGross weight151 kgVoltage230VTemperature range-2 to +8 °C

Identity7

Brand Polarsite
GTIN / EAN 5.05098E+12catalogue
Product code DA464site
Range / series U Seriescatalogue
Seo name Polar Four Door Chef Base Fridgecatalogue
Type Counter Fridgescatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 700 mmcatalogue
External (W×D×H) 630 × 2230 × 700 mmcatalogue
Gross weight 151 kgcatalogue
Height 630 mmcatalogue
Width 2230 mmsite

Capacity7

Capacity 1/1GNcatalogue
Door type Hingedcatalogue
Gastronorm size 1/1 GN fullcatalogue
Gross volume 420 litrescatalogue
Net volume 217 litrescatalogue
Product capacity 420catalogue
Shelves 4catalogue

Performance4

Climate class 5catalogue
Cooling Ventilatedcatalogue
Refrigerant R600a / GWP 3 / 95gcatalogue
Temperature range -2 to +8 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 220 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts7

EEI 39.4 %catalogue
Energy (24h) 2.53 kWh/24hcatalogue
Energy class Ccatalogue
Energy consumption 923 kWh/yearcatalogue
Mobility Castorscatalogue
Noise level 42 dB(A)catalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this counter fridge earns its place

A chef base puts refrigerated storage where a hot line usually wastes it — under the chargrill, salamander or induction top. The DA464 is a four-door version at 2230mm wide, built to carry cooking equipment on top while keeping prep and service stock cold and within reach directly below. It holds 217 litres of usable chill space across four separate compartments, split by hinged doors so the line pulls from the nearest section without losing cold.

In service, the four doors split the base into separate access points, so line staff can pull from the nearest section without opening the whole cabinet. That keeps stock at the pass and at -2 to +8°C without a walk back to a full-height fridge. The design is ventilated cooling, maintaining temperature consistently even during peak service.

It is a fitted counter format at 630mm tall and 130kg, designed to be built into the hot line and to carry the weight of the equipment sited on top. It draws 220W and runs at Energy class C (923 kWh/year), comparable to smaller chef bases despite the extra capacity. Plan the run around the load, check the doorway width on delivery, and leave clearance for the doors to open and for ventilation access.

BEFORE YOU BUY

Questions, answered straight

A chef base is a low-line refrigerated counter designed to sit directly under cooking equipment. It uses the footprint beneath your chargrill, salamander or induction top for cold storage, keeping stock at the hot line rather than in a back-of-house fridge.

Yes — that is the point of the format. The DA464 is built as a base for heavy cooking kit, so plan the unit around the equipment it will carry and leave clearance for the doors to open.

The DA464 is a four-door unit, splitting the base into separate cold sections. Exact net capacity and internal layout are listed in the specification table on this page, so you can match it to your covers and menu.

It is a fitted counter format meant to be built into the hot line. Check the external dimensions on the spec card against your run and your doorway before ordering; our team can help you confirm the fit.

The energy rating and annual consumption figure are on the specification card. For a cost on your own tariff, run the numbers through the energy label decoder linked in the tools on this page.

Craven Cooling supplies and supports the Polar U-Series across the UK. For servicing, spares or advice on siting the unit, call our team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Polar U-Series Four Door Chef Base Counter Fridge DA464 Product Data

Brand Polar
Type Counter Fridges
Range U Series
Dimensions 630(H) x 2230(W) x 700(D)mm
Capacity 1/1GN
Material Stainless Steel
Colour / Finish Silver
Temperature Range -2°C to 8°C
Refrigerant R600a / GWP 3 / 95g
Cooling Ventilated
Number of Doors 4
Number of Shelves 4
Energy Rating C
Annual Energy Use 923kWh/annum
Noise Level 42 dB(A)
Power 220W
Voltage 230V
Fuel / Supply Plug
Warranty 2 Years Parts & Labour
Weight 130kg
Manufacturer Ref G-U-ECX4100TN
If you have any questions about the Polar U-Series Four Door Chef Base Counter Fridge DA464 then please get in touch.
