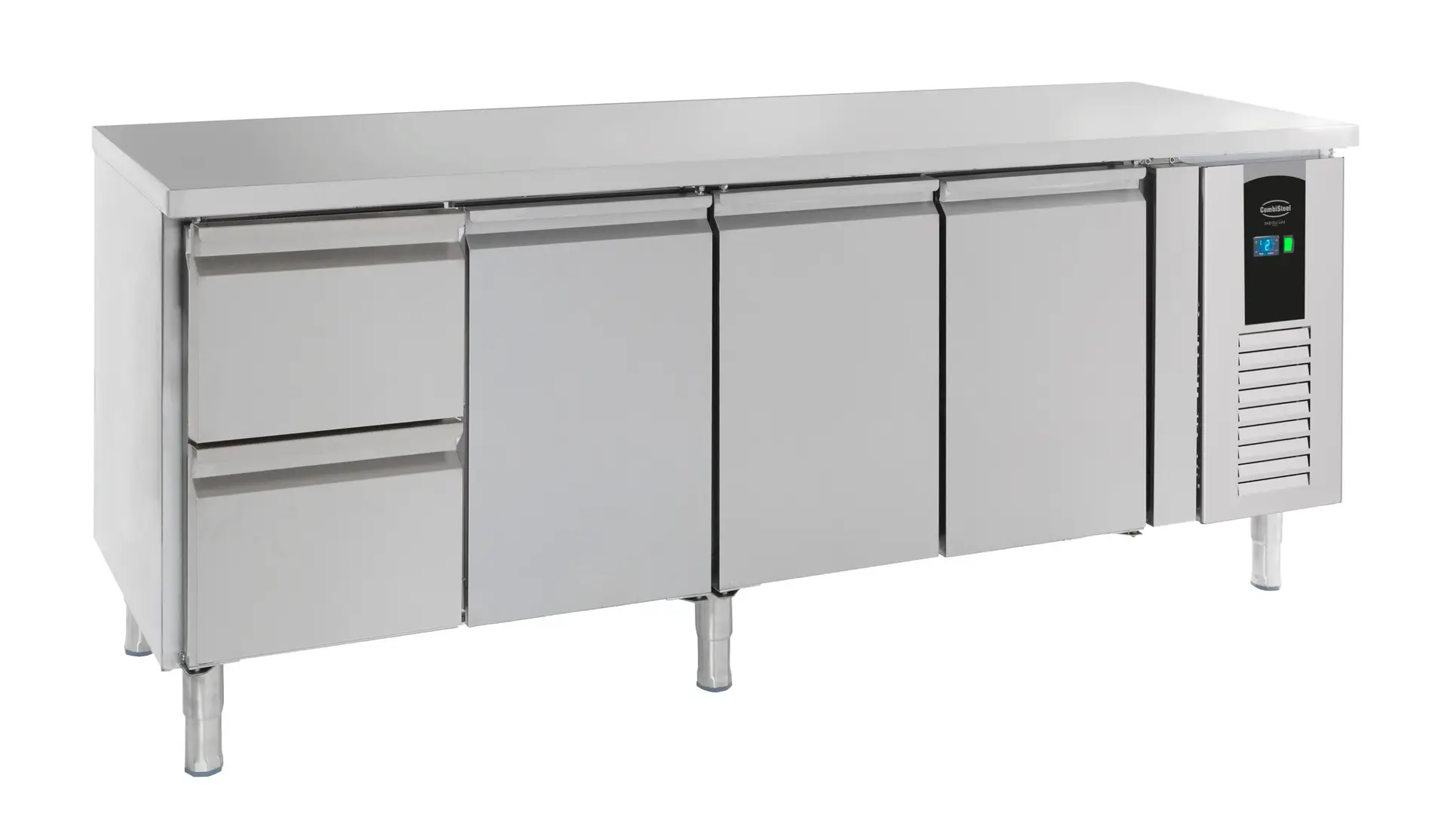

CombiSteel 700 Series Refrigerated Counter Triple Door and 2 Drawers Energy Line 7450.5025

£1,822.47

+vat

Brand:

SKU: 7450.5025

Product summary

Size W/D/H (mm) x x

Product description

The 7450.5025 is a refrigerated prep counter with three doors and two drawers from Combisteel’s Energy Line, giving a busy line a long chilled worktop with bulk cabinet storage behind the doors and fast-access drawers for mise en place.

Downloads

SPECIFICATION 36 facts · tap for all Width2230 mmDepth700 mmHeight860 mmGross / net weight186 kgGross weight163 kgVoltage / frequency23050

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 6153302723765catalogue
Range / series Energy Linecatalogue
Type Four Door Counter Fridgescatalogue

Size & weight8

Depth 700 mmsite
External (W×D×H) 2230 × 700 × 860 mmcatalogue
Gross / net weight 186 kgsite
Gross weight 163 kgcatalogue
Height 860 mmsite
Internal (W×D×H) 1669 × 530 × 564 mmcatalogue
Internal W × D × H 1669x530x564site
Width 2230 mmsite

Capacity5

Capacity 393 Ltrcatalogue
Gastronorm size 3x 1/1catalogue
Gross volume 393 litrescatalogue
Net volume 344 litrescatalogue
Shelves 3catalogue

Performance6

Controller Digitalcatalogue
Cooling type R 600 Asite
Defrost type Automaticsite
Max ambient 3030 °Ccatalogue
Maximum ambient 3030site
Temperature range +2/+8site

Power & energy6

Energy consumption 0,3site
Frequency 50 Hzcatalogue
Rated input 300 Wcatalogue
Rated power 3 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings5

Colour Stainless steelcatalogue
Drawers 2site
Exterior finish Stainless steel Aisi 201site
Insulation 60 mmcatalogue
Temperature display Yes, digitalcatalogue

Other stated facts2

Energy (24h) 192 kWh/24hcatalogue
Mobility Nocatalogue
THE WORKING VIEW

Why this four door counter fridge earns its place

A refrigerated counter turns a stretch of the line into a prep surface with chilled storage underneath, and this one is built for a kitchen that needs plenty of it: three door sections plus two drawers under a single run of worktop, holding 393 litres of chilled storage. It gives a brigade room to work along the top while keeping a shift's ingredients cold and to hand below.

Built from stainless steel (AISI 201) with 60 mm insulation, the 7450.5025 runs at +2 to +8°C using ventilated R 600 A refrigeration with automatic defrost and digital control. The three doors take bulk and taller stock — trays, containers, backup ingredients — while the two drawers hold the mise en place a line cook reaches for constantly. Splitting the storage that way keeps the most-used items in the fastest spot and the rest behind doors, so a station stays stocked through service without runs to the walk-in. It is part of Combisteel's Energy Line range.

At 2,230 mm wide and 860 mm tall (700 mm deep), weighing 186 kg gross, it is a counter this long that needs a planned run of space at working height; each door and drawer needs clearance to open, so the layout is worth mapping before it arrives. The unit runs from a standard 230 V, 50 Hz mains socket at 3 kW. Our team can confirm the footprint and access for your kitchen, and handle installation and servicing across the region.

BEFORE YOU BUY

Questions, answered straight

The three door sections handle bulk and taller items — trays, containers, backup stock — while the two drawers keep frequently used mise en place at the front for fast access. It is a layout that keeps fast-moving ingredients to hand and the rest tidily behind doors.

Yes. A refrigerated counter is designed as a continuous working worktop with chilled storage below, so the full run is usable prep surface with ingredients directly underneath. That is the point of the format for a busy line.

It is a longer counter aimed at kitchens doing real volume across multiple stations. If your space or covers are more modest, a shorter counter may fit the line better — our "which commercial fridge do I need?" tool helps size it.

A counter this length needs a planned run of space at working height with clearance for every door and drawer to open. That is worth mapping against your layout and access route before ordering — our team can confirm the fit.

Yes. Craven Cooling installs and services refrigerated counters across the region and can advise on siting within your line. For fit, delivery or a service booking, call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel 700 Series Refrigerated Counter Triple Door and 2 Drawers Energy Line 7450.5025 Product Data

Brand CombiSteel
Type Energy Line
Dimensions (W×D×H) 2230 × 700 × 860 mm
Interior Dimensions 1669x530x564
Capacity 393 Ltr
GN Capacity 3x 1/1
Material Stainless steel Aisi 201
Colour / Finish Stainless steel
Temperature Range +2/+8
Max. Ambient Temp. 30
Refrigerant R 600 A
Cooling Ventilated
Defrost Automatic
Number of Doors 3
Number of Grids/Shelves 3x 335×530
Electrical Power 0.3 kW
Energy Use 1.92 kWh/24h
Voltage 230V / 50Hz
Mobile No
Lockable No
Insulation 60 mm
Weight 163 kg
If you have any questions about the CombiSteel 700 Series Refrigerated Counter Triple Door and 2 Drawers Energy Line 7450.5025 then please get in touch.
