CombiSteel Refrigerated Counter Top 6x 1/3GN 7450.0017

£448.00

+vat

Brand:

SKU: 7450.0017

Product summary

Size W/D/H (mm) x x

Product description

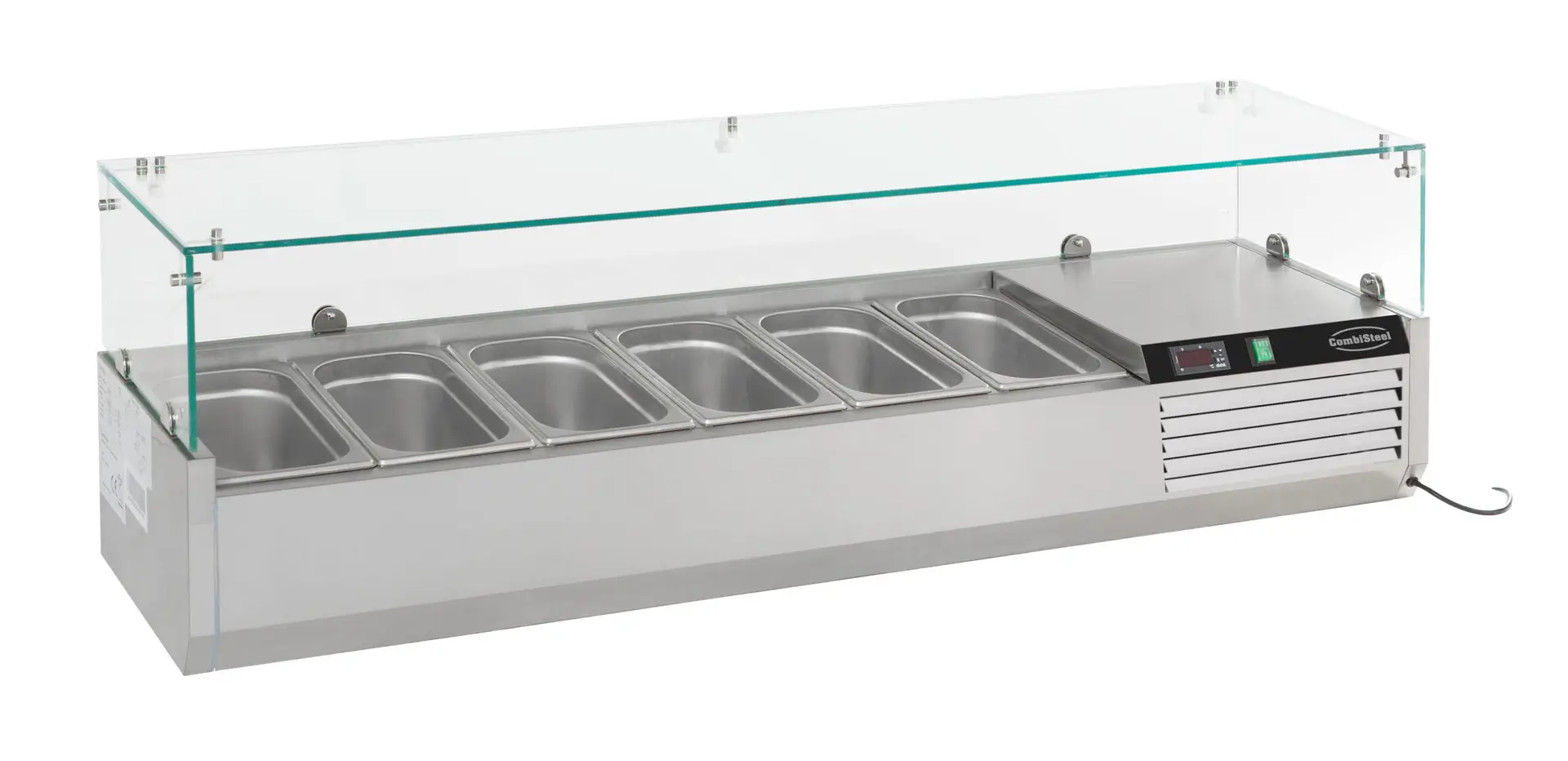

The Combisteel 7450.0017 is a 1400 mm wide refrigerated glass counter-top unit for six 1/3 GN pans, holding toppings and garnishes at +2 to +8 °C in a stainless steel 18/8 body. Six 1/3 GN pans of toppings and garnishes chilled and visible at the service counter in a compact 1400 mm footprint, ideal for tight prep lines that need speed without space.

Downloads

SPECIFICATION 23 facts · tap for all Width1400 mmDepth395 mmHeight435 mmGross / net weight53 kgVoltage / frequency23050Voltage230V / 50Hz

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7435137889885catalogue
Type Glass Topping Unitscatalogue

Size & weight5

Depth 395 mmsite
External (W×D×H) 1400 × 395 × 435 mmcatalogue
Gross / net weight 53 kgsite
Height 435 mmsite
Width 1400 mmsite

Capacity1

Gastronorm size 6 x 1/3catalogue

Performance3

Cooling type R 600 Asite
Defrost type Automaticsite
Temperature range +2 / +8site

Power & energy7

Energy consumption 0,34site
Frequency 50 Hzcatalogue
Noise level 4040site
Rated input 340 Wcatalogue
Rated power 34 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings4

Accessories 5x long GN bar, 4x short GN barcatalogue
Colour Stainless steelcatalogue
Exterior finish Stainless steel 18/8site
Interior finish Stainless steel 201site
THE WORKING VIEW

Why this glass topping unit earns its place

The 7450.0017 is the shorter six-pan option in this Combisteel refrigerated counter-top range. It gives a pizza, salad, sandwich or garnish station six 1/3 GN positions in a 1400 mm wide footprint, with a 395 mm depth and 435 mm height that make it a practical fit on an existing prep counter or service pass.

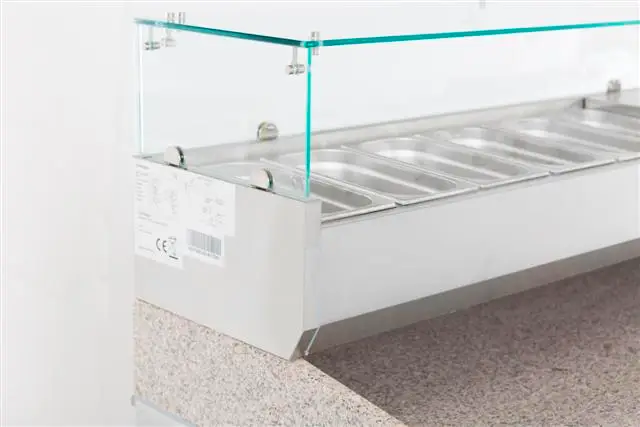

The chilled well is rated from +2 to +8 °C and uses static R600a refrigeration with automatic defrost. The glass top keeps ingredients visible and screened while they are worked from, and the stainless steel 18/8 body gives the unit the wipe-clean finish expected on a commercial prep line.

It is a counter-top unit, so the bench matters. Allow for a 53 kg gross weight, a stable level surface and a 230 V, 50 Hz socket at the point of use. The supplier lists the noise level at 40 dB(A), useful when the topping unit is close to staff or customers rather than tucked away in a back kitchen.

BEFORE YOU BUY

Questions, answered straight

It is specified as a 1/3 GN x 6 unit, so the working layout is built around six 1/3-size Gastronorm pans.

It sits on top of an existing worktop at the prep station rather than being built in underneath. The footprint is 1400 mm wide by 395 mm deep, with a 435 mm height.

Allow more than the 1400 x 395 mm footprint so staff can lift pans clear, clean the glass and work comfortably around the unit. The gross weight is 53 kg, so the bench needs to be solid.

The 1/3 GN pans lift out for washing and the glass top and stainless steel body wipe down, so toppings can be swapped and the well cleaned between shifts.

The supplier rates the unit at +2 to +8 °C, with static R600a cooling and automatic defrost.

Yes. Craven Cooling can arrange servicing and breakdown support — call the team on 01792 732702 to book.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Refrigerated Counter Top 6x 1/3GN 7450.0017 Product Data

Brand CombiSteel
Dimensions (W×D×H) 1400 × 395 × 435 mm
GN Capacity 6 x 1/3
Material Stainless steel 18/8
Interior Material Stainless steel 201
Colour / Finish Stainless steel
Temperature Range +2 / +8
Refrigerant R 600 A
Cooling Static
Defrost Automatic
Electrical Power 0.34 kW
Voltage 230V / 50Hz
Noise Level 40 dB
Weight 53 kg
If you have any questions about the CombiSteel Refrigerated Counter Top 6x 1/3GN 7450.0017 then please get in touch.
