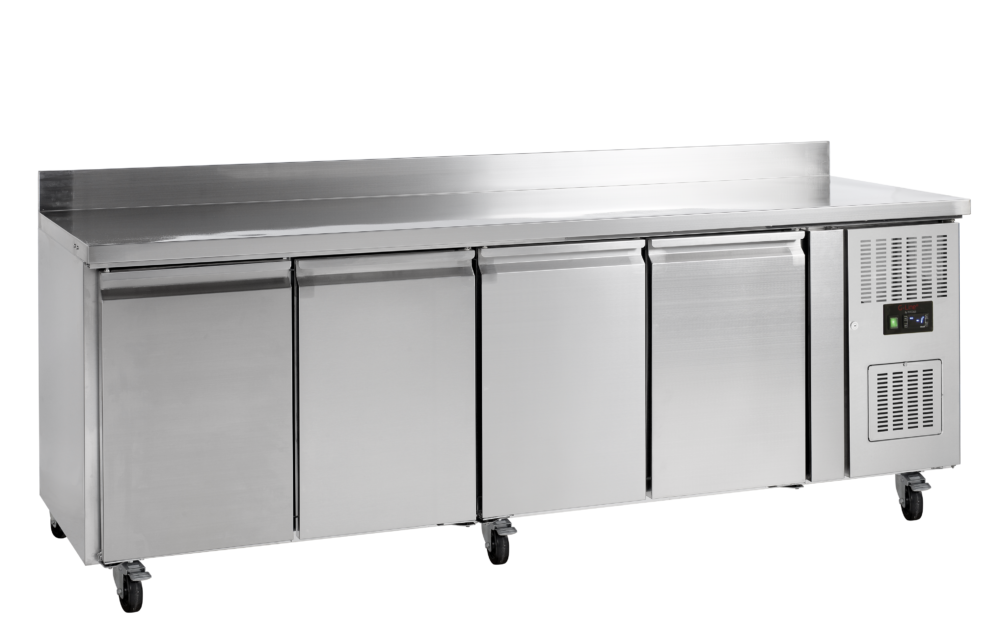

G-Line by TEFCOLD GC74 Gastronorm Counter

£1,591.00 £1,012.00

+vat

- +

Product summary

  • Fully automatic
  • Fan assisted cooling

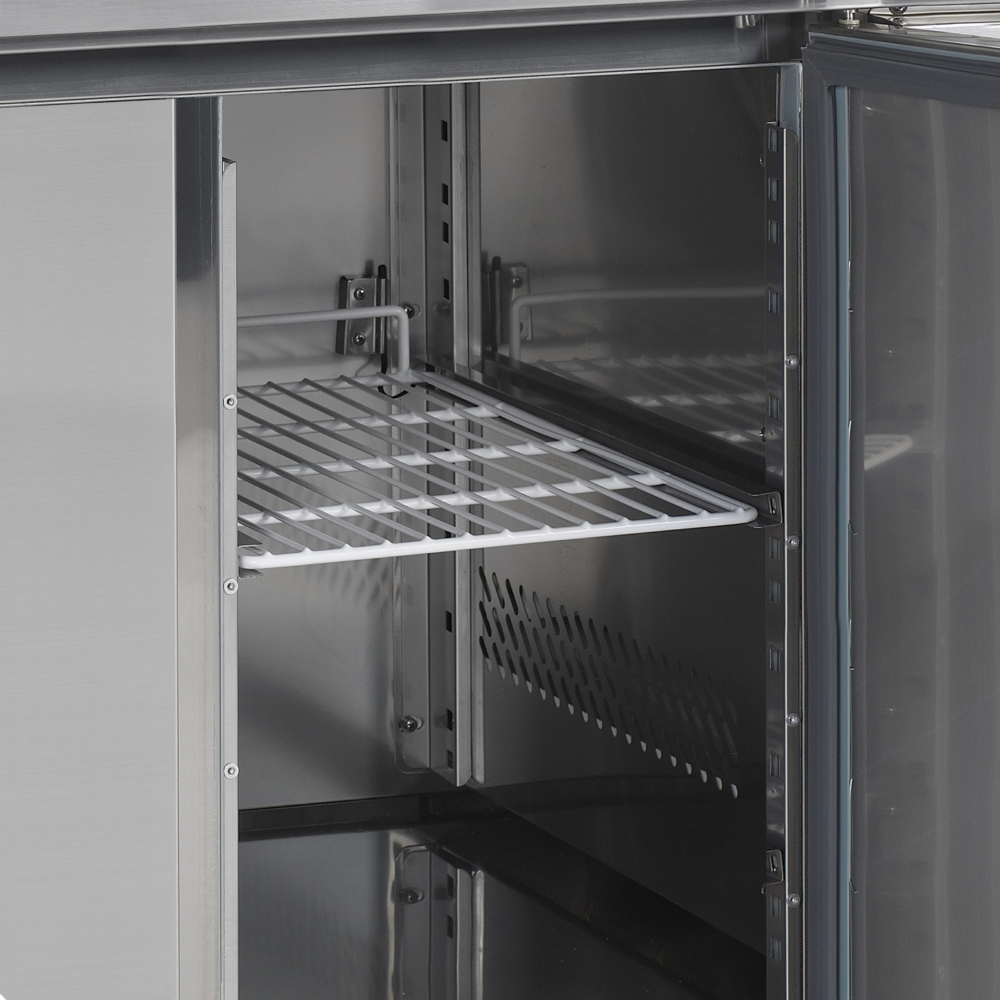

  • Adjustable shelves
  • Digital controller and temperature display
  • Self-closing doors
  • Replaceable door gasket
  • Accepts Gastronorm pans (not supplied)
  • 1/1 Gastronorm cupboards
  • Splashback
  • Castors, 2 lockable

Product description

Gastro counter coolers in stainless steel. Our value-for-money counter coolers are a great asset in professional kitchens. The cupboards are GN1/1 dimensioned and accept gastronorm pans. Its stainless steel construction ensures durability for busy catering environments. Adjustable legs simplify cleaning beneath the cooler. If needed, it can be combined with a topping unit or vitrine cooler. Freezer options are also available.

Sale!

Downloads

SPECIFICATION 40 facts · tap for all External W × D × H2230 x 700 x 960 mmWidth2230 mmDepth700 mmGross / net weight151 / 134 kgGross weight151 kgVoltage / frequency220-240/50 V/Hz

Manufacturer documents2

Identity6

Brand G-Line by TEFCOLDsite
GTIN / EAN 5708181365424site
Product code 30811site
Sub title Gastronorm Countercatalogue
Type Four Door Counter Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 700 mmsite
External (W×D×H) 2230 × 700 × 960 mmcatalogue
External W × D × H 2230 x 700 x 960 mmsite
Gross / net weight 151 / 134 kgsite
Gross weight 151 kgcatalogue
Height 960 mmsite
Internal (W×D×H) 1772 × 530 × 589 mmcatalogue
Internal W × D × H 1772 x 530 x 589 mmsite
Packed (W×D×H) 2260 × 750 × 1010 mmcatalogue
Packed W × D × H 2260 x 750 x 1010 mmsite
Width 2230 mmsite

Capacity1

Gross volume 553 litrescatalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 95 gsite
Temperature range -2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 1445 kWh/yearsite
Energy consumption 3.96 kWh/24hsite
Energy efficiency index 48.1 %site
Input power 300 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Stainless steelsite
Feet / legs 6 adjustable legssite
Shelf dimensions GN1/1site

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this four door counter fridge earns its place

The G-Line by TEFCOLD GC74 is a four-door gastronorm counter fridge built for the prep line. It gives 553 litres gross and 476 litres net of chilled storage across four self-closing hinged doors and four white wire shelves, with a stainless steel interior and exterior that stands up to daily commercial use and cleaning. It is the unit that keeps a shift's worth of stock chilled and within reach at the pass.

Day to day it holds -2 to +10 °C on ventilated cooling, which keeps temperature even across the cabinet, with automatic defrost and an electronic controller handling the routine so staff do not have to. It runs at 42 dB and carries climate class 4, suiting the warmer ambient of a working kitchen. At 1445.4 kWh a year it costs about £361 a year at 25p/kWh, energy class C with an EEI of 48.1.

The cabinet interior measures 1772 × 530 × 589 mm (W×D×H) and it ships crated at 2260 × 750 × 1010 mm, so check the delivery route and any tight doorways before it arrives. It runs on a standard 13A supply drawing 300 W, uses R600a refrigerant with a 95 g charge, and weighs 151 kg gross, 134 kg net.

BEFORE YOU BUY

Questions, answered straight

It runs -2 to +10 °C on ventilated cooling, which keeps the temperature even across the cabinet. Automatic defrost and an electronic controller manage the cycle, so there is no manual routine for staff.

It is rated at 1445.4 kWh a year, which is about £361 a year at 25p/kWh. It sits at energy class C with an EEI of 48.1.

The cabinet gives 553 litres gross and 476 litres net across four white wire shelves and four doors, and it is gastronorm-compatible for standard GN pans.

It ships crated at 2260 × 750 × 1010 mm (W×D×H), so plan the delivery route and measure any tight doorways first. The interior storage cavity measures 1772 × 530 × 589 mm.

It uses R600a refrigerant with a 95 g charge and runs on a standard 13A supply, drawing 300 W. Supply voltage is 220–240 V, 50 Hz.

Yes. Our service team looks after commercial refrigeration across the region — call 01792 732702 to arrange a visit or talk through a fault.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1772 x 530 x 589 mm
External Dimension (WxDxH): 2230 x 700 x 960 mm
Packed Dimension (WxDxH): 2260 x 750 x 1010 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 95 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.96 kWh/24h
Temperature Range: -2 to +10 °C
Annual Energy Consumption: 1445 kWh/year m³
EEI: 48.1 %
Input Power: 300 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Temperature Range: -2 to +10 °C
Climate Class: 4
Gross / Net Weight: 151 / 134 kg
Gross / Net Volume: 553 / 476 l
Max Ambient: +30°C, 55% RH

Design and Material

Shelf Color: White
Shelf Dimensions: GN1/1
Feet / Legs: 6 adjustable legs
Exterior Finish: Stainless steel
Interior Finish: Stainless steel
