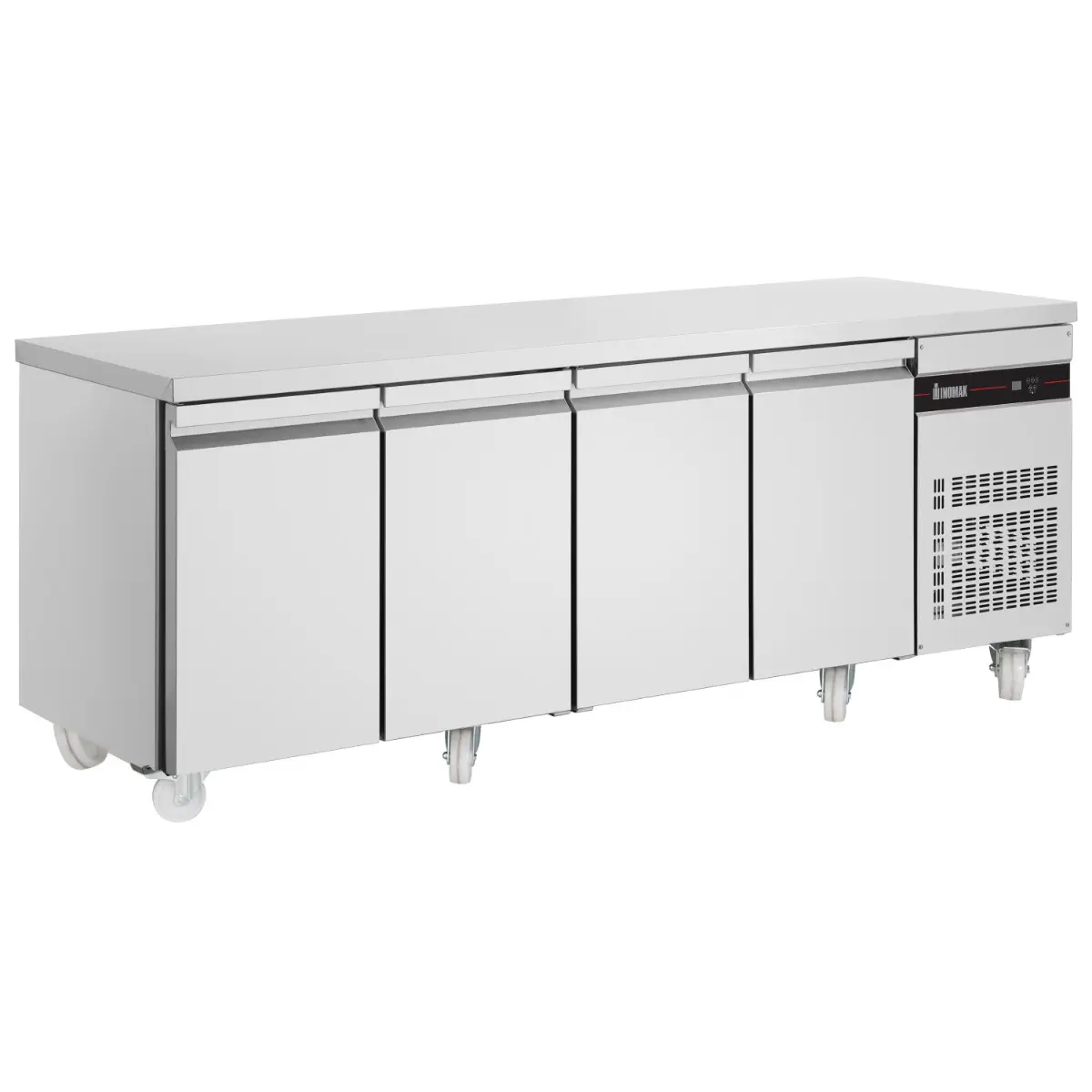

INOMAK 583L Four Hinged Door Gastronorm Counter Refrigerator PN9999-HC

£2,094.48

+vat

- +

Brand:

SKU: PN9999-HC

Product summary

Size: 2240 x 700 x 890

Product description

  • High grade AISI 304 stainless steel exterior & interior, including back

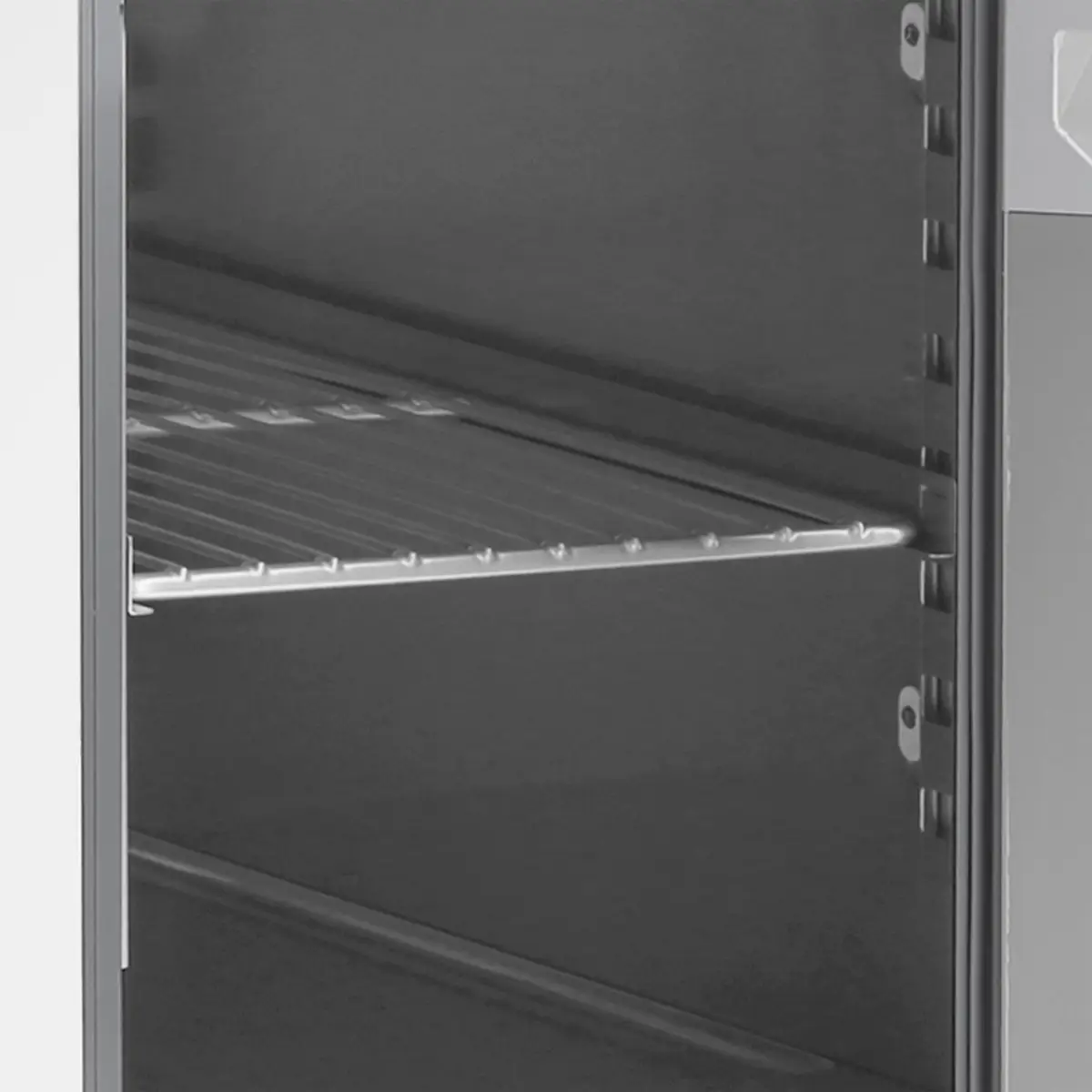

  • 1 x GN1/1 shelf per door, shelf size 530 x 325mm
  • Internal corners rounded for easy cleaning
  • Castors as standard
  • Replaceable door gasket
  • Self closing doors
  • Epoxy coated evaporator to resist corrosion
  • With natural refrigerant R290¬†(Zero ODP/GWP=3)
  • Hygienically designed interior
  • self-closing door at 90¬∞
  • Forced air circulation technology
  • Clip-On Guides for fast & easy cleaning
  • Embedded controller for easy operation and cleaning
  • Removable magnetic door gasket
  • Automatic evaporation of condensate water
  • Injected polyurethane foam insulation
  • Automatic defrost
  • Ambient temperature +43 C
SPECIFICATION 24 facts · tap for all External W × D × H2240 x 700 x 890Width2240 mmDepth700 mmHeight890 mmGross weight180 kgVoltage / frequency440W

Manufacturer documents2

Identity4

Brand INOMAKsite
GTIN / EAN 5212016701979site
Product code PN9999-HCsite
Type Four Door Counter Fridgescatalogue

Size & weight6

Depth 700 mmsite
External (W×D×H) 2240 × 700 × 890 mmcatalogue
External W × D × H 2240 x 700 x 890site
Gross weight 180 kgcatalogue
Height 890 mmsite
Width 2240 mmsite

Capacity1

Gross volume 583 litrescatalogue

Performance6

Climate class 5site
Controller Digital controller with temperature displaysite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Temperature range +1C/+10Csite

Power & energy3

Input power 13amp supplysite
Rated input 440 Wcatalogue
Voltage / frequency 440Wsite

Build & fittings2

Exterior finish Stainless Steelsite
Shelves 4site
THE WORKING VIEW

Why this four door counter fridge earns its place

The INOMAK PN9999-HC is a four hinged-door counter refrigerator, the largest door-format counter in the INOMAK range. AISI 304 stainless steel covers the exterior and interior including the back panel.

Gross capacity is 583 litres, running at Energy Class B on 440 kWh a year through ventilated forced-air circulation rated to +43°C ambient, with one GN1/1 shelf (530 × 325mm) fitted per door.

R290 refrigerant with a GWP of 3 runs at Climate Class 5, with automatic defrost and automatic condensate evaporation. All four doors self-close at 90° with replaceable door gaskets, the evaporator is epoxy-coated to resist corrosion, and injected polyurethane foam insulation keeps the cabinet efficient. A digital controller with display and standard castors complete the build, at external dimensions of 2240 × 700 × 890mm (W×D×H) and 180kg gross weight.

BEFORE YOU BUY

Questions, answered straight

583 litres gross across four hinged doors, each fitted with a GN1/1 shelf (530 × 325mm).

Energy Class B, 440 kWh a year, on R290 refrigerant with a GWP of 3.

2240 × 700 × 890mm (W×D×H), weighing 180kg gross.

Yes, all four self-close, each with a replaceable door gasket.

+43°C.

Craven Cooling installs and services INOMAK counters across South Wales — 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 2240 x 700 x 890

Cooling and Functions

Type of Controller: Digital controller with temperature display
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290

Power and Consumption

Temperature Range: +1C/+10C °C
Input Power: 13amp supply
Voltage / Frequency: 440W

Measures and Content

Temperature Range: +1C/+10C °C
Climate Class: 5
Gross / Net Volume: 583 ltr l

Design and Material

Shelves Number & Type: 4
Exterior Finish: Stainless Steel

INOMAK 583L Four Hinged Door Gastronorm Counter Refrigerator PN9999-HC Product Data

If you have any questions about the INOMAK 583L Four Hinged Door Gastronorm Counter Refrigerator PN9999-HC then please get in touch.
