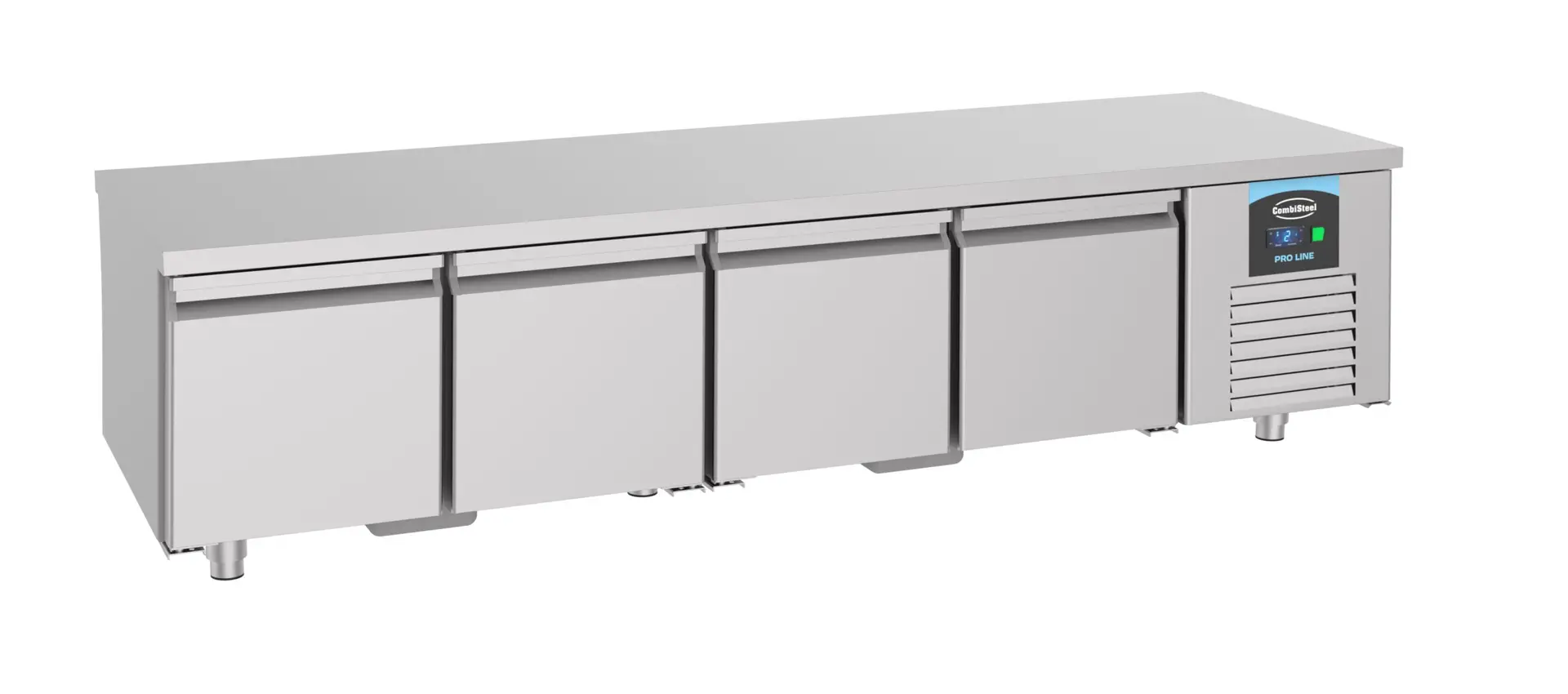

CombiSteel Refrigerated Counter 600mm Height 4 Door 7489.5082

£1,989.65

+vat

- +

Brand:

SKU: 7489.5082

Product summary

Size W/D/H (mm) x x

Product description

Downloads

SPECIFICATION 31 facts · tap for all Width2200 mmDepth700 mmHeight600 mmGross / net weight165 kgVoltage / frequency23050/60Voltage230V / 50/60Hz

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 6017436929984catalogue
Range / series Pro Linecatalogue
Type Four Door Counter Fridgescatalogue

Size & weight5

Depth 700 mmsite
External (W×D×H) 2200 × 700 × 600 mmcatalogue
Gross / net weight 165 kgsite
Height 600 mmsite
Width 2200 mmsite

Capacity5

Capacity 360 Ltrcatalogue
Doors 4catalogue
Gastronorm size 1/1catalogue
Gross volume 360 litrescatalogue
Shelves 3catalogue

Performance6

Controller Digitalcatalogue
Cooling type R 290site
Defrost type Automaticsite
Max ambient 4343 °Ccatalogue
Maximum ambient 4343site
Temperature range -2/+8site

Power & energy7

Energy consumption 0,35site
Frequency 50 Hzcatalogue
Noise level 4040site
Rated input 350 Wcatalogue
Rated power 35 kWcatalogue
Voltage 230V / 50/60Hzcatalogue
Voltage / frequency 23050/60site

Build & fittings4

Exterior finish Stainless steel Aisi 304site
Insulation 50 mmcatalogue
Lock Nosite
Temperature display Yes, digitalcatalogue
THE WORKING VIEW

Why this four door counter fridge earns its place

This is a four-door refrigerated prep counter — 2200 mm across, it holds 360 litres of chilled storage beneath a continuous working top at standard counter height. The four doors open onto a cold cabinet held at -2 to +8 °C that can be split across sections, so different stations or stages of prep each get their own space under one surface. It is the counter kitchens fit when a busy line needs both storage and worktop along its length rather than a separate fridge off to one side.

In service the doors stay closed to hold the chill while the top carries prep, plating or assembly. Stock loads from the front, and four doors let you organise cold storage by section so cooks are not opening the whole cabinet to reach one thing. The stainless steel exterior and ventilated cooling keep it running through a busy shift. It keeps a working line supplied without anyone leaving the pass to fetch from a walk-in or upright.

As a four-door unit this is a long counter at 2200 mm wide and 700 mm deep, so it needs a matching run of wall or island space and clear front access for loading and cleaning. The unit weighs 165 kg, so plan for solid flooring and structural support. Measure the position and the full delivery route before it arrives. Craven Cooling can help you specify the right counter for the line and handle servicing once it is installed.

BEFORE YOU BUY

Questions, answered straight

It is a four-door refrigerated counter with 360 litres of chilled storage. All four doors open onto a cabinet held at -2 to +8 °C beneath the worktop, giving you a long run of cold storage split across sections directly under the prep surface.

Four doors let you organise cold storage by section, so cooks reach one part of the cabinet without opening the whole thing. It suits longer lines that need more chilled storage and worktop along their length.

Yes. It is a prep counter, so the top is a continuous working surface for prep, plating and assembly while the four-door cabinet below keeps stock chilled. Keep the doors shut in service to hold temperature.

As a four-door counter it is 2200 mm wide and 700 mm deep at standard counter height (600 mm). Plan a matching run of wall or island space with clear front access for loading and cleaning. The unit weighs 165 kg, so confirm your flooring can support it. Measure the position before ordering so it fits the line.

Check the final position and the whole delivery route — doorways, corridors and turns — before it arrives. A long counter is easiest to place when the access route has been measured in advance.

Yes. We can advise on specifying the counter for your line and handle servicing and maintenance once it is installed. Call our team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Refrigerated Counter 600mm Height 4 Door 7489.5082 Product Data

Brand CombiSteel
Type Pro Line
Dimensions (W×D×H) 2200 × 700 × 600 mm
Capacity 360 Ltr
GN Capacity 1/1
Material Stainless steel Aisi 304
Temperature Range -2/+8
Max. Ambient Temp. 43
Refrigerant R 290
Cooling Ventilated
Defrost Automatic
Number of Doors 4
Number of Grids/Shelves 3
Electrical Power 0.35 kW
Voltage 230V / 50/60Hz
Lockable No
Noise Level 40 dB
Insulation 50 mm
Weight 165 kg
If you have any questions about the CombiSteel Refrigerated Counter 600mm Height 4 Door 7489.5082 then please get in touch.
