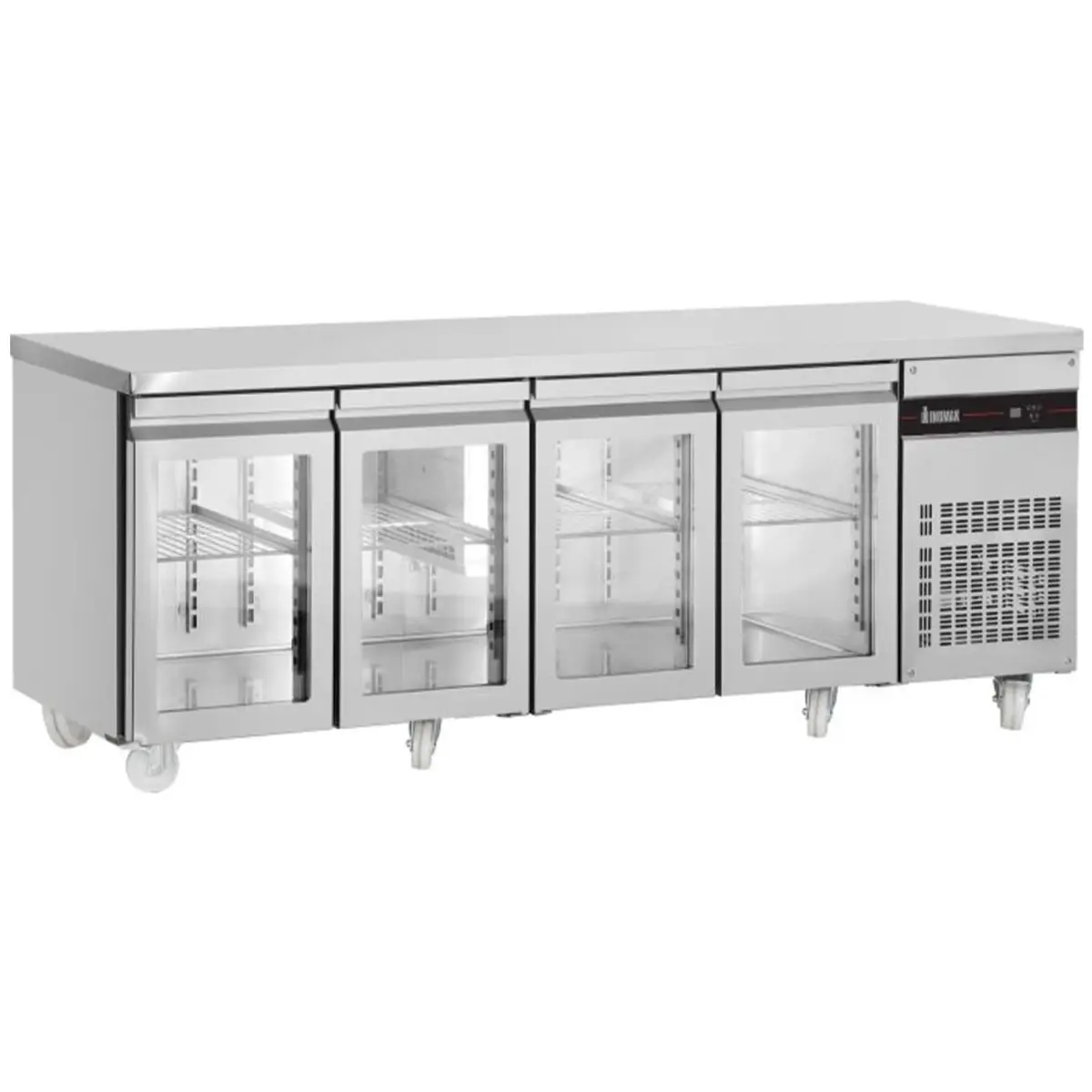

INOMAK 583L Four Hinged Glass Door Gastronorm Counter Refrigerator PN9999CR-HC

£2,444.82

+vat

Brand:

SKU: PN9999CR-HC

Product summary

Size: 2240 x 700 x 890

Product description

  • High grade AISI 304 stainless steel exterior & interior, including back
  • 1 x GN1/1 shelf per door, shelf size 530 x 325mm
  • Shelf with denser wires especially designed for storing bottles in an upright position
  • LED lighting
  • Internal corners rounded for easy cleaning

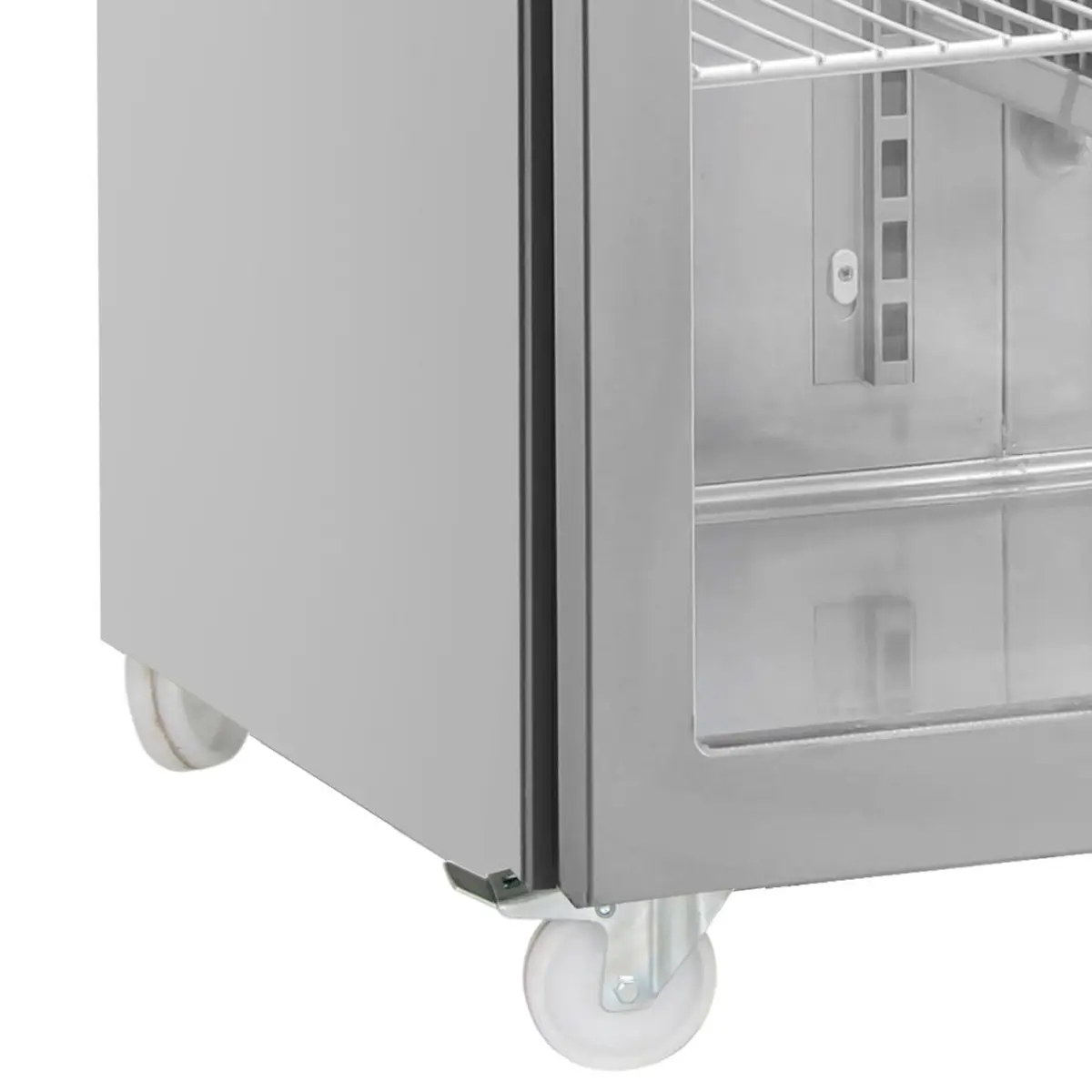

  • Castors as standard
  • Replaceable door gasket
  • Hygienically designed interior
  • self-closing door at 90¬∞
  • Evaporator‚Äôs protection against corrosion
  • Forced air circulation technology
  • Clip-On Guides for fast & easy cleaning
  • Embedded controller for easy operation and cleaning
  • Removable magnetic door gasket
  • Automatic evaporation of condensate water
  • Injected polyurethane foam insulation
  • Automatic defrost
  • Triple Glazed Glass Door for Maximum Energy Savings
  • Ambient Temperature +32oC
  • Tempered Glass Door

The INOMAK PN9999CR-HC is a 583 litre four glass-door gastronorm counter refrigerator with +1 to +10 °C ventilated cooling, automatic defrost and a 2240 × 700 × 890 mm footprint.

Downloads

SPECIFICATION 22 facts · tap for all External W × D × H2240 x 700 x 890Width2240 mmDepth700 mmHeight890 mmGross weight200 kgVoltage / frequency469W

Manufacturer documents1

Identity4

Brand INOMAKsite
GTIN / EAN 5212016702181site
Product code PN9999CR-HCsite
Type Four Door Counter Fridgescatalogue

Size & weight6

Depth 700 mmsite
External (W×D×H) 2240 × 700 × 890 mmcatalogue
External W × D × H 2240 x 700 x 890site
Gross weight 200 kgcatalogue
Height 890 mmsite
Width 2240 mmsite

Capacity1

Gross volume 583 litrescatalogue

Performance5

Controller Digital controller with temperature displaysite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Temperature range +1C/+10Csite

Power & energy3

Input power 13amp supplysite
Rated input 469 Wcatalogue
Voltage / frequency 469Wsite

Build & fittings2

Exterior finish Stainless Steelsite
Shelves 4site
THE WORKING VIEW

Why this four door counter fridge earns its place

The PN9999CR-HC is an INOMAK four hinged glass door counter refrigerator for long chilled counter runs. It provides 583 litres of gross volume across four doors, with four shelves listed and one GN1/1 shelf per door in the manufacturer detail, all within a 2240 × 700 × 890 mm cabinet.

For holding performance, the verified range is +1 to +10 °C with ventilated cooling, R290 refrigerant, automatic defrost and a digital controller with temperature display. The maker also lists forced air circulation, LED lighting, automatic evaporation of condensate water and triple glazed tempered glass doors, giving staff clear visibility into a chilled counter that is still built for kitchen service.

The build is high grade AISI 304 stainless steel inside and out, including the back, with rounded internal corners, a hygienically designed interior, clip-on guides, removable magnetic door gaskets and evaporator corrosion protection. Castors are standard, but at 200 kg gross weight this is still a unit to route, handle and position deliberately before commissioning.

BEFORE YOU BUY

Questions, answered straight

The verified external dimensions are 2240 × 700 × 890 mm. Check the available run length, depth and working height on site.

The specification lists 583 litres gross volume, four doors and four shelves, with the manufacturer describing one GN1/1 shelf per door.

The verified range is +1 to +10 °C, supported by ventilated cooling and a digital controller with temperature display.

Yes, the verified gross weight is 200 kg. Plan the route, handling equipment and final position before delivery is booked.

The verified refrigerant is R290. Record it with the site file so commissioning and service notes use the correct refrigerant reference.

Climate class 4 is verified for this model. Match that rating against the intended room conditions before approving the location.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 2240 x 700 x 890

Cooling and Functions

Type of Controller: Digital controller with temperature display
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290

Power and Consumption

Temperature Range: +1C/+10C °C
Input Power: 13amp supply
Voltage / Frequency: 469W

Measures and Content

Temperature Range: +1C/+10C °C
Climate Class: 4
Gross / Net Volume: 583 ltr l

Design and Material

Shelves Number & Type: 4
Exterior Finish: Stainless Steel

INOMAK 583L Four Hinged Glass Door Gastronorm Counter Refrigerator PN9999CR-HC Product Data

If you have any questions about the INOMAK 583L Four Hinged Glass Door Gastronorm Counter Refrigerator PN9999CR-HC then please get in touch.
