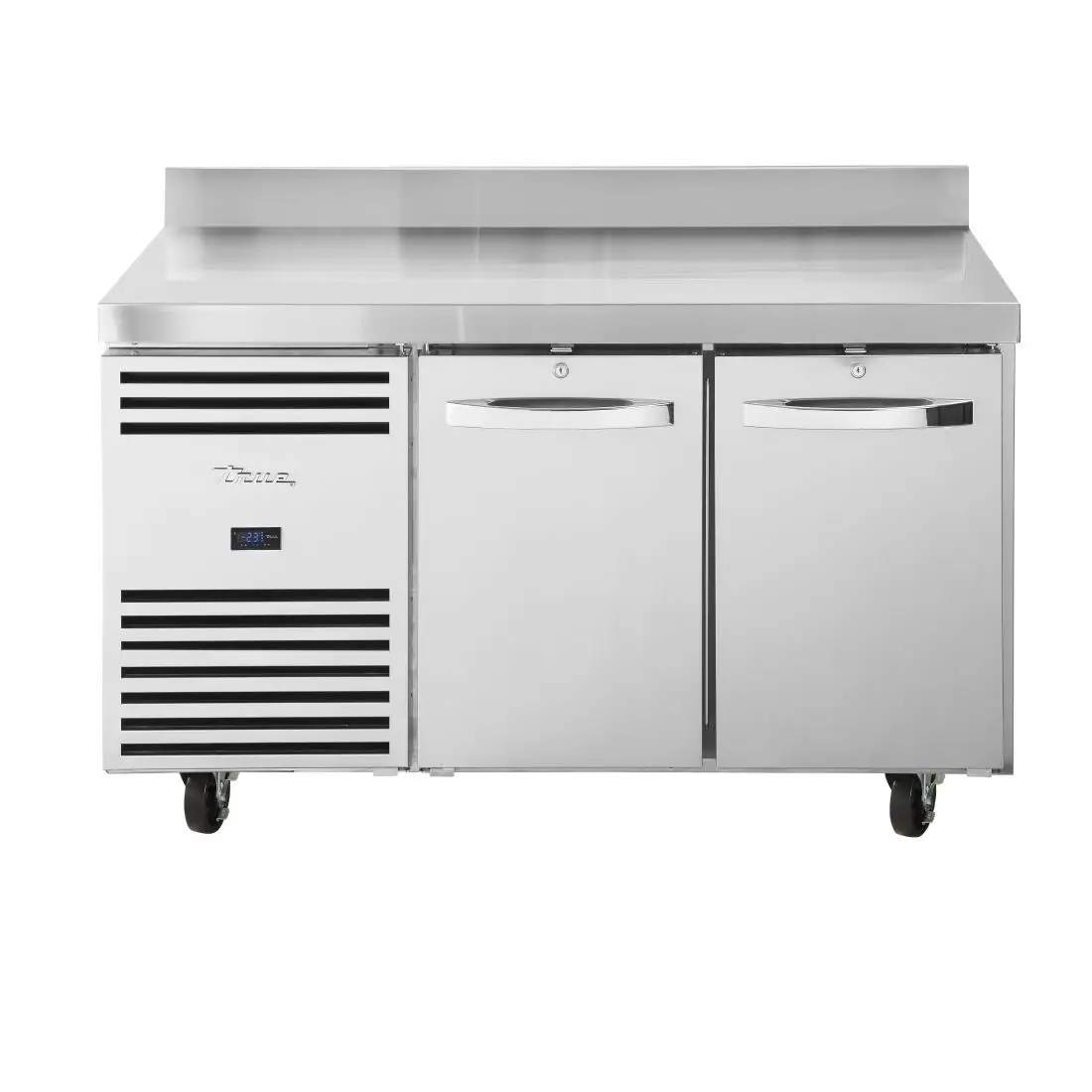

True 2 Door 1/1 GN Counter Freezer with Splashback TCF1/2-CL-WT-DL-DR FB017

£3,932.99

+vat

Availability: 999 in stock

Brand:

SKU: FB017

Product summary

Total usable capacity: 167Ltr. R290

Product description

True highly energy efficient gastronorm counter freezers provide a new standard for functionality, robustness & elegance in the professional kitchen.

Industry-leading comprehensive 7 Year Parts & Labour Warranty
State of the art, True “HC” hydrocarbon refrigeration system for the best in food preservation
True patented RCU Technology reverses the direction of the condenser fan during off cycles, to help keep condenser coil free from dirt, dust and debris
Freezers maintain holding temperatures of -18ËšC to -23ËšC
Reversible door hinging
Sleek, heavy duty metal handles, lockable doors
Supplied with 153 mm castors
Maximise usable space with our unique “E” shaped shelf/slide system, designed to accommodate both a wire shelf and a GN pan, making full use of the cabinet net capacity
Climate Class 5 certified for efficient operation even in 40°C kitchen environments
Energy efficient
100% front-breathing for zero clearance install

The True TCF1/2-CL FB017 is a two-door 1/1 GN counter freezer with a splashback, 166 litres of net frozen storage, four shelves and a -23 to -18 °C operating band for frozen stock on the line.

Downloads

SPECIFICATION 38 facts · tap for all Width1411 mmDepth700 mmHeight1000 mmGross weight161 kgVoltage230VTemperature range-23 to -18 °C

Identity6

Brand Truesite
Model ref TCF1/2-CL-WT-DL-DRcatalogue
Product code FB017site
Seo name True Double Door Counter Freezer TCF1 2 CL WT DL DRcatalogue
Type Counter Freezerscatalogue
Warranty 7 Years Parts & Labourcatalogue

Size & weight6

Depth 700 mmcatalogue
External (W×D×H) 1000 × 1411 × 700 mmcatalogue
Gross weight 161 kgcatalogue
Height 1000 mmcatalogue
Internal (W×D×H) 500(H) x 530(D)mmcatalogue
Width 1411 mmsite

Capacity6

Capacity 280Ltrcatalogue
Doors 2catalogue
Gastronorm size 1/1 GN fullcatalogue
Net volume 166 litrescatalogue
Product capacity 280catalogue
Shelves 4catalogue

Performance4

Climate class 5catalogue
Cooling Forced Aircatalogue
Refrigerant R290 / GWP 3catalogue
Temperature range -23 to -18 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 161 Wcatalogue
Voltage 230Vcatalogue

Build & fittings6

Colour Silvercatalogue
Doorocation Frontcatalogue
Finish (exterior) Stainless Steelcatalogue
Finish (interior) Aluminiumcatalogue
Insulation 80 mmcatalogue
Material Stainless Steel & Aluminiumcatalogue

Other stated facts7

EEI 34.5 %catalogue
Energy (24h) 3.173 kWh/24hcatalogue
Energy class Bcatalogue
Energy consumption 1158 kWh/yearcatalogue
Mobility Castorscatalogue
Plug notice Yescatalogue
Suitable for FOH/BOHcatalogue
THE WORKING VIEW

Why this counter freezer earns its place

The True TCF1/2-CL is a two-door counter freezer built around the 1/1 GN format, with a splashback upstand for siting against a wall. It gives the section 166 litres of net frozen storage under the worktop, with four shelves behind two doors, so frozen components stay at the point of use rather than in a walk-in across the kitchen.

The freezer holds at -23 to -18 °C using forced-air cooling and R290 refrigerant with GWP 3. Climate class 5 makes it a serious commercial counter for hot, busy kitchens, while the stainless steel exterior, aluminium interior and 80 mm insulation give it the robust True feel buyers expect.

Plan it as a 1411 mm wide, 700 mm deep, 1000 mm high counter weighing 161 kg. It runs from a 230V supply with a 161 W rated input, carries energy class B and uses 1158 kWh/year, or 3.173 kWh/24h, so its running cost can be estimated properly before it goes into the line.

BEFORE YOU BUY

Questions, answered straight

The net volume is 166 litres, with a supplier-stated 280 litre capacity and four shelves across the two-door 1/1 GN cabinet. Use the capacity calculator if you want that matched to your menu and covers.

Yes, it is supplied with a splashback upstand. The footprint is 1411 mm wide by 700 mm deep, with a 1000 mm height and 161 kg gross weight, so check both the counter run and delivery route.

It is listed as 1/1 GN full format, so it is intended for standard gastronorm kitchen use. The cabinet has four shelves behind two doors.

The freezer operates from -23 to -18 °C with forced-air cooling, using R290 refrigerant with GWP 3.

It is energy class B and rated at 1158 kWh/year, or 3.173 kWh/24h. Put that kWh figure into the energy label decoder with your tariff for a pounds-per-year estimate.

True lists this model with seven years parts and labour warranty, supported through Craven Cooling on supplied units.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

True 2 Door 1/1 GN Counter Freezer with Splashback TCF1/2-CL-WT-DL-DR FB017 Product Data

Brand True
Type Counter Freezers
Dimensions 1000(H) x 1411(W) x 700(D)mm
Capacity 280Ltr
Material Stainless Steel & Aluminium
Colour / Finish Silver
Temperature Range -23°C to -18°C
Refrigerant R290 / GWP 3
Cooling Forced Air
Number of Doors 2
Number of Shelves 4
Energy Rating B
Annual Energy Use 1158kWh/annum
Power 161W
Voltage 230V
Fuel / Supply Plug
Suitable For FOH/BOH
Warranty 7 Years Parts & Labour
Weight 161kg
Manufacturer Ref TCF1/2-CL-WT-DL-DR
If you have any questions about the True 2 Door 1/1 GN Counter Freezer with Splashback TCF1/2-CL-WT-DL-DR FB017 then please get in touch.
