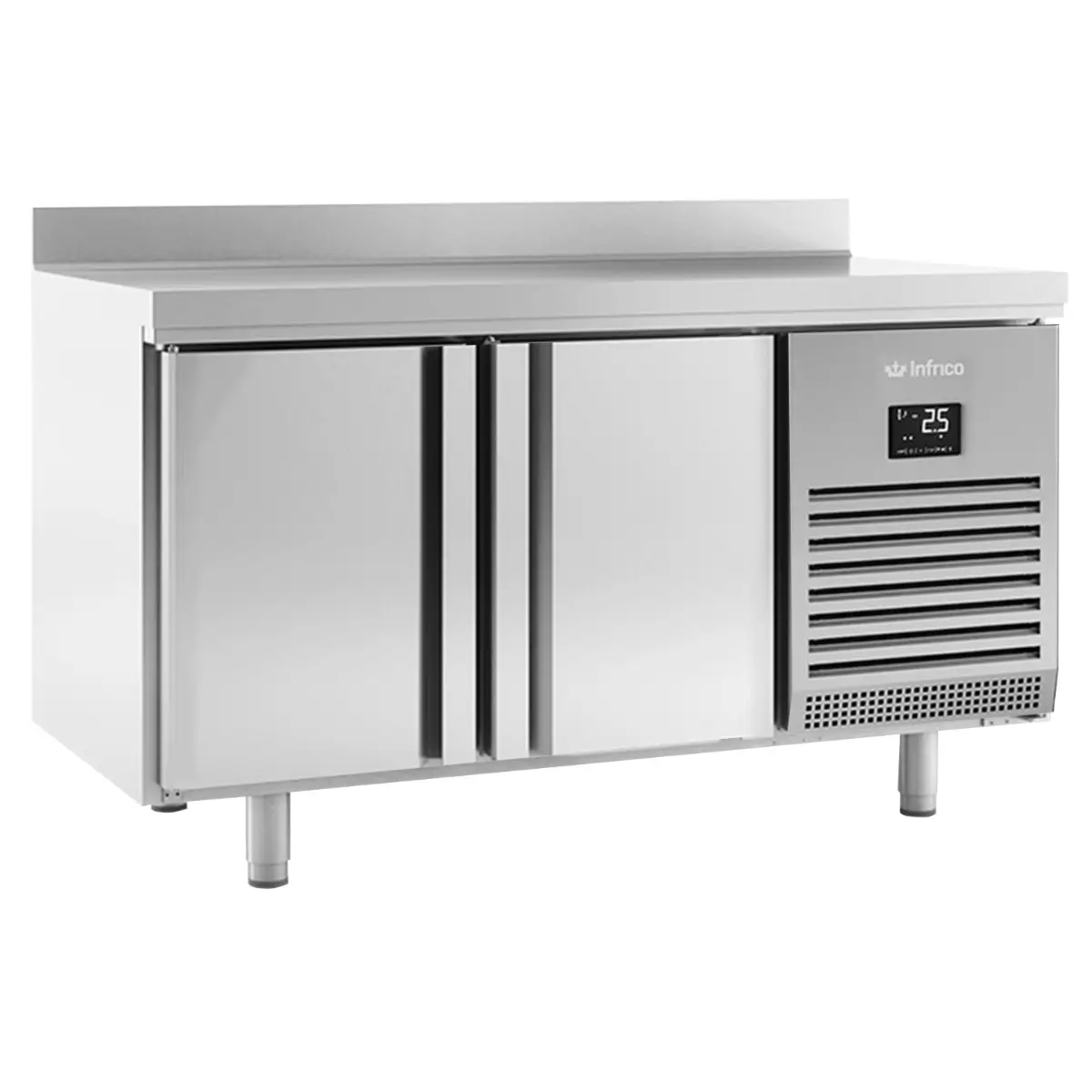

INFRICO Double Door Freezer Counter With Upstand BMGN1470BT

£2,773.46

+vat

- +

Brand:

SKU: BMGN1470BT

Product summary

Size: 1468 x 700 x 950

Product description

  • High grade AISI 304 stainless steel exterior and interior
  • Rounded internal corners & internal drain for easy cleaning
  • 1 x GN 1/1 shelf per door
  • 100mm coved upstand standard
  • Adjustable legs
  • Unit can be left hand side (Factory option)
  • Glass door option with LED lighting avaliable

Downloads

SPECIFICATION 22 facts · tap for all External W × D × H1468 x 700 x 950Width1468 mmDepth700 mmHeight950 mmGross weight154 kgVoltage / frequency460W

Manufacturer documents1

Identity3

Brand INFRICOsite
Product code BMGN1470BTsite
Type Double Door Counter Freezerscatalogue

Size & weight6

Depth 700 mmsite
External (W×D×H) 1468 × 700 × 950 mmcatalogue
External W × D × H 1468 x 700 x 950site
Gross weight 154 kgcatalogue
Height 950 mmsite
Width 1468 mmsite

Capacity1

Gross volume 295 litrescatalogue

Performance6

Climate class 4site
Controller Digital controller with temperature displaysite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Temperature range -18C/-22Csite

Power & energy3

Input power 13amp supplysite
Rated input 460 Wcatalogue
Voltage / frequency 460Wsite

Build & fittings2

Exterior finish Stainless Steelsite
Shelves 2site
THE WORKING VIEW

Why this double door counter freezer earns its place

The Infrico BMGN1470BT is a double-door freezer counter with a rear upstand, putting 295 litres of frozen storage and a prep worktop in the same footprint along the line. Two doors give you split access — open left or right depending on your workflow — and each door opens to a GN 1/1 shelf. The cabinet holds steady at -18 to -22 °C throughout service.

Automatic defrost clears the evaporator without a manual routine, holding frozen temperatures through service. The climate class 4 rating handles warm, busy kitchens — typical kitchen ambients can reach 30 °C — and cooling runs on low-GWP R290 hydrocarbon refrigerant. The high-grade AISI 304 stainless steel construction and rounded internal corners are designed for durability and easy cleaning.

It measures 1468 × 700 × 950 mm at counter height and weighs 154 kg, so plan the run and floor access before install. The unit sits on adjustable legs and the 100 mm coved upstand protects the wall behind the worktop. The R290 charge keeps the circuit efficient and clear of the F-gas phase-down affecting older synthetic refrigerants.

BEFORE YOU BUY

Questions, answered straight

The counter is 1468 mm wide, 700 mm deep and 950 mm high at counter height, and weighs 154 kg. Plan the run and floor access before install, and allow clearance to shed heat.

Yes. It is a freezer counter with a rear upstand, so you get frozen storage below and a work surface on top, with the upstand protecting the wall behind from spills.

It runs on R290, a natural hydrocarbon refrigerant with very low global warming potential. That keeps the circuit efficient and clear of the F-gas phase-down affecting older synthetic refrigerants.

No. The counter uses automatic defrost, so the evaporator is cleared without a manual routine, helping hold frozen temperatures through service.

It carries a climate class 4 rating, built for the warmer, busier kitchen conditions found on a working line. Keep the airflow around it clear so the condenser can shed heat.

Yes. Craven Cooling provides servicing and breakdown support for the refrigeration we supply. Call the team on 01792 732702 to arrange planned maintenance or a repair visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 1468 x 700 x 950

Cooling and Functions

Type of Controller: Digital controller with temperature display
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290

Power and Consumption

Temperature Range: -18C/-22C °C
Input Power: 13amp supply
Voltage / Frequency: 460W

Measures and Content

Temperature Range: -18C/-22C °C
Climate Class: 4
Gross / Net Volume: 295 ltr l

Design and Material

Shelves Number & Type: 2
Exterior Finish: Stainless Steel

INFRICO Double Door Freezer Counter With Upstand BMGN1470BT Product Data

If you have any questions about the INFRICO Double Door Freezer Counter With Upstand BMGN1470BT then please get in touch.
