G-Line by TEFCOLD GUF50 Gastronorm Upright Freezer

£1,202.00

+vat

- +

Product summary

  • Great value-for-money range
  • Lock
  • Self-closing door
  • Ventilated cooling
  • Adjustable shelves GN1/1
  • Strong wheels
  • Digital controller and temperature display
  • Stainless steel cabinet
  • Accessory – Pedal for opening door

Product description

Slim freezer in stainless steel for gastro settings

The G-line slim upright freezer is designed for busy kitchen environments. It has strong wheels for flexibility and a stainless steel exterior for high durability. It has adjustable shelving and accepts GN1/1 gastronorm pans. A great value-for-money product.

SPECIFICATION 46 facts · tap for all External W × D × H484 x 745 x 2100 mmWidth484 mmDepth745 mmGross / net weight123 / 110 kgGross weight123 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand G-Line by TEFCOLDsite
GTIN / EAN 5708181754853site
Product code 68899site
Sub title Gastronorm Upright Freezercatalogue
Type Single Door Commercial Upright Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 745 mmsite
External (W×D×H) 484 × 745 × 2100 mmcatalogue
External W × D × H 484 x 745 x 2100 mmsite
Gross / net weight 123 / 110 kgsite
Gross weight 123 kgcatalogue
Height 2100 mmsite
Internal (W×D×H) 368 × 580 × 1510 mmcatalogue
Internal W × D × H 368 x 580 x 1510 mmsite
Packed (W×D×H) 515 × 765 × 2140 mmcatalogue
Packed W × D × H 515 x 765 x 2140 mmsite
Width 484 mmsite

Capacity3

Doors 1catalogue
Gross volume 292 litrescatalogue
Shelves 3catalogue

Performance10

Climate class 5site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 40 °Ccatalogue
Maximum ambient +40°C, 40% RHsite
Refrigerant R290site
Refrigerant charge 85 gsite
Temperature range -22 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 1449 kWh/yearsite
Energy consumption 3.97 kWh/24hsite
Energy efficiency index 55.8 %site
Input power 380 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

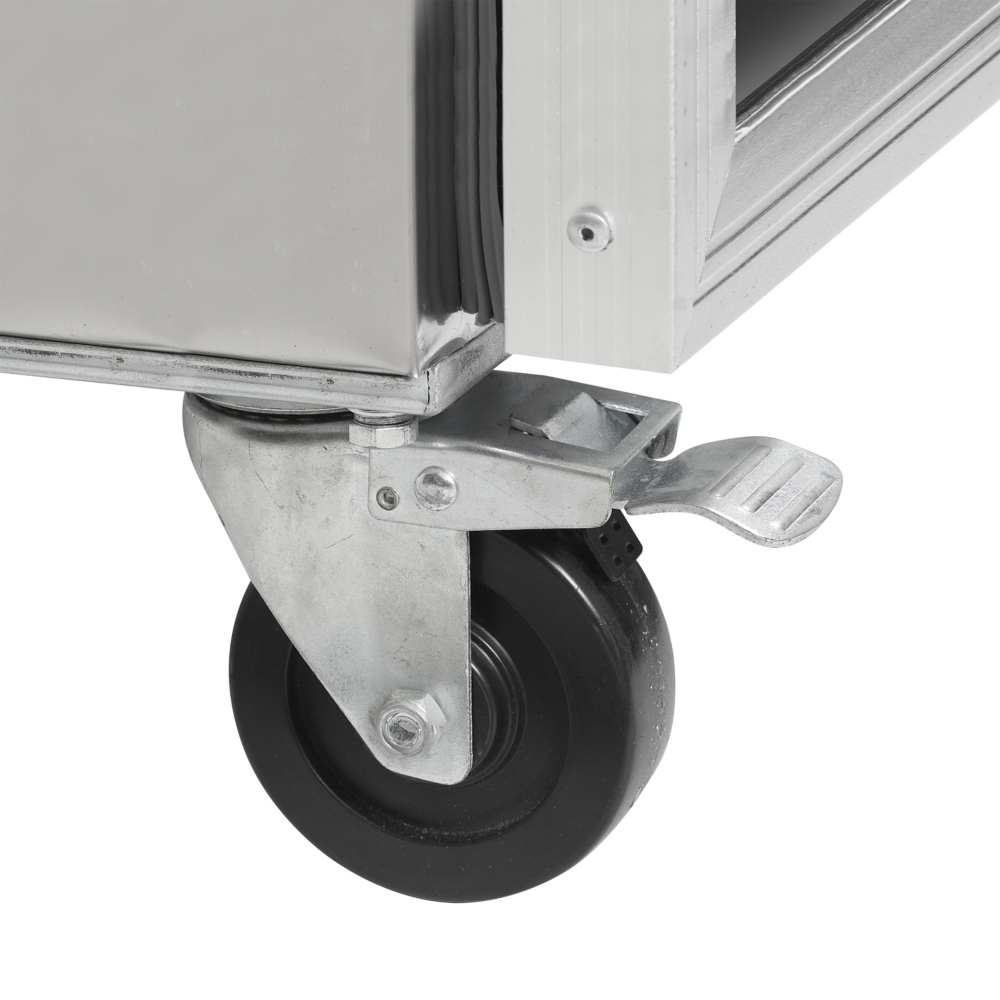

Castors 4 wheels, 2 with brakesite
Exterior finish SS201site
Interior light LEDsite
Max load per shelf 13site
Shelf dimensions GN1/1site

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this single door commercial upright freezer earns its place

The GUF50 is a single-door upright storage freezer for back-of-house, built to the gastronorm format. It holds 292 litres gross and 228 litres net across three wire shelves, keeping frozen stock at -22 to -18 °C. In a working kitchen it does the unglamorous job of reliable frozen holding in a footprint that tucks against a wall rather than sprawling across the floor.

Day to day it runs on ventilated cooling for an even temperature through the cabinet, with automatic electric defrost so no one has to schedule it in, and an electronic controller to set and hold the band. Noise sits at 42 dB, which keeps it liveable in a kitchen that people work in. It carries an energy class of D and draws 1449 kWh a year — about £362 at 25p/kWh — on R290 refrigerant with an 85 g charge.

The cabinet measures 484 × 745 × 2100 mm externally, and the 484 mm width is the number that matters on delivery day: it clears standard doorways where a wider box would not, and the packed size is 515 × 765 × 2140 mm. Internally you get 368 × 580 × 1510 mm of usable space. It weighs 110 kg net (123 kg gross), runs on a 220–240 V 50 Hz single-phase supply drawing 380 W, and is finished in SS201 stainless inside and out.

BEFORE YOU BUY

Questions, answered straight

The GUF50 draws 1449 kWh a year, which is about £362 at 25p/kWh. It carries an energy class of D and runs on R290 refrigerant.

The cabinet is 484 mm wide, 745 mm deep and 2100 mm high, and the 484 mm width clears standard doorways. Packed, it measures 515 × 765 × 2140 mm.

It holds -22 to -18 °C on ventilated cooling for an even temperature through the cabinet, with automatic electric defrost and an electronic controller.

It offers 292 litres gross and 228 litres net across three wire shelves, internally 368 × 580 × 1510 mm.

It runs at 42 dB on R290 refrigerant with an 85 g charge, and is rated to climate class 5 for warmer kitchen ambients.

Yes. Craven Cooling can arrange servicing and support on 01792 732702, so the freezer stays maintained across its working life.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 368 x 580 x 1510 mm
External Dimension (WxDxH): 484 x 745 x 2100 mm
Packed Dimension (WxDxH): 515 x 765 x 2140 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 85 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.97 kWh/24h
Temperature Range: -22 to -18 °C
Annual Energy Consumption: 1449 kWh/year m³
EEI: 55.8 %
Input Power: 380 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Temperature Range: -22 to -18 °C
Climate Class: 5
Gross / Net Weight: 123 / 110 kg
Gross / Net Volume: 292 / 228 l
Max Ambient: +40°C, 40% RH

Design and Material

Door Reversible: Yes
Shelf Color: White
Shelf Dimensions: GN1/1
Max load on Shelves: 13 kg/m²
Castors: 4 wheels, 2 with brake
Exterior Finish: SS201
Interior Finish: SS201
Interior Light: LED
Lock: Yes
If you have any questions about the G-Line by TEFCOLD GUF50 Gastronorm Upright Freezer then please get in touch.
