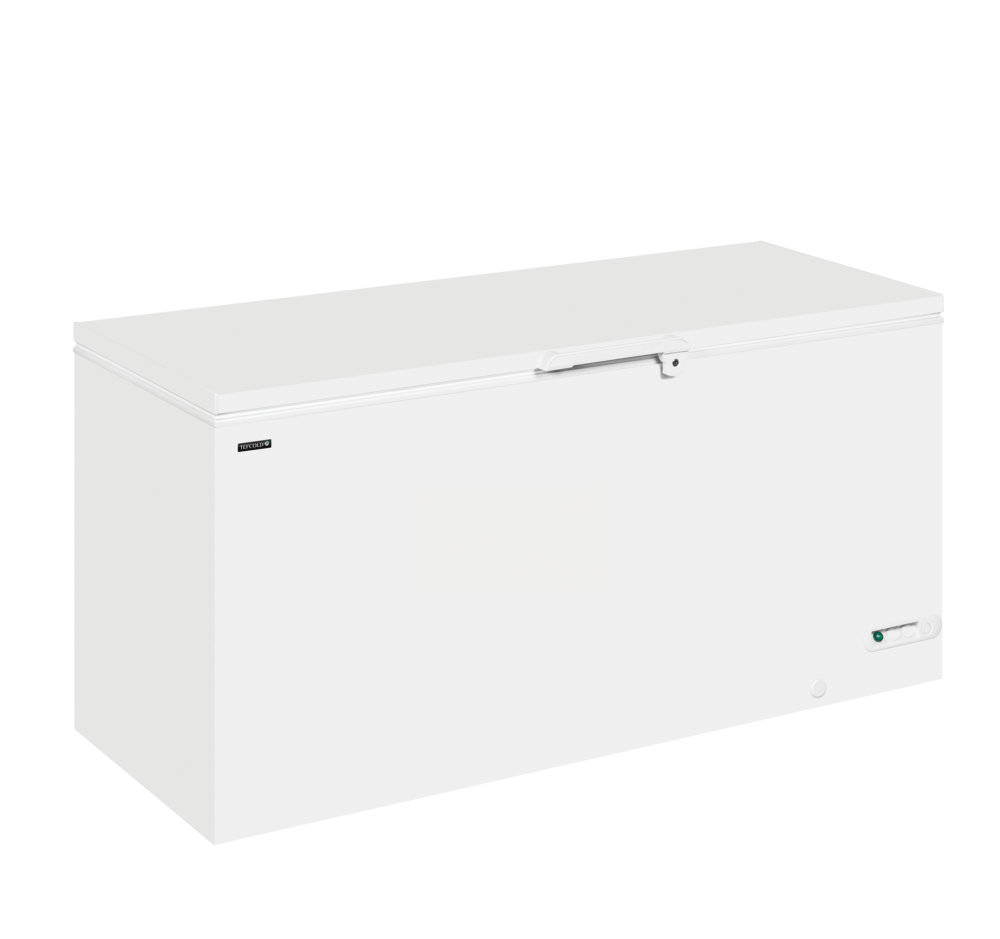

TEFCOLD LHF620 (ECO DESIGN) Solid Lid Chest Freezer

£786.00

+vat

Brand:

SKU: 49900

Energy Arrow

Product summary

  • Static cooling
  • Lock
  • Feet
  • Mains indicator light
  • No Internal Light
  • Defrost drain

Product description

Solid Lid Chest Storage Freezer

Get reliable and convenient frozen storage with our Solid Lid Chest Freezers. They have static cooling, a lock, sturdy feet, mains indicator light, defrost drain, and -23 to -16 °C temperature range.

The TEFCOLD LHF620 is a solid-lid chest freezer offering 426 litres net at -23 to -16 °C, running on R600a refrigerant with manual defrost, mechanical control and a white finish inside and out, from a standard 13 amp supply.

SPECIFICATION 37 facts · tap for all External W × D × H1700 x 729 x 861 mmWidth1700 mmDepth729 mmGross / net weight82 / 77 kgGross weight82 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181733834site
Product code 49900site
Sub title Solid Lid Chest Freezercatalogue
Type Solid Lid Chest Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 729 mmsite
External (W×D×H) 1700 × 729 × 861 mmcatalogue
External W × D × H 1700 x 729 x 861 mmsite
Gross / net weight 82 / 77 kgsite
Gross weight 82 kgcatalogue
Height 861 mmsite
Internal (W×D×H) 1586 × 536 × 696 mmcatalogue
Internal W × D × H 1586 x 536 x 696 mmsite
Packed (W×D×H) 1760 × 760 × 940 mmcatalogue
Packed W × D × H 1760 x 760 x 940 mmsite
Width 1700 mmsite

Capacity1

Gross volume 556 litrescatalogue

Performance9

Climate class 3site
Controller Mechanicalsite
Defrost type Manualsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R600asite
Refrigerant charge 110 gsite
Temperature range -23 to -16site
Thermometer Yessite

Power & energy5

Annual energy consumption 738 kWh/yearsite
Energy consumption 2.02 kWh/24hsite
Energy efficiency index 30.6 %site
Input power 163 Wsite
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings1

Exterior finish Whitesite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this solid lid chest freezer earns its place

The TEFCOLD LHF620 is a solid-lid chest freezer for bulk frozen storage in back-of-house. With 556 litres gross and 426 litres net, it takes deliveries, batch-cooked stock and long-hold frozen lines off the floor and into one cabinet. The solid, insulated lid holds temperature well between openings, which suits stock that is loaded and left rather than picked from constantly through service.

The freezer runs at -23 to -16 °C under a mechanical controller, with manual defrost — the cabinet is emptied and cleared periodically rather than defrosting itself. It uses R600a refrigerant with a 110 g charge and is climate class 3, rated for typical indoor ambients. Rated at 737.3 kWh a year with a C energy rating and 163 W input, that works out at about £184 a year at 25p/kWh.

Internally the storage space is 1586 × 536 × 696 mm, and the cabinet packs to 1760 × 760 × 940 mm for delivery at 82 kg gross, 77 kg net — light enough for two to position, though measure access first. It runs from a standard 13 amp supply at 220–240 V. The exterior and interior are both finished in white.

BEFORE YOU BUY

Questions, answered straight

Gross volume is 556 litres and net usable capacity is 426 litres. That is bulk frozen storage — deliveries, batch-cooked stock and long-hold lines in a single chest.

The freezer runs at -23 to -16 °C under mechanical control. That band is suited to long-term frozen storage of proteins, prepped stock and frozen goods.

No — defrost is manual. You periodically empty and clear the cabinet rather than the freezer running an automatic cycle, which keeps the design simple and the running cost predictable.

It is rated at 737.3 kWh a year with a C energy rating, drawing 163 W. At 25p/kWh that is about £184 a year. It uses R600a refrigerant with a 110 g charge.

It runs from a standard 13 amp supply at 220–240 V and is climate class 3, suited to typical indoor ambients. It packs to 1760 × 760 × 940 mm and weighs 82 kg gross, so check access before delivery.

Yes. For servicing, spares or advice on siting, call Craven Cooling on 01792 732702. The white finish inside and out wipes down easily during routine cleaning.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1586 x 536 x 696 mm
External Dimension (WxDxH): 1700 x 729 x 861 mm
Packed Dimension (WxDxH): 1760 x 760 x 940 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 110 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.02 kWh/24h
Temperature Range: -23 to -16 °C
Annual Energy Consumption: 738 kWh/year m³
EEI: 30.6 %
Input Power: 163 W
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -23 to -16 °C
Climate Class: 3
Gross / Net Weight: 82 / 77 kg
Gross / Net Volume: 556 / 426 l
Max Ambient: +25°C, 60% RH

Design and Material

Exterior Finish: White
Interior Finish: White
Interior Light: No
If you have any questions about the TEFCOLD LHF620 (ECO DESIGN) Solid Lid Chest Freezer then please get in touch.
