Elcold EL22 (Eco Design) Solid Lid Chest Freezer

£564.00

+vat

- +

Brand:

SKU: 49704

Energy Arrow

Product summary

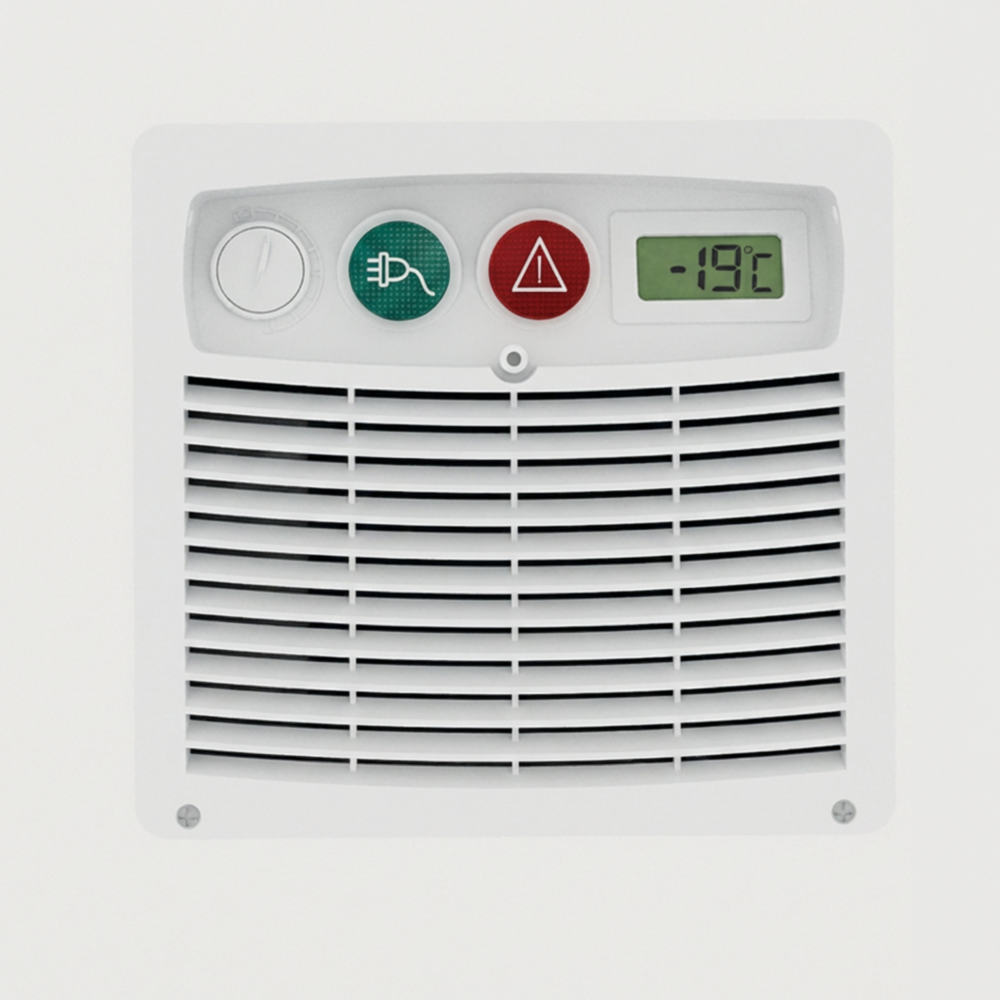

  • Digital temperature display
  • Static cooling

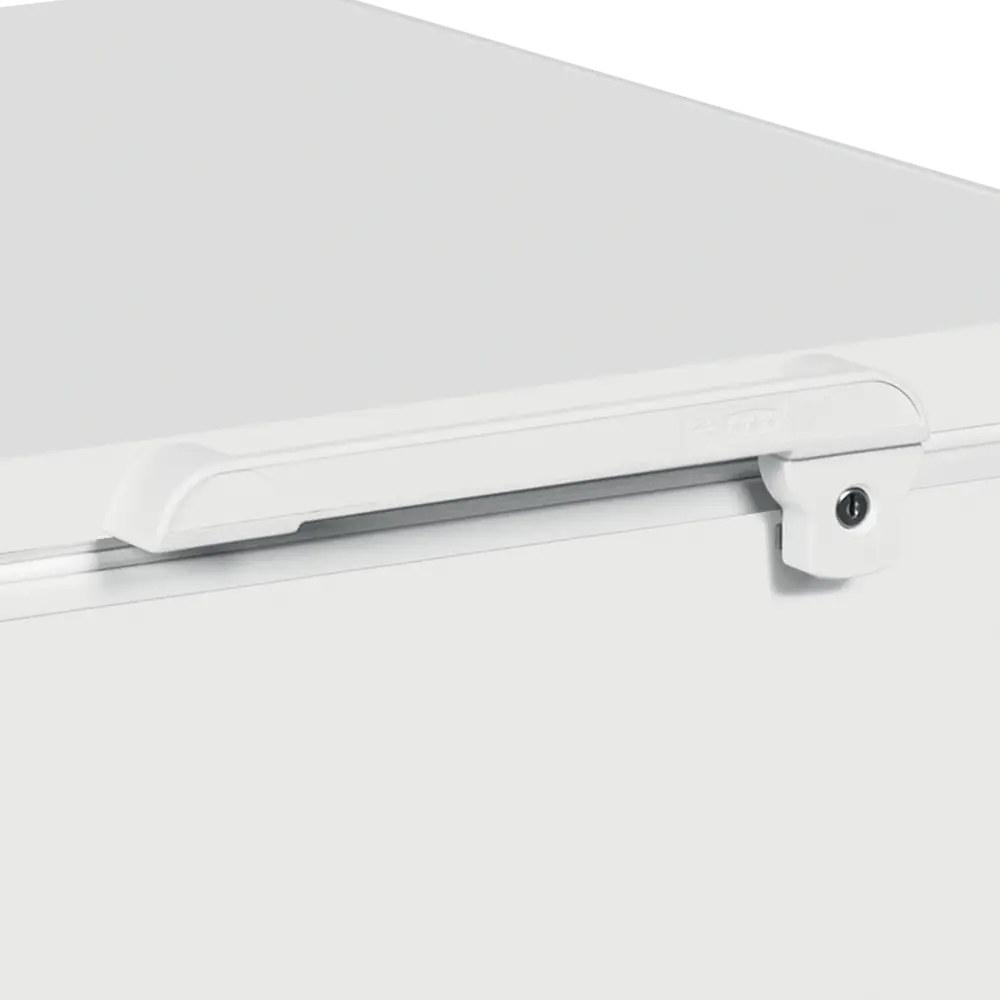

  • Lock
  • Feet
  • Interior light
  • Mains indicator light
  • Defrost drain

Product description

A premium range of chest freezers from Elcold, a respected and long established Danish manufacturer. The EL range has built a reputation over the years as being one of the market leading storage freezers. Quality, reliability and efficiency are at the forefront of all Elcold units. The unit comes with internal light, low temperature warning light and digital temperature display as standard, features that are missing from a lot of cheaper cabinets.


The Elcold EL22 is a compact solid-lid commercial chest freezer holding 177 litres net across a -23 to -16 °C band, with manual defrost, mechanical control and R600a refrigerant, using 343.1 kWh a year — about £86 at 25p/kWh.

SPECIFICATION 37 facts · tap for all External W × D × H720 x 729 x 861 mmWidth720 mmDepth729 mmGross / net weight46 / 43 kgGross weight46 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand Elcoldsite
GTIN / EAN 5708181732943site
Product code 49704site
Sub title Solid Lid Chest Freezercatalogue
Type Solid Lid Chest Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 729 mmsite
External (W×D×H) 720 × 729 × 861 mmcatalogue
External W × D × H 720 x 729 x 861 mmsite
Gross / net weight 46 / 43 kgsite
Gross weight 46 kgcatalogue
Height 861 mmsite
Internal (W×D×H) 606 × 536 × 696 mmcatalogue
Internal W × D × H 606 x 536 x 696 mmsite
Packed (W×D×H) 765 × 760 × 940 mmcatalogue
Packed W × D × H 765 x 760 x 940 mmsite
Width 720 mmsite

Capacity1

Gross volume 200 litrescatalogue

Performance9

Climate class 3site
Controller Mechanicalsite
Defrost type Manualsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R600asite
Refrigerant charge 60 gsite
Temperature range -23 to -16site
Thermometer Yessite

Power & energy5

Annual energy consumption 344 kWh/yearsite
Energy consumption 0.94 kWh/24hsite
Energy efficiency index 25.8 %site
Input power 125 Wsite
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings1

Exterior finish Whitesite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this solid lid chest freezer earns its place

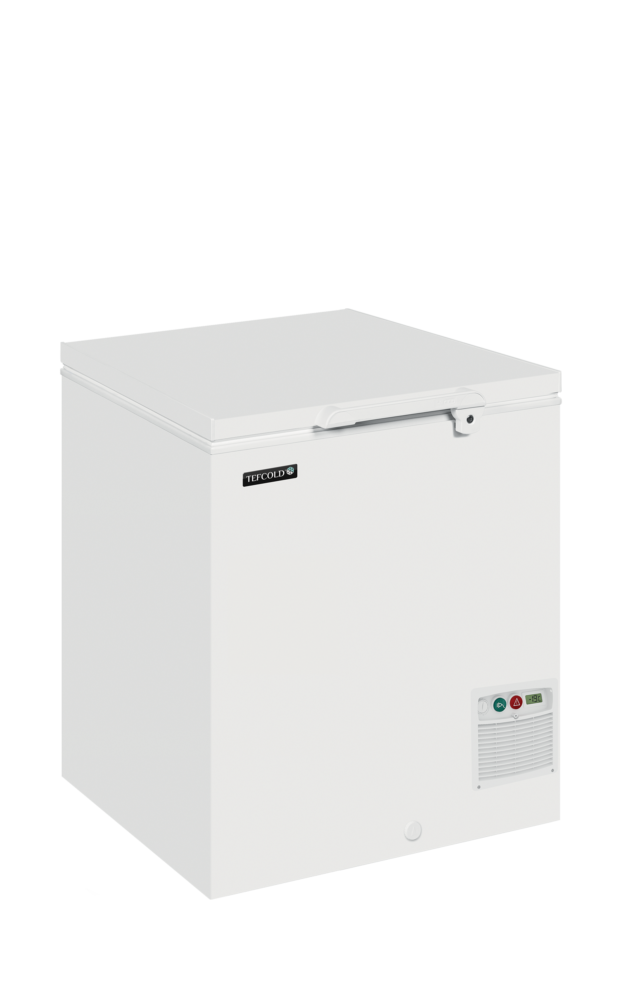

The Elcold EL22 is a compact solid-lid chest freezer for frozen storage where floor space is tight but a dedicated freezer is still needed. It gives you 177 litres of usable capacity (200 litres gross) behind an insulated solid lid, holding a -23 to -16 °C band that suits meat, fish and frozen prep. The white cabinet is a plain, wipe-clean box that slots into a small back-of-house or under-bench corner.

Operation is simple and mechanical: a mechanical controller sets the temperature and defrost is manual, so a periodic defrost goes into your cleaning routine rather than running on its own. It is rated climate class 3 and carries a C energy class, using 343.1 kWh a year — about £86 at 25p/kWh — from 125 W input power. The chest format holds cold air in the cabinet when the lid is opened, keeping the frozen load stable through repeated access.

The freezer measures 720 × 729 × 861 mm externally and weighs 43 kg net, light and small enough to site in a corner or through a standard doorway; packed it ships at 765 × 760 × 940 mm. It runs from a standard 13 amp, 220-240 V supply and uses R600a refrigerant with a 60 g charge.

BEFORE YOU BUY

Questions, answered straight

It gives 177 litres net usable capacity from a 200-litre gross cabinet — a compact but genuine dedicated freezer for meat, fish or prepped stock.

It holds a -23 to -16 °C band, suitable for long-term frozen storage, set on a mechanical controller.

No. The EL22 uses manual defrost, so plan a periodic defrost into your cleaning schedule.

It is energy class C and uses 343.1 kWh a year, which is about £86 at 25p/kWh. Input power is 125 W and it uses efficient R600a refrigerant.

The cabinet is 720 × 729 × 861 mm and weighs just 43 kg net, shipping packed at 765 × 760 × 940 mm, so it is easy to site in a corner or move through a standard doorway.

A standard 13 amp, 220-240 V socket, with R600a refrigerant and a 60 g charge. For servicing advice call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 606 x 536 x 696 mm
External Dimension (WxDxH): 720 x 729 x 861 mm
Packed Dimension (WxDxH): 765 x 760 x 940 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 60 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 0.94 kWh/24h
Temperature Range: -23 to -16 °C
Annual Energy Consumption: 344 kWh/year m³
EEI: 25.8 %
Input Power: 125 W
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -23 to -16 °C
Climate Class: 3
Gross / Net Weight: 46 / 43 kg
Gross / Net Volume: 200 / 177 l
Max Ambient: +25°C, 60% RH

Design and Material

Exterior Finish: White
Interior Finish: White
Interior Light: Yes
If you have any questions about the Elcold EL22 (Eco Design) Solid Lid Chest Freezer then please get in touch.
