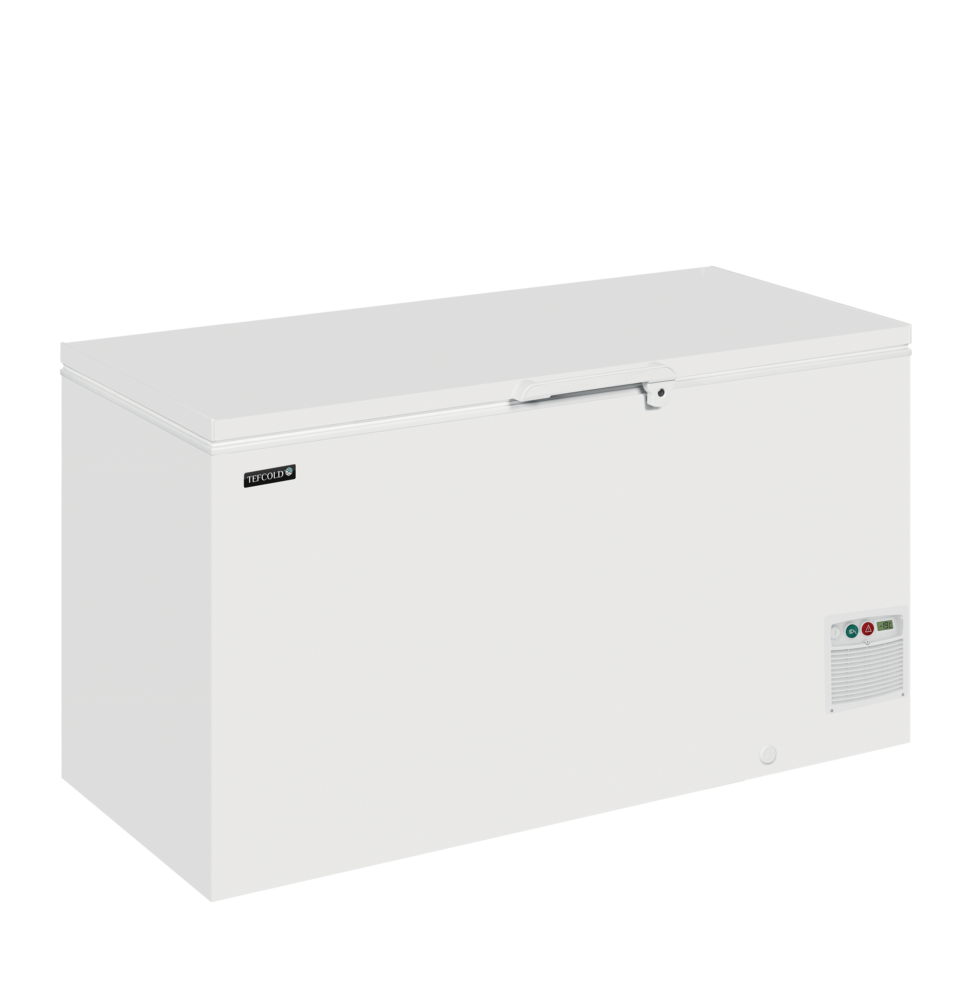

Elcold EL53 (Eco Design) Solid Lid Chest Freezer

£801.00

+vat

Brand:

SKU: 49710

Energy Arrow

Product summary

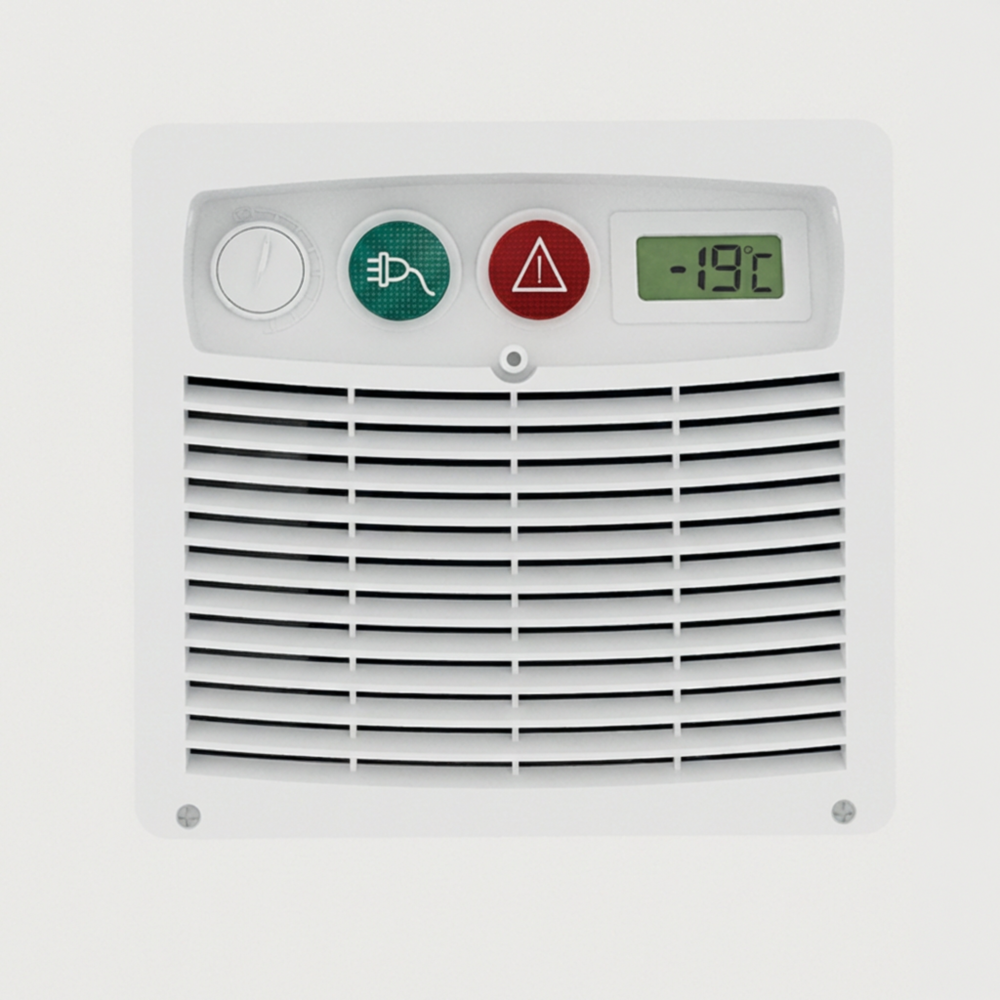

  • Digital temperature display
  • Static cooling
  • Lock
  • Feet
  • Interior light
  • Mains indicator light
  • Defrost drain

Product description

A premium range of chest freezers from Elcold, a respected and long established Danish manufacturer. The EL range has built a reputation over the years as being one of the market leading storage freezers. Quality, reliability and efficiency are at the forefront of all Elcold units. The unit comes with internal light, low temperature warning light and digital temperature display as standard, features that are missing from a lot of cheaper cabinets.


The Elcold EL53 is a solid-lid commercial chest freezer with 491 litres gross and 426 litres net of storage, holding -23 to -16 °C on a mechanical thermostat with manual defrost, rated energy class C at 708.1 kWh a year — about £177 a year to run at 25p/kWh.

SPECIFICATION 37 facts · tap for all External W × D × H1500 x 729 x 861 mmWidth1500 mmDepth729 mmGross / net weight71 / 67 kgGross weight71 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand Elcoldsite
GTIN / EAN 5708181733001site
Product code 49710site
Sub title Solid Lid Chest Freezercatalogue
Type Solid Lid Chest Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 729 mmsite
External (W×D×H) 1500 × 729 × 861 mmcatalogue
External W × D × H 1500 x 729 x 861 mmsite
Gross / net weight 71 / 67 kgsite
Gross weight 71 kgcatalogue
Height 861 mmsite
Internal (W×D×H) 1386 × 536 × 696 mmcatalogue
Internal W × D × H 1386 x 536 x 696 mmsite
Packed (W×D×H) 1545 × 760 × 940 mmcatalogue
Packed W × D × H 1545 x 760 x 940 mmsite
Width 1500 mmsite

Capacity1

Gross volume 491 litrescatalogue

Performance9

Climate class 3site
Controller Mechanicalsite
Defrost type Manualsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R600asite
Refrigerant charge 108 gsite
Temperature range -23 to -16site
Thermometer Yessite

Power & energy5

Annual energy consumption 708 kWh/yearsite
Energy consumption 1.94 kWh/24hsite
Energy efficiency index 32.4 %site
Input power 176 Wsite
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings1

Exterior finish Whitesite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this solid lid chest freezer earns its place

The Elcold EL53 is a solid-lid commercial chest freezer built for bulk frozen storage in the back of house. With 491 litres gross and 426 litres net, it holds a serious volume of frozen stock — the format that suits long-term holding of boxed and loose product where a chest layout uses the floor space efficiently and keeps cold air pooled low when the lid is opened.

Day to day it runs at -23 to -16 °C under a mechanical thermostat, with manual defrost to clear ice build-up. It is climate class 3 and rated energy class C, drawing 708.1 kWh a year — about £177 a year at 25p/kWh — from a 176 W input. Cooling uses R600a refrigerant with a 108 g charge. The cabinet is finished white inside and out.

The EL53 measures 1500 × 729 × 861 mm (W×D×H) and ships packed at 1545 × 760 × 940 mm, so plan a 1500 mm run and check your access route against the 729 mm depth. It weighs 71 kg gross, runs on a standard 13 amp supply at 220–240 V/50 Hz, and plugs into an ordinary socket with no special wiring.

BEFORE YOU BUY

Questions, answered straight

It runs at -23 to -16 °C, set on a mechanical thermostat. It is a solid-lid chest freezer rated climate class 3.

491 litres gross and 426 litres net. The chest layout uses floor space efficiently for bulk frozen product.

It is energy class C and uses 708.1 kWh a year, which is about £177 a year at 25p/kWh, drawing 176 W in use.

No — the EL53 uses manual defrost, so you clear ice build-up as part of the cleaning routine. It has a solid lid and a mechanical thermostat.

A standard 13 amp supply at 220–240 V/50 Hz. It plugs into an ordinary socket with no special wiring, and cooling uses R600a refrigerant.

The cabinet is 1500 × 729 × 861 mm (W×D×H) and packs to 1545 × 760 × 940 mm, so check your access route against the 729 mm depth. For servicing, call our team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1386 x 536 x 696 mm
External Dimension (WxDxH): 1500 x 729 x 861 mm
Packed Dimension (WxDxH): 1545 x 760 x 940 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 108 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.94 kWh/24h
Temperature Range: -23 to -16 °C
Annual Energy Consumption: 708 kWh/year m³
EEI: 32.4 %
Input Power: 176 W
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -23 to -16 °C
Climate Class: 3
Gross / Net Weight: 71 / 67 kg
Gross / Net Volume: 491 / 426 l
Max Ambient: +25°C, 60% RH

Design and Material

Exterior Finish: White
Interior Finish: White
Interior Light: Yes
If you have any questions about the Elcold EL53 (Eco Design) Solid Lid Chest Freezer then please get in touch.
