TEFCOLD CRPF1821 Chiller Room

£3,814.00

+vat

Brand:

SKU: 66815

Product summary

  • Plug-In – ready after assembly
  • Many customisation possibilities
  • Easy access to products
  • Easy assembly
  • Anti-slip floor in SS304 stainless steel
  • 80 mm panel insulation
  • Shelves available as accessory
  • Ramp available as accessory for easy access

Product description

Cost-effective, easy and efficient storage through cold rooms

The CRPF range of cold rooms can be used in restaurants, delis, cafes or similar environments. They offer the perfect way to create an optimised and efficient cooling space to make days easier and save on energy costs, all at a great price. Cold rooms create the ideal environment for easy access and food and beverage storage, it’s great for dairy products too.

The TEFCOLD CRPF1821 is a self-contained walk-in chiller room with a 1640 × 1940 × 2040 mm internal chamber that holds 0 to +8 °C using an R290 refrigeration system with automatic hot-gas defrost and electronic control.

SPECIFICATION 37 facts · tap for all External W × D × H1800 x 2100 x 2200 mmWidth1800 mmDepth2100 mmGross / net weight485 / 452 kgGross weight485 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181750459site
Product code 66815site
Sub title Chiller Roomcatalogue
Type Walk-in Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 2100 mmsite
External (W×D×H) 1800 × 2100 × 2200 mmcatalogue
External W × D × H 1800 x 2100 x 2200 mmsite
Gross / net weight 485 / 452 kgsite
Gross weight 485 kgcatalogue
Height 2200 mmsite
Internal (W×D×H) 1640 × 1940 × 2040 mmcatalogue
Internal W × D × H 1640 x 1940 x 2040 mmsite
Packed (W×D×H) 2200 × 1300 × 2400 mmcatalogue
Packed W × D × H 2200 x 1300 x 2400 mmsite
Width 1800 mmsite

Capacity2

Doors 1catalogue
Internal volume 6.49site

Performance6

Controller Electronicsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 130 gsite
Temperature range 0 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 6833 kWh/yearsite
Energy consumption 18.72 kWh/24hsite
Input power 860 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max floor load 1500 kg/m²site
Wall thickness 80site
THE WORKING VIEW

Why this walk-in fridge earns its place

The CRPF1821 is a walk-in chiller room for bulk chilled storage in a commercial kitchen, cellar or back-of-house. The internal chamber measures 1640 × 1940 × 2040 mm (W×D×H), giving full standing height and floor space to hold trolleys, trays and stacked fresh stock in one controlled environment instead of across several upright fridges.

It runs at 0 to +8 °C, the working band for chilled food storage. Defrost is automatic and hot-gas, keeping the evaporator clear without the room being shut down, and an electronic controller manages the cycle. Running noise is around 60 dB(A). At a rated 6833 kWh a year, that is about £1708 a year at 25p/kWh, with the compressor drawing 860 W.

The chamber is finished white inside and out and is entered through a single hinged solid door 700 mm wide by 1845 mm high — worth checking against your access route, as the room ships as panels for on-site assembly. It runs on a 220-240 V supply, uses R290 refrigerant with a 130 g charge, and weighs 485 kg gross.

BEFORE YOU BUY

Questions, answered straight

It runs at 0 to +8 °C, the standard band for chilled food storage. An electronic controller manages the setpoint and the automatic hot-gas defrost cycle.

It is delivered as panels and built on site, so it does not need to pass through in one piece. The chamber's own access door is 700 mm wide and 1845 mm high.

At its rated 6833 kWh a year, roughly £1708 a year at 25p/kWh. Real figures vary with ambient temperature, how often the door is opened and your electricity tariff.

Automatically, using hot gas to clear the evaporator on a timed cycle with no manual intervention or room shutdown.

R290, a low-GWP hydrocarbon refrigerant, with a 130 g charge. For servicing or spares, call Craven Cooling on 01792 732702.

485 kg gross and 452 kg net, so the floor and access route should be able to take both the delivered panels and the assembled weight.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

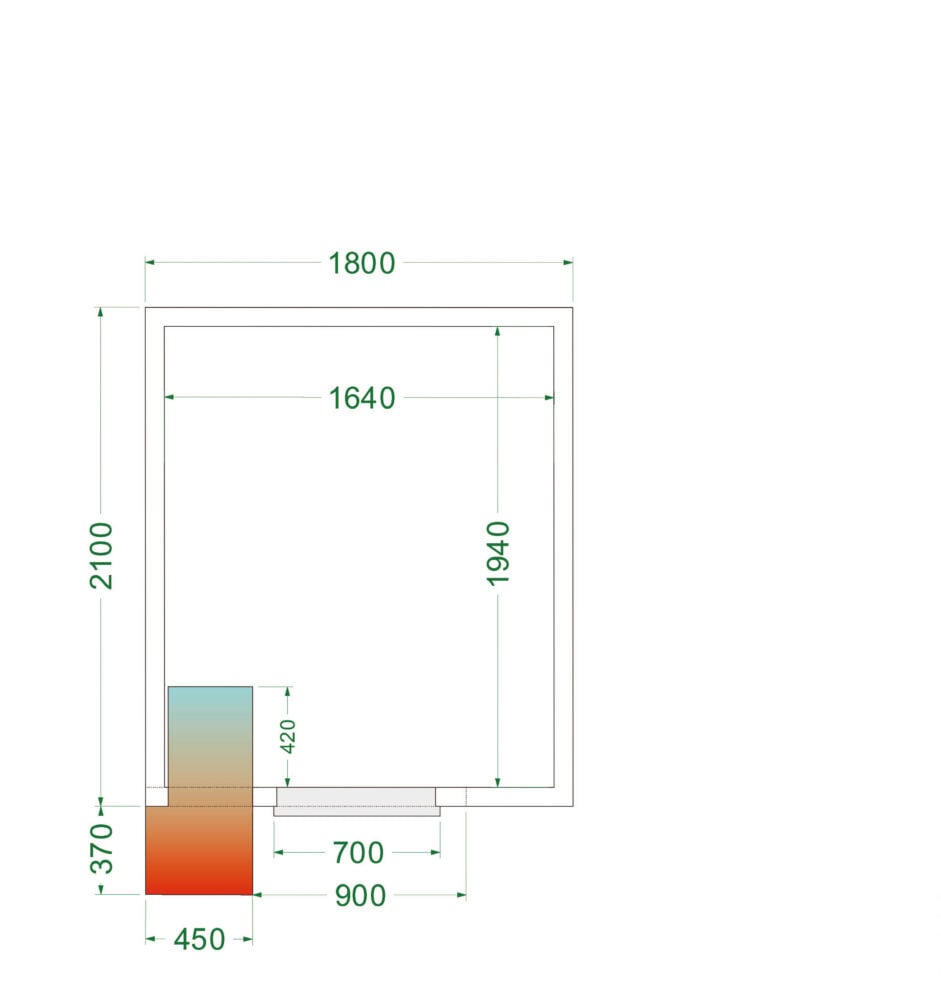

Internal Dimension (WxDxH): 1640 x 1940 x 2040 mm
External Dimension (WxDxH): 1800 x 2100 x 2200 mm
Packed Dimension (WxDxH): 2200 x 1300 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 130 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 18.72 kWh/24h
Temperature Range: 0 to +8 °C
Annual Energy Consumption: 6833 kWh/year m³
Input Power: 860 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Internal Volume: 6.49 m³
Wall Thickness: 80 mm
Temperature Range: 0 to +8 °C
Gross / Net Weight: 485 / 452 kg
Max Load on Floor: 1500 kg/m² kg/m²

Design and Material

Door Reversible: Yes
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD CRPF1821 Chiller Room then please get in touch.
