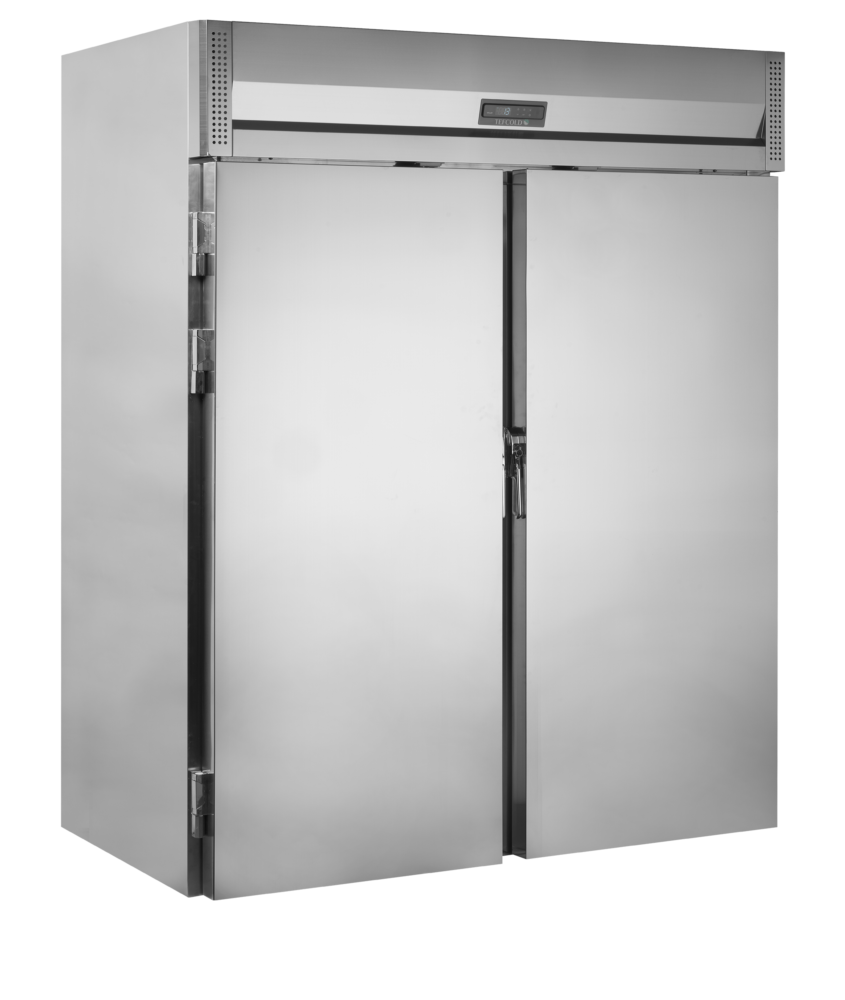

TEFCOLD RIC1760X1 Roll-In Chiller

£2,602.00

+vat

Brand:

SKU: 55345

Energy Arrow

Product summary

  • Stainless steel exterior and interior
  • Suitable for 20-tray trolleys (not included)
  • Ventilated cooling
  • Digital controller and temperature display
  • Automatic defrost
  • Climate class 5 for high performance in warm surroundings

Product description

Roll-In Chiller for catering settings

The RIC Roll-In Chiller range offers durable cooling solutions for professional kitchens. Constructed from 304 stainless steel with ventilated cooling, these chillers keep dishes fresh while accommodating 1 x GN2/1, 1 x 600x400mm or 2 x GN1/1 trolleys per compartment (not included) – perfect for bakeries, events, buffets and catering.

The TEFCOLD RIC1760X1 is a stainless steel double-door roll-in chiller holding +2 to +10 °C across 832 litres net, with ventilated cooling, automatic off-cycle defrost and R290 refrigerant, measuring 1760 × 994 × 2201 mm externally.

SPECIFICATION 36 facts · tap for all External W × D × H1760 x 994 x 2201.5 mmWidth1760 mmDepth994 mmGross / net weight288 / 250 kgGross weight288 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181741099site
Product code 55345site
Sub title Roll-In Chillercatalogue
Type Double Door Upright Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 994 mmsite
External (W×D×H) 1760 × 994 × 2201 mmcatalogue
External W × D × H 1760 x 994 x 2201.5 mmsite
Gross / net weight 288 / 250 kgsite
Gross weight 288 kgcatalogue
Height 2201.5 mmsite
Internal (W×D×H) 1600 × 836 × 1810 mmcatalogue
Internal W × D × H 1600 x 836 x 1810 mmsite
Packed (W×D×H) 1785 × 1030 × 2350 mmcatalogue
Packed W × D × H 1785 x 1030 x 2350 mmsite
Width 1760 mmsite

Capacity2

Doors 2catalogue
Gross volume 1918 litrescatalogue

Performance6

Climate class 5site
Cooling type Ventilatedsite
Defrost type Automatic / Off Cyclesite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range +2 to +10site

Power & energy5

Annual energy consumption 2007.5 kWh/yearsite
Energy consumption 5.5 kWh/24hsite
Input power 650 Wsite
Noise level 52 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish SS304site
Interior light Nosite
Lock Yessite
THE WORKING VIEW

Why this double door upright fridge earns its place

The RIC1760X1 is a double-door roll-in chiller for kitchens and bakeries that load racked trolleys straight into the cabinet rather than unpacking onto shelves. It offers 832 litres of net storage from a 1918-litre gross capacity across an internal 1600 × 836 × 1810 mm, finished in SS304 stainless steel inside and out behind two hinged solid doors.

It holds a chilled band of +2 to +10 °C using ventilated cooling for even temperature through the cabinet, with automatic off-cycle defrost. It runs at 52 dB on R290 refrigerant with a 150 g charge. Input power is 650 W; on a verified 2007.5 kWh a year that works out to about £502 a year at 25p/kWh, worth factoring into running costs.

The cabinet measures 1760 × 994 × 2201 mm externally and ships packed at 1785 × 1030 × 2350 mm (W×D×H), so measure doorways and lifts against the 1760 mm width before delivery. It weighs 250 kg net, 288 kg gross, and is rated climate class 5 for use in warmer kitchen environments. It takes a 220–240 V / 50 Hz supply.

BEFORE YOU BUY

Questions, answered straight

The cabinet is built to take racked trolleys straight in through two hinged solid doors, so you load and unload a full rack at once rather than transferring stock to shelves.

It offers 832 litres of net storage from a 1918-litre gross capacity, across an internal 1600 × 836 × 1810 mm (W×D×H).

The cabinet is 1760 × 994 × 2201 mm externally and ships packed at 1785 × 1030 × 2350 mm (W×D×H). Check the 1760 mm width against your access route before delivery.

It draws 650 W and is rated at 2007.5 kWh a year, which is about £502 a year at 25p/kWh. Actual cost depends on your tariff and how often the doors are opened.

It holds a chilled band of +2 to +10 °C using ventilated cooling for even temperature, with automatic off-cycle defrost. It runs at 52 dB on R290 refrigerant.

Yes, we service commercial refrigeration. Call our team on 01792 732702. The chiller uses R290, ventilated cooling and SS304 stainless steel construction.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1600 x 836 x 1810 mm
External Dimension (WxDxH): 1760 x 994 x 2201.5 mm
Packed Dimension (WxDxH): 1785 x 1030 x 2350 mm

Cooling and Functions

Type of Cooling: Ventilated
Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 150 g

Power and Consumption

Energy Consumption: 5.5 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 2007.5 kWh/year m³
Input Power: 650 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 52 dB(A)

Measures and Content

Temperature Range: +2 to +10 °C
Climate Class: 5
Gross / Net Weight: 288 / 250 kg
Gross / Net Volume: 1918 / 832 l

Design and Material

Door Reversible: No
Exterior Finish: SS304
Interior Finish: SS304
Interior Light: No

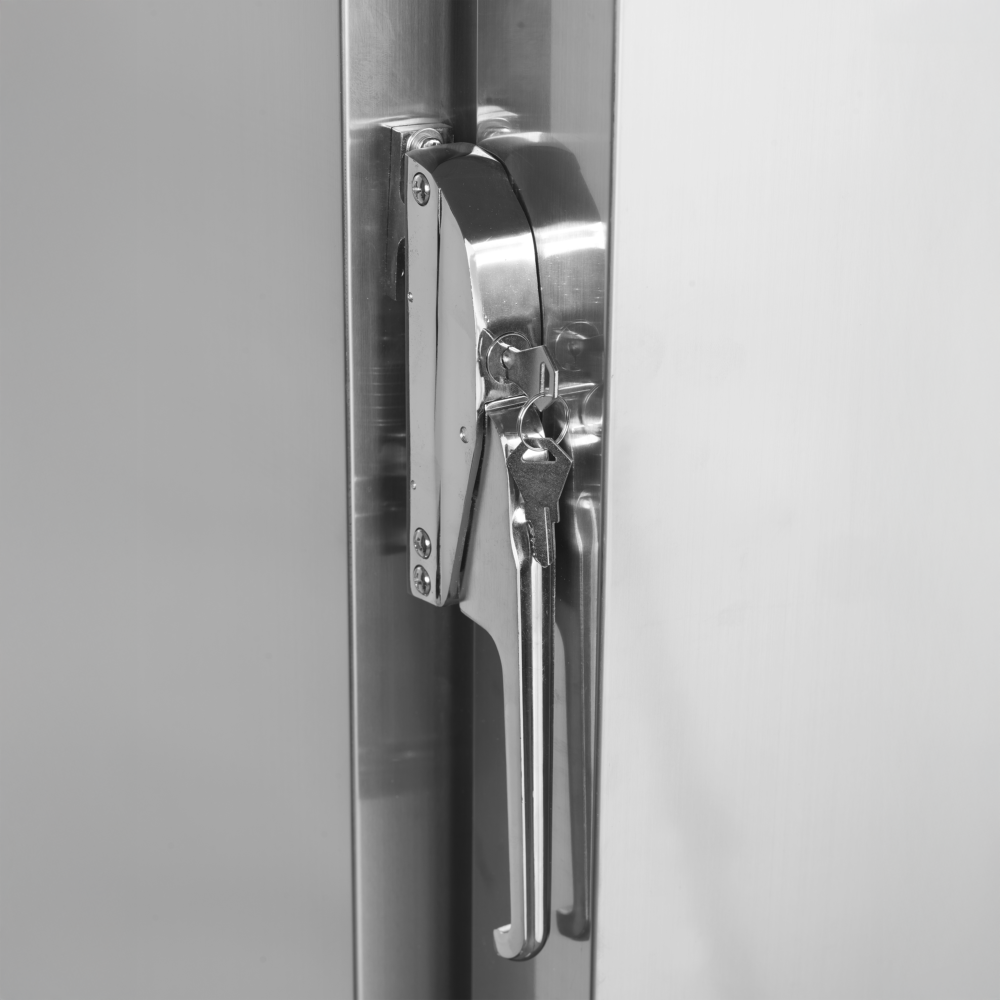

Lock: Yes
