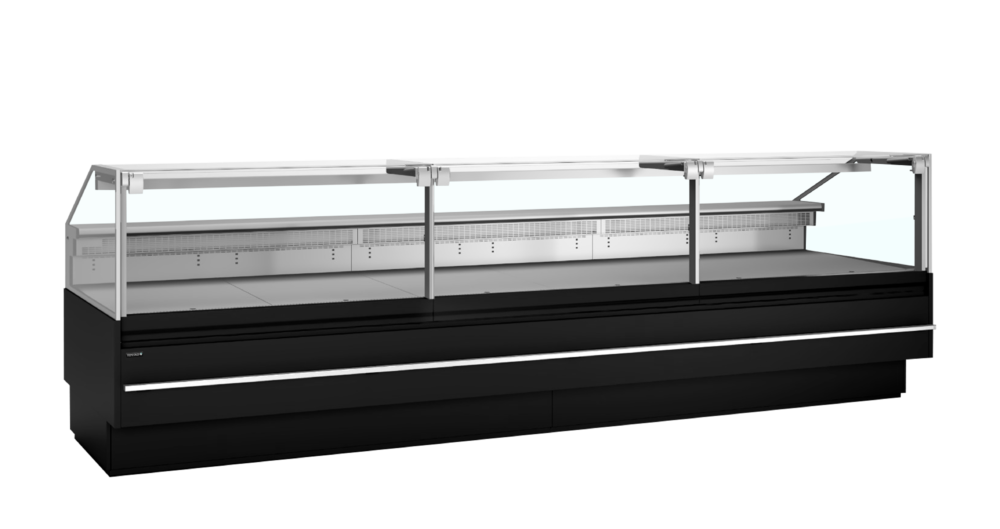

TEFCOLD SOCA37590B Serve Over Counter

£7,028.00

+vat

- +

Brand:

SKU: 69161

Energy Arrow

Product summary

  • Black finish
  • Excellent product visibility
  • 900 mm deep stainless steel deck
  • Anti mist front glass
  • Glass front lifts up for easy cleaning
  • Stainless steel rear shelf
  • Ventilated cooling
  • Temperature Class 3M1
  • LED top light
  • Stainless steel bumper bars
  • 2 x 220-240V sockets to rear
  • Can be multiplexed with kit (POA)

Product description

Premium serve over counter display with 900 mm deck

TEFCOLD’s SOCA range provides exceptional serve over counters, perfect for butchers and delis. With its stylish and functional design, the counter boasts anti mist glass, LED lighting, and a 900mm deep deck with ventilated cooling. The lift-up front glass allows for effortless cleaning of the stainless-steel deck, while the understorage caters to E2 boxes. Enjoy the convenience of personalisation with multiplexing and various accessories.

SPECIFICATION 40 facts · tap for all External W × D × H3798 x 1120 x 1190 mmWidth3798 mmDepth1120 mmGross / net weight565 / 470 kgGross weight565 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181755737site
Product code 69161site
Sub title Serve Over Countercatalogue
Type Fresh Meat Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 1120 mmsite
External (W×D×H) 3798 × 1120 × 1190 mmcatalogue
External W × D × H 3798 x 1120 x 1190 mmsite
Gross / net weight 565 / 470 kgsite
Gross weight 565 kgcatalogue
Height 1190 mmsite
Internal (W×D×H) 3750 × 900 × 545 mmcatalogue
Internal W × D × H 3750 x 900 x 545 mmsite
Packed (W×D×H) 4000 × 1250 × 1400 mmcatalogue
Packed W × D × H 4000 x 1250 x 1400 mmsite
Width 3798 mmsite

Capacity1

Display area 3.31 m²site

Performance8

Climate class 3site

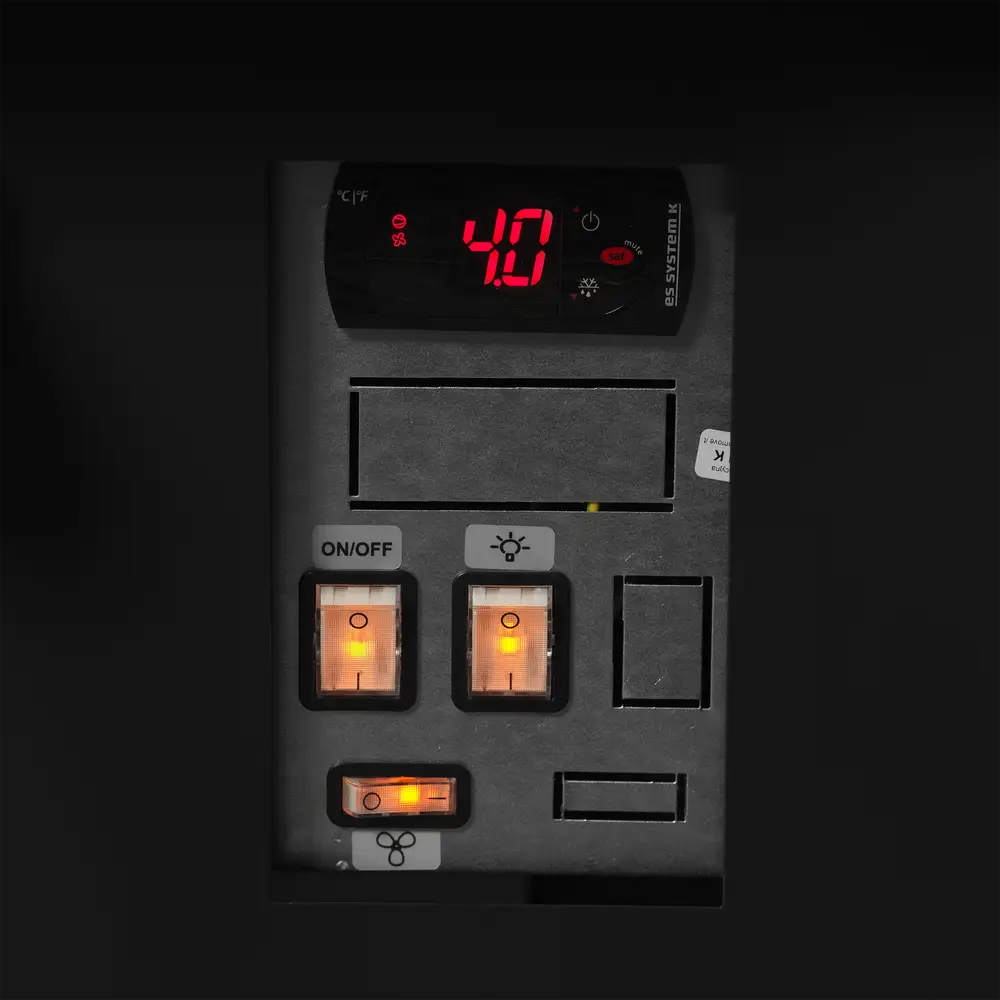

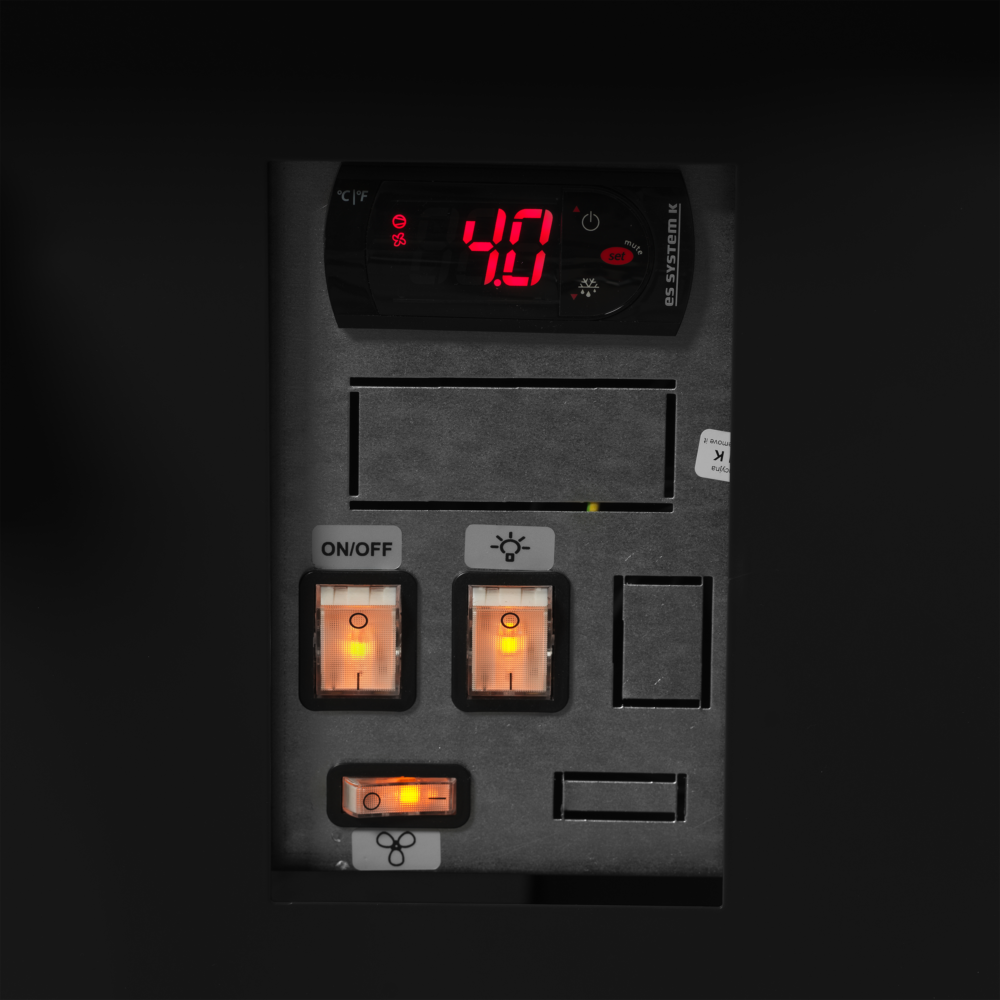

Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Refrigerant R290site
Refrigerant charge 2 x 150 gsite
Temperature range 0 to +4site
Thermometer Yessite

Power & energy6

Annual energy consumption 5256 kWh/yearsite
Energy consumption 14.4 kWh/24hsite
Energy efficiency index 79.3 %site
Input power 1000 Wsite
Noise level 59 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Black RAL9005site
Feet / legs Adjustable Feetsite
Interior light LEDsite

Other stated facts1

Energy class Fcatalogue
THE WORKING VIEW

Why this fresh meat display fridge earns its place

The SOCA37590B is a flat-glass serve-over counter with a 3.75-metre internal display run and 3.31 m² of display area, finished in black RAL 9005. The long, low glass line is built for served retail — fresh meat, fish and deli lines laid out to the customer and passed across the counter, giving one continuous merchandising span rather than a set of separate cabinets.

In use it holds 0 to +4 °C, the band for fresh meat and fish, with ventilated cooling to keep the temperature even across the length of the case and an automatic electric defrost run from an electronic controller. It runs at 59 dB and is rated to climate class 3. At energy class F and 5256 kWh a year, expect running costs of about £1314 a year at 25p/kWh.

It ships packed at 4000 × 1250 × 1400 mm and weighs 565 kg gross, dropping to 470 kg net once installed, so plan delivery access and siting for a heavy, full-length cabinet. The refrigeration draws 1000 W from a 220–240 V/50 Hz supply and uses a 150 g charge of R290.

BEFORE YOU BUY

Questions, answered straight

It holds 0 to +4 °C with ventilated cooling for an even temperature across the case, which is the band used for fresh meat and fish display. An electronic controller and automatic electric defrost manage it day to day.

It's energy class F and rated at 5256 kWh a year, which works out at about £1314 a year at 25p/kWh. Your actual cost depends on your tariff and the ambient conditions around the cabinet.

It ships packed at 4000 × 1250 × 1400 mm and weighs 565 kg gross, dropping to 470 kg net once installed. Plan a clear delivery route and adequate floor loading for a full-length counter.

R290, a natural hydrocarbon refrigerant, with a 150 g charge.

It's rated at 59 dB and built to climate class 3, so it holds temperature in a warmer room. Site it where the noise suits your front-of-house layout.

Yes — our engineers cover installed cabinets. Call the service team on 01792 732702 to arrange a visit or talk through siting and electrics.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 3750 x 900 x 545 mm
External Dimension (WxDxH): 3798 x 1120 x 1190 mm
Packed Dimension (WxDxH): 4000 x 1250 x 1400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 2 x 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 14.4 kWh/24h
Temperature Range: 0 to +4 °C
Annual Energy Consumption: 5256 kWh/year m³
EEI: 79.3 %
Input Power: 1000 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 59 dB(A)

Measures and Content

Temperature Range: 0 to +4 °C
Climate Class: 3
Gross / Net Weight: 565 / 470 kg
Gross / Net Volume: / 982 l
Total Display Area: 3.31 m² m²

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
If you have any questions about the TEFCOLD SOCA37590B Serve Over Counter then please get in touch.
