TEFCOLD SOCA37590A Serve Over Counter

£7,373.00

+vat

Brand:

SKU: 54149

Energy Arrow

Product summary

  • Excellent product visibility
  • 900 mm deep stainless steel deck
  • Anti mist front glass
  • Glass front lifts up for easy cleaning
  • Stainless steel rear shelf
  • Ventilated cooling
  • Temperature Class 3M1
  • LED top light
  • Stainless steel bumper bars
  • 2 x 220-240V sockets to rear
  • Can be multiplexed with kit (POA)
  • Fresh meat light optional extra

Product description

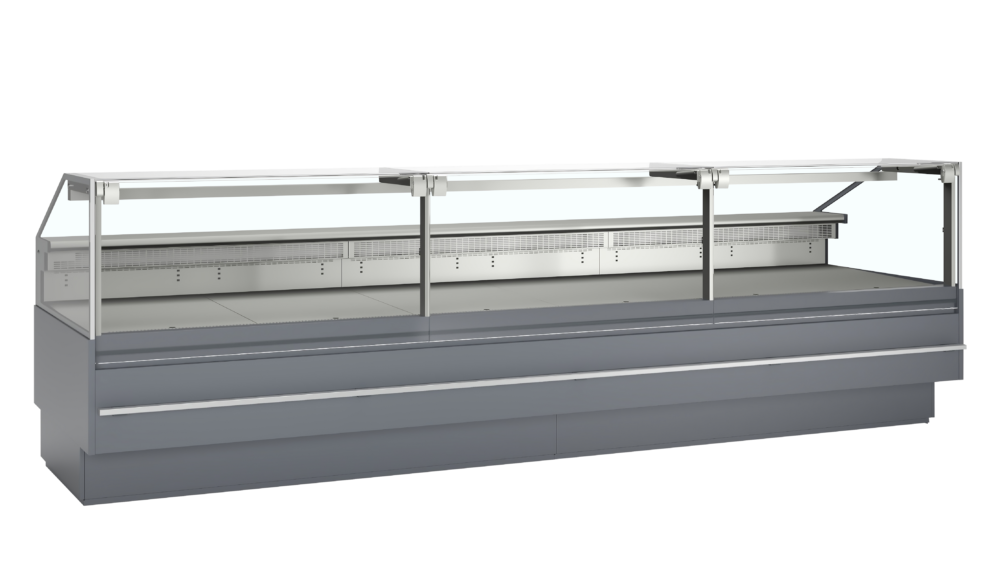

Premium serve over counter display with 900 mm deck

TEFCOLD’s SOCA range are exceptional serve over counters, perfect for butchers and delis. With its stylish and functional design, the counter boasts anti mist glass, LED lighting, and a 900mm deep deck with ventilated cooling. The lift-up front glass allows for effortless cleaning of the stainless-steel deck, while the understorage caters to E2 boxes. Enjoy the convenience of personalisation with multiplexing and various accessories.

This TEFCOLD 3750 mm serve-over counter has 3.31 m² of refrigerated display running at 0 to +4 °C, finished in grey RAL7015 with a stainless steel interior, cooled by R290 with automatic electric defrost and electronic control.

SPECIFICATION 40 facts · tap for all External W × D × H3798 x 1120 x 1190 mmWidth3798 mmDepth1120 mmGross / net weight565 / 470 kgGross weight565 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181739065site
Product code 54149site
Sub title Serve Over Countercatalogue
Type Fresh Meat Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 1120 mmsite
External (W×D×H) 3798 × 1120 × 1190 mmcatalogue
External W × D × H 3798 x 1120 x 1190 mmsite
Gross / net weight 565 / 470 kgsite
Gross weight 565 kgcatalogue
Height 1190 mmsite
Internal (W×D×H) 3750 × 900 × 545 mmcatalogue
Internal W × D × H 3750 x 900 x 545 mmsite
Packed (W×D×H) 4000 × 1250 × 1400 mmcatalogue
Packed W × D × H 4000 x 1250 x 1400 mmsite
Width 3798 mmsite

Capacity1

Display area 3.31 m²site

Performance8

Climate class 3site

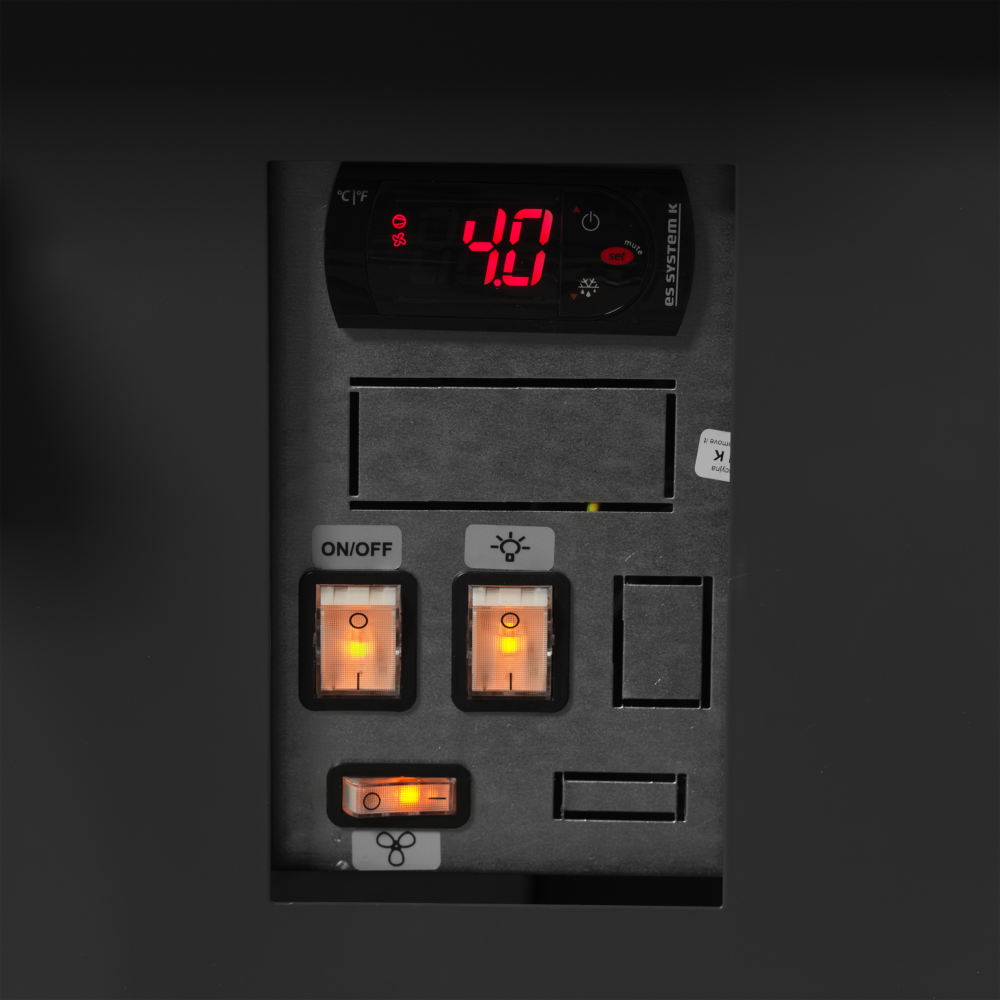

Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Refrigerant R290site
Refrigerant charge 2 x 150 gsite
Temperature range 0 to +4site
Thermometer Yessite

Power & energy6

Annual energy consumption 5256 kWh/yearsite
Energy consumption 14.4 kWh/24hsite
Energy efficiency index 79.3 %site
Input power 1000 Wsite
Noise level 59 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Grey RAL7015site
Feet / legs Adjustable Feetsite
Interior light LEDsite

Other stated facts1

Energy class Fcatalogue
THE WORKING VIEW

Why this fresh meat display fridge earns its place

This TEFCOLD unit is a serve-over display counter built for high-volume deli, butchery and fresh-food service. It presents 3.31 m² of refrigerated display along a 3750 mm run, finished in grey RAL7015 with a stainless steel interior. The length gives staff a long, continuous counter to lay out portioned and packaged chilled produce for customers to choose from at the point of service.

The counter holds 0 to +4 °C using ventilated cooling with automatic electric defrost and an electronic controller. It is rated climate class 3 for temperate ambient conditions and carries energy class F with an energy efficiency index of 79.3%. On verified consumption of 5256 kWh a year it works out at about £1314 a year at 25p/kWh. Measured noise is 59 dB.

Internally the counter measures 3750 × 900 × 545 mm (W×D×H) and ships packed at 4000 × 1250 × 1400 mm, so this is a large delivery that needs planned access and handling; it weighs 470 kg net and 565 kg gross. It draws 1000 W from a 13 A, 220-240 V/50 Hz single-phase supply and uses R290 refrigerant with a 150 g charge.

BEFORE YOU BUY

Questions, answered straight

It runs at 0 to +4 °C using ventilated cooling with automatic electric defrost and an electronic controller. It is rated climate class 3 for temperate ambient conditions.

3.31 m² of refrigerated display along a 3750 mm run, presented behind a grey RAL7015 body with a stainless steel interior.

On verified consumption of 5256 kWh a year, about £1314 a year at 25p/kWh. It carries energy class F with an energy efficiency index of 79.3%.

The counter is 3750 × 900 × 545 mm (W×D×H) internally and ships packed at 4000 × 1250 × 1400 mm, weighing 565 kg gross, so plan a large, handled delivery with clear access.

It draws 1000 W from a 13 A, 220-240 V/50 Hz single-phase supply and uses R290 refrigerant with a 150 g charge.

Yes. Our engineers cover installation and ongoing servicing across our commercial refrigeration range. Call the team on 01792 732702 to arrange a visit or discuss a service plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 3750 x 900 x 545 mm
External Dimension (WxDxH): 3798 x 1120 x 1190 mm
Packed Dimension (WxDxH): 4000 x 1250 x 1400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 2 x 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 14.4 kWh/24h
Temperature Range: 0 to +4 °C
Annual Energy Consumption: 5256 kWh/year m³
EEI: 79.3 %
Input Power: 1000 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 59 dB(A)

Measures and Content

Temperature Range: 0 to +4 °C
Climate Class: 3
Gross / Net Weight: 565 / 470 kg
Gross / Net Volume: / 982 l
Total Display Area: 3.31 m² m²

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: Grey RAL7015
Interior Finish: Grey RAL7015
Interior Light: LED
If you have any questions about the TEFCOLD SOCA37590A Serve Over Counter then please get in touch.
