TEFCOLD SOCA18790A Serve Over Counter

£4,749.00

+vat

Brand:

SKU: 54145

Energy Arrow

Product summary

  • Excellent product visibility
  • 900 mm deep stainless steel deck
  • Anti mist front glass
  • Glass front lifts up for easy cleaning
  • Stainless steel rear shelf
  • Ventilated cooling
  • Temperature Class 3M1
  • LED top light
  • Stainless steel bumper bars
  • 2 x 220-240V sockets to rear
  • Can be multiplexed with kit (POA)
  • Fresh meat light optional extra

Product description

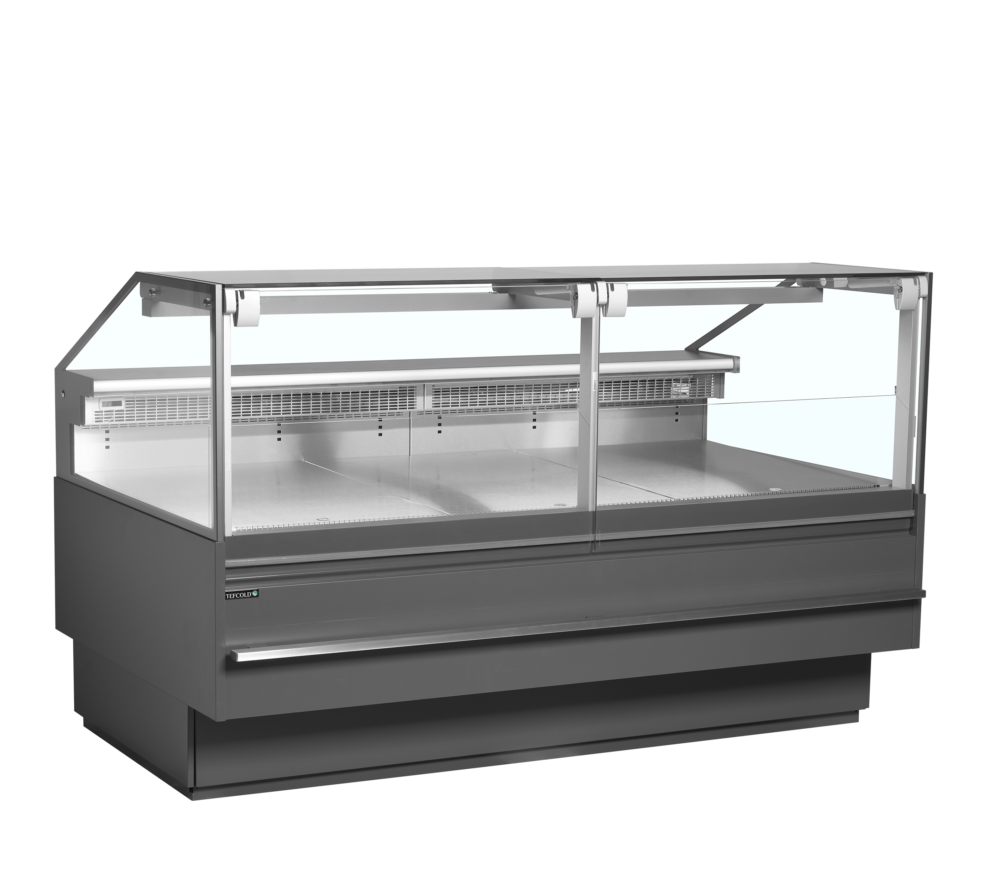

Premium serve over counter display with 900 mm deck

TEFCOLD’s SOCA range are exceptional serve over counters, perfect for butchers and delis. With its stylish and functional design, the counter boasts anti mist glass, LED lighting, and a 900mm deep deck with ventilated cooling. The lift-up front glass allows for effortless cleaning of the stainless-steel deck, while the understorage caters to E2 boxes. Enjoy the convenience of personalisation with multiplexing and various accessories.

This TEFCOLD serve-over counter is ventilated, holding 0 to +4 °C across 1.77 m² of display, finished in grey RAL7015 with a stainless-steel interior, R290 refrigerant and energy class E.

SPECIFICATION 40 facts · tap for all External W × D × H1923 x 1120 x 1190 mmWidth1923 mmDepth1120 mmGross / net weight310 / 250 kgGross weight310 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181739027site
Product code 54145site
Sub title Serve Over Countercatalogue
Type Fresh Meat Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 1120 mmsite
External (W×D×H) 1923 × 1120 × 1190 mmcatalogue
External W × D × H 1923 x 1120 x 1190 mmsite
Gross / net weight 310 / 250 kgsite
Gross weight 310 kgcatalogue
Height 1190 mmsite
Internal (W×D×H) 1875 × 900 × 545 mmcatalogue
Internal W × D × H 1875 x 900 x 545 mmsite
Packed (W×D×H) 2100 × 1250 × 1400 mmcatalogue
Packed W × D × H 2100 x 1250 x 1400 mmsite
Width 1923 mmsite

Capacity1

Display area 1.77 m²site

Performance8

Climate class 3site

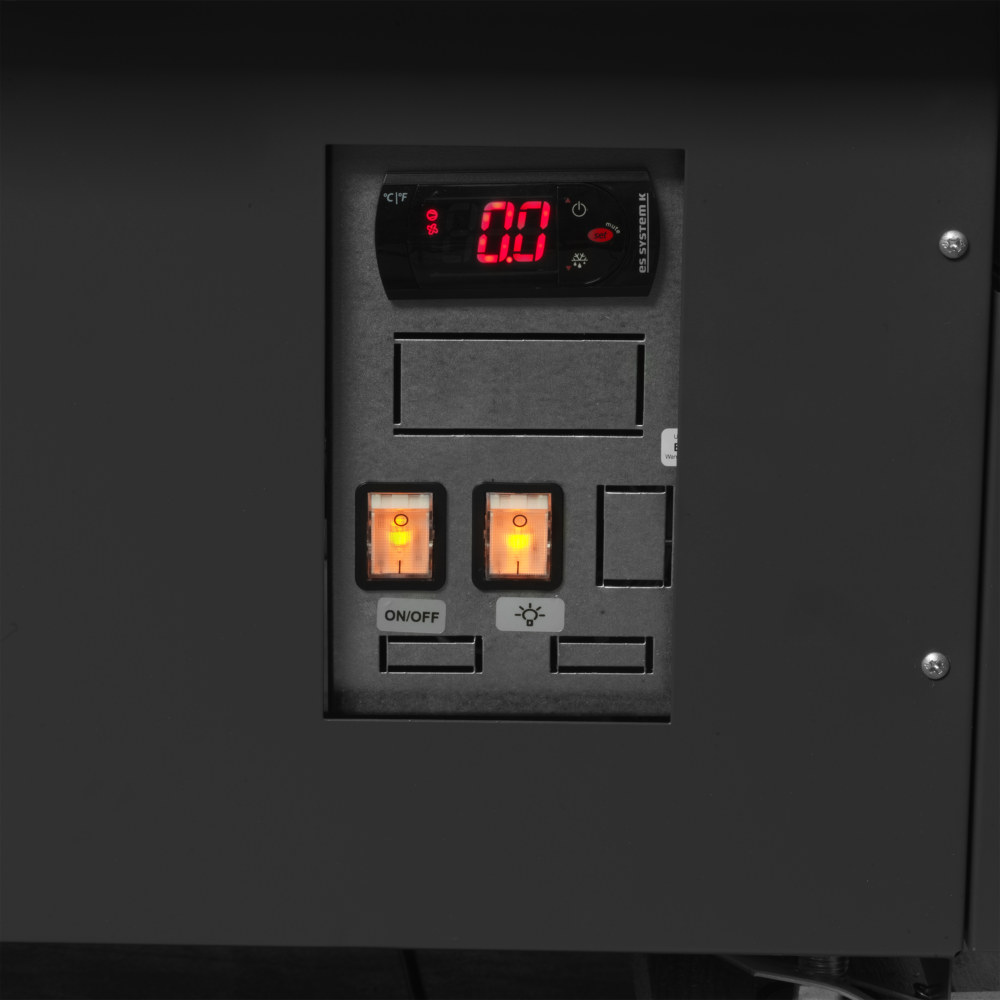

Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range 0 to +4site
Thermometer Yessite

Power & energy6

Annual energy consumption 2738 kWh/yearsite
Energy consumption 7.5 kWh/24hsite
Energy efficiency index 63.8 %site
Input power 480 Wsite
Noise level 59 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Grey RAL7015site
Feet / legs Adjustable Feetsite
Interior light LEDsite

Other stated facts1

Energy class Ecatalogue
THE WORKING VIEW

Why this fresh meat display fridge earns its place

This TEFCOLD unit is a serve-over display counter built for face-to-face deli, meat and fish service. It puts 1.77 m² of product on show at the front of the counter, finished in grey RAL7015 with a stainless-steel interior for easy cleaning, so staff can serve straight from the display.

It holds 0 to +4 °C on ventilated cooling with automatic electric defrost and an electronic controller. It is rated to climate class 3 and runs at 59 dB. The cabinet carries energy class E with an EEI of 63.8%, and at its rated 2737.5 kWh a year works out at about £684 a year at 25p/kWh.

Internally the counter measures 1875 × 900 × 545 mm and weighs 310 kg gross, so plan a solid floor and a clear delivery route. It draws 480 W on a 13 amp, 220-240 V/50 Hz supply and uses 150 g of R290 natural hydrocarbon refrigerant. Confirm the counter run and power point before delivery.

BEFORE YOU BUY

Questions, answered straight

It holds 0 to +4 °C on ventilated cooling, a band suited to displaying fresh chilled product. The stainless-steel interior wipes down for hygienic daily cleaning.

1.77 m² of display area across the counter front, in a cabinet measuring 1875 × 900 × 545 mm internally.

At its rated 2737.5 kWh a year, about £684 a year at 25p/kWh. It carries energy class E with an EEI of 63.8%.

A 13 amp, 220-240 V/50 Hz supply. It draws 480 W and uses R290 natural hydrocarbon refrigerant.

Automatic electric defrost managed by the electronic controller, so there is no manual defrost routine to run.

Yes. Craven Cooling services commercial refrigeration; call 01792 732702 to arrange servicing or discuss a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1875 x 900 x 545 mm
External Dimension (WxDxH): 1923 x 1120 x 1190 mm
Packed Dimension (WxDxH): 2100 x 1250 x 1400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 7.5 kWh/24h
Temperature Range: 0 to +4 °C
Annual Energy Consumption: 2738 kWh/year m³
EEI: 63.8 %
Input Power: 480 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 59 dB(A)

Measures and Content

Temperature Range: 0 to +4 °C
Climate Class: 3
Gross / Net Weight: 310 / 250 kg
Gross / Net Volume: / 489 l
Total Display Area: 1.77 m² m²

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: Grey RAL7015
Interior Finish: Grey RAL7015
Interior Light: LED
If you have any questions about the TEFCOLD SOCA18790A Serve Over Counter then please get in touch.
