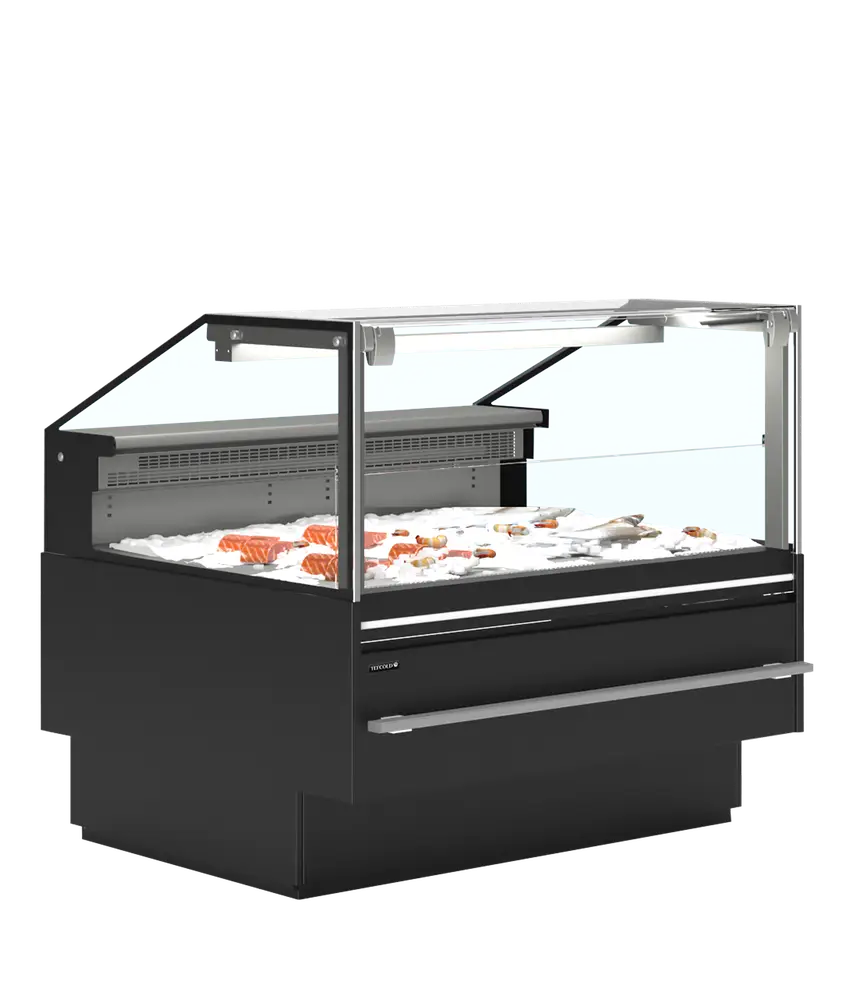

TEFCOLD SOCA-F12590B Serve Over Counter

£4,396.00

+vat

- +

Brand:

SKU: 68872

Energy Arrow

Product summary

  • Excellent product visibility
  • 50 mm deep tray for ice
  • Glass front lifts up for easy cleaning
  • Anti mist front glass
  • Black finish
  • Ventilated cooling
  • Temperature Class 3M1
  • LED top light
  • Stainless steel bumper bars
  • Stainless steel rear shelf
  • 2 x 220-240V sockets to rear
  • Can be multiplexed with kit (POA)

Product description

Premium serve over counter for displaying fresh fish on ice

The SOCA-F range of serve over counters is specifically designed to display fresh fish on ice. The stainless steel deck features a 50 mm deep tray, perfect for storing and layering the ice. The front glass lifts up for easy cleaning and the glass is anti-mist. You can customise with accessories, with multiplexing options to create a full counter solution. Comes with an easily accessible storage compartment with wide doors (these accommodate standard E2 boxes).

SPECIFICATION 39 facts · tap for all External W × D × H1298 x 1130 x 1190 mmWidth1298 mmDepth1130 mmGross / net weight260 / 220 kgGross weight260 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181754778site
Product code 68872site
Sub title Serve Over Countercatalogue
Type Flat Glass Serve Over Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 1130 mmsite
External (W×D×H) 1298 × 1130 × 1190 mmcatalogue
External W × D × H 1298 x 1130 x 1190 mmsite
Gross / net weight 260 / 220 kgsite
Gross weight 260 kgcatalogue
Height 1190 mmsite
Internal (W×D×H) 1250 × 900 × 545 mmcatalogue
Internal W × D × H 1250 x 900 x 545 mmsite
Packed (W×D×H) 1500 × 1250 × 1400 mmcatalogue
Packed W × D × H 1500 x 1250 x 1400 mmsite
Width 1298 mmsite

Capacity1

Display area 1.08 m²site

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy5

Annual energy consumption 2190 kWh/yearsite
Energy consumption 6 kWh/24hsite
Input power 320 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Black RAL9005site
Feet / legs Adjustable Feetsite
Interior light LEDsite
THE WORKING VIEW

Why this flat glass serve over fridge earns its place

The TEFCOLD SOCA-F12590B is a flat-glass serve-over counter built for face-to-face fresh-food service. Its 1.08 m² refrigerated display area presents chilled produce to the customer across the counter while staff serve from behind, and the flat glass front gives a clear, uninterrupted view of the goods. The cabinet measures 1250 × 1130 × 1190 mm externally, a full-depth counter with room for a generous display.

It holds -1 to +5 °C using ventilated cooling for even temperature across the display, with an automatic electric defrost and electronic control. Natural R290 refrigerant (a 150 g charge) keeps it low-impact, and the cabinet draws 320 W. It is rated at climate class 3 and a noise level of 60 dB. On its rated 2190 kWh a year, running cost is about £548 a year at 25p/kWh.

At 260 kg gross and 220 kg net it is a substantial counter, and it ships packed at 1500 × 1250 × 1400 mm — plan a wide, clear delivery route, as the packed depth of 1250 mm exceeds a standard single doorway. It runs from a 220–240 V / 50 Hz supply. Allow ventilation clearance around the cabinet so the cooling performs to spec.

BEFORE YOU BUY

Questions, answered straight

It holds -1 to +5 °C using ventilated cooling with an electronic controller, suited to keeping fresh produce cold across a serving day. An automatic electric defrost runs the clearing cycle.

The refrigerated display area is 1.08 m², presented behind flat glass so customers get a clear, uninterrupted view of the goods on the counter.

On its rated 2190 kWh a year, it works out at about £548 a year at 25p/kWh. It draws 320 W and uses natural R290 refrigerant. Check the figure against your own tariff.

It ships packed at 1500 × 1250 × 1400 mm, so the 1250 mm packed depth is wider than a standard single doorway — plan a wide delivery route and allow for its 260 kg packed weight.

It is rated at 60 dB. As a ventilated serve-over counter it is designed to run front-of-house while staff serve customers across it.

Yes. For installation advice, commissioning or ongoing servicing, call the service team on 01792 732702. The cabinet uses R290 refrigerant and an electronic controller.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1250 x 900 x 545 mm
External Dimension (WxDxH): 1298 x 1130 x 1190 mm
Packed Dimension (WxDxH): 1500 x 1250 x 1400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 6 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 2190 kWh/year m³
Input Power: 320 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 260 / 220 kg
Gross / Net Volume: / 305 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.08 m² m²

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
If you have any questions about the TEFCOLD SOCA-F12590B Serve Over Counter then please get in touch.
