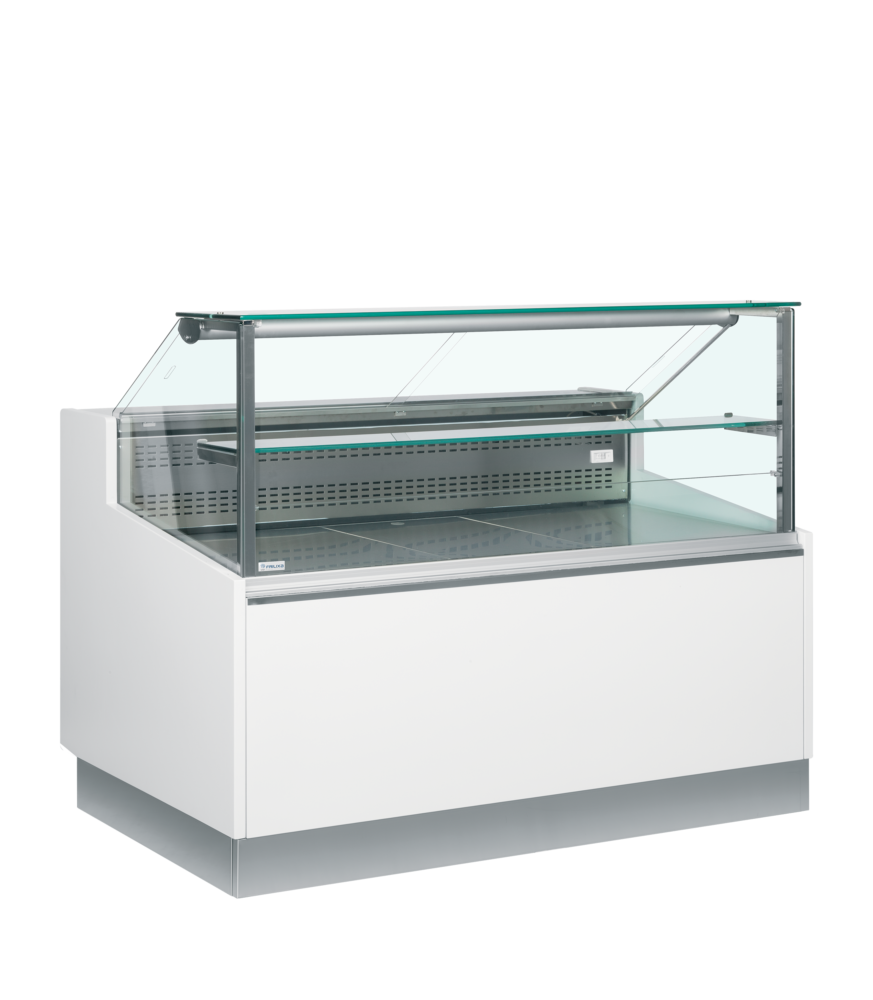

TEFCOLD BRABANT 200 Serve Over Counter

£2,683.00

+vat

- +

Brand:

SKU: 18813

Energy Arrow

Product summary

  • Fully automatic
  • Static cooling
  • Adjustable feet
  • LED interior light with switch
  • Digital controller and temperature display
  • Ambient shelf
  • Easy access understorage
  • Front glass hinges forward if required
  • 13 Amp socket to rear for scales/till etc.
  • Stainless rear shelf
  • Stainless deck
  • Number of storage doors: 100 = 1, 150 =1, 200 = 2,

Product description

The Brabant range of serveovers offers a contemporary minimalist design with stylish vertical flat front glass. The airflow of the unit is designed to enable even cooling over the whole deck without the need for a fan, ensuring delicate food does not dry out. The unit also benefits from the convenience of refrigerated understorage as standard. The unit is finished in white with stainless rear serving shelf, deck and kick plates.

SPECIFICATION 40 facts · tap for all External W × D × H1953 x 973 x 1195 mmWidth1953 mmDepth973 mmGross / net weight390 / 324 kgGross weight390 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5600380522878site
Product code 18813site
Sub title Serve Over Countercatalogue
Type Flat Glass Serve Over Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 973 mmsite
External (W×D×H) 1953 × 973 × 1195 mmcatalogue
External W × D × H 1953 x 973 x 1195 mmsite
Gross / net weight 390 / 324 kgsite
Gross weight 390 kgcatalogue
Height 1195 mmsite
Internal W × D × H 1900 x 670 mmsite
Packed (W×D×H) 2100 × 1100 × 1380 mmcatalogue
Packed W × D × H 2100 x 1100 x 1380 mmsite
Width 1953 mmsite

Capacity1

Display area 1.69 m²site

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2 x 150 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 2107 kWh/yearsite
Energy consumption 5.77 kWh/24hsite
Energy efficiency index 55 %site
Input power 498 Wsite
Noise level 69 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Whitesite
Feet / legs Adjustable Feetsite
Interior light LEDsite

Other stated facts1

Energy class Ecatalogue
THE WORKING VIEW

Why this flat glass serve over fridge earns its place

The Brabant 200 is a full-length serve-over counter built for assisted service across a wide display face. It presents 1.69 m² of chilled display behind glass, with staff serving from the rear, which suits butchers, delis, fishmongers and patisserie counters selling prepared and fresh goods face-to-face. The white exterior and stainless-steel interior give a clean, hard-wearing finish for a working counter.

It holds a chilled band of +2 to +8 °C using static cooling and automatic off-cycle defrost, managed by an electronic controller for consistent setpoint holding. It carries climate class 3, rated for typical indoor retail conditions. Rated at 69 dB it is audible in a quiet room, so factor that into a small, front-of-house space. Energy class E at 2106 kWh a year is about £527 a year at 25p/kWh.

At 1953 mm wide, 973 mm deep and 1195 mm high, this is a large counter — packed it ships at 2100 × 1100 × 1380 mm, so measure doorways, corridors and the final position before delivery. It is heavy at 324 kg net (390 kg gross), needing a proper lifting team and a firm, level floor. It runs from a 13-amp supply and uses R290 refrigerant with a 150 g charge, a low-GWP hydrocarbon.

BEFORE YOU BUY

Questions, answered straight

The counter is 1953 mm wide and 973 mm deep; packed it measures 2100 × 1100 × 1380 mm. Measure every doorway, corridor and turn on the delivery route, and plan to unpack before the final approach if access is tight.

It runs a chilled band of +2 to +8 °C, managed by an electronic controller, suited to fresh and prepared goods sold over the counter. Automatic off-cycle defrost keeps the coil clear without a manual routine.

It is energy class E at 2106 kWh a year, about £527 a year at 25p/kWh. Actual cost depends on your tariff, ambient temperature and how hard the counter is worked.

It is rated at 69 dB, audible in a quiet room, so bear that in mind for a small or quiet serving space. In a busy shop or café floor it sits within normal background noise.

It runs from a 13-amp supply and uses R290 refrigerant with a 150 g charge, a hydrocarbon with low global warming potential. It is rated climate class 3 for typical indoor retail conditions.

It weighs 324 kg net (390 kg gross), so it needs a proper lifting team and a firm, level floor. Craven Cooling supplies and services this equipment — call 01792 732702 to discuss delivery, siting or a service visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1900 x 670 mm
External Dimension (WxDxH): 1953 x 973 x 1195 mm
Packed Dimension (WxDxH): 2100 x 1100 x 1380 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 2 x 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 5.77 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 2107 kWh/year m³
EEI: 55 %
Input Power: 498 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 69 dB(A)

Measures and Content

Temperature Range: +2 to +8 °C
Climate Class: 3
Gross / Net Weight: 390 / 324 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.69 m² m²

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: White
Interior Finish: White
Interior Light: LED
If you have any questions about the TEFCOLD BRABANT 200 Serve Over Counter then please get in touch.
