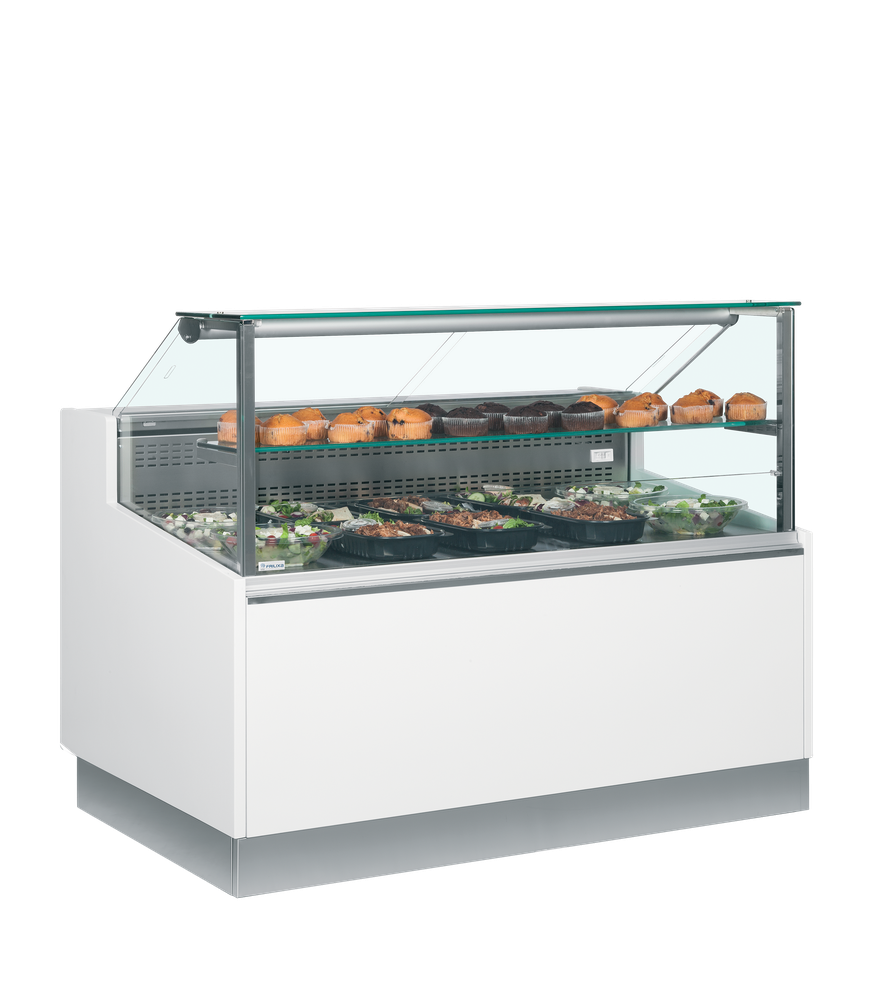

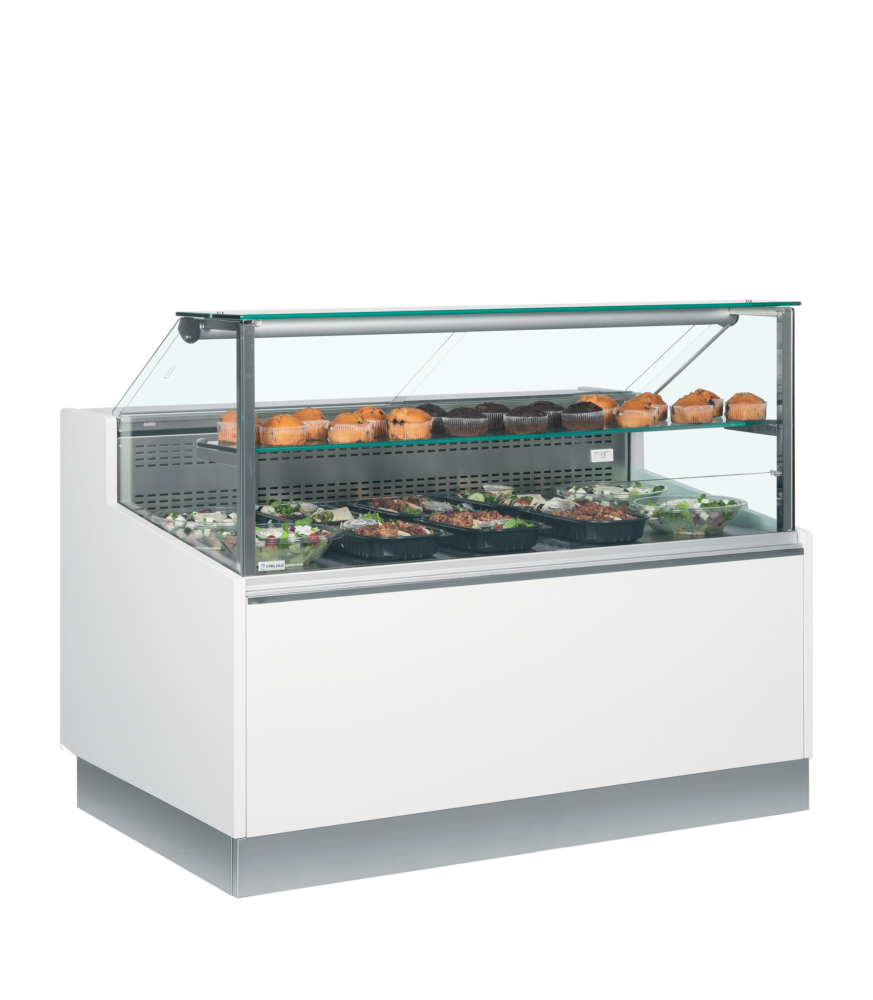

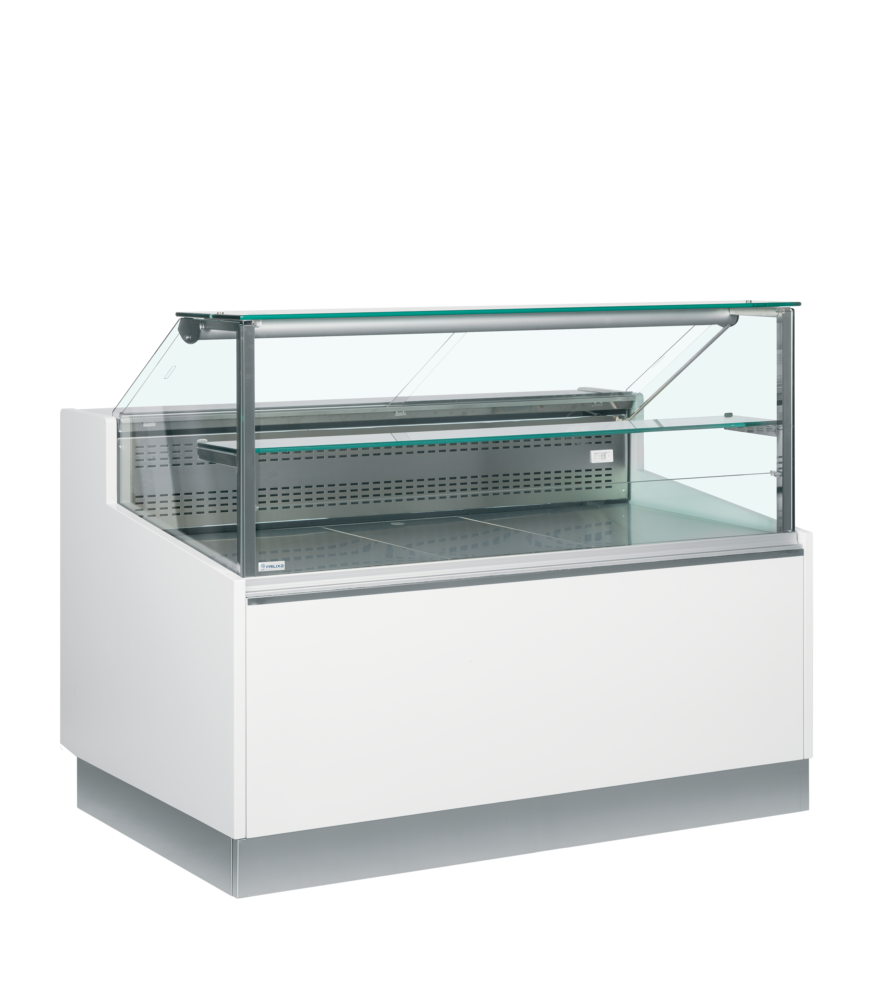

TEFCOLD BRABANT 150 Serve Over Counter

£2,283.00

+vat

- +

Brand:

SKU: 18811

Energy Arrow

Product summary

  • Fully automatic
  • Static cooling
  • Adjustable feet
  • LED interior light with switch
  • Digital controller and temperature display
  • Ambient shelf
  • Easy access understorage
  • Front glass hinges forward if required
  • 13 Amp socket to rear for scales/till etc.
  • Stainless rear shelf
  • Stainless deck
  • Number of storage doors: 100 = 1, 150 =1, 200 = 2,

Product description

The Brabant range of serveovers offers a contemporary minimalist design with stylish vertical flat front glass. The airflow of the unit is designed to enable even cooling over the whole deck without the need for a fan, ensuring delicate food does not dry out. The unit also benefits from the convenience of refrigerated understorage as standard. The unit is finished in white with stainless rear serving shelf, deck and kick plates.

The TEFCOLD BRABANT 150 is a white serve-over counter with a 1.2 m² flat-glass display, holding fresh product at +2 to +8 °C with static cooling and R290 refrigerant, measuring 1453 × 973 × 1195 mm and running from a standard 13-amp supply.

SPECIFICATION 40 facts · tap for all External W × D × H1453 x 973 x 1195 mmWidth1453 mmDepth973 mmGross / net weight245 / 216 kgGross weight245 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5600380522861site
Product code 18811site
Sub title Serve Over Countercatalogue
Type Flat Glass Serve Over Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 973 mmsite
External (W×D×H) 1453 × 973 × 1195 mmcatalogue
External W × D × H 1453 x 973 x 1195 mmsite
Gross / net weight 245 / 216 kgsite
Gross weight 245 kgcatalogue
Height 1195 mmsite
Internal W × D × H 1400 x 670 mmsite
Packed (W×D×H) 1600 × 1100 × 1380 mmcatalogue
Packed W × D × H 1600 x 1100 x 1380 mmsite
Width 1453 mmsite

Capacity1

Display area 1.2 m²site

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 1747 kWh/yearsite
Energy consumption 4.79 kWh/24hsite
Energy efficiency index 55 %site
Input power 348 Wsite
Noise level 69 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Whitesite
Feet / legs Adjustable Feetsite
Interior light LEDsite

Other stated facts1

Energy class Ecatalogue
THE WORKING VIEW

Why this flat glass serve over fridge earns its place

The BRABANT 150 is a serve-over counter built for face-to-face selling. Its 1.2 m² flat-glass display puts chilled product at the customer's eye line across a 1453 mm run, in a white exterior with a stainless steel interior that reads clean behind the glass. Static cooling holds an even chill across the deck for deli, dairy and prepared foods served to order.

It runs at +2 to +8 °C, a fresh-product band suited to cooked meats, cheeses and chilled counter lines rather than raw fish or frozen stock. An electronic controller manages the temperature and automatic off-cycle defrost clears the coil without a manual routine. It carries an energy class E rating at 1748.3 kWh a year — about £437 a year at 25p/kWh — with a climate class of 3 for warm room conditions. Noise is rated at 69 dB.

The cabinet measures 1453 × 973 × 1195 mm and weighs 216 kg net, 245 kg packed, so plan the delivery route and final position before it arrives — packed dimensions are 1600 × 1100 × 1380 mm. It runs from a standard 13-amp supply at 220-240 V, so no special electrics are needed. Cooling uses R290 refrigerant with a 150 g charge.

BEFORE YOU BUY

Questions, answered straight

It runs at +2 to +8 °C, a fresh-product band suited to cooked meats, cheeses, dairy and other chilled foods served to order. It is not a freezer or a fish counter.

It is rated energy class E at 1748.3 kWh a year, which is about £437 a year at 25p/kWh. Your actual cost depends on your tariff and how warm the room is.

No. It runs from a standard 13-amp supply at 220-240 V, so a normal socket is fine. Cooling uses R290 refrigerant with a 150 g charge.

The counter measures 1453 × 973 × 1195 mm and weighs 245 kg packed. Check your delivery route and doorways against the packed size of 1600 × 1100 × 1380 mm before it arrives.

Defrost is automatic on the off cycle, managed by the electronic controller, so there is no manual defrost routine to run during the day.

It is rated at 69 dB. For servicing or advice on siting it in your space, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1400 x 670 mm
External Dimension (WxDxH): 1453 x 973 x 1195 mm
Packed Dimension (WxDxH): 1600 x 1100 x 1380 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 4.79 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 1747 kWh/year m³
EEI: 55 %
Input Power: 348 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 69 dB(A)

Measures and Content

Temperature Range: +2 to +8 °C
Climate Class: 3
Gross / Net Weight: 245 / 216 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.2 m² m²

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: White
Interior Finish: White
Interior Light: LED
If you have any questions about the TEFCOLD BRABANT 150 Serve Over Counter then please get in touch.
