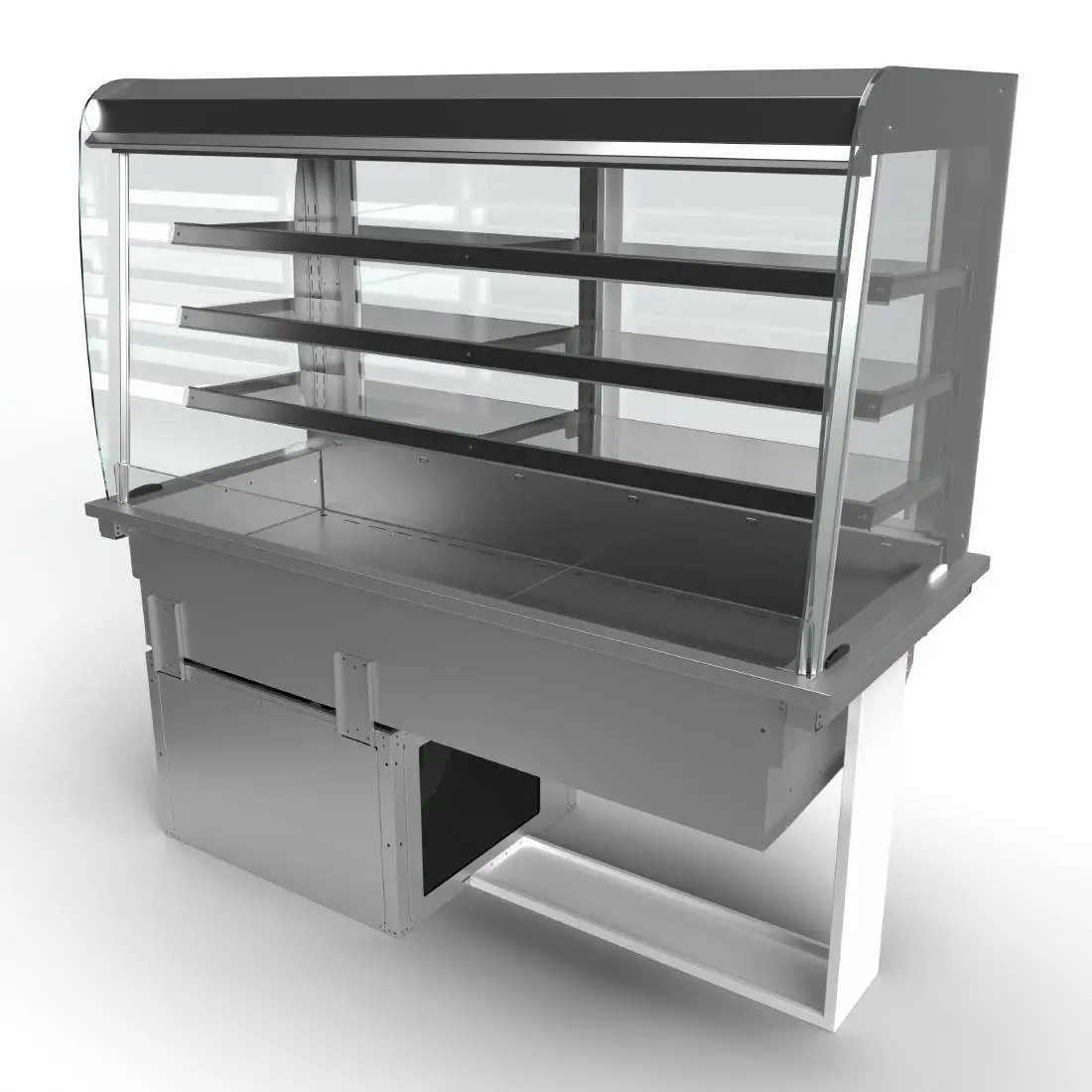

Moffat Drop-In Chilled Multi Level Display D4RD CU534

£5,848.19

+vat

Availability: 999 in stock

Brand:

SKU: CU534

Product summary

Width: 1486mm

Product description

The Moffat D4RD is a chilled display unit incorporating a refrigerated cold well and 3 glass display shelves. Featuring the innovative Moffat “Polar Air Stream” technology, the unit delivers a constant, recirculating cold air curtain which completely envelops the food displayed – great for keeping food at a safe, desired temperature for extended periods.

Perfect for the display of sandwiches, fruit, yogurts and cold drinks, the Moffat features stylish curved glass, accurate digital controls, automatic defrost, high pressure warning and automatic condensate evaporation. The refrigeration system is housed underneath in a tidy, compact cradle. And thanks to the highly efficient, naturally occurring R290 hydrocarbon refrigerant, the overall carbon footprint and energy consumption of the display is reduced.

Condensing unit set at 90° angle – no unsightly vents in the front panels
Controls conveniently positioned in the gantry hood
Efficient refrigerant
Automatic defrost and condensate water evaporation – no need to empty drip trays
Maintains the core product temperature of pre-chilled food below 5°C in ambient conditions not exceeding 25°C and 60% relative humidity
User-friendly digital thermostat and temperature control
Easy-access sliding rear double glazed doors
Advanced air flow design with unique Polar Air Stream technology

The Moffat CU534 is a drop-in chilled multi-level display, built to recess into a counter or servery so chilled stock sits at several levels in front of the customer in a self-service or assisted run.

Downloads

SPECIFICATION 15 facts · tap for all Width1486 mmDepth660 mmHeight750 mmGross weight171 kgMaterialStainless SteelProduct codeCU534

Identity5

Brand Moffatsite
Extended warranty 2 Years Parts Onlycatalogue
Product code CU534site
Type Display Fridgescatalogue
Warranty 2 Years On-Site Parts & Labourcatalogue

Size & weight5

Depth 660 mmcatalogue
External (W×D×H) 750(H) x 1486(W)mmcatalogue
Gross weight 171 kgcatalogue
Height 750 mmcatalogue
Width 1486 mmsite

Power & energy2

Fuel type Single Phasecatalogue
Rated input 2000 Wcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts1

Plug notice Yescatalogue
THE WORKING VIEW

Why this display fridge earns its place

The CU534 is a Moffat drop-in chilled multi-level display at 1486 mm wide, 660 mm deep and 750 mm tall. It's built to recess into a counter or servery so chilled stock sits at three levels in front of the customer. The curved-edge glass and stainless-steel frame give it a contemporary look, and the multi-level layout stacks product for a full, shoppable face in a self-service or assisted-service run, rather than a single flat shelf. It's a fit-in unit designed to become part of a counter line, not a free-standing cabinet.

Because it drops into the counter, the display reads as part of the servery rather than a separate box on the floor. It uses Moffat's Polar Air Stream technology to deliver a constant cold-air curtain that keeps food at the desired temperature without requiring door openings. The unit draws 2000 W and weighs 171 kg—factors to confirm with your counter build and electrical supply planning.

As a drop-in it needs a prepared aperture in the counter and services run to the position, so the counter has to be built around it. The stainless-steel construction is robust and easy to clean in food-prep environments. Confirm the cut-out size and the service points on survey before the joinery is made, and plan access to the final position. Our team can advise on siting and the fit before delivery.

BEFORE YOU BUY

Questions, answered straight

It's a drop-in unit. It recesses into a prepared counter aperture rather than standing on the floor, so it becomes part of the servery line. You'll need a cut-out and services run to the position.

The display presents chilled product across several tiers rather than a single shelf, giving a taller, fuller merchandising face from a fixed counter footprint.

Yes — it's a chilled multi-level display, built for refrigerated stock rather than ambient goods.

A drop-in unit needs a prepared aperture in the counter and services run to the position. Confirm the cut-out and service points on survey before the counter is built.

Yes. We handle installation and after-sales servicing for our display range. Call 01792 732702 to arrange a survey or a service visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Moffat Drop-In Chilled Multi Level Display D4RD CU534 Product Data

Brand Moffat
Type Display Fridges
Dimensions 750(H) x 1486(W)mm
Material Stainless Steel
Colour / Finish Silver
Power 2000W
Fuel / Supply Single Phase
Warranty 2 Years On-Site Parts & Labour
Weight 171kg
Manufacturer Ref D4RD
If you have any questions about the Moffat Drop-In Chilled Multi Level Display D4RD CU534 then please get in touch.
