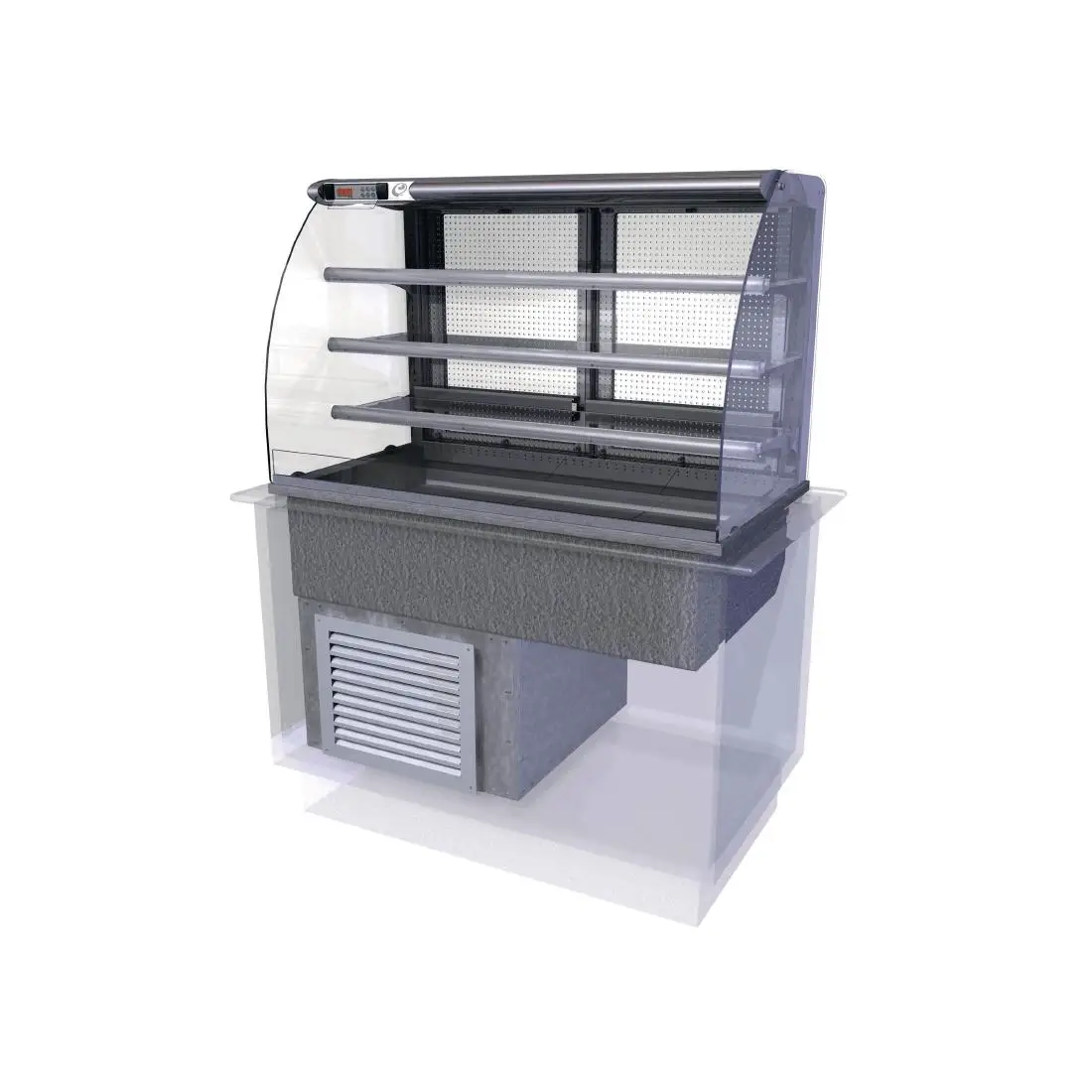

CED Designline Drop In Multideck with Rear Doors 1175mm CW656

£4,491.98

+vat

Availability: 999 in stock

Brand:

SKU: CW656

Product summary

3 Shelves. Self Service. 1175mm Wide. Rear Doors

Product description

Illuminate, chill and display refrigerated food or drink with CED’s elliptical shaped Designline self help cold multideck ( Rear Doors ). This energy efficient 3/1 Gn size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The rear loading multideck is designed for use in a free standing countertop and fitting the air grills supplied, provide the ventilation needed for the underslung refrigeration condensing unit. Toughened side glass protection provides protection to the customer side of the display. The display area features 3 no. chilled toughened glass display shelves, adustable in both height and angle, providing increased cold product display area within a minimum footprint. The front edge of each chilled shelf features a product stop and 40mm tall ‘point of sale’ display/ticket strip. The 3/1 Gn cold well area below the shelves provides further chilled merchandising. Product illumination is from diffused lighting in the elliptical profile gantry. The gantry also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to operator side of the display. The multideck has 24 hour operation & holds food core between 2 – 5 deg. C. The display area has double glazed rear hinged doors and the self help superstructure is made from bright polished steel and alluminum elliptical profiles. Modular removable deck plates in the chilled multideck make for easier cleaning & an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation. (1.73KW/13a/230v electrical supply ).

Elliptical gantry in bright polished steel, & aluminium, toughened glass side panels
Each chilled shelf features product stop and 40mm tall ‘point of sale’ display/ticket strip
Gantry is fitted with toughened side glass protection to the customer side of the display
Product illumination is from diffused lighting in the elliptical profile gantry
Curved glass profile is designed to complement other units within the Designline range
Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
Drinks display examples: bottled or canned drinks, water, lemonade, wine, juice. Food display examples : Pies, pasties, sausage rolls, baguettes, rolls, cakes & fruit
Special-to-order. Non-returnable
Features 3 chilled toughened glass display shelves with adjustable height and angle
The 3/1 GN well display area & shelves are chilled by energy efficient hydrocarbon refrigerant (r290)
Assisted service. (Rear doors)

The CED Designline CW656 is a 1175 mm wide rear-loading drop-in multideck with 3 x 1/1 GN chilled display capacity, three adjustable glass shelves and a -1 to +5 °C operating range for self-help refrigerated food and drink display.

Downloads

SPECIFICATION 29 facts · tap for all Width1175 mmDepth660 mmHeight750 mmGross weight165 kgVoltage230VTemperature range-1 to +5 °C

Identity5

Brand Designlinesite
Product code CW656site
Seo name Designline Drop In Multideck with Rear Doorscatalogue
Type Multideckscatalogue
Warranty 1 Yearcatalogue

Size & weight6

Depth 660 mmcatalogue
External (W×D×H) 750 × 1175 × 660 mmcatalogue
Gross weight 165 kgcatalogue
Height 750 mmcatalogue
Internal (W×D×H) 898 × 1130 × 552 mmcatalogue
Width 1175 mmsite

Capacity6

Capacity 3 x 1/1 GNcatalogue
Door type Slidingcatalogue
Doors 2catalogue
Gastronorm size 1/1 GN fullcatalogue
Product capacity 171catalogue
Shelves 3catalogue

Performance3

Cooling Fan Assistcatalogue
Refrigerant R290 / GWP 3 / 485gcatalogue
Temperature range -1 to +5 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 1730 Wcatalogue
Voltage 230Vcatalogue

Build & fittings3

Colour Silvercatalogue
Doorocation Backcatalogue
Finish (exterior) Stainless Steelcatalogue

Other stated facts3

Mobility Feetcatalogue
Noise level 70.7 dB(A)catalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this multideck earns its place

The CW656 is the rear-door version of CED's Designline drop-in multideck: a self-help chilled display built to recess into a freestanding countertop or gondola run. At 1175 mm wide, 660 mm deep and 750 mm high, it gives a 3 x 1/1 GN cold well below three chilled toughened-glass shelves, so chilled drinks, sandwiches, desserts and packaged food-to-go can be presented in an open, browseable format without a full-height cabinet on the floor.

The cabinet is fan-assisted and runs on R290 hydrocarbon refrigerant, with a stated -1 to +5 °C temperature range and manufacturer text describing 24-hour operation holding food core between 2 and 5 °C. Each shelf is adjustable for height and angle, with a product stop and 40 mm point-of-sale ticket strip at the front edge, while diffused gantry lighting and an eye-level digital temperature display help the run look sharp as well as stay controllable.

Rear loading is the reason to choose this model over the fixed-back version. Staff can replenish from the operator side through the rear doors, keeping the customer face full without reaching across the open front. Toughened side glass protects the customer side, the bright polished steel and aluminium superstructure gives the Designline its elliptical look, and removable deck plates make deeper cleaning more practical.

BEFORE YOU BUY

Questions, answered straight

Drop-in means the CW656 is built to recess into a counter, island or gondola run rather than stand alone on the floor. The underslung refrigeration needs ventilation through the supplied air grilles, so the fixture aperture and service access should be planned before installation.

The CW656 is the rear-door version, so replenishment happens from behind the cabinet. That keeps the customer-facing multideck front full and faced-up without staff reaching across the display during trading.

It has three adjustable chilled toughened-glass shelves plus a 3 x 1/1 GN cold well below. The shelf fronts include product stops and 40 mm point-of-sale ticket strips for labelling chilled lines clearly.

The stated operating range is -1 to +5 °C, with the manufacturer describing 24-hour operation holding food core between 2 and 5 °C. Check that band against the packaged chilled products you intend to display.

The CW656 is 1175 mm wide, 660 mm deep and 750 mm high, with a 165 kg gross weight. Measure the delivery route and confirm the counter or gondola opening before the fixture is built.

The specification lists a 230V supply and the unit is supplied with a 2 m lead and plug top. Confirm the final electrical provision with your installer, especially because the rated-input figure in source data is flagged as conflicting.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CED Designline Drop In Multideck with Rear Doors 1175mm CW656 Product Data

Brand Designline
Type Multidecks
Dimensions 750(H) x 1175(W) x 660(D)mm
Capacity 3 x 1/1 GN
Colour / Finish Silver
Temperature Range -1°C to 5°C
Refrigerant R290 / GWP 3 / 485g
Cooling Fan Assist
Number of Doors 2
Number of Shelves 3
Noise Level 70.7
Power 1.73kW, 230V, 13A
Voltage 230V
Fuel / Supply Plug
Warranty 1 Year
Weight 165kg
Manufacturer Ref MDR3HT
If you have any questions about the CED Designline Drop In Multideck with Rear Doors 1175mm CW656 then please get in touch.
