CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT CW631

£5,829.19

+vat

Availability: 999 in stock

Brand:

SKU: CW631

Product summary

4x 1/1 GN Capacity. 1525mm Wide

Product description

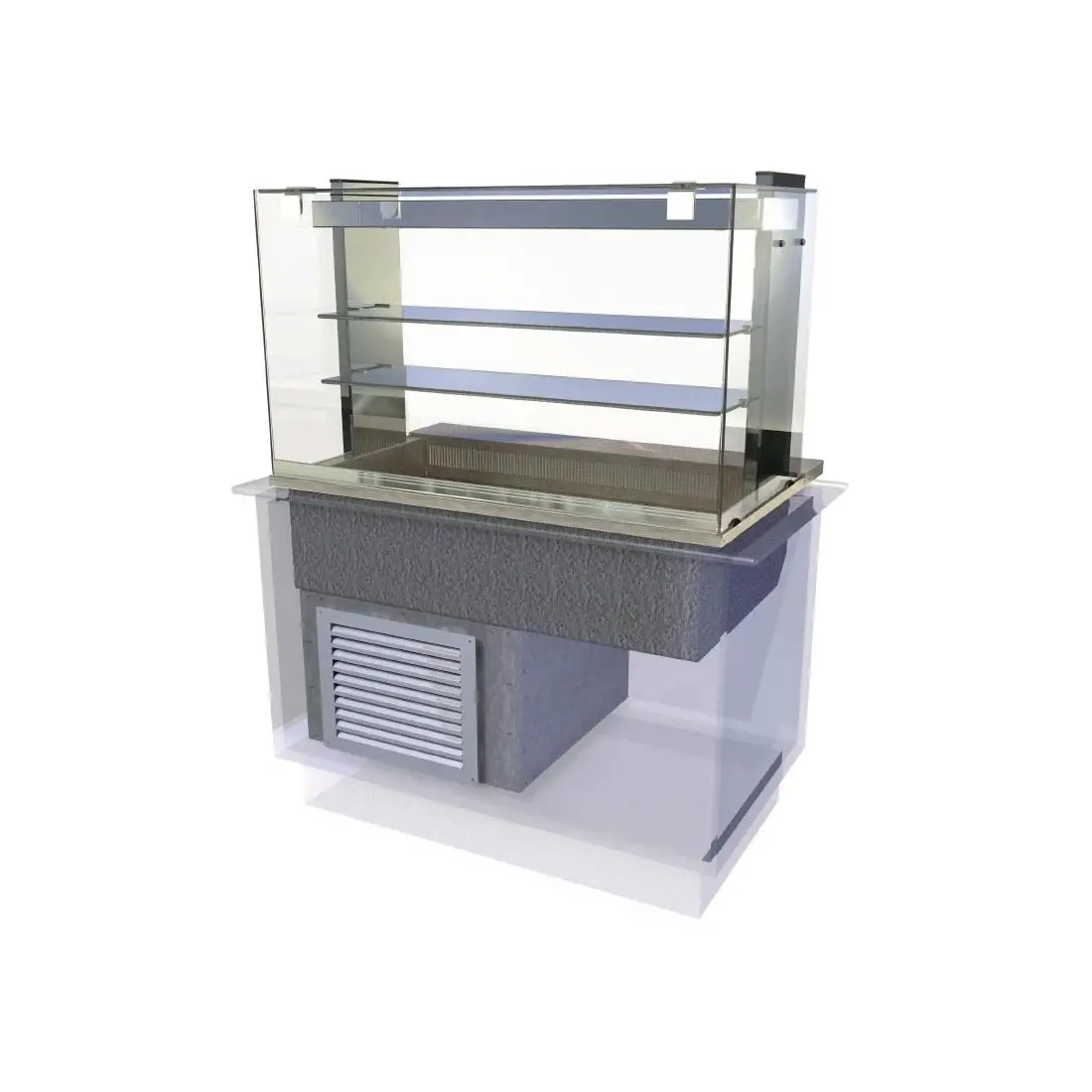

Illuminate, chill and protect refrigerated food or drink with CED’s rectangular shaped Kubus assisted service cold multi level deli drop in display. This energy efficient 4/1 GN size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The display fits into a countertop and fitting the air grills supplied provides the ventilation needed for the underslung refrigeration condensing unit. The superstructure is made from bright polished steel and aluminium rectangular profiles, with flat and toughened full height front and side glass. The front glass tilts forward on a locking hinge, for effortless cleaning access. Product illumination is from diffused lighting in the rectangular profile gantry, which also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to the operator side of the display. The display has 24 hour operation as standard and holds food core between 2°C to 5°C. Modular removable deck plates in the chilled well make for easier cleaning and an integral condensate water evaporator eliminates the need for site drainage. Optional chopping boards fit over the rear display shelf providing a local sandwich preparation area. Additional ambient display space is also provided by two toughened glass mid shelves within the display area. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation. GN’s Sold Separately.

Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile
Features eye level gantry mounted digital temperature display & control panel (to operator side of display)
24 hour operation as standard
Product illumination is provided from diffused lighting within the gantry
Two additional ambient glass mid shelves provide additional merchandising space above the cold display area
Flat glass profile is designed to complement other units within the Kubus range
Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
Supplied with lifting kit for installation and concealed control box & UK 3 pin plug top on a 2M lead
(Cold well area) Drinks display examples: bottled or carton drinks, fruit juice. Food display examples: Pies, pasties, sausage rolls, rolls, pasta & fruit
The 4/1 GN well display area is chilled by energy efficient hydrocarbon refrigerant (r290)
Gantry fitted with flat full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning
Assisted service application

The CED Kubus KCMDL4HT is a drop-in multideck assisted-service display that recesses into a counter run and stacks chilled product across tiered shelves, giving delis, forecourts and farm shops more facings at the point of service.

Downloads

SPECIFICATION 26 facts · tap for all Width1525 mmDepth784 mmHeight700 mmGross weight175 kgVoltage230VTemperature range-1 to +5 °C

Identity5

Brand Kubussite
Product code CW631site
Seo name Kubus Drop In Multideck Assisted Servicecatalogue
Type Salad Barscatalogue
Warranty 1 Yearcatalogue

Size & weight6

Depth 784 mmcatalogue
External (W×D×H) 700 × 1525 × 784 mmcatalogue
Gross weight 175 kgcatalogue
Height 700 mmcatalogue
Internal (W×D×H) 115 × 1400 × 550 mmcatalogue
Width 1525 mmsite

Capacity3

Capacity 4 x 1/1 GNcatalogue
Gastronorm size 1/1 GN fullcatalogue
Product capacity 120.78catalogue

Performance3

Cooling Fan Assistcatalogue
Refrigerant R290 / GWP 3 / 420gcatalogue
Temperature range -1 to +5 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 1460 Wcatalogue
Voltage 230Vcatalogue

Build & fittings3

Colour Silvercatalogue
Colour code Chrome & Blackcatalogue
Finish (exterior) Stainless Steelcatalogue

Other stated facts3

Noise level 63.8 dB(A)catalogue
Plug notice Yescatalogue
Suitable for Canteencatalogue
THE WORKING VIEW

Why this salad bar earns its place

The KCMDL4HT sits in CED's Kubus drop-in range and brings a four-tier multideck format to the counter. Instead of a single flat well it stacks chilled product across four tiers, so a short run of counter carries far more facings. As an assisted-service display it is built for setups where staff help customers select and serve, which suits deli counters, forecourt food-to-go and farm-shop chillers. It holds 4 gastronorm (1/1) displays, giving you 1525 mm of linear counter frontage.

Through the trading day it holds tiered chilled stock on show while staff work the counter, restocking and rotating from the service side at −1 to +5°C. The multideck layout keeps product visible at eye level and above, so customers can see the full range without opening a door, while service stays with your team. It runs on fan-assist cooling with R290 refrigerant — an environmental standard that's kinder to the atmosphere than older gases.

It is a drop-in unit, designed to be recessed into a bespoke counter or island rather than stood on the floor, so the surrounding joinery is cut and built to take it. The external dimensions are 1525 mm wide, 700 mm deep and 784 mm tall, and it weighs 175 kg gross, so plan delivery and access accordingly. The full cut-out, services and electrical clearances for this model are set out in the specification, and our team can confirm what your counter build needs before you order. At 63.8 dB(A), the cooling unit is reasonably quiet for a front-of-house counter.

BEFORE YOU BUY

Questions, answered straight

It is a four-tier chilled display served with staff help rather than pure self-service. Product is stacked across four shelves for visibility, and your team helps customers select and serve from the counter. It holds four gastronorm (1/1) containers.

This is a drop-in unit, built to be recessed into a bespoke counter or island so it sits within your joinery rather than standing as a separate floor cabinet. The four tiers give you far more facings than a single flat well, with 1525 mm of linear counter frontage.

It is a chilled multideck held at −1 to +5°C, so it suits cold grab-and-serve lines such as prepared food, deli items and food-to-go. It is a refrigerated display, not a freezer, so it is not intended for frozen stock.

The external dimensions are 1525 mm wide × 700 mm deep × 784 mm tall. The opening, services and clearances are detailed in the specification for this model. Send us your counter plans and we will confirm the cut-out and electrical supply you need.

Yes. We support the refrigeration we supply, and our service team can help with maintenance, spares and breakdowns. Call 01792 732702 to arrange servicing or ask a technical question.

The unit weighs 175 kg gross, so confirm your counter structure can support it with your builder or surveyor before installation. Plan delivery access and route accordingly.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT CW631 Product Data

Brand Kubus
Type Salad Bars
Dimensions 700(H) x 1525(W) x 784(D)mm
Capacity 4 x 1/1 GN
Colour / Finish Silver
Temperature Range -1°C to 5°C
Refrigerant R290 / GWP 3 / 420g
Cooling Fan Assist
Noise Level 63.8
Power 1.46kW, 230V, 13A
Voltage 230V
Fuel / Supply Plug
Suitable For Canteen
Warranty 1 Year
Weight 175kg
Manufacturer Ref KCMDL4HT
If you have any questions about the CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT CW631 then please get in touch.
