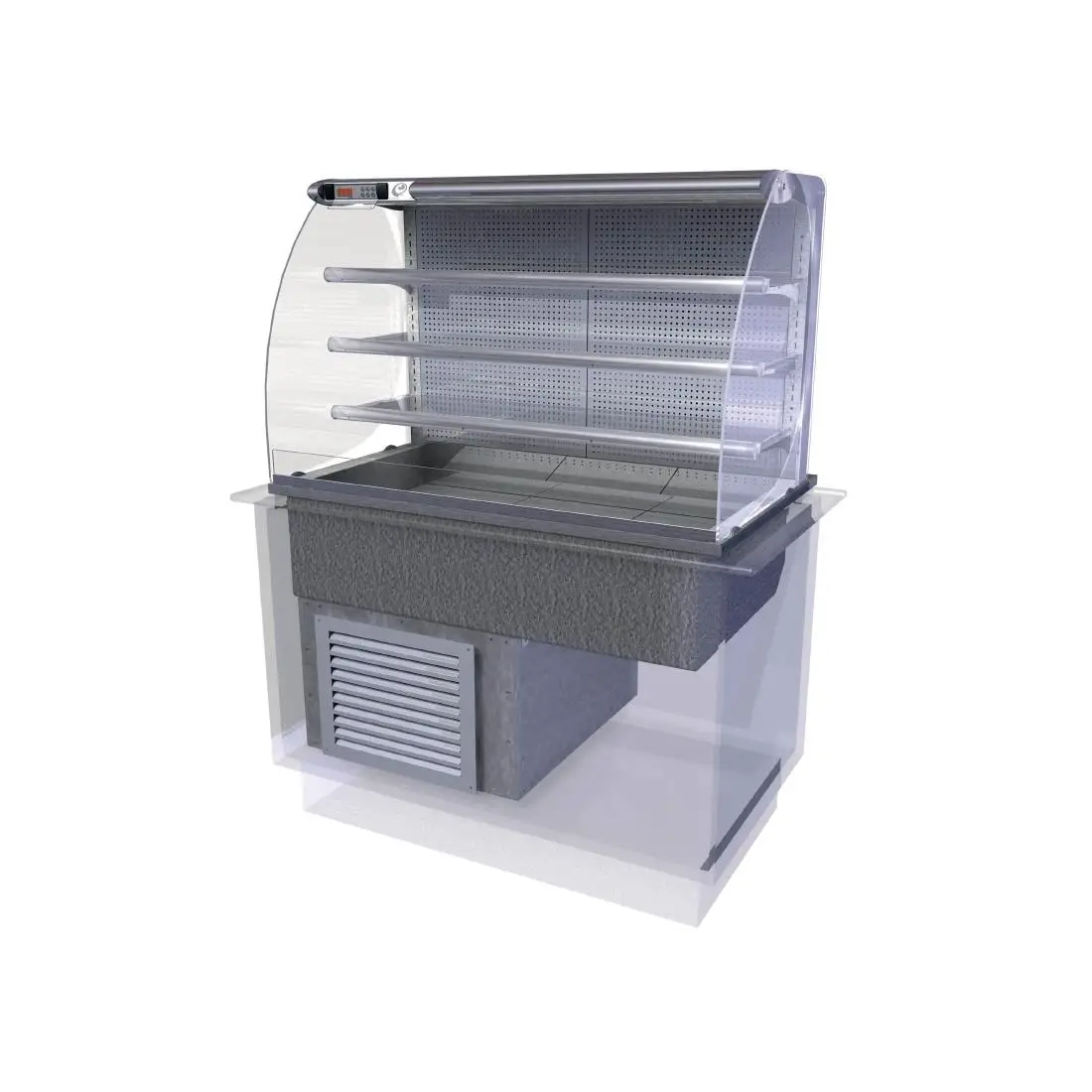

CED Designline Drop In Multideck 1175mm CW654

£4,798.70

+vat

Availability: 999 in stock

Brand:

SKU: CW654

Product summary

3 Shelves. Self Service. 1175mm Wide. Fixed Back

Product description

Illuminate, chill and display refrigerated food or drink with CED’s elliptical shaped Designline self help cold multideck ( Fixed Back ). This energy efficient 3/1 Gn size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The front loading multideck is designed for use in a wall sited countertop and fitting the air grills and rear vent supplied, provide the ventilation needed for the underslung refrigeration condensing unit. Toughened side glass protection provides protection to the customer side of the display. The display area features 3 no. chilled toughened glass display shelves, adustable in both height and angle, providing increased cold product display area within a minimum footprint. The front edge of each chilled shelf features a product stop and 40mm tall ‘point of sale’ display/ticket strip. The 3/1 Gn cold well area below the shelves provides further chilled merchandising. Product illumination is from diffused lighting in the elliptical profile gantry. The gantry also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to customer side of the display. The multideck has 24 hour operation & holds food core between 2 – 5 deg. C. The display area has bright polished steel inner perforated back panels and the self help superstructure is made from bright polished steel and alluminum elliptical profiles. Modular removable deck plates in the chilled multideck make for easier cleaning & an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with air inlet grills, rear vent, lifting kit and a 2m lead and plug top for installation. (1.73KW/13a/230v electrical supply ).

Elliptical gantry in bright polished steel, & aluminium, toughened glass side panels
Each chilled shelf features product stop and 40mm tall ‘point of sale’ display/ticket strip
Gantry is fitted with toughened side glass protection to the customer side of the display
Product illumination is from diffused lighting in the elliptical profile gantry
Curved glass profile is designed to complement other units within the Designline range
Ventilation grills, rear vent and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
Drinks display examples: bottled or canned drinks, water, lemonade, wine, juice. Food display examples : Pies, pasties, sausage rolls, baguettes, rolls, cakes & fruit
Special-to-order. Non-returnable
Features 3 chilled toughened glass display shelves with adjustable height and angle
The 3/1 GN well display area & shelves are chilled by energy efficient hydrocarbon refrigerant (r290)
Self service. (Fixed back)

The CED Designline CW654 is a 1175 mm wide fixed-back drop-in multideck with 3 x 1/1 GN chilled capacity, three adjustable glass shelves, fan-assisted R290 cooling and a -1 to +5 °C range for wall-sited grab-and-go display.

Downloads

SPECIFICATION 26 facts · tap for all Width1175 mmDepth735 mmHeight750 mmGross weight153 kgVoltage230VTemperature range-1 to +5 °C

Identity5

Brand Designlinesite
Product code CW654site
Seo name Designline Drop In Multideckcatalogue
Type Multideckscatalogue
Warranty 1 Yearcatalogue

Size & weight6

Depth 735 mmcatalogue
External (W×D×H) 750 × 1175 × 735 mmcatalogue
Gross weight 153 kgcatalogue
Height 750 mmcatalogue
Internal (W×D×H) 898 × 1130 × 552 mmcatalogue
Width 1175 mmsite

Capacity4

Capacity 3 x 1/1 GNcatalogue
Gastronorm size 1/1 GN fullcatalogue
Product capacity 171catalogue
Shelves 3catalogue

Performance3

Cooling Fan Assistcatalogue
Refrigerant R290 / GWP 3 / 485gcatalogue
Temperature range -1 to +5 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 1730 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Finish (exterior) Stainless Steelcatalogue

Other stated facts3

Mobility Feetcatalogue
Noise level 70.7 dB(A)catalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this multideck earns its place

The CW654 is CED's 1175 mm fixed-back Designline drop-in multideck: a refrigerated open-front display built into a wall-sited countertop or fixture run. It gives a 3 x 1/1 GN cold well beneath three chilled toughened-glass shelves, putting chilled food and drink directly in the customer's eyeline without the footprint of a full-height multideck.

Cooling is fan-assisted, using R290 refrigerant, with a stated operating band of -1 to +5 °C; the manufacturer text also describes 24-hour operation holding food core between 2 and 5 °C. The shelves adjust in height and angle to suit different pack sizes, with front product stops and 40 mm point-of-sale ticket strips, and the elliptical gantry adds diffused lighting plus an eye-level digital temperature display.

This is the fixed-back version, so it is front loaded and intended for wall-sited positions rather than rear-service counters. Toughened side glass protects the customer side, bright polished steel inner perforated back panels form the display back, and the stainless steel silver finish sits neatly in a retail or food-to-go run.

BEFORE YOU BUY

Questions, answered straight

It is a refrigerated open-front display designed to be built into a counter or fixture rather than to stand alone. The CW654 is a wall-sited fixed-back model, so it is loaded from the front/customer side.

It has a 3 x 1/1 GN cold well below three chilled toughened-glass display shelves. The shelves are adjustable in height and angle and include product stops and 40 mm ticket strips.

The stated operating range is -1 to +5 °C, with manufacturer text describing 24-hour operation holding food core between 2 and 5 °C. Check that range against the chilled lines you plan to display.

Drop-in units set into an aperture in your counter or fixture, so the surrounding cabinetry and services must be prepared to suit. This model needs ventilation through the supplied air inlet grilles and rear vent, and its integral condensate evaporator means site drainage is not required.

The CW654 is 1175 mm wide, 735 mm deep and 750 mm high, with a 153 kg gross weight. Measure the delivery route — doorways, corridors and any lift — before delivery, and allow for reaching the aperture on site.

The specification lists a 230V supply and the unit is supplied with a 2 m lead and plug top. The rated-input figure in the source data is flagged as conflicting, so confirm the electrical load with your installer.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CED Designline Drop In Multideck 1175mm CW654 Product Data

Brand Designline
Type Multidecks
Dimensions 750(H) x 1175(W) x 735(D)mm
Capacity 3 x 1/1 GN
Colour / Finish Silver
Temperature Range -1°C to 5°C
Refrigerant R290 / GWP 3 / 485g
Cooling Fan Assist
Number of Shelves 3
Noise Level 70.7
Power 1.73kW, 230V, 13A
Voltage 230V
Fuel / Supply Plug
Warranty 1 Year
Weight 153kg
Manufacturer Ref MDF3HT
If you have any questions about the CED Designline Drop In Multideck 1175mm CW654 then please get in touch.
