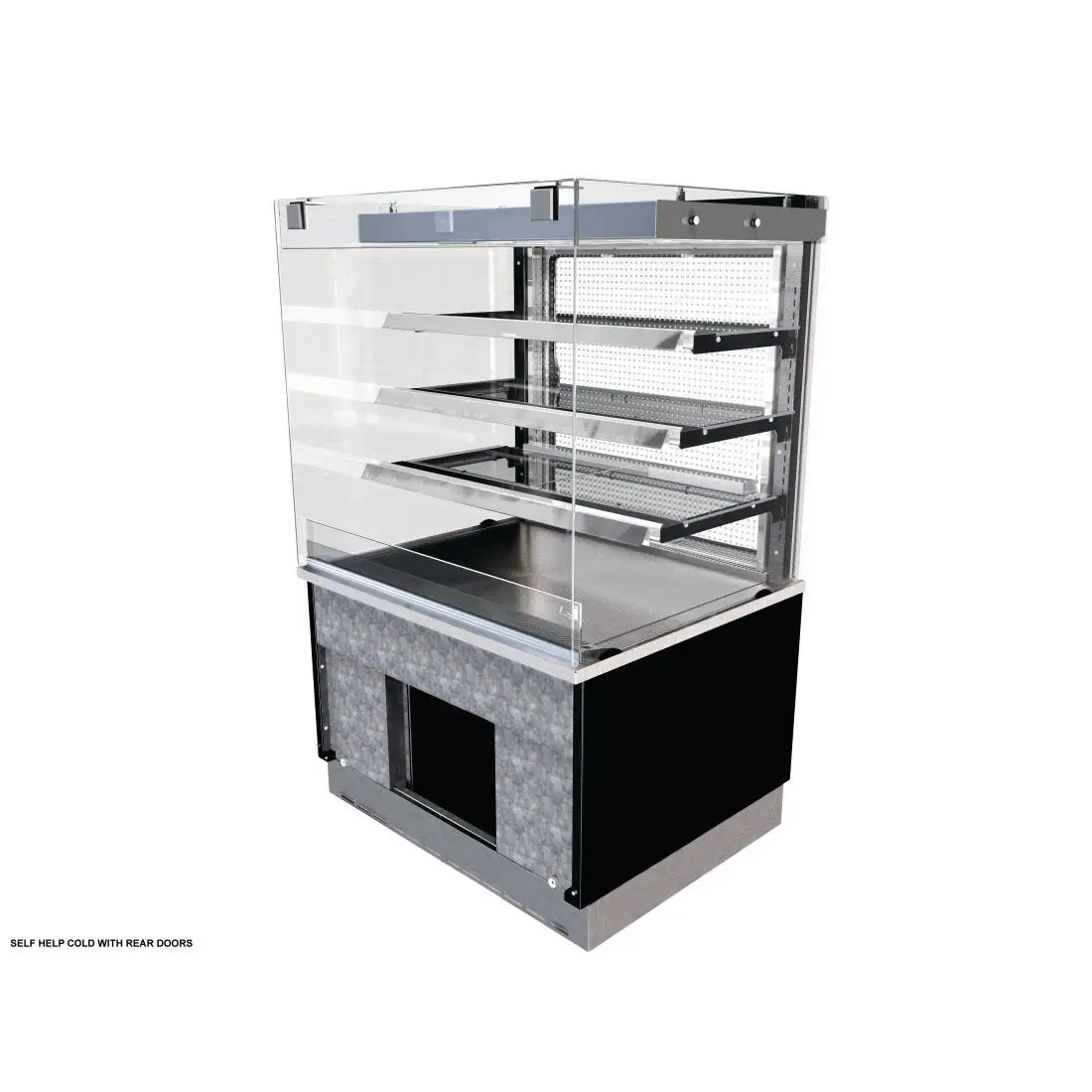

CED Kubus Drop In Slimline Multideck with Rear Door 600mm CW650

£5,113.98

+vat

Availability: 999 in stock

- +

Brand:

SKU: CW650

Product summary

3 Shelves. Self Service. 600mm Wide. Rear Door

Product description

Illuminate, chill and display refrigerated food or drink with CED’s self help, free standing, rectangular shaped Kubus cold patisserie display (Rear Doors). This energy efficient refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. This rear loading open fronted patisserie is designed for use in a free standing position as a grab and go solution (with optional front fascia panel fitted) or accommodated within a cut out space in a servery counter run (with ventilation holes needed in the fascia panel for the underslung refrigeration condensing unit). A flat, toughened glass sneeze screen, serve over glass canopy and side glass protection are provided to the customer side of the display. The display area features 3 no. chilled toughened glass display shelves, adjustable in both height and angle, providing increased cold product display area within a minimum footprint. The front edge of each chilled shelf features diffused lighting, product stop and 40mm tall ‘point of sale’ display/ticket strips. The 570mm x 570mm long cold deck area below the shelves provides further chilled merchandising. Additional product illumination is also provided by diffused lighting in the rectangular profile gantry. An eye level digital temperature display and ‘temperature lockable’ control panel is fitted to operator side of the display. The display area features a double glazed hinged rear door for restocking and the self service superstructure is made from bright polished steel and aluminium rectangular profiles. Removable deck plates in the chilled patisserie make for easier deep cleaning and an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with locking castors that have a combined adjustable central foot for levelling, foot adjustment spanner, steel kick plinths and a 2m lead and 3 pin UK plug top.

Rectangular gantry in bright polished steel, & aluminium, housed in a toughened glass roof and side panels. Black powder coated steel base unit. (Fascia panel optional)
Each chilled shelf features diffused lighting, product stop and 40mm tall ‘point of sale’ display/ticket strip
Gantry is fitted with toughened glass front sneeze screen, serve over glass canopy and side glass protection to the customer side of the display
Additional product illumination from diffused lighting within the rectangular profile gantry
Flat glass profile is designed to complement other units within the Kubus range
Features eye level gantry mounted digital temperature display and control panel (to customer side of display)
Complete with locking castors that have a combined adjustable central foot for levelling, foot adjustment spanner, steel kick plinths and a 2m lead and 3 pin UK plug top
Special-to-order. Non-returnable
Drinks display examples: bottled or canned drinks, water, lemonade, wine, juice. Food display examples : Pies, pasties, sausage rolls, baguettes, rolls, cakes & fruit
Features 3 chilled toughened glass display shelves with adjustable height and angle
The 600mm long deck display area & shelves are chilled by energy efficient hydrocarbon refrigerant (r290)
Freestanding for self service application. (1 Hinged rear door to display)

Downloads

SPECIFICATION 28 facts · tap for all Width600 mmDepth750 mmHeight1467 mmGross weight145 kgVoltage230VTemperature range-1 to +5 °C

Identity5

Brand Kubussite
Product code CW650site
Seo name Kubus Drop In Slimline Multideckcatalogue
Type Multideckscatalogue
Warranty 1 Yearcatalogue

Size & weight6

Depth 750 mmcatalogue
External (W×D×H) 1467 × 600 × 750 mmcatalogue
Gross weight 145 kgcatalogue
Height 1467 mmcatalogue
Internal (W×D×H) 707 × 570 × 610 mmcatalogue
Width 600 mmsite

Capacity5

Capacity 247.3Ltrcatalogue
Door type Slidingcatalogue
Doors 1catalogue
Product capacity 247.3catalogue
Shelves 3catalogue

Performance3

Cooling Fan Assistcatalogue
Refrigerant R290 / GWP 3 / 365gcatalogue
Temperature range -1 to +5 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 1470 Wcatalogue
Voltage 230Vcatalogue

Build & fittings3

Colour Silvercatalogue
Doorocation Backcatalogue
Finish (exterior) Stainless Steelcatalogue

Other stated facts3

Mobility Feetcatalogue
Noise level 63.8 dB(A)catalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this multideck earns its place

The CED Kubus CW650 is a slimline drop-in multideck, designed to be built into a counter or fixture line rather than stand alone. At 600 mm wide and 750 mm deep with a 1,467 mm tall footprint, its narrow profile suits sites where floor space is tight but you still want chilled stock displayed on open, full-height shelving — chilled drinks, food-to-go and impulse lines presented where customers reach for them.

The defining feature is the rear sliding service door: staff restock and face up from behind the fixture, keeping the customer side clean and the display full without working across the front. Three adjustable toughened glass shelves hold up to 247 litres of chilled product, and that rear-access design makes it a natural fit for a serviced run or a back-of-counter position where front access is limited. Built from stainless steel with R290 refrigerant, it keeps stock at −1 to +5 °C efficiently.

Because it is a drop-in design, the install is about the aperture and the services, not just the floor. Weighing 145 kg, it is light enough for two people to manage delivery and positioning. The full operating specification — temperature band, capacity, weight, refrigerant and energy use — is listed on the product spec sheet, so confirm the opening, supply and clearances against those figures before you build it in.

BEFORE YOU BUY

Questions, answered straight

The CW650 is built to drop into a counter or fixture aperture rather than free-stand, so it integrates into an existing run. Plan the opening and services around it rather than treating it as a standalone cabinet.

It is a rear service door, so staff can restock and face up the display from behind the fixture rather than working across the customer side.

The CW650 is 600 mm wide — a slimline footprint for sites where floor or counter space is limited. It is 750 mm deep and 1,467 mm tall.

The cabinet holds stock at −1 to +5 °C and has a capacity of 247 litres across three adjustable shelves. Check those figures against your stock type before ordering, and use the energy label decoder to turn its energy data into a running cost on your tariff.

Because it is a drop-in, confirm the aperture size, the electrical supply and airflow clearances against the spec sheet before installation.

Yes. Craven Cooling services and supports what it sells — for installation advice, spares or an engineer visit, call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CED Kubus Drop In Slimline Multideck with Rear Door 600mm CW650 Product Data

Brand Kubus
Type Multidecks
Dimensions 1467(H) x 600(W) x 750(D)mm
Capacity 247.3Ltr
Colour / Finish Silver
Temperature Range -1°C to 5°C
Refrigerant R290 / GWP 3 / 365g
Cooling Fan Assist
Number of Doors 1
Number of Shelves 3
Noise Level 63.8
Power 1.47kW, 230V, 13A
Voltage 230V
Fuel / Supply Plug
Warranty 1 Year
Weight 145kg
Manufacturer Ref KPC6HT
If you have any questions about the CED Kubus Drop In Slimline Multideck with Rear Door 600mm CW650 then please get in touch.
