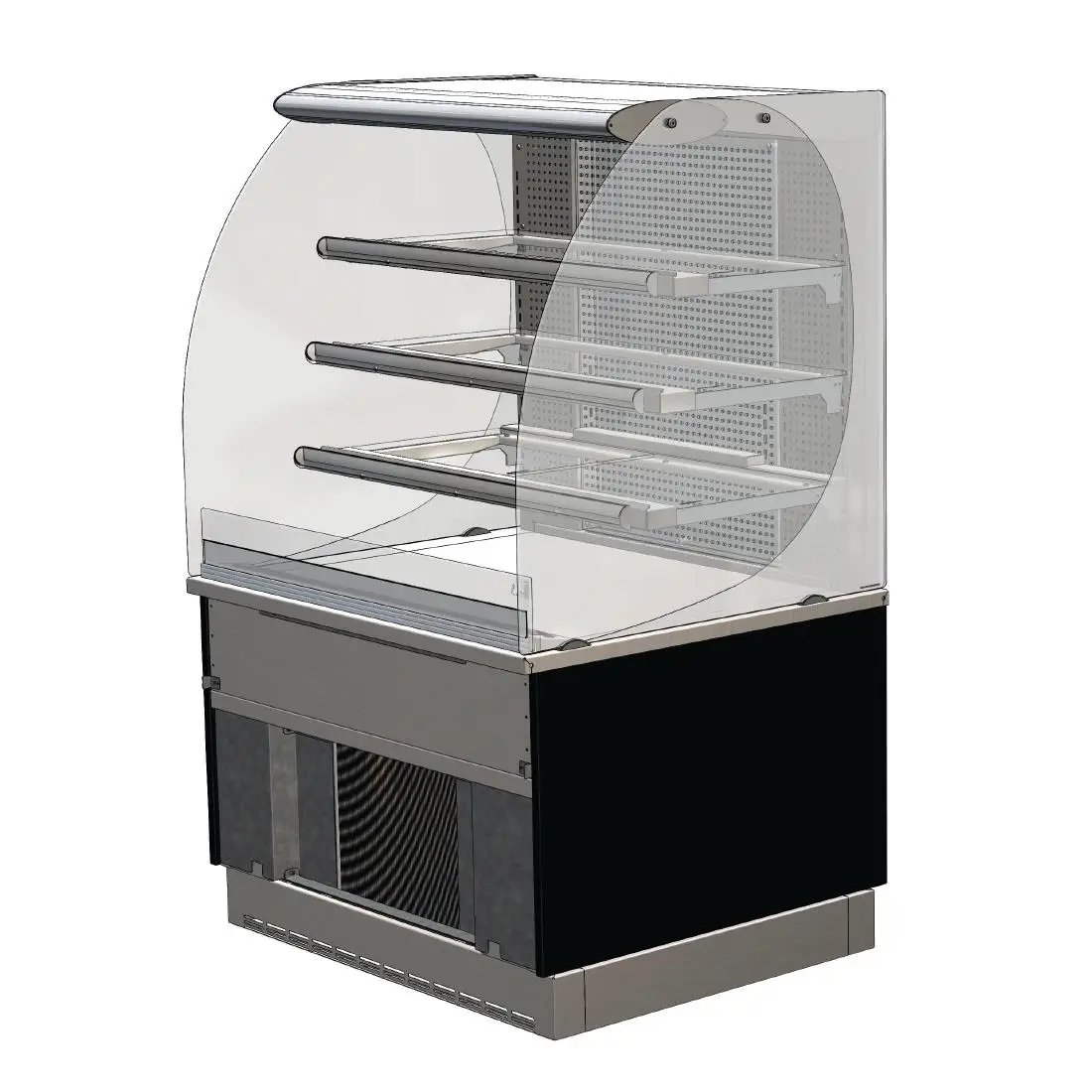

CED Designline Drop In Slimline Multideck with Rear Door 600mm CW660

£4,383.14

+vat

Availability: 999 in stock

Brand:

SKU: CW660

Product summary

3 Shelves. Self Service. 600mm Wide. Rear Door

Product description

Illuminate, chill and display food or drink with CED’s free standing, elliptical Designline cold patisserie display (Rear Doors). This energy efficient display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. This rear loading open fronted patisserie is designed for use in a free standing position as a grab and go solution ( with optional front fascia panel fitted ) or accomodated within a cut out space in a servery counter run ( with ventilation holes needed in the fascia panel for the underslung refrigeration condensing unit ). A stainless steel serve over canopy and toughened side glass protection are provided to the customer side of the display. The display area features 3 no. chilled toughened glass display shelves, adustable in both height and angle, providing increased cold product display area within a minimum footprint. The front edge of each chilled shelf features diffused lighting, product stop and 40mm tall ‘point of sale’ display/ticket strips. The 570mm x 570mm long cold deck area below the shelves provides further chilled merchandising. Additional product illumination is also provided by diffused lighting in the elliptical profile gantry. An eye level digital temperature display and ‘temperature lockable’ control panel is fitted to operator side of the display. The patisserie has 24 hour operation & holds food core between 2 – 5 deg. C. Display area features a double glazed hinged rear door for restocking and the self service superstructure is made from bright polished steel and alluminum curved profiles. Removable deck plates in the chilled patisserie make for easier deep cleaning & an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with locking castors that have a combined adjustable central foot for levelling, foot adustment spanner, steel kickplinths and a 2m lead and 3 pin UK plug top. (1.47KW/13a/230v electrical supply ).

Curved gantry in bright polished steel & aluminium profile with toughened glass side panels. Black powder coated steel base unit. ( Fascia panel optional )
Each chilled shelf features diffused lighting, product stop and 40mm tall ‘point of sale’ display/ticket strip
Gantry is fitted with stainless steel serve over canopy and side glass protection to the customer side of the display
Additional product illumination from diffused lighting within the elliptical profile gantry
Curved glass profile is designed to complement other units within the Designline range
Features eye level gantry mounted digital temperature display and control panel (to customer side of display)
Complete with locking castors that have a combined adjustable central foot for levelling, foot adjustment spanner, steel kick plinths and a 2m lead and 3 pin UK plug top
Special-to-order. Non-returnable
Drinks display examples: water, beer, fruit juice. Food display examples : Pies, pasties, sausage rolls, sandwich fillings, cheese, baguettes, rolls, pastries & fruit
Features 3 chilled toughened glass display shelves with adjustable height and angle
The 600mm long deck display area & shelves are chilled by energy efficient hydrocarbon refrigerant (r290)
Freestanding for self service application. (1 hinged rear door to display)

The CED Designline CW660 is a slimline drop-in multideck display fridge with a rear service door, built to recess into a narrow counter or gondola run and merchandise chilled grab-and-go stock on open shelf decks.

Downloads

SPECIFICATION 28 facts · tap for all Width600 mmDepth750 mmHeight1467 mmGross weight145 kgVoltage230VTemperature range-1 to +5 °C

Identity5

Brand Designlinesite
Product code CW660site
Seo name Designline Drop In Slimline Multideck with Rear Doorcatalogue
Type Multideckscatalogue
Warranty 1 Yearcatalogue

Size & weight6

Depth 750 mmcatalogue
External (W×D×H) 1467 × 600 × 750 mmcatalogue
Gross weight 145 kgcatalogue
Height 1467 mmcatalogue
Internal (W×D×H) 707 × 570 × 610 mmcatalogue
Width 600 mmsite

Capacity5

Capacity 247.3Ltrcatalogue
Door type Slidingcatalogue
Doors 1catalogue
Product capacity 247.3catalogue
Shelves 3catalogue

Performance3

Cooling Fan Assistcatalogue
Refrigerant R290 / GWP 3 / 365gcatalogue
Temperature range -1 to +5 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 1470 Wcatalogue
Voltage 230Vcatalogue

Build & fittings3

Colour Silvercatalogue
Doorocation Backcatalogue
Finish (exterior) Stainless Steelcatalogue

Other stated facts3

Mobility Feetcatalogue
Noise level 63.8 dB(A)catalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this multideck earns its place

The CW660 is the slimline drop-in multideck in CED's Designline range — a 600mm-wide, narrow-footprint chilled display built to recess into a counter, island or gondola run. Standing at 1467mm tall but just 750mm deep, it fits into tight spaces yet holds 247 litres of chilled stock across three adjustable shelves. The slimline format is specified where a full-width multideck won't fit but the fixture still needs an open, browsable chilled face: tight food-to-go runs, end bays and secondary sitings. The open deck front presents stock at hand height to drive impulse pick-up.

Day to day, the open front keeps stock visible and reachable, so even a narrow run of shelf space earns its keep as a display rather than plain storage. The Designline styling keeps the customer-facing side clean, and the surfaces wipe down as part of a routine clean. Faced-up and kept stocked, the slimline holds its merchandising pull through peak trading, cooled by R290 refrigerant for efficient all-day operation.

As a drop-in, the CW660 is built into the surrounding counter or gondola rather than wheeled into place, so treat the install as a fixture job and plan the aperture in advance. Its slimline width is the point of the model — it slots into runs a wider cabinet can't — but confirm the exact opening and surrounding cabinetry with your fitter before delivery. A rear sliding door lets staff replenish from behind without crossing the display, and the 145 kg weight factors into handling and bracing during installation.

BEFORE YOU BUY

Questions, answered straight

The CW660 is a narrow-footprint version of the drop-in multideck, built for runs where a full-width cabinet won't fit. It keeps the open, browsable display face but in a slimmer body designed to slot into tight or secondary fixture positions.

Drop-in means the cabinet is built to recess into a counter, island or gondola rather than stand alone. The CW660 is specified as part of a fixture run, so it reads as one continuous layout rather than a separate box.

The CW660 has a rear service door, so replenishment happens from behind the cabinet. That keeps the customer-facing deck full and faced-up without staff reaching across the display during trading.

It suits tight food-to-go runs, end bays and secondary chilled sitings where an open display is wanted but space is limited. The open deck format still puts stock at hand height to convert browsing into impulse pick-up.

No — as a drop-in it is a fixture job. Plan the aperture and surrounding cabinetry with your fitter, and confirm the opening before the cabinet arrives on site. The cabinet runs on 230V single-phase at 1470W, so electrical supply needs to be in place before installation.

Yes. Craven Cooling supports the cabinets it supplies — call the service team on 01792 732702 to book a visit or discuss a fault. Keeping the cabinet clean and condenser areas clear helps it run reliably between visits.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CED Designline Drop In Slimline Multideck with Rear Door 600mm CW660 Product Data

Brand Designline
Type Multidecks
Dimensions 1467(H) x 600(W) x 750(D)mm
Capacity 247.3Ltr
Colour / Finish Silver
Temperature Range -1°C to 5°C
Refrigerant R290 / GWP 3 / 365g
Cooling Fan Assist
Number of Doors 1
Number of Shelves 3
Noise Level 63.8
Power 1.47kW, 230V, 13A
Voltage 230V
Fuel / Supply Plug
Warranty 1 Year
Weight 145kg
Manufacturer Ref PC6HT
If you have any questions about the CED Designline Drop In Slimline Multideck with Rear Door 600mm CW660 then please get in touch.
