CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT CW647

£5,604.98

+vat

Availability: 999 in stock

Brand:

SKU: CW647

Product summary

4x 1/1 GN Capacity. 1525mm Wide. Rear Doors

Product description

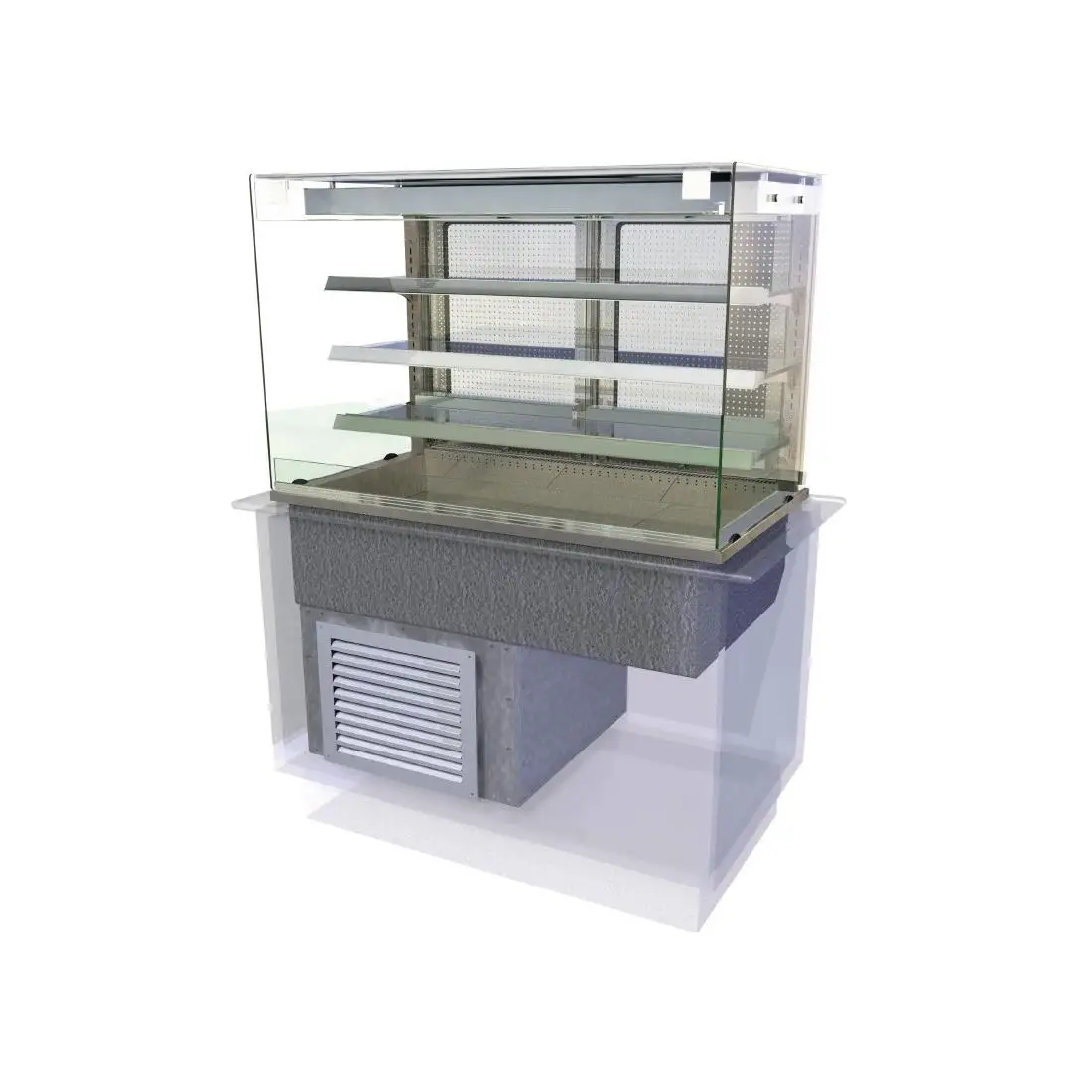

Illuminate, chill and display refrigerated food or drink with CED’s rectangular shaped Kubus self help cold multideck (Rear Doors). This energy efficient 4/1 GN size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The rear loading self help multideck is designed for use in a free standing countertop and fitting the air grills and rear vent supplied, provide the ventilation needed for the underslung refrigeration condensing unit. Flat, toughened glass sneeze screen and side glass protection are provided to the customer side of the display. The display area features 3 no. chilled toughened glass display shelves, adjustable in both height and angle, providing increased cold product display area within a minimum footprint. The front edge of each chilled shelf features a product stop and 40mm tall ‘point of sale’ display/ticket strip. The 4/1 GN cold well area below the shelves provides further chilled merchandising. Product illumination is from diffused lighting in the rectangular profile gantry. The gantry also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to operator side of the display. The multideck has 24 hour operation and holds food core between 2°C to 5°C. The display area has double glazed hinged rear doors for restocking and the self help superstructure is made from bright polished steel and aluminium rectangular profiles. Modular removable deck plates in the chilled multideck make for easier cleaning and an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation.

Rectangular gantry in bright polished steel, & aluminium, housed in a toughened glass roof and side panels
Each chilled shelf features product stop and 40mm tall ‘point of sale’ display/ticket strip
Gantry is fitted with toughened glass sneeze screen and side glass protection to the customer side of the display
Product illumination is from diffused lighting in the rectangular profile gantry
Flat glass profile is designed to complement other units within the Kubus range
Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
3 hinged rear double glazed doors
Special-to-order. Non-returnable
Drinks display examples: bottled or canned drinks, water, lemonade, wine, juice. Food display examples : Pies, pasties, sausage rolls, baguettes, rolls, cakes & fruit
Features 3 chilled toughened glass display shelves with adjustable height and angle
The 4/1 GN well display area & shelves are chilled by energy efficient hydrocarbon refrigerant (R290)
Assisted service. (Rear doors)

The CED Kubus CW647 (KMDR4HT) is a drop-in multideck display fridge — a self-service, open-fronted cabinet designed to sit into a counter or gondola run and merchandise chilled grab-and-go stock.

Downloads

SPECIFICATION 29 facts · tap for all Width1525 mmDepth660 mmHeight775 mmGross weight212 kgVoltage230VTemperature range-1 to +5 °C

Identity5

Brand Kubussite
Product code CW647site
Seo name Kubus Drop In Multideck Self Servicecatalogue
Type Multideckscatalogue
Warranty 1 Yearcatalogue

Size & weight6

Depth 660 mmcatalogue
External (W×D×H) 775 × 1525 × 660 mmcatalogue
Gross weight 212 kgcatalogue
Height 775 mmcatalogue
Internal (W×D×H) 898 × 1480 × 552 mmcatalogue
Width 1525 mmsite

Capacity6

Capacity 4 x 1/1 GNcatalogue
Door type Slidingcatalogue
Doors 2catalogue
Gastronorm size 1/1 GN fullcatalogue
Product capacity 232.5catalogue
Shelves 3catalogue

Performance3

Cooling Fan Assistcatalogue
Refrigerant R290 / GWP 3 / 500gcatalogue
Temperature range -1 to +5 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 1730 Wcatalogue
Voltage 230Vcatalogue

Build & fittings3

Colour Silvercatalogue
Doorocation Backcatalogue
Finish (exterior) Stainless Steelcatalogue

Other stated facts3

Mobility Feetcatalogue
Noise level 70.7 dB(A)catalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this multideck earns its place

The CW647 is a drop-in multideck from CED's Kubus range, a self-service display cabinet built to be set into a counter, island or gondola run rather than stand alone. At 1,525 mm wide, 660 mm deep and 775 mm tall, it is a generous full-height cabinet — not a compact drop-in, but a substantial merchandising platform. The open, multi-shelf front puts chilled grab-and-go lines — drinks, sandwiches, snacks and food-to-go — within easy reach for self-select shoppers across its three adjustable toughened glass shelves.

Multidecks are built to sell on impulse: open shelves keep stock visible and easy to grab, which is what makes the format work for high-turnover convenience and food-to-go. The CW647 holds up to 232 litres of chilled stock at −1 to +5 °C and is built to standard catering dimensions — the cold well below the shelves accepts full-size gastronorm pans (1/1 GN). Stainless steel construction and R290 hydrocarbon refrigerant make it both durable and environmentally efficient. Keep the shelves faced up and the air path clear, and check the exact temperature band and energy figures on the spec sheet to confirm it suits the product before you load it.

Because it is a drop-in, the CW647 is designed to be built into a counter or run, so the opening it sits in has to be right. At 212 kg, it requires proper handling at delivery and positioning. Plan the aperture, the services and access around the cabinet's 1,525 mm width, and confirm the full cut-out dimensions and electrical requirement from the spec sheet before any joinery is cut.

BEFORE YOU BUY

Questions, answered straight

A drop-in multideck is designed to be set into a counter, island or gondola rather than stand on its own. You build an aperture for it and drop the cabinet in, so the opening and services need to be prepared to suit the cabinet before it goes in.

The CW647 is 1,525 mm wide, 660 mm deep and 775 mm tall — a substantial full-height platform. Plan your counter aperture and access around those dimensions, and confirm the exact cut-out requirements from the spec sheet before any joinery is cut.

It is a self-service multideck for chilled grab-and-go lines — drinks, sandwiches, snacks and food-to-go — on open shelves that customers select from directly. It holds 232 litres at −1 to +5 °C across three adjustable shelves, and the gastronorm-sized cold well below accepts standard catering pans. Check the temperature band to confirm it suits the products you plan to stock.

Take the cabinet's energy figures from the spec sheet and run them through the energy label decoder below to convert them into pounds per year on your own tariff.

Yes. Because it is a built-in cabinet, installation is best planned alongside the counter or joinery. Call the team on 01792 732702 to arrange delivery, fitting and service cover.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT CW647 Product Data

Brand Kubus
Type Multidecks
Dimensions 775(H) x 1525(W) x 660(D)mm
Capacity 4 x 1/1 GN
Colour / Finish Silver
Temperature Range -1°C to 5°C
Refrigerant R290 / GWP 3 / 500g
Cooling Fan Assist
Number of Doors 2
Number of Shelves 3
Noise Level 70.7
Power 1.73kW, 230V, 13A
Voltage 230V
Fuel / Supply Plug
Warranty 1 Year
Weight 212kg
Manufacturer Ref KMDR4HT
If you have any questions about the CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT CW647 then please get in touch.
