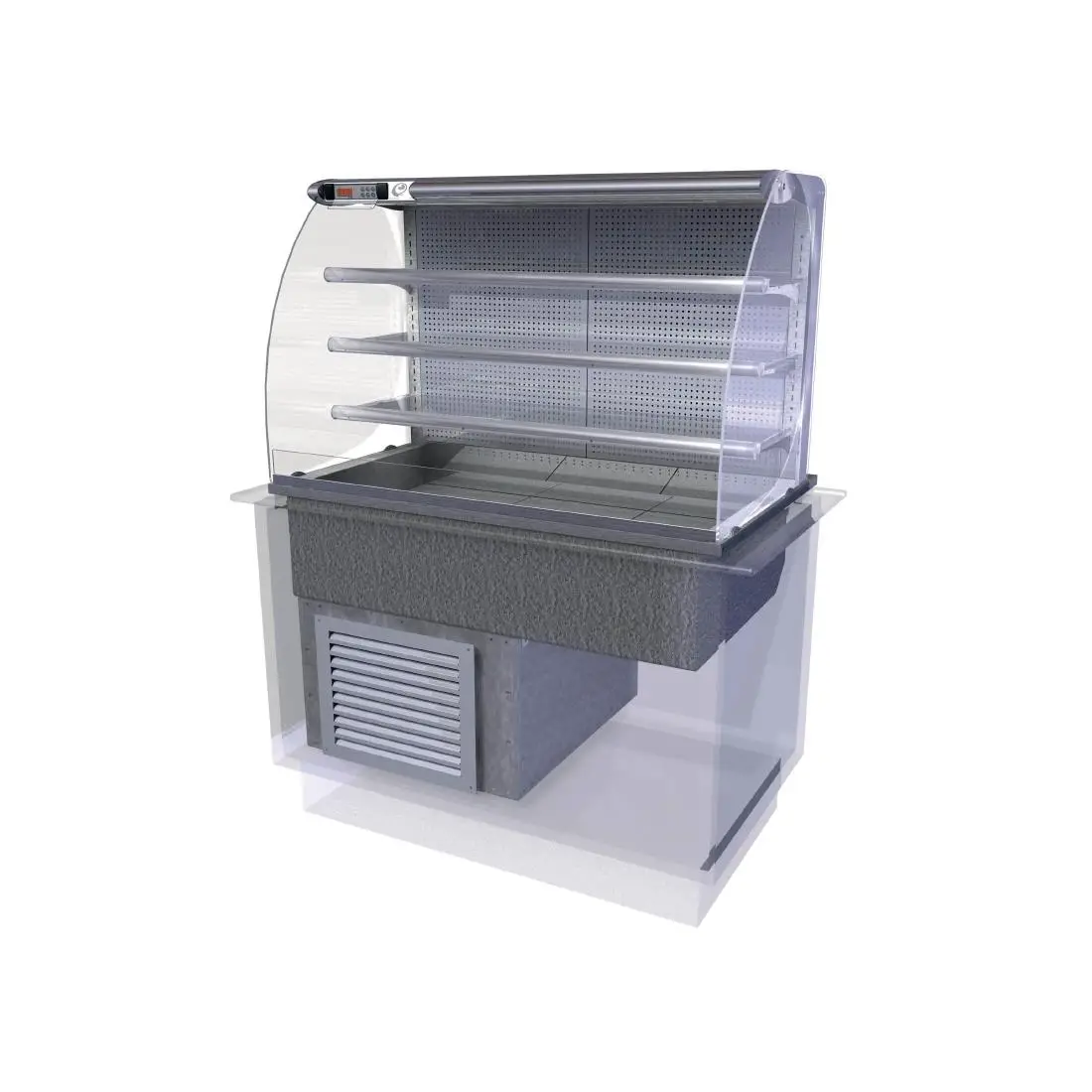

CED Designline Drop In Multideck 1525mm CW655

£4,880.71

+vat

Availability: 999 in stock

Brand:

SKU: CW655

Product summary

3 Shelves. Self Service. 1525mm Wide. Fixed Back

Product description

Illuminate, chill and display refrigerated food or drink with CED’s elliptical shaped Designline self help cold multideck ( Fixed Back ). This energy efficient 4/1 Gn size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The front loading multideck is designed for use in a wall sited countertop and fitting the air grills and rear vent supplied, provide the ventilation needed for the underslung refrigeration condensing unit. Toughened side glass protection provides protection to the customer side of the display. The display area features 3 no. chilled toughened glass display shelves, adustable in both height and angle, providing increased cold product display area within a minimum footprint. The front edge of each chilled shelf features a product stop and 40mm tall ‘point of sale’ display/ticket strip. The 4/1 Gn cold well area below the shelves provides further chilled merchandising. Product illumination is from diffused lighting in the elliptical profile gantry. The gantry also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to customer side of the display. The multideck has 24 hour operation & holds food core between 2 – 5 deg. C. The display area has bright polished steel inner perforated back panels and the self help superstructure is made from bright polished steel and alluminum elliptical profiles. Modular removable deck plates in the chilled multideck make for easier cleaning & an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with air inlet grills, rear vent, lifting kit and a 2m lead and plug top for installation. (1.73KW/13a/230v electrical supply ).

Elliptical gantry in bright polished steel, & aluminium, toughened glass side panels
Each chilled shelf features product stop and 40mm tall ‘point of sale’ display/ticket strip
Gantry is fitted with toughened side glass protection to the customer side of the display
Product illumination is from diffused lighting in the elliptical profile gantry
Curved glass profile is designed to complement other units within the Designline range
Ventilation grills, rear vent and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
Drinks display examples: bottled or canned drinks, water, lemonade, wine, juice. Food display examples : Pies, pasties, sausage rolls, baguettes, rolls, cakes & fruit
Special-to-order. Non-returnable
Features 3 chilled toughened glass display shelves with adjustable height and angle
The 4/1 GN well display area & shelves are chilled by energy efficient hydrocarbon refrigerant (R290)
Self service. (Fixed back)

The CED Designline CW655 is a 1525 mm wide fixed-back drop-in multideck with 4 x 1/1 GN chilled capacity, three adjustable glass shelves, fan-assisted R290 cooling and a -1 to +5 °C range for open-front grab-and-go display.

Downloads

SPECIFICATION 26 facts · tap for all Width1525 mmDepth735 mmHeight750 mmGross weight195 kgVoltage230VTemperature range-1 to +5 °C

Identity5

Brand Designlinesite
Product code CW655site
Seo name Designline Drop In Multideckcatalogue
Type Multideckscatalogue
Warranty 1 Yearcatalogue

Size & weight6

Depth 735 mmcatalogue
External (W×D×H) 750 × 1525 × 735 mmcatalogue
Gross weight 195 kgcatalogue
Height 750 mmcatalogue
Internal (W×D×H) 898 × 1480 × 552 mmcatalogue
Width 1525 mmsite

Capacity4

Capacity 4 x 1/1 GNcatalogue
Gastronorm size 1/1 GN fullcatalogue
Product capacity 268.6catalogue
Shelves 3catalogue

Performance3

Cooling Fan Assistcatalogue
Refrigerant R290 / GWP 3 / 500gcatalogue
Temperature range -1 to +5 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 1730 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Finish (exterior) Stainless Steelcatalogue

Other stated facts3

Mobility Feetcatalogue
Noise level 70.7 dB(A)catalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this multideck earns its place

The CW655 is the wider 1525 mm fixed-back Designline drop-in multideck, made for wall-sited countertop runs where chilled lines need to sit in the fixture rather than in a freestanding cabinet. It gives a 4 x 1/1 GN cold well beneath three chilled toughened-glass shelves, so you can build a broad self-help display for drinks, dairy, sandwiches, desserts and packaged impulse stock.

The display is fan-assisted and uses R290 refrigerant with a stated -1 to +5 °C temperature range; the manufacturer also describes 24-hour operation holding food core between 2 and 5 °C. The three shelves adjust in height and angle, with product stops and 40 mm ticket strips on the shelf fronts, while diffused lighting in the elliptical gantry gives the display a proper retail face.

This is the fixed-back version, with bright polished steel inner perforated back panels and front loading from the customer side. That makes it best for wall-sited runs where the operator does not need rear access. The stainless steel silver finish, toughened side glass and polished steel and aluminium superstructure keep the customer side neat, and removable deck plates help with deeper cleaning.

BEFORE YOU BUY

Questions, answered straight

It is an open-front tiered chilled display built to be recessed into a fixture or counter rather than stand on the floor. The CW655 is intended for a wall-sited countertop run, so the shopfit joinery, ventilation and services need planning before installation.

The display has three adjustable chilled toughened-glass shelves plus a 4 x 1/1 GN cold well below. The shelf fronts include product stops and 40 mm point-of-sale ticket strips.

Open-front multidecks suit high-turnover chilled lines such as drinks, dairy, food-to-go, snacking and impulse. Check the -1 to +5 °C operating range against the specific products you plan to hold.

No. The CW655 is the fixed-back, front-loading model with bright polished steel inner perforated back panels. Choose it for wall-sited fixtures where rear access is not required.

The unit is 1525 mm wide, 735 mm deep and 750 mm high, with a 195 kg gross weight. Confirm the aperture, ventilation path, delivery route and service access against those dimensions before ordering.

The specification lists a 230V supply and R290 refrigerant with GWP 3 and a 500g charge. The rated-input figure in the source data is flagged as conflicting, so confirm the final electrical load with your installer.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CED Designline Drop In Multideck 1525mm CW655 Product Data

Brand Designline
Type Multidecks
Dimensions 750(H) x 1525(W) x 735(D)mm
Capacity 4 x 1/1 GN
Colour / Finish Silver
Temperature Range -1°C to 5°C
Refrigerant R290 / GWP 3 / 500g
Cooling Fan Assist
Number of Shelves 3
Noise Level 70.7
Power 1.73kW, 230V, 13A
Voltage 230V
Fuel / Supply Plug
Warranty 1 Year
Weight 195kg
Manufacturer Ref MDF4HT
If you have any questions about the CED Designline Drop In Multideck 1525mm CW655 then please get in touch.
