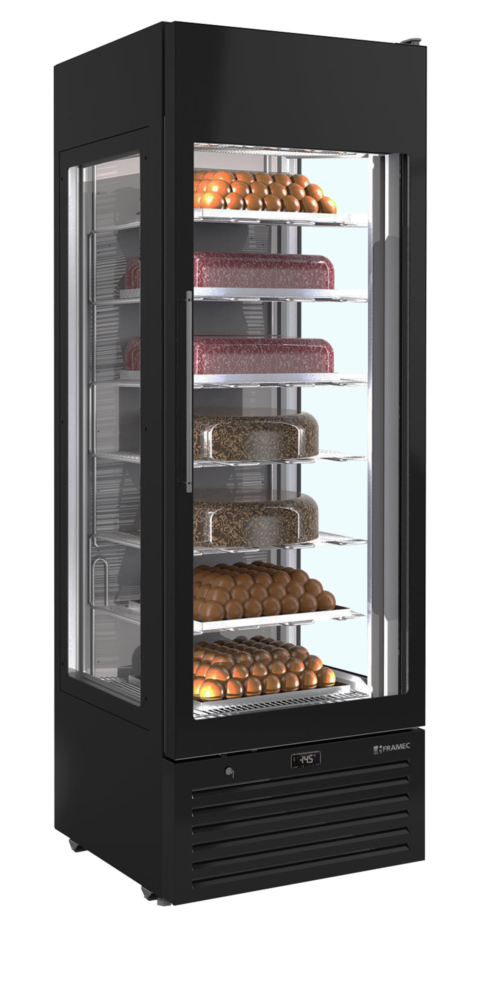

Framec VENERE NS Glass Display Freezer

£2,001.00

+vat

- +

Brand:

SKU: 20390

Energy Arrow

Product summary

  • Great product presentation

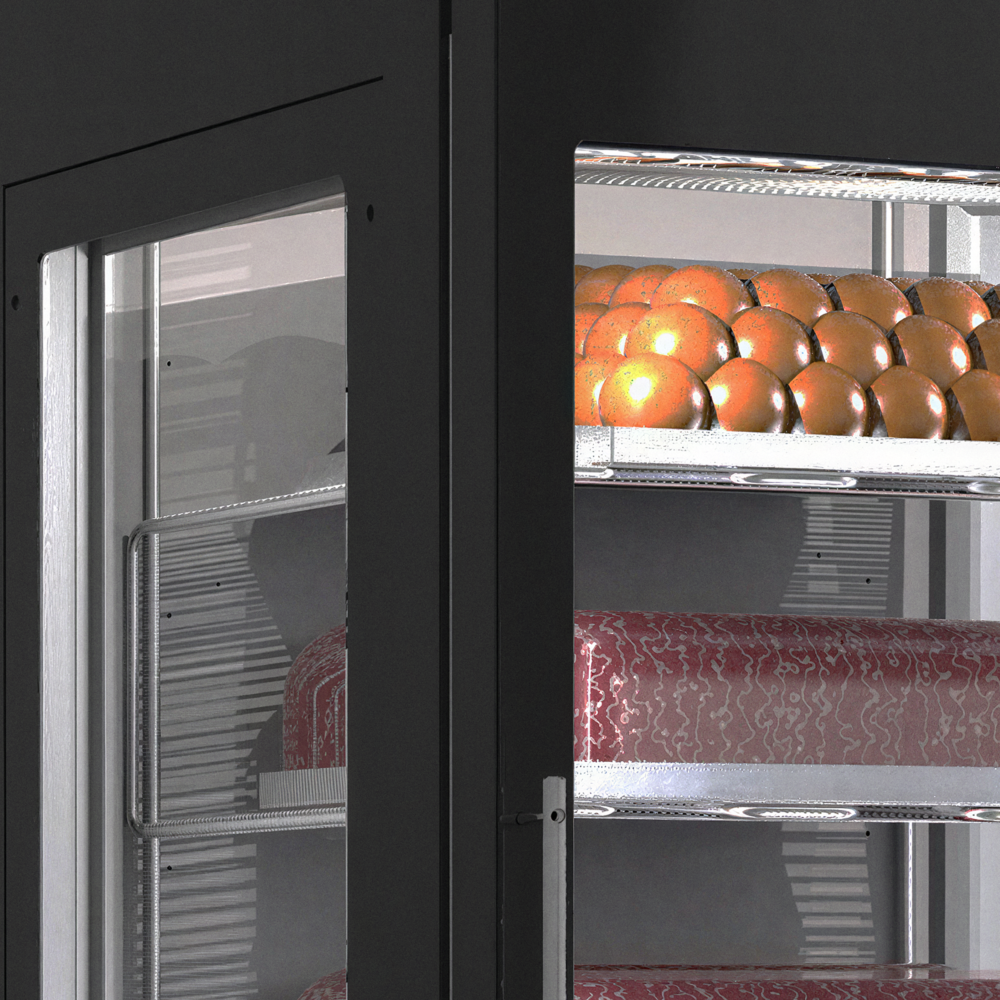

  • Frameless glass door
  • Triple glazed insulated glass
  • Internal vertical LED light
  • Static cooling
  • Fixed shelves
  • Digital controller and temperature display
  • Adjustable feet with rollers to rear

Product description

A static cooled display freezer. Each shelf is refrigerated to ensure even cooling over the whole cabinet. By not having a fan assisted unit helps to stop drying out of more delicate product. Great for ice cream cakes and other frozen desserts.

Downloads

SPECIFICATION 36 facts · tap for all External W × D × H668 x 773 x 2000 mmWidth668 mmDepth773 mmGross / net weight171 / 147 kgGross weight171 kgVoltage / frequency220-240/50 V/Hz

Manufacturer documents2

Identity6

Brand Framecsite
GTIN / EAN 5708181618193site
Product code 20390site
Sub title Glass Display Freezercatalogue
Type Flat Glass Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 773 mmsite
External (W×D×H) 668 × 773 × 2000 mmcatalogue
External W × D × H 668 x 773 x 2000 mmsite
Gross / net weight 171 / 147 kgsite
Gross weight 171 kgcatalogue
Height 2000 mmsite
Internal (W×D×H) 525 × 500 × 1516 mmcatalogue
Internal W × D × H 525 x 500 x 1516 mmsite
Packed (W×D×H) 745 × 775 × 2100 mmcatalogue
Packed W × D × H 745 x 775 x 2100 mmsite
Width 668 mmsite

Capacity2

Display area 1.7 m²site
Shelves 7catalogue

Performance7

Climate class 4site
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Temperature range -22 to -15site
Thermometer Yessite

Power & energy4

Annual energy consumption 2336 kWh/yearsite
Energy consumption 6.4 kWh/24hsite
Input power 520 Wsite
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Blacksite
Interior light LEDsite
Reversible doors Nosite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this flat glass cake display fridge earns its place

The Framec VENERE NS is an upright glass display freezer for merchandising frozen product behind glass. Seven shelves give 1.7 m² of display area in a black cabinet with a grey interior, so gateaux, desserts and packed frozen lines sit at eye level for the customer while staying sealed at temperature.

The cabinet holds -22 to -15 °C and uses manual defrost, so you schedule defrost around trading rather than losing display time to an automatic cycle. It is rated to climate class 4 and draws 520 W. At energy class C and 2336 kWh a year, running cost works out at about £584 a year at 25p/kWh.

The external footprint is 668 × 773 × 2000 mm (W×D×H), so the 668 mm width clears a standard doorway; check the 2000 mm height and 773 mm depth against your route in. Packed for delivery it measures 745 × 775 × 2100 mm and weighs 171 kg, or 147 kg net once unpacked. Power is a single 13 amp, 220-240 V/50 Hz supply, and cooling uses natural R290 refrigerant.

BEFORE YOU BUY

Questions, answered straight

It runs at -22 to -15 °C, a frozen band. Defrost is manual, so you schedule it around your trading hours rather than the cabinet running an automatic cycle.

The cabinet is 668 × 773 × 2000 mm (W×D×H), so the 668 mm width clears a standard doorway. Packed it is 745 × 775 × 2100 mm, so check the delivery route for the 775 mm width and 2100 mm height.

Seven shelves across 1.7 m² of display area, all behind glass with a grey interior.

It is energy class C and uses 2336 kWh a year, which is about £584 a year at 25p/kWh depending on your tariff.

A single 13 amp, 220-240 V/50 Hz supply. It draws 520 W and uses natural R290 refrigerant.

Yes. Craven Cooling services the cabinets it supplies; call the service team on 01792 732702 to arrange a visit or a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 525 x 500 x 1516 mm
External Dimension (WxDxH): 668 x 773 x 2000 mm
Packed Dimension (WxDxH): 745 x 775 x 2100 mm

Cooling and Functions

Type of Defrost: Manual
Refrigerant: R290
Thermometer: Yes

Power and Consumption

Energy Consumption: 6.4 kWh/24h
Temperature Range: -22 to -15 °C
Annual Energy Consumption: 2336 kWh/year m³
Input Power: 520 W
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -22 to -15 °C
Climate Class: 4
Gross / Net Weight: 171 / 147 kg
Gross / Net Volume: / l
Max Ambient: +30°C, 55% RH
Total Display Area: 1.7 m² m²

Design and Material

Door Reversible: No
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED
If you have any questions about the Framec VENERE NS Glass Display Freezer then please get in touch.
