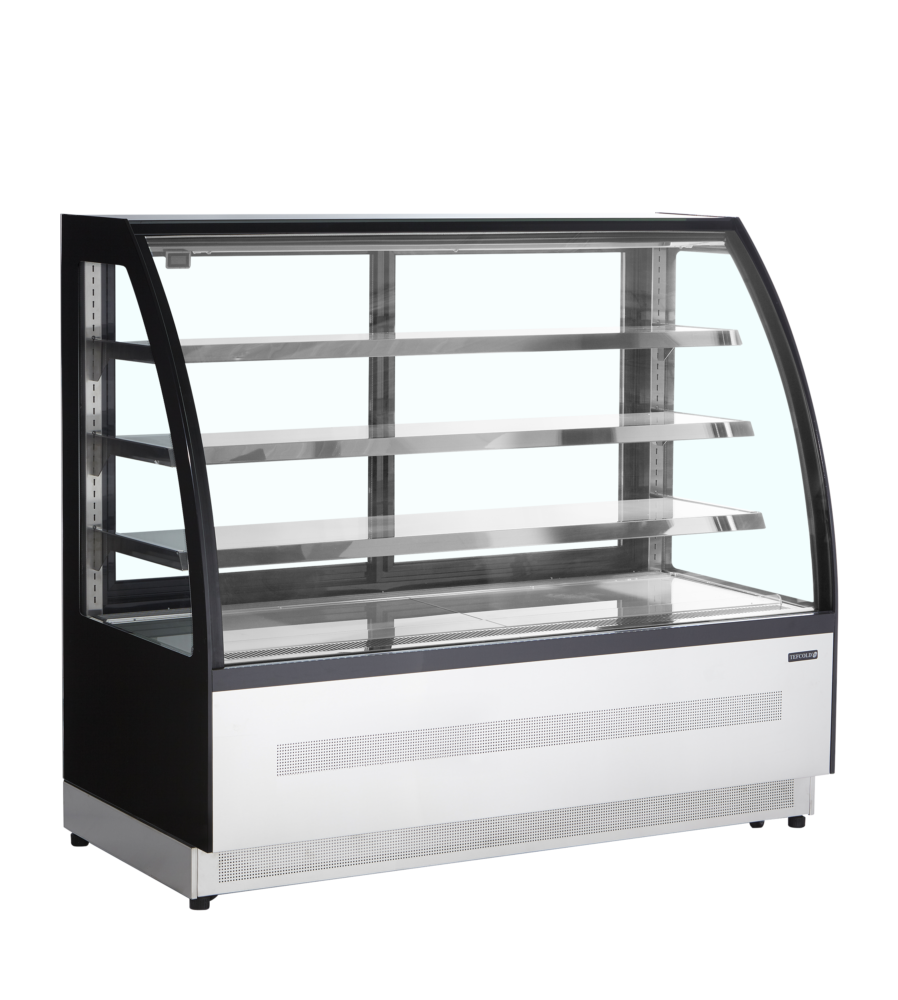

TEFCOLD LPD1700C Chilled Display Cabinet

£2,885.00 £1,651.00

+vat

Brand:

SKU: 20395

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable feet and castors
  • Adjustable shelves
  • LED interior light with switch
  • Digital controller and temperature display
  • Individually illuminated opaque white glass shelves
  • Anti mist front glass
  • Glass rear sliding doors

Product description

The Tefcold LPD1700C is a 1705 mm-wide curved-glass chilled display cabinet offering 2.75 m² of display across three glass shelves and a base, holding a +2 to +8 °C band with automatic off-cycle defrost and natural R290 refrigerant.

Sale!

Downloads

SPECIFICATION 42 facts · tap for all External W × D × H1705 x 745 x 1360 mmWidth1705 mmDepth745 mmGross / net weight383 / 313 kgGross weight383 kgVoltage / frequency220-240/50 V/Hz

Manufacturer documents2

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181991340site
Product code 20395site
Sub title Chilled Display Cabinetcatalogue
Type Curved Glass Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 745 mmsite
External (W×D×H) 1705 × 745 × 1360 mmcatalogue
External W × D × H 1705 x 745 x 1360 mmsite
Gross / net weight 383 / 313 kgsite
Gross weight 383 kgcatalogue
Height 1360 mmsite
Internal (W×D×H) 1550 × 580 × 780 mmcatalogue
Internal W × D × H 1550 x 580 x 780 mmsite
Packed (W×D×H) 1760 × 800 × 1500 mmcatalogue
Packed W × D × H 1760 x 800 x 1500 mmsite
Width 1705 mmsite

Capacity2

Display area 2.75 m²site
Gross volume 1721 litrescatalogue

Performance8

Climate class 3site
Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 700 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 5796 kWh/yearsite
Energy consumption 15.88 kWh/24hsite
Energy efficiency index 39 %site
Input power 690 Wsite
Noise level 58 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Castors 4 castorssite
Exterior finish Stainless steel / Glasssite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 33.7site
Shelf dimensions 155×23 / 155×28 / 155×33 / 155×44site

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this curved glass cake display fridge earns its place

The Tefcold LPD1700C is a curved-glass chilled display cabinet for cakes, desserts and patisserie, presenting stock across 2.75 m² of display on three glass shelves plus the base deck. Its stainless steel and glass build suits a café, bakery or patisserie counter where a large, high-visibility chilled display drives impulse sales. At 1705 mm wide it works as a statement front-of-house cabinet.

It holds a +2 to +8 °C band, suited to chilled cakes and cream products, with automatic off-cycle defrost to clear the coil during trading. It carries a climate class 3 rating, so it is built to hold temperature in warmer interiors. At its rated 5796.2 kWh a year, running cost is about £1449 a year at 25p/kWh, and it sits in energy class D.

The cabinet measures 1705 × 745 × 1360 mm (W×D×H); internally it offers 1550 × 580 × 780 mm of display space, and packed it is 1760 × 800 × 1500 mm, so check the delivery route and floor position. It weighs 313 kg net, runs from a standard 13 A, 220-240 V supply with a 690 W input, and uses 700 g of natural R290 refrigerant.

BEFORE YOU BUY

Questions, answered straight

The cabinet offers 2.75 m² of chilled display across three glass shelves plus the base deck, behind curved glass. It is 1705 mm wide overall.

It runs a +2 to +8 °C band, suited to chilled cakes, desserts and cream products, with automatic off-cycle defrost to keep the coil clear during service.

At its rated 5796.2 kWh a year, running cost is about £1449 a year at 25p/kWh, and it sits in energy class D. Actual cost depends on your tariff and how hard it works.

The cabinet is 1705 × 745 × 1360 mm (W×D×H) and 1760 × 800 × 1500 mm packed, so check the delivery route and doorway. It weighs 313 kg net, so plan a solid floor position.

It uses 700 g of natural R290 refrigerant and runs from a standard 13 A, 220-240 V supply with a 690 W input. No special electrics are needed beyond a dedicated socket.

Craven Cooling can arrange servicing and support; call 01792 732702. The cabinet uses automatic off-cycle defrost and R290 refrigerant.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1550 x 580 x 780 mm
External Dimension (WxDxH): 1705 x 745 x 1360 mm
Packed Dimension (WxDxH): 1760 x 800 x 1500 mm

Cooling and Functions

Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 700 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 15.88 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 5796 kWh/year m³
EEI: 39 %
Input Power: 690 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Temperature Range: +2 to +8 °C
Climate Class: 3
Gross / Net Weight: 383 / 313 kg
Gross / Net Volume: 1721 / l
Max Ambient: +25°C, 60% RH
Total Display Area: 2.75 m² m²

Design and Material

Shelf Dimensions: 155×23 / 155×28 / 155×33 / 155×44
Max load on Shelves: 33.7 kg/m²
Feet / Legs: 4 adjustable feet
Castors: 4 castors
Exterior Finish: Stainless steel / Glass
Interior Finish: Stainless steel / Glass
Interior Light: LED
If you have any questions about the TEFCOLD LPD1700C Chilled Display Cabinet then please get in touch.
