TEFCOLD LPD1500C Chilled Display Cabinet

£2,675.00 £1,532.00

+vat

Brand:

SKU: 19313

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable feet and castors
  • Adjustable shelves
  • LED interior light with switch
  • Digital controller and temperature display
  • Individually illuminated opaque white glass shelves
  • Anti mist front glass
  • Glass rear sliding doors

Product description

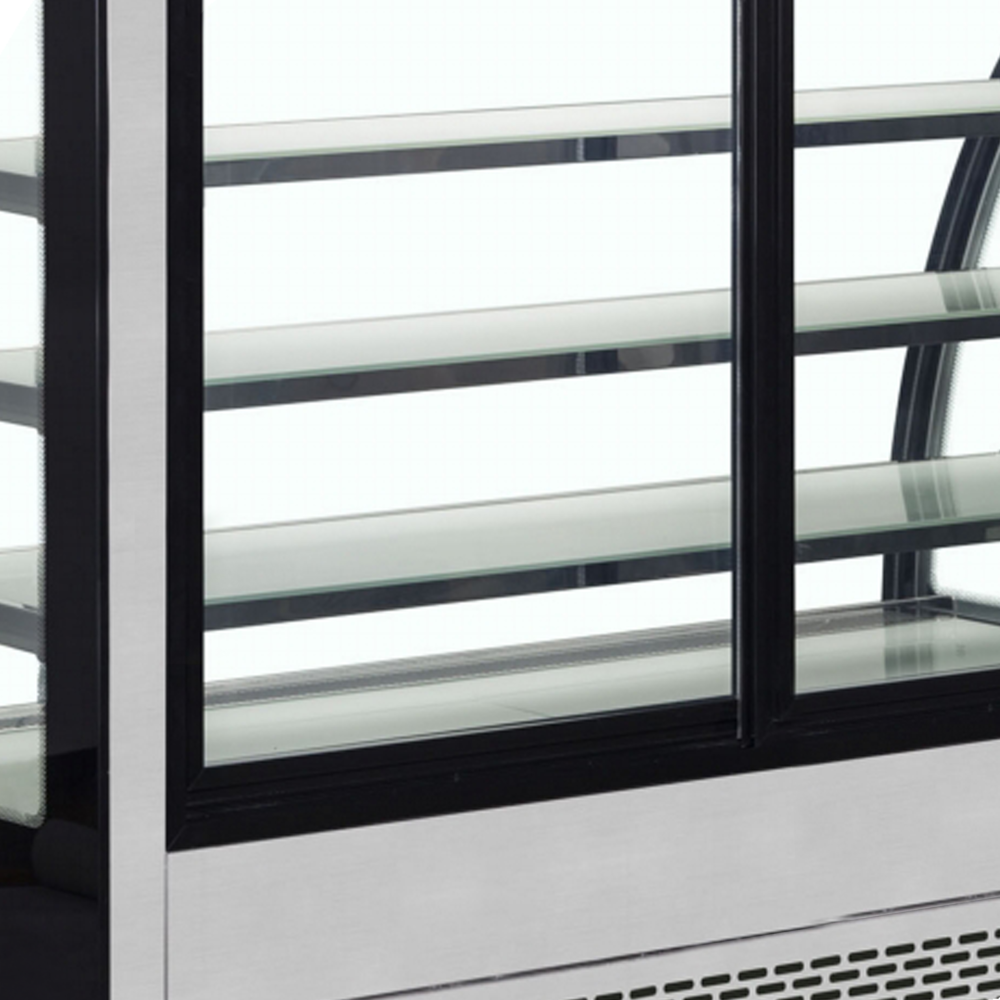

A premium range of refrigerated curved glass displays ideal for cafés and coffee shops. Suitable for deli or cake display and available in 4 different sizes, units have LED lighting under each shelf to help give an excellent display. Sliding doors to the rear allow easy loading and serving while double glazed glass helps to reduce running costs. Cabinets comes fitted with castors for easy movement with adjustable feet at each corner for positioning and levelling if required. Finished in stainless steel and gloss black glass.

The TEFCOLD LPD1500C is a curved-glass chilled display cabinet for cakes and patisserie, holding +2 to +8 °C across 2.47 m² of display with 277 litres net capacity, served through two sliding glass doors on natural R290 refrigerant.

Sale!
SPECIFICATION 47 facts · tap for all External W × D × H1505 x 745 x 1360 mmWidth1505 mmDepth745 mmGross / net weight315 / 275 kgGross weight315 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181991326site
Product code 19313site
Sub title Chilled Display Cabinetcatalogue
Type Curved Glass Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 745 mmsite
External (W×D×H) 1505 × 745 × 1360 mmcatalogue
External W × D × H 1505 x 745 x 1360 mmsite
Gross / net weight 315 / 275 kgsite
Gross weight 315 kgcatalogue
Height 1360 mmsite
Internal (W×D×H) 1350 × 580 × 780 mmcatalogue
Internal W × D × H 1350 x 580 x 780 mmsite
Packed (W×D×H) 1560 × 800 × 1480 mmcatalogue
Packed W × D × H 1560 x 800 x 1480 mmsite
Width 1505 mmsite

Capacity3

Display area 2.47 m²site
Doors 2catalogue
Gross volume 418 litrescatalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 140 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 4938 kWh/yearsite
Energy consumption 13.53 kWh/24hsite
Energy efficiency index 35 %site
Input power 798 Wsite
Noise level 58 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Castors 4 castorssite
Exterior finish Stainless steel / Glasssite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 33.7site
Reversible doors Nosite
Shelf dimensions 135×23 / 135×28 / 135×33 / 135×44site

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this curved glass cake display fridge earns its place

The TEFCOLD LPD1500C is a curved-glass chilled display cabinet for cakes and patisserie, built to put product on full show. It offers 2.47 m² of display across three glass shelves plus the base, with 418 litres of gross capacity (277 litres net usable), in a stainless steel and glass finish, and two sliding glass doors giving serving access.

It holds a chilled band of +2 to +8 °C with automatic off-cycle defrost, so there is no manual defrost routine to run. An electronic controller manages the temperature, and the cabinet carries a climate class 3 rating. Cooling uses natural hydrocarbon R290 refrigerant with a 140 g charge.

Externally it measures 1505 × 745 × 1360 mm (W×D×H) and weighs 275 kg net (315 kg gross), so plan the handling and floor route. It ships packed at 1560 × 800 × 1480 mm, worth checking against your delivery doorway before it arrives. It runs from a standard 13 A supply drawing 798 W at 220-240 V.

BEFORE YOU BUY

Questions, answered straight

It runs at +2 to +8 °C, the chilled band for cakes and patisserie. Automatic off-cycle defrost holds that band without a manual routine.

It gives 2.47 m² of display across three glass shelves plus the base, with 418 litres gross capacity and 277 litres net usable.

Rated energy use is 4938.4 kWh a year, which is about £1235 a year at 25p/kWh. It carries energy class D with an energy efficiency index of 35%.

The cabinet is 1505 mm wide installed and ships packed at 1560 × 800 × 1480 mm (W×D×H). It weighs 315 kg gross, so plan lifting and the floor route in advance.

It connects to a standard 13 A supply and draws 798 W at 220-240 V, 50 Hz. No special installation is needed beyond a suitable socket.

Yes — our engineers handle installation and servicing; call 01792 732702 to arrange. It uses R290 refrigerant and an electronic controller, both standard for our service team.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1350 x 580 x 780 mm
External Dimension (WxDxH): 1505 x 745 x 1360 mm
Packed Dimension (WxDxH): 1560 x 800 x 1480 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 140 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 13.53 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 4938 kWh/year m³
EEI: 35 %
Input Power: 798 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Temperature Range: +2 to +8 °C
Climate Class: 3
Gross / Net Weight: 315 / 275 kg
Gross / Net Volume: 418 / 277 l
Max Ambient: +25°C, 60% RH
Total Display Area: 2.47 m² m²

Design and Material

Door Reversible: No
Shelf Dimensions: 135×23 / 135×28 / 135×33 / 135×44
Max load on Shelves: 33.7 kg/m²
Feet / Legs: 4 adjustable feet
Castors: 4 castors
Exterior Finish: Stainless steel / Glass
Interior Finish: Stainless steel / Glass
Interior Light: LED
If you have any questions about the TEFCOLD LPD1500C Chilled Display Cabinet then please get in touch.
