TEFCOLD CW3 Buffet Display

£653.00

+vat

Brand:

SKU: 20019

Product summary

  • Static cooling
  • Digital controller and temperature display
  • Stainless steel construction
  • Suitable for building into counters
  • Accepts Gastronorm pans (not supplied)
  • Accepts GN1/1 pan(s) (not supplied)

Product description

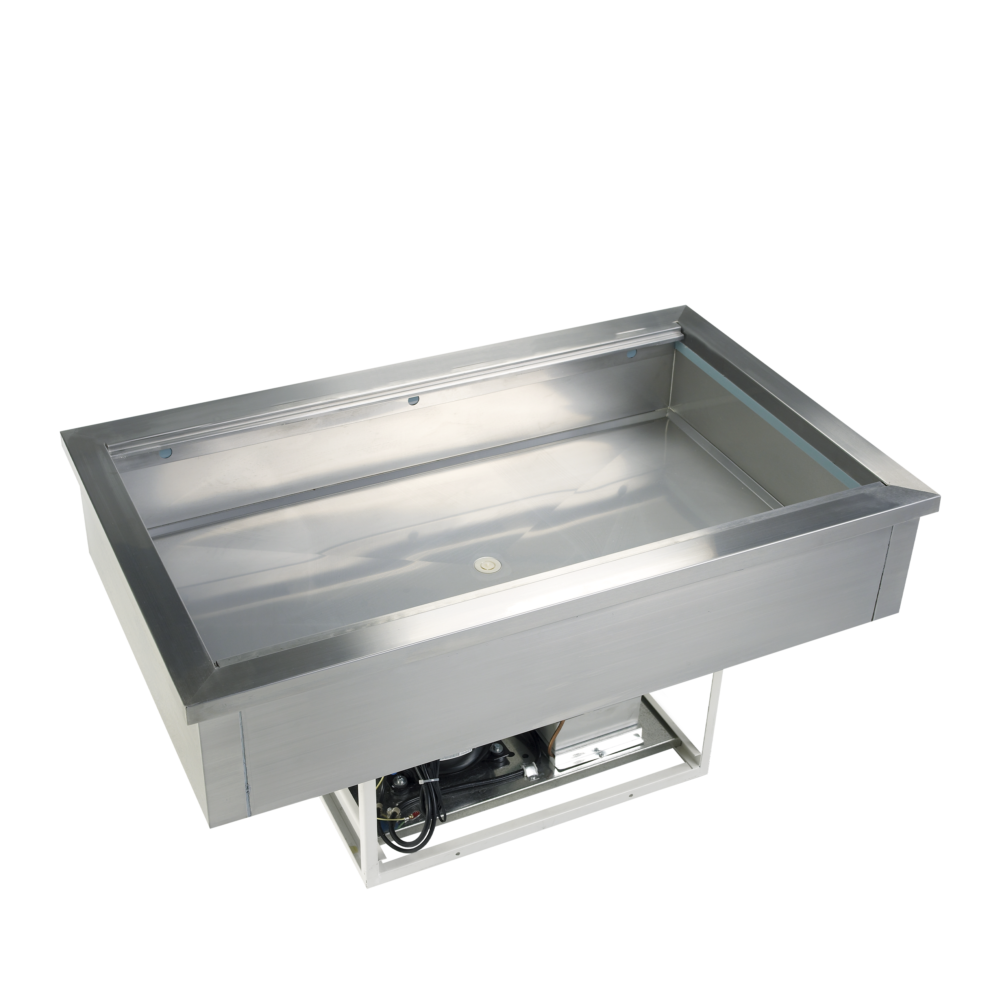

The Tefcold CW3 is a drop-in refrigerated buffet display that recesses into a counter to hold chilled food at +2 to +8 °C, measuring 1102 × 678 × 536 mm externally with a stainless steel finish and static cooling.

SPECIFICATION 38 facts · tap for all External W × D × H1102 x 678 x 536 mmWidth1102 mmDepth678 mmGross / net weight55 / 50 kgGross weight55 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181361129site
Product code 20019site
Sub title Buffet Displaycatalogue
Type Drop-In Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 678 mmsite
External (W×D×H) 1102 × 678 × 536 mmcatalogue
External W × D × H 1102 x 678 x 536 mmsite
Gross / net weight 55 / 50 kgsite
Gross weight 55 kgcatalogue
Height 536 mmsite
Internal (W×D×H) 994 × 570 × 175 mmcatalogue
Internal W × D × H 994 x 570 x 175 mmsite
Packed (W×D×H) 1150 × 730 × 680 mmcatalogue
Packed W × D × H 1150 x 730 x 680 mmsite
Width 1102 mmsite

Capacity3

Capacity item specification 3 x GN1/1 pcscatalogue
GN pan capacity 3 x GN1/1site
Gross volume 104 litrescatalogue

Performance9

Controller Electronicsite
Cooling type Staticsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 70 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 1051 kWh/yearsite
Energy consumption 2.88 kWh/24hsite
Input power 122 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings1

Exterior finish Stainless steelsite
THE WORKING VIEW

Why this drop-in display fridge earns its place

The Tefcold CW3 is a drop-in buffet display designed to be recessed into a counter or servery, presenting chilled food from above at the point of service. The stainless steel well spans 1102 mm across the front and holds 104 litres gross, 102 litres net, keeping cold food on show through service without a separate cabinet taking floor space.

It runs static cooling across a +2 to +8 °C band with automatic defrost, managed by an electronic controller. Rated noise is 42 dB, quiet enough for a front-of-house servery. It uses 1051.2 kWh a year — about £263 a year at 25p/kWh.

External dimensions are 1102 mm wide, 678 mm deep and 536 mm tall, with the internal well measuring 994 × 570 × 175 mm — plan the counter cut-out and the depth needed below. Packed it ships at 1150 × 730 × 680 mm and 55 kg gross. It plugs into a standard 13 A socket, drawing 122 W at 220-240 V, and uses R600a refrigerant with a 70 g charge.

BEFORE YOU BUY

Questions, answered straight

It is a drop-in unit, recessed into a counter or servery from above. The cut-out needs to take the 1102 × 678 mm body with 536 mm of depth below, so plan the counter build around it.

It runs +2 to +8 °C on static cooling with automatic defrost, suitable for chilled prepared food and drinks on display. An electronic controller manages the temperature.

It uses 1051.2 kWh a year, about £263 a year at 25p/kWh. The real figure depends on your tariff and ambient conditions.

Rated noise is 42 dB, quiet enough for a customer-facing servery. It draws 122 W at 220-240 V from a standard 13 A socket.

It uses R600a, a low-GWP hydrocarbon refrigerant, with a 70 g charge.

Yes, we service the refrigeration we supply. Call the team on 01792 732702 to arrange servicing or parts.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 994 x 570 x 175 mm
External Dimension (WxDxH): 1102 x 678 x 536 mm
Packed Dimension (WxDxH): 1150 x 730 x 680 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 70 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.88 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 1051 kWh/year m³
Input Power: 122 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Capacity GN Pans: 3 x GN1/1 pcs
Temperature Range: +2 to +8 °C
Gross / Net Weight: 55 / 50 kg
Gross / Net Volume: 104 / 102 l
Max Ambient: +30°C, 55% RH

Design and Material

Exterior Finish: Stainless steel
Interior Finish: Stainless steel
If you have any questions about the TEFCOLD CW3 Buffet Display then please get in touch.
