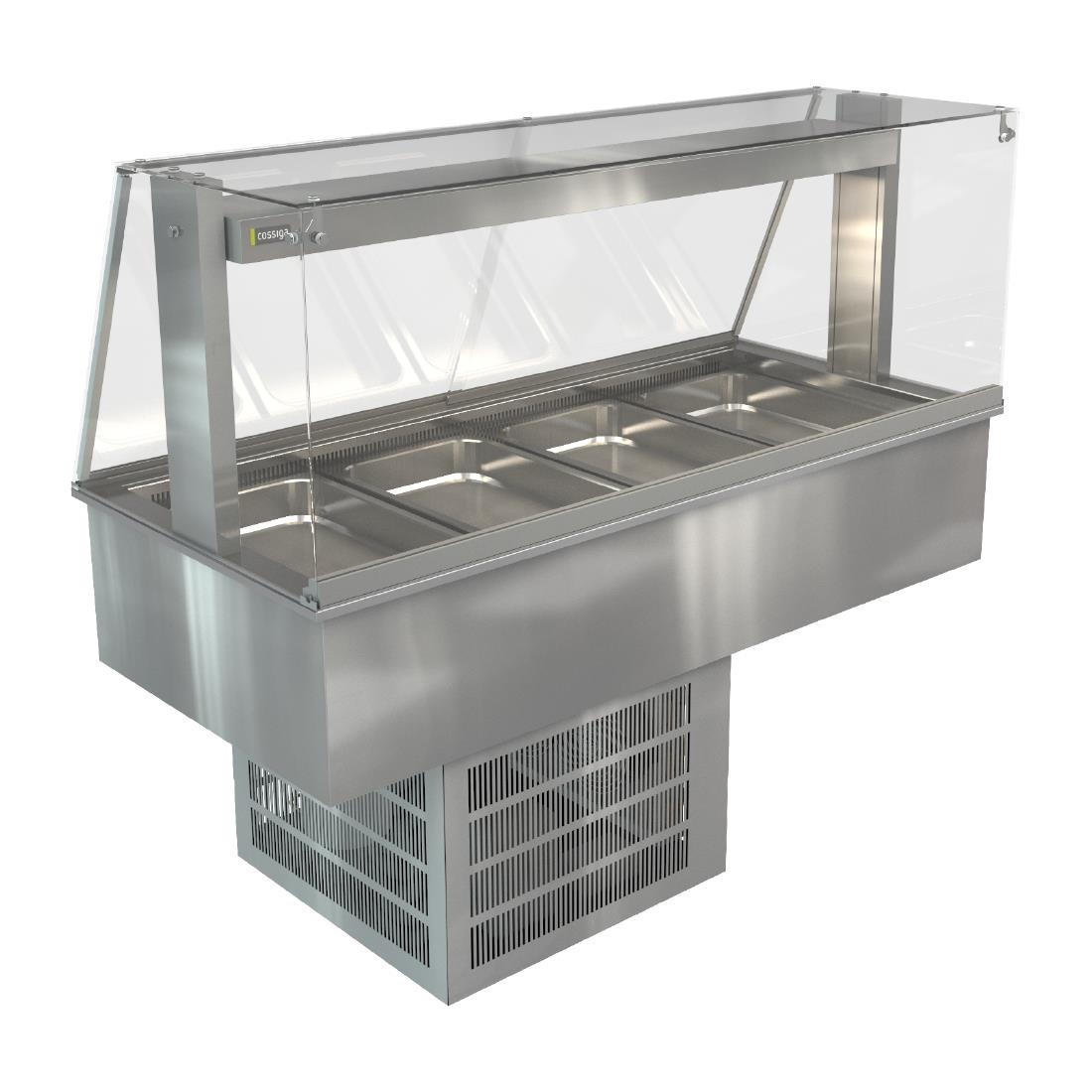

Cossiga Linear Series Drop-in Refrigerated Well Full Square Glass Gantry 1485mm HT632

£4,031.60

+vat

Availability: 999 in stock

- +

Brand:

SKU: HT632

Product summary

920W. Width: 1485mm

Product description

Perfect as part of an assisted food service area, the 1485mm wide Cossiga Linear Series drop-in refrigerated well provides a generous amount of open space for chilled food.

Whether it’s salads, fruit or desserts, the Cossiga Linear Series well delivers reliable storage and ease of access. It’s incredibly easy to clean too, with strong stainless steel construction throughout and removable pans. On top, the gantry provides appealing lighting to ensure the food looks its best, whilst also including a full front glass sneeze guard and rear acrylic doors for improved hygiene. The perfect addition to an assisted food service area.

This model is 1485mm wide. Other sizes are available – please select from the drop-down menu.

Strong and durable 304 grade stainless steel construction
Built-in gantry with lighting and full front sneeze guard
Built-in self evaporation reduces water build-up
Energy-saving lighting reduces running costs
Climate class: 3M1
Acrylic rear doors

Downloads

SPECIFICATION 19 facts · tap for all Width1485 mmDepth690 mmHeight555 mmGross weight152 kgVoltage220-240VTemperature range+3 to +5 °C

Identity5

Brand Cossigasite
Product code HT632site
Range / series Linearcatalogue
Type Salad Barscatalogue
Warranty 2 Yearscatalogue

Size & weight5

Depth 690 mmcatalogue
External (W×D×H) 555 × 1485 × 690 mmcatalogue
Gross weight 152 kgcatalogue
Height 555 mmcatalogue
Width 1485 mmsite

Capacity1

Gastronorm size 1/1 GN fullcatalogue

Performance2

Refrigerant R290 / GWP 3catalogue
Temperature range +3 to +5 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 0.92 Wcatalogue
Voltage 220-240Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material 304 Stainless Steelcatalogue

Other stated facts1

Plug notice Yescatalogue
THE WORKING VIEW

Why this salad bar earns its place

The HT632 is a 1485mm drop-in refrigerated well from Cossiga's Linear Series, designed to sit flush into a counter or servery rather than stand on the floor. A full square glass gantry runs the length of the well, framing the product and keeping the display open to the customer. It suits operators building a fixed servery — a café counter, a deli line, a bakery front — where the refrigeration disappears into the fit-out and the food carries the display.

Because it is a drop-in unit, the well is recessed into your own counter joinery, presenting product at the surface where staff and customers reach in. It is specified for +3 to +5 °C operation, 1/1 GN full-size format, R290 refrigerant and 304 stainless-steel construction. The removable pans help cleaning, while the gantry adds display lighting, a full front glass sneeze guard and rear acrylic doors for staff access.

As a drop-in, the HT632 installs into a prepared aperture in your counter, so the well and gantry need to be planned into the joinery from the start. The external size is 555 × 1485 × 690 mm, with a 152 kg gross weight and 220-240V supply, so confirm the cut-out, support, access and power before your fabricator cuts anything. Our team can talk the fit through if you are speccing a new servery from scratch.

BEFORE YOU BUY

Questions, answered straight

It is a drop-in unit, designed to be recessed into a prepared aperture in your own counter rather than stand on the floor. Plan the well and gantry into the joinery from the start, using its 555 × 1485 × 690 mm external size as the starting point.

It is 1485mm wide, with a 690mm depth and 555mm height in the supplier specification. Confirm the cut-out, support and clearances before your joiner prepares the aperture.

The full square glass gantry sits over the well to frame the display, provide lighting, add a front glass sneeze guard and keep rear acrylic doors available for staff access.

It is a refrigerated well suited to served and assisted-service display such as salads, fruit, desserts, patisserie and deli items. The supplier-stated operating range is +3 to +5 °C, so match that to your product before ordering.

Yes. If you are speccing a new servery our team can talk the drop-in aperture, services and layout through with you. Call the service and sales line on 01792 732702 with your counter drawings to hand.

The specification lists R290 refrigerant with GWP 3 and a 2 Years warranty. Call us if you need those details confirmed for a tender or specification.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Cossiga Linear Series Drop-in Refrigerated Well Full Square Glass Gantry 1485mm HT632 Product Data

Brand Cossiga
Type Salad Bars
Range Linear
Dimensions 555(H) x 1485(W) x 690(D)mm
Material 304 Stainless Steel
Colour / Finish Silver
Temperature Range 3°C to 5°C
Refrigerant R290 / GWP 3
Power 0.92W
Voltage 220-240V
Fuel / Supply Plug
Warranty 2 Years
Weight 152kg
Manufacturer Ref LSRF4 – FS
If you have any questions about the Cossiga Linear Series Drop-in Refrigerated Well Full Square Glass Gantry 1485mm HT632 then please get in touch.
