CombiSteel Drop-in Refrigerated Unit 4/1 – 160mm 7495.0060

£1,924.10

+vat

SKU: 7495.006

Product summary

Size W/D/H (mm) 1440 x 610 x 632

Product description

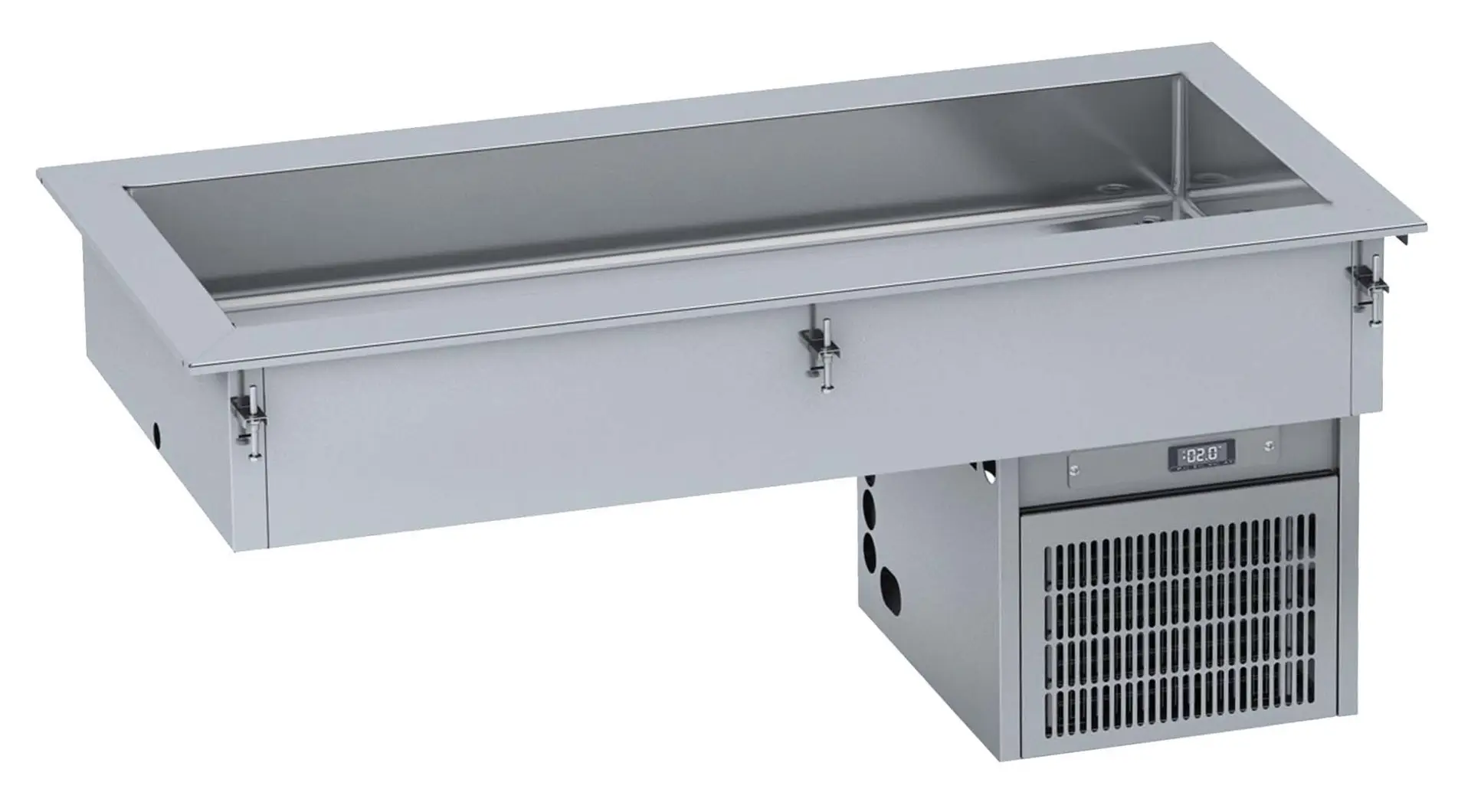

The Combisteel drop-in refrigerated unit is a self-contained cooled well that installs flush into a counter, buffet line or service island, holding chilled food on open display at the point of service.

Downloads

SPECIFICATION 22 facts · tap for all Width1440 mmDepth610 mmHeight632 mmGross / net weight75 kgGross weight76 kgNet weight73 kg

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7422242922972catalogue
Type Drop-In Display Fridgescatalogue

Size & weight7

Depth 610 mmsite
External (W×D×H) 1440 × 720 × 632 mmcatalogue
Gross / net weight 75 kgsite
Gross weight 76 kgcatalogue
Height 632 mmsite
Net weight 73 kgcatalogue
Width 1440 mmsite

Capacity2

Capacity 4/1 GNcatalogue
Gastronorm size 4/1catalogue

Performance3

Cooling type R 290site
Refrigerant R290catalogue
Temperature range +0/+8site

Power & energy6

Energy consumption 0,295site
Frequency 50 Hzcatalogue
Rated input 320 Wcatalogue
Rated power 295 kWcatalogue
Voltage 230 Vcatalogue
Voltage / frequency 23050site

Build & fittings1

Material Stainless steelcatalogue
THE WORKING VIEW

Why this drop-in display fridge earns its place

A drop-in refrigerated unit turns a section of counter into a working chilled display. Instead of a freestanding cabinet, it sits flush in the worktop so the refrigeration disappears into the joinery and the cold food stays in full view. It is built for operators putting together a bespoke counter or buffet run — plated desserts, salads, chilled starters and grab-and-go lines presented at the exact point customers or staff serve from. This 4/1 model is 1440 mm wide, 610 mm deep and 632 mm tall, holding a full four-pan gastronorm layout.

Day to day it holds food in an open, chilled well at +0 to +8 °C with no doors between plating and serving, so it loads fast and serves fast across a busy shift. It uses static cooling, so there is no fan noise — quiet for front-of-house use. The unit weighs 75 kg and runs on 230V single phase at 50 Hz, drawing 295 W. It is a display well rather than bulk storage: it holds products that are already cold at service temperature and is topped up from a back-of-house fridge, not used to pull large quantities down from warm.

Because it drops into the worktop, the aperture and service access have to be planned into the counter before it is built. The exact cut-out dimensions are 1440 mm wide, 610 mm deep and 632 mm tall. Confirm these against your counter and the units either side, leaving the well reachable so the refrigeration can be serviced in place.

BEFORE YOU BUY

Questions, answered straight

It is a self-contained refrigerated well designed to sit flush inside a counter or buffet line rather than stand alone. It keeps chilled food on open display at the point of service, so it becomes part of your counter joinery instead of a separate cabinet.

The unit is 1440 mm wide, 610 mm deep and 632 mm tall. Because it drops into a worktop, the aperture must match these dimensions exactly. Confirm the cut-out and below-counter depth against your counter build before the joinery is made.

It is built as a display well to hold already-chilled food at service temperature, not as bulk storage to pull large quantities down from warm. Load it from a back-of-house fridge and top it up through service.

Yes — it is designed to be built into a counter, so plan the aperture (1440 mm × 610 mm), power (230V, 50 Hz, 295 W) and service access into the counter design from the start. Keep the unit reachable for maintenance once it is fitted.

It holds food from +0 to +8 °C, ideal for prepared dishes, salads, desserts and deli items. Match this temperature band against the food you intend to display to confirm it suits your products.

Craven Cooling can advise on installation, siting and ongoing servicing. Call the team on 01792 732702 to talk through your counter build before you order.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Drop-in Refrigerated Unit 4/1 – 160mm 7495.0060 Product Data

Brand CombiSteel
Dimensions 1440 x 720 x 632 mm (W x D x H)
Capacity 4/1 GN
Material Stainless steel
Temperature Range +4 / +8 °C
Refrigerant R290
Power 0.32 kW
Voltage 230 V
Weight 76 kg (gross)
If you have any questions about the CombiSteel Drop-in Refrigerated Unit 4/1 – 160mm 7495.0060 then please get in touch.
