CombiSteel Drop-in Refrigerated Top Unit 6/1 7495.0025

£2,393.27

+vat

SKU: 7495.0025

Product summary

Size W/D/H (mm) x x

Product description

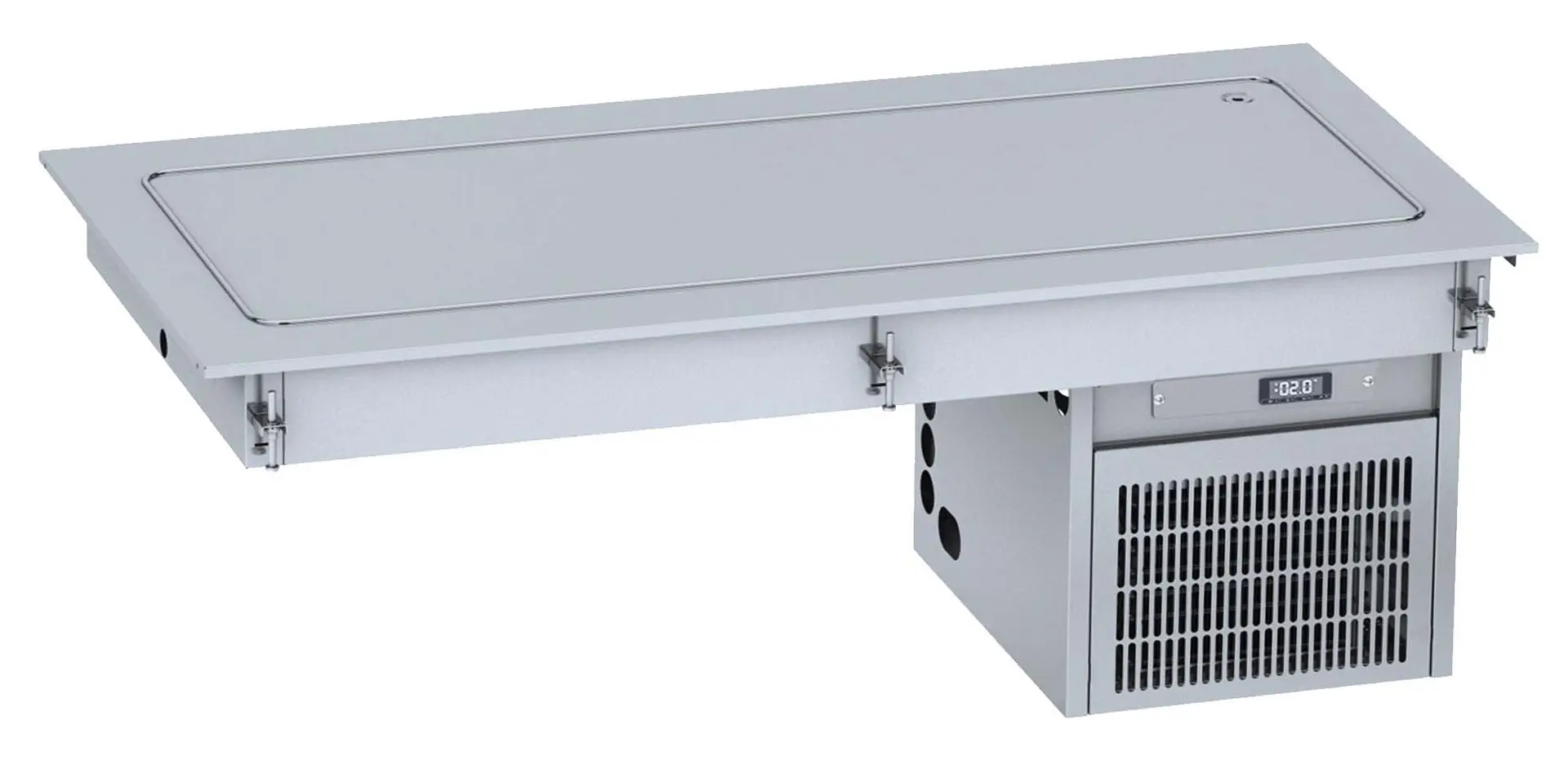

The Combisteel Drop-In Refrigerated Top Unit 6/1 is a self-contained refrigerated well built to drop into a buffet counter or servery top, creating a chilled surface that holds gastronorm pans of prepared food at safe serving temperature within a fixed servery run.

Downloads

SPECIFICATION 18 facts · tap for all Width2090 mmDepth610 mmHeight476 mmGross / net weight78 kgGross weight66 kgVoltage / frequency23050

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7422242922903catalogue
Type Drop-In Display Fridgescatalogue

Size & weight6

Depth 610 mmsite
External (W×D×H) 2090 × 610 × 476 mmcatalogue
Gross / net weight 78 kgsite
Gross weight 66 kgcatalogue
Height 476 mmsite
Width 2090 mmsite

Capacity1

Gastronorm size 6/1catalogue

Performance2

Cooling type R 290site
Temperature range -10/+5site

Power & energy6

Energy consumption 0,49site
Frequency 50 Hzcatalogue
Rated input 490 Wcatalogue
Rated power 49 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site
THE WORKING VIEW

Why this drop-in display fridge earns its place

The Drop-In Refrigerated Top Unit 6/1 is a built-in refrigerated display well designed to be recessed into a buffet counter, servery or bespoke island rather than used as a standalone cabinet. It gives a chilled top surface sized around gastronorm pans, so a run of prepared dishes, salads, desserts or grab-and-go items can be presented cold in a fixed servery. It suits sites building a permanent buffet or counter line rather than moving displays around.

In use it keeps gastronorm pans of prepared food chilled from the counter surface through a service period, holding presentation stock at a safe cold temperature while it is on show. Because it is integrated into the counter, the food sits flush in the servery top where customers or staff can reach it. The unit maintains a temperature range of −10 to +5 °C, sufficient for chilled food display and holding.

This is a drop-in unit, so it is installed into an aperture cut in the counter or servery and wired in, rather than simply plugged in and placed. The counter has to be built or cut to take it, and the aperture dimensions (2090 mm wide × 610 mm deep × 476 mm high externally) and electrical requirements should go to your counter fabricator or installer before any joinery is done. The unit weighs approximately 78 kg when full and operates on a standard 230V supply.

BEFORE YOU BUY

Questions, answered straight

It is a refrigerated well built to be recessed into a counter or servery top, giving a chilled surface for gastronorm pans of prepared food. It builds refrigeration into a fixed buffet or counter rather than working as a freestanding fridge.

The unit is sized around a gastronorm layout, so it takes standard GN pans of prepared food for display. The unit itself is 2090 mm wide and 610 mm deep, so plan your pan arrangement accordingly.

No. It is a built-in unit designed to be dropped into an aperture in a counter or servery and wired in, so it needs a counter built or cut to receive it.

Give them the external dimensions (2090 mm wide × 610 mm deep × 476 mm high), the weight of approximately 78 kg, and note it requires a 230V supply before any joinery starts, so the aperture and services are cut to suit.

It maintains food at −10 to +5 °C, which is suitable for holding prepared dishes, salads and desserts at a safe cold display temperature.

Craven Cooling supplies and services this refrigeration — call 01792 732702 to talk through installation requirements or arrange a service visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Drop-in Refrigerated Top Unit 6/1 7495.0025 Product Data

Brand CombiSteel
Dimensions (W×D×H) 2090 × 610 × 476 mm
GN Capacity 6/1
Temperature Range -10/+5
Refrigerant R 290
Cooling Static
Electrical Power 0.49 kW
Voltage 230V / 50Hz
Weight 66 kg
If you have any questions about the CombiSteel Drop-in Refrigerated Top Unit 6/1 7495.0025 then please get in touch.
