TEFCOLD DB126H Back Bar Cooler

£589.00 £331.00

+vat

Brand:

SKU: 47986

Energy Arrow

Product summary

  • Fully automatic
  • Double glazed tempered glass
  • Hinged glass doors
  • Ventilated cooling for fast pull-down and even temperature

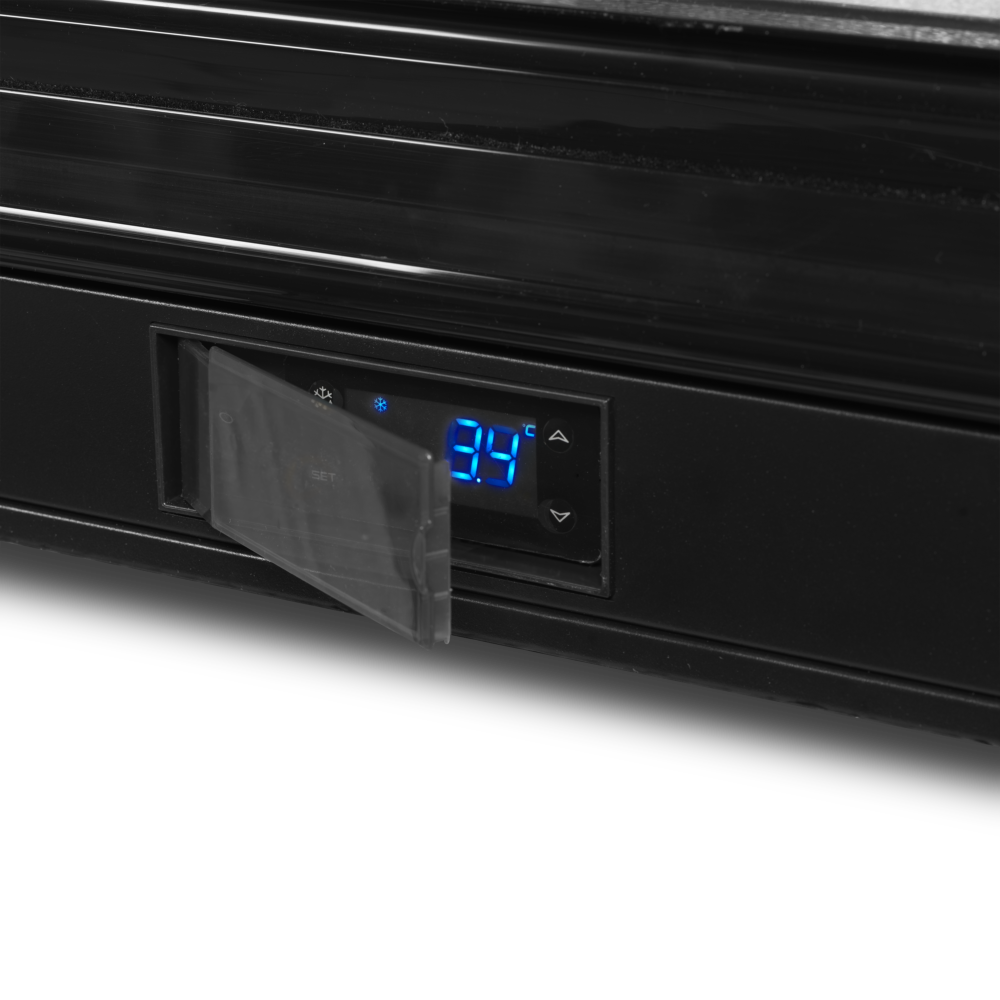

  • Easy access electronic thermostat
  • Adjustable shelves
  • Adjustable feet
  • LED interior light
  • Lock

Product description

Single door back bar cooler

The TEFCOLD DB back bar range offers high-quality and energy-efficient cooling solutions for cafés, bars and pubs. These coolers come in a single, double, and triple door models. The cabinets feature an efficient refrigeration system and fans that deliver powerful cooling with minimal energy consumption. Additionally, the units are equipped with a digital controller and temperature display and come with locks as standard. Customers can choose between hinged or sliding doors (excluding DB126H and DB106H).

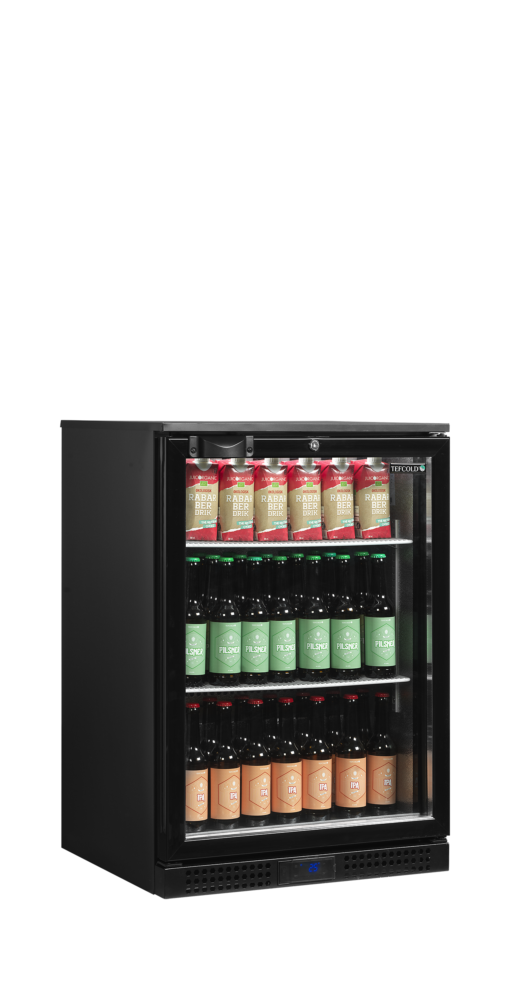

The TEFCOLD DB126H is a single-door back bar bottle cooler in black with a hinged glass door, holding +2 to +10 °C across 115 litres net on two wire shelves, rated A for energy at 350 kWh a year — about £88 a year at 25p/kWh.

Sale!
SPECIFICATION 50 facts · tap for all External W × D × H600 x 520 x 870 mmWidth600 mmDepth520 mmGross / net weight52 / 46 kgGross weight52 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181727956site
Product code 47986site
Sub title Back Bar Coolercatalogue
Type Single Door Bar Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 520 mmsite
External (W×D×H) 600 × 520 × 870 mmcatalogue
External W × D × H 600 x 520 x 870 mmsite
Gross / net weight 52 / 46 kgsite
Gross weight 52 kgcatalogue
Height 870 mmsite
Internal (W×D×H) 510 × 418 × 720 mmcatalogue
Internal W × D × H 510 x 418 x 720 mmsite
Packed (W×D×H) 685 × 575 × 940 mmcatalogue
Packed W × D × H 685 x 575 x 940 mmsite
Width 600 mmsite

Capacity7

330ml bottles 84 pcssite
330ml cans 161 pcssite
500ml cans 112 pcssite
Display area 0.35 m²site
Doors 1catalogue
Gross volume 125 litrescatalogue
Shelves 2catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 55 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 350 kWh/yearsite
Energy consumption 0.96 kWh/24hsite
Energy efficiency index 9 %site
Input power 95 Wsite
Noise level 44 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Exterior finish Black RAL9005site
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 196site
Reversible doors Nosite
Shelf dimensions 495×350 mmsite

Other stated facts1

Energy class Acatalogue
THE WORKING VIEW

Why this single door bar fridge earns its place

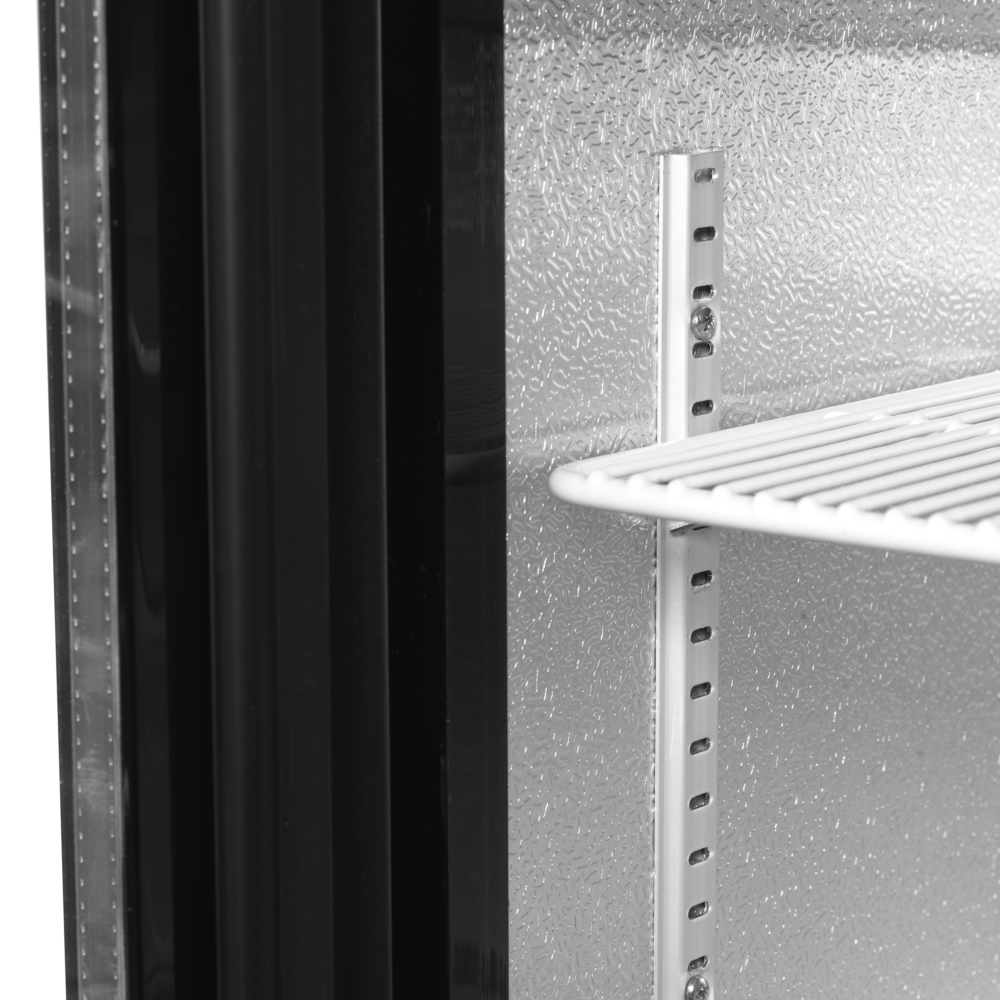

The TEFCOLD DB126H is a single-door back bar cooler finished in black RAL9005 with a hinged glass door, built to chill and display bottles and cans front of house. Two white wire shelves and 0.35 m² of display area put stock in view along a bar, and the stucco aluminium interior wipes down easily between shifts.

The cabinet holds +2 to +10 °C under electronic control, with ventilated cooling for even temperatures and automatic defrost. It sits in the A energy class with an efficiency index of 9%, drawing 350 kWh a year — about £88 a year at 25p/kWh. Sound output is rated at 44 dB, quiet enough to sit near seating, and it carries climate class 4 for warmer service environments.

At 600 × 520 × 870 mm externally it drops into a single bar bay, with an internal cavity of 510 × 418 × 720 mm. It runs from a 220–240 V supply at up to 13 A with a 95 W input, and cools on R600a refrigerant with a 55 g charge. Weight is 52 kg gross, 46 kg net.

BEFORE YOU BUY

Questions, answered straight

It measures 600 × 520 × 870 mm externally, a single-door footprint for one bar bay. Check your counter run clears the 870 mm height.

It is rated at 44 dB, low enough to run front of house near seating. Cooling is ventilated with automatic defrost.

It is A energy class, 350 kWh a year with an efficiency index of 9%, which is about £88 a year at 25p/kWh depending on your tariff.

115 litres net on two white wire shelves, with 0.35 m² of display area behind the glass door.

A 220–240 V supply at up to 13 A with a 95 W input, cooling on R600a with a 55 g charge.

Yes, we service and maintain commercial refrigeration. Call 01792 732702 to book a visit or set up a maintenance contract.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 510 x 418 x 720 mm
External Dimension (WxDxH): 600 x 545 x 870 mm
Packed Dimension (WxDxH): 685 x 575 x 940 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 55 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 0.96 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 350 kWh/year m³
EEI: 9 %
Input Power: 95 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 44 dB(A)

Measures and Content

Cans 330 ml: 113 pcs pcs
Cans 500 ml: 84 pcs pcs
Bottles 330 ml: 112 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 52 / 46 kg
Gross / Net Volume: 125 / 115 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.35 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 495×350 mm
Max load on Shelves: 196 kg/m²
Feet / Legs: 4 adjustable feet
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD DB126H Back Bar Cooler then please get in touch.
