TEFCOLD BA11H Back Bar Cooler

£421.00

+vat

Brand:

SKU: 46182

Energy Arrow

Product summary

  • EU Energy Class A
  • Approx. 59% more energy efficient than previous BA-range
  • Double glazed tempered glass
  • Reversible glass door
  • Ventilated cooling for fast pull-down and even temperature

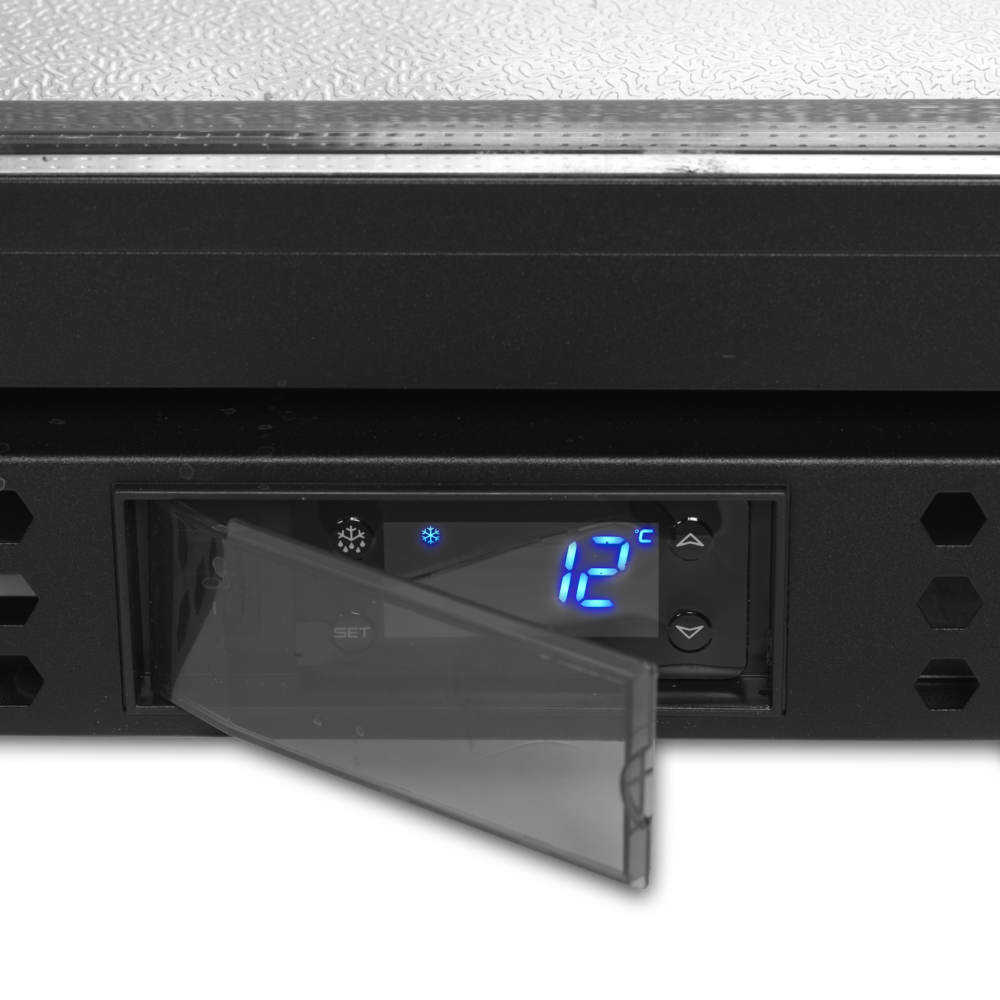

  • Easy access electronic thermostat
  • Adjustable shelves
  • LED interior light
  • Lock

Product description

High-quality backbar with low energy consumption

Experience the cutting-edge efficiency of the BA11H Back Bar Cooler with its impressive EU Energy Class A rating, surpassing predecessors by 59%. The double-glazed tempered glass and reversible door enhance energy savings and product visibility, catering to fast-paced hospitality settings. Stay efficient with ventilated cooling, customisable storage, and enhanced security. Illuminate selections with LED lights for a complete package of efficiency, convenience, and reliability. Elevate your beverage service standards effortlessly.

The TEFCOLD BA11H is a compact black single-door back bar cooler that keeps bottled drinks chilled and on display in tight bar runs, holding 118 litres at +2 to +10 °C for about £88 a year to run on energy class A.

SPECIFICATION 49 facts · tap for all External W × D × H600 x 545 x 900 mmWidth600 mmDepth545 mmGross / net weight53 / 47 kgGross weight53 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181739829site
Product code 46182site
Sub title Back Bar Coolercatalogue
Type Single Door Bar Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 545 mmsite
External (W×D×H) 600 × 545 × 900 mmcatalogue
External W × D × H 600 x 545 x 900 mmsite
Gross / net weight 53 / 47 kgsite
Gross weight 53 kgcatalogue
Height 900 mmsite
Internal (W×D×H) 510 × 418 × 734 mmcatalogue
Internal W × D × H 510 x 418 x 734 mmsite
Packed (W×D×H) 685 × 575 × 970 mmcatalogue
Packed W × D × H 685 x 575 x 970 mmsite
Width 600 mmsite

Capacity7

330ml bottles 96 pcssite
330ml cans 161 pcssite
500ml cans 112 pcssite
Display area 0.37 m²site
Doors 1catalogue
Gross volume 128 litrescatalogue
Shelves 2catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 55 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 350 kWh/yearsite
Energy consumption 0.96 kWh/24hsite
Energy efficiency index 9 %site
Input power 95 Wsite
Noise level 44 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Blacksite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Shelf dimensions 495×350 mmsite

Other stated facts1

Energy class Acatalogue
THE WORKING VIEW

Why this single door bar fridge earns its place

The BA11H is TEFCOLD's single door back bar cooler for tighter bar runs: a black exterior, stucco aluminium interior and a single hinged glass door giving 0.37 m² of display area. Net capacity is 118 litres (128 litres gross), so bottled stock stays chilled at point of serve and visible to the customer, in a cabinet that claims just 600 mm of back bar width.

It holds +2 to +10 °C using ventilated cooling, with automatic defrost and an electronic controller — set it and leave it, with no manual defrost routine. It runs at 44 dB(A) and is rated climate class 4 for warm front-of-house conditions. Energy class is A at 350 kWh a year, which works out at about £88 a year at 25p/kWh.

At 600 mm wide, 520 mm deep and 900 mm high it slots into most under-counter and back bar positions. It draws just 95 W from a 220–240 V 50 Hz supply on a standard 13 A plug. The refrigerant is R600a with a 55 g charge, the cabinet weighs 47 kg net, and it arrives packed at 685 × 575 × 970 mm.

BEFORE YOU BUY

Questions, answered straight

It measures 600 mm wide, 520 mm deep and 900 mm high externally. Check the height and depth of your under-counter space against those figures before you order.

Rated consumption is 350 kWh a year at energy class A. At 25p/kWh that is about £88 a year.

It holds +2 to +10 °C, the standard band for chilled bottled drinks, with 118 litres of net capacity and 0.37 m² of glass-fronted display area.

It runs at 44 dB(A) with ventilated cooling, and its climate class 4 rating means it is designed for warm, busy bar environments.

A standard 220–240 V 50 Hz socket on a 13 A plug, drawing 95 W. No dedicated circuit is needed.

Craven Cooling backs the cabinets it supplies with its own service support. Call 01792 732702 and the team will get an engineer organised.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 510 x 418 x 734 mm
External Dimension (WxDxH): 600 x 545 x 900 mm
Packed Dimension (WxDxH): 685 x 575 x 970 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 55 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 0.96 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 350 kWh/year m³
EEI: 9 %
Input Power: 95 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 44 dB(A)

Measures and Content

Cans 330 ml: 161 pcs pcs
Cans 500 ml: 112 pcs pcs
Bottles 330 ml: 96 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 53 / 47 kg
Gross / Net Volume: 128 / 118 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.37 m² m²

Design and Material

Door Reversible: Yes
Shelf Color: Chrome
Shelf Dimensions: 495×350 mm
Feet / Legs: 4 adjustable feet
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD BA11H Back Bar Cooler then please get in touch.
